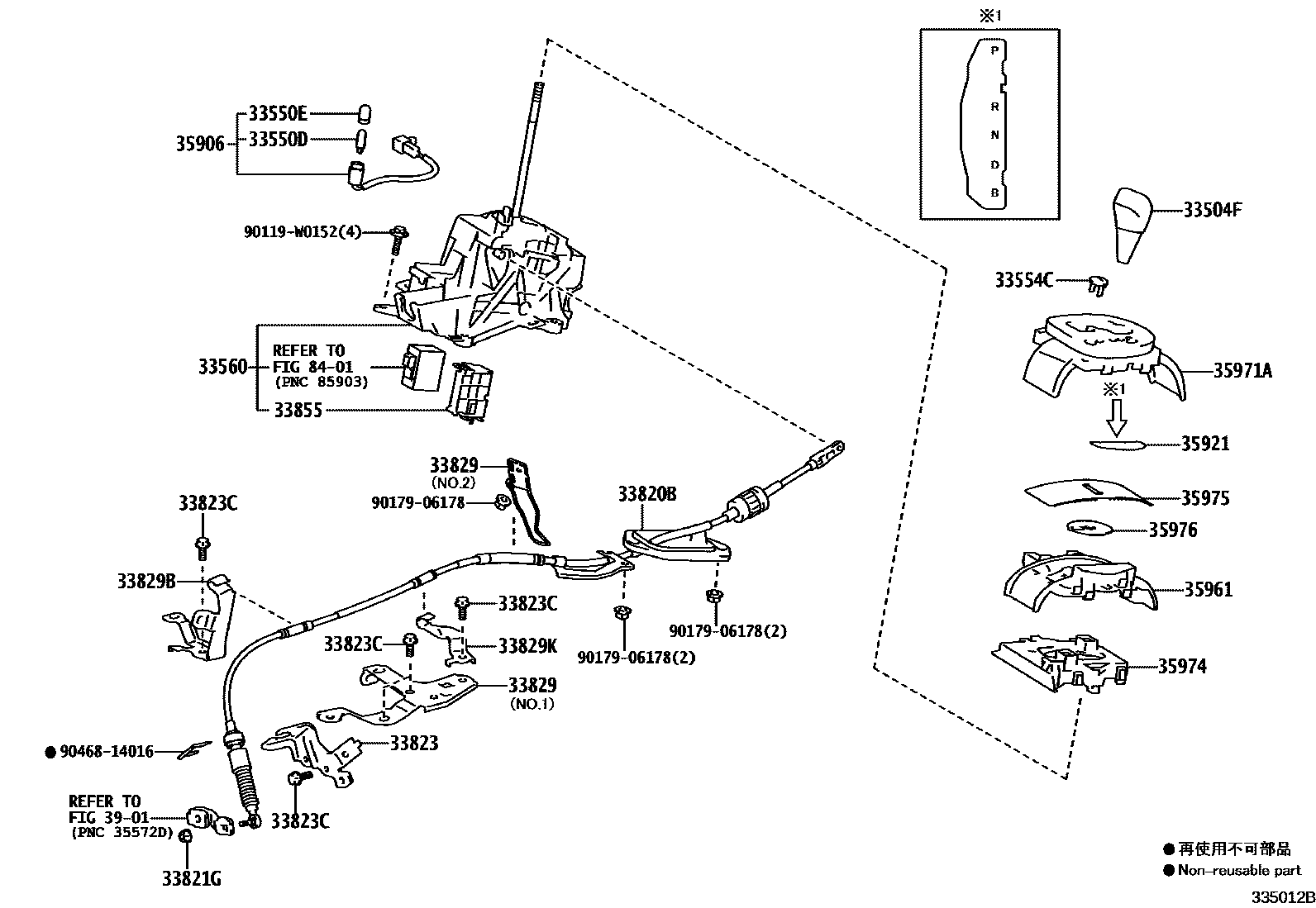

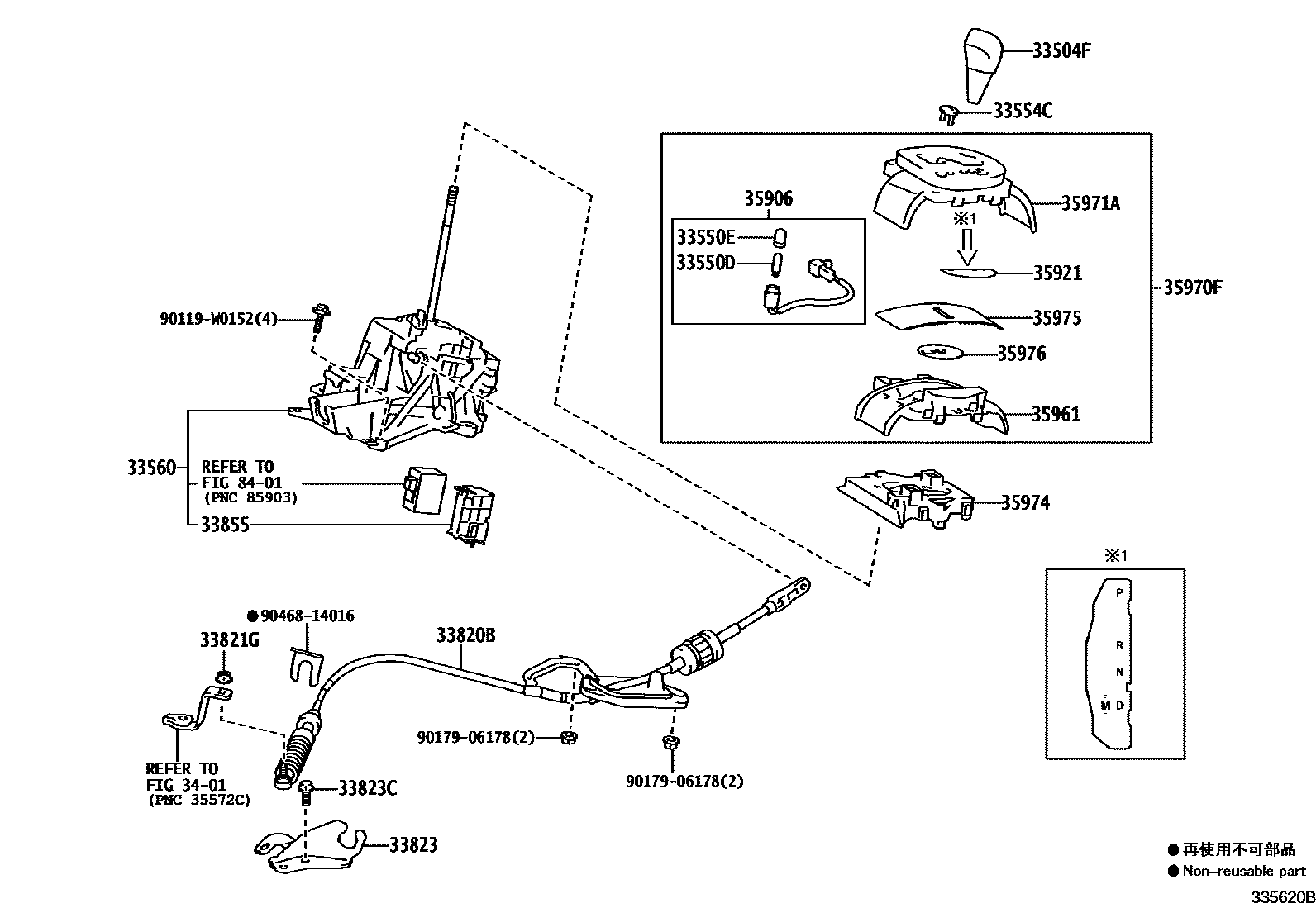

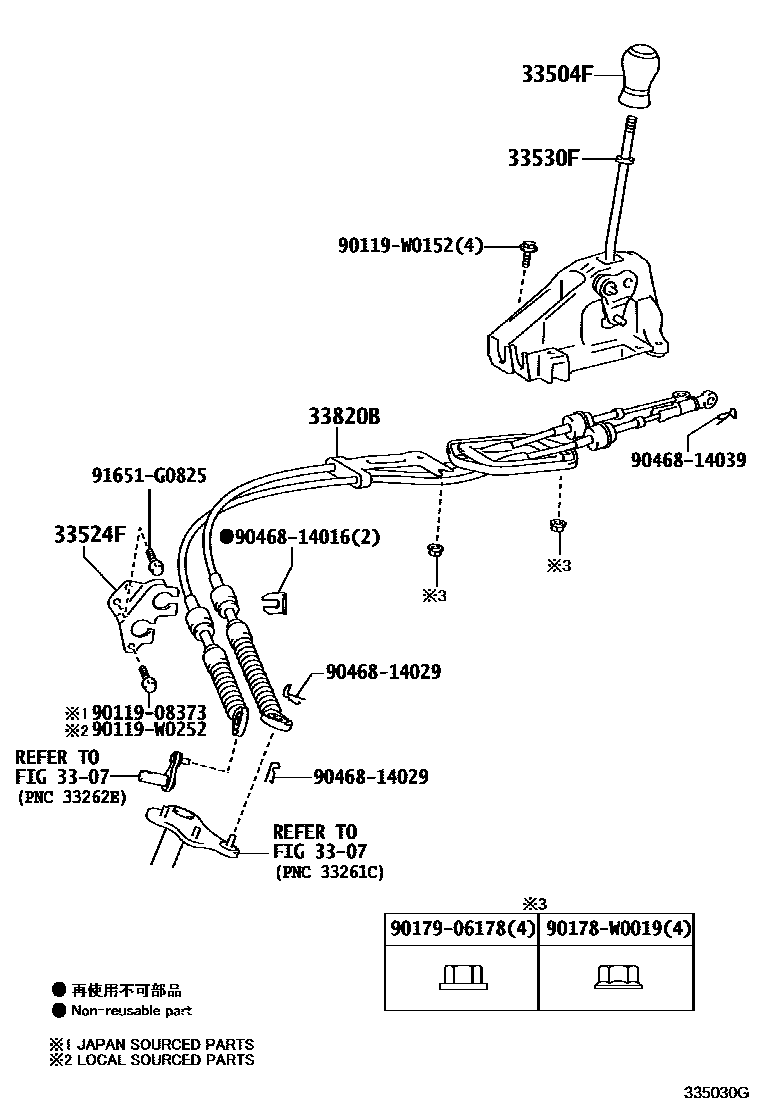

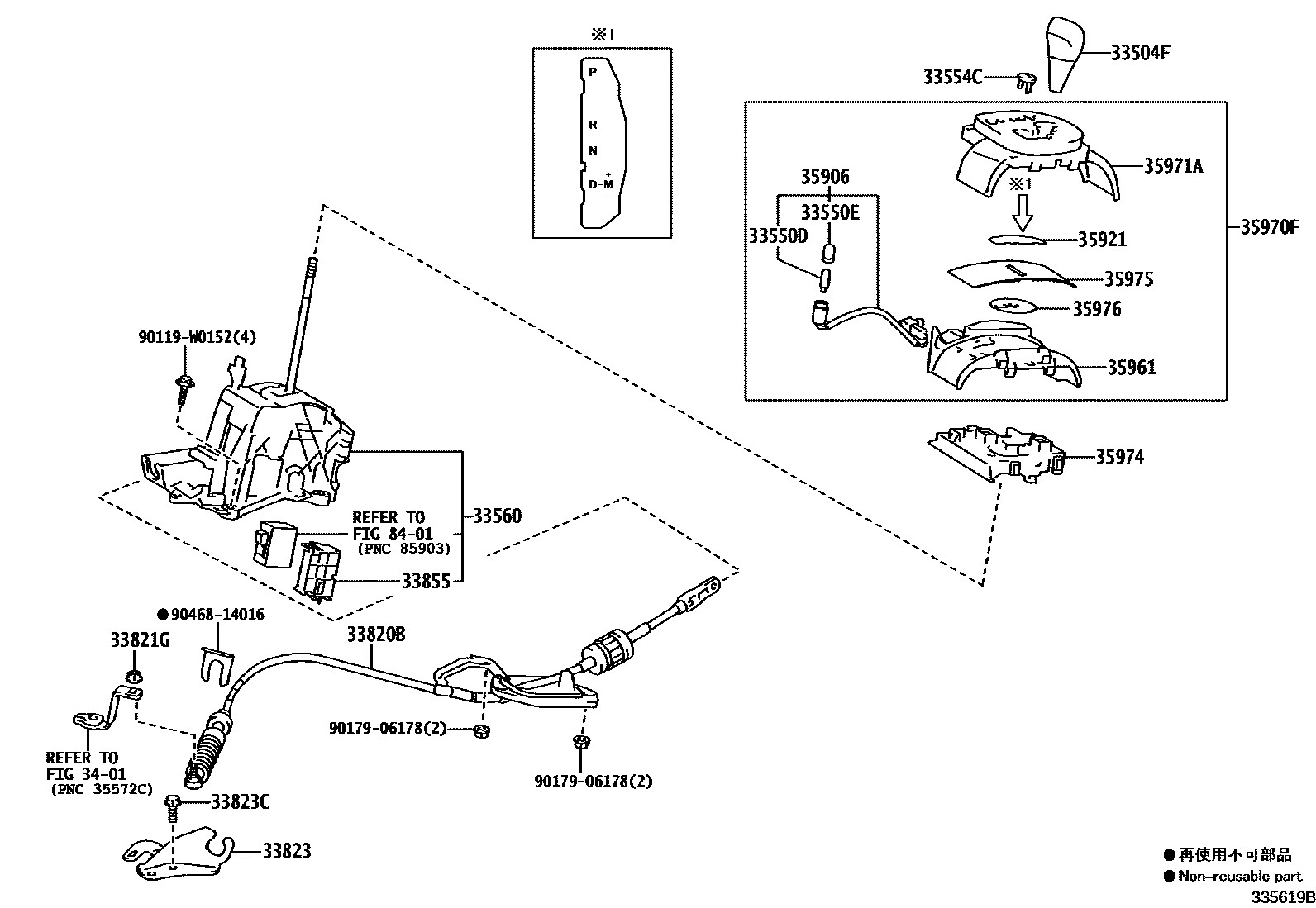

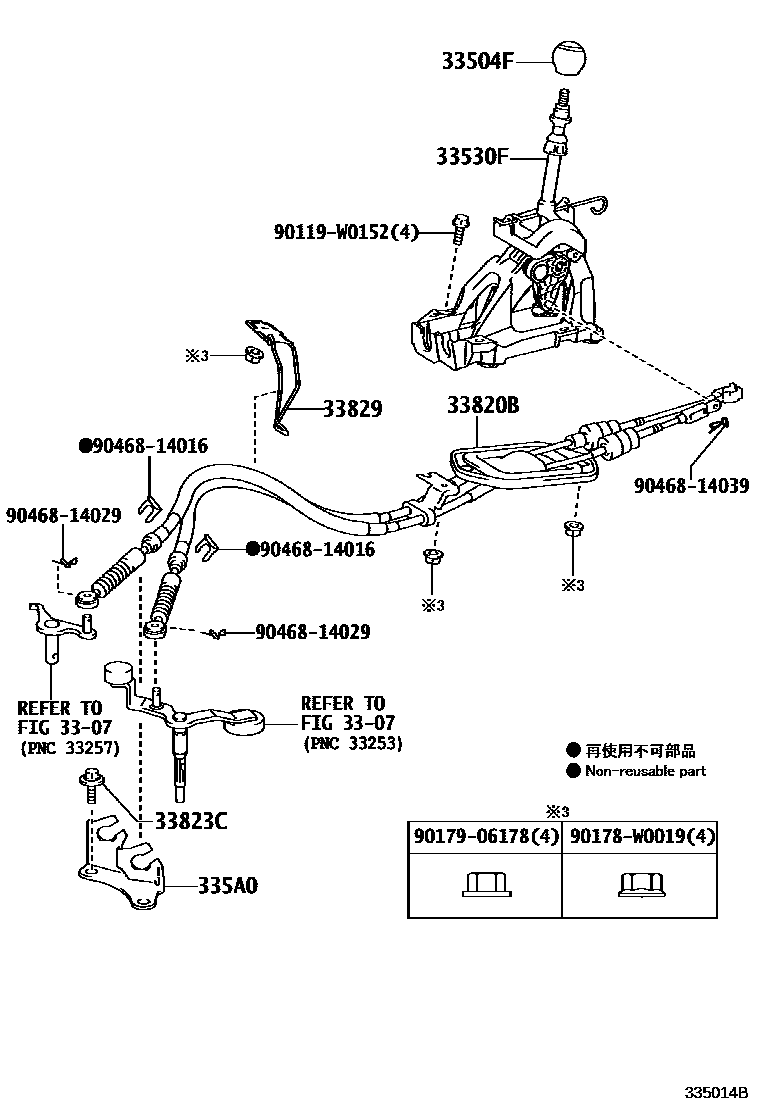

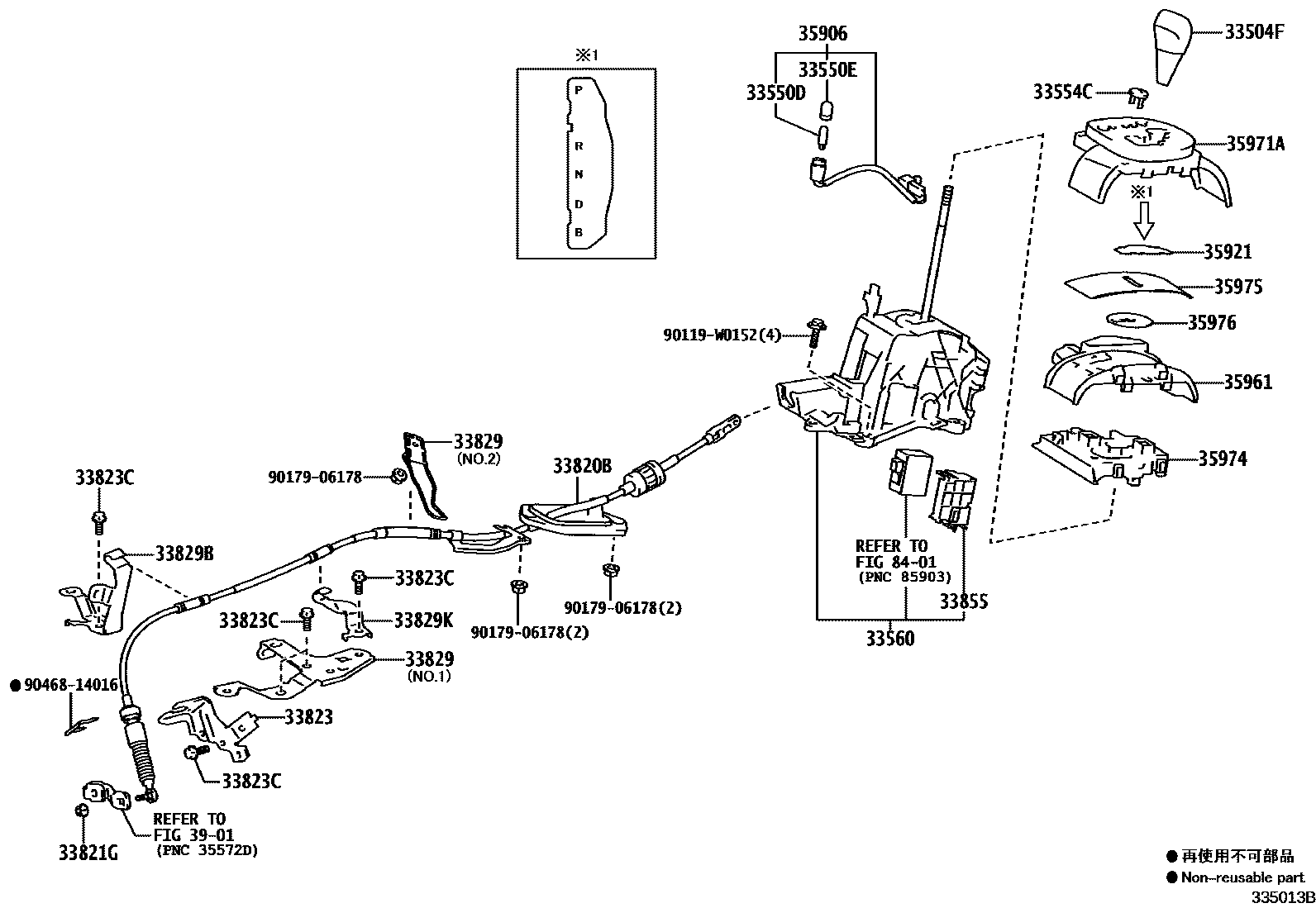

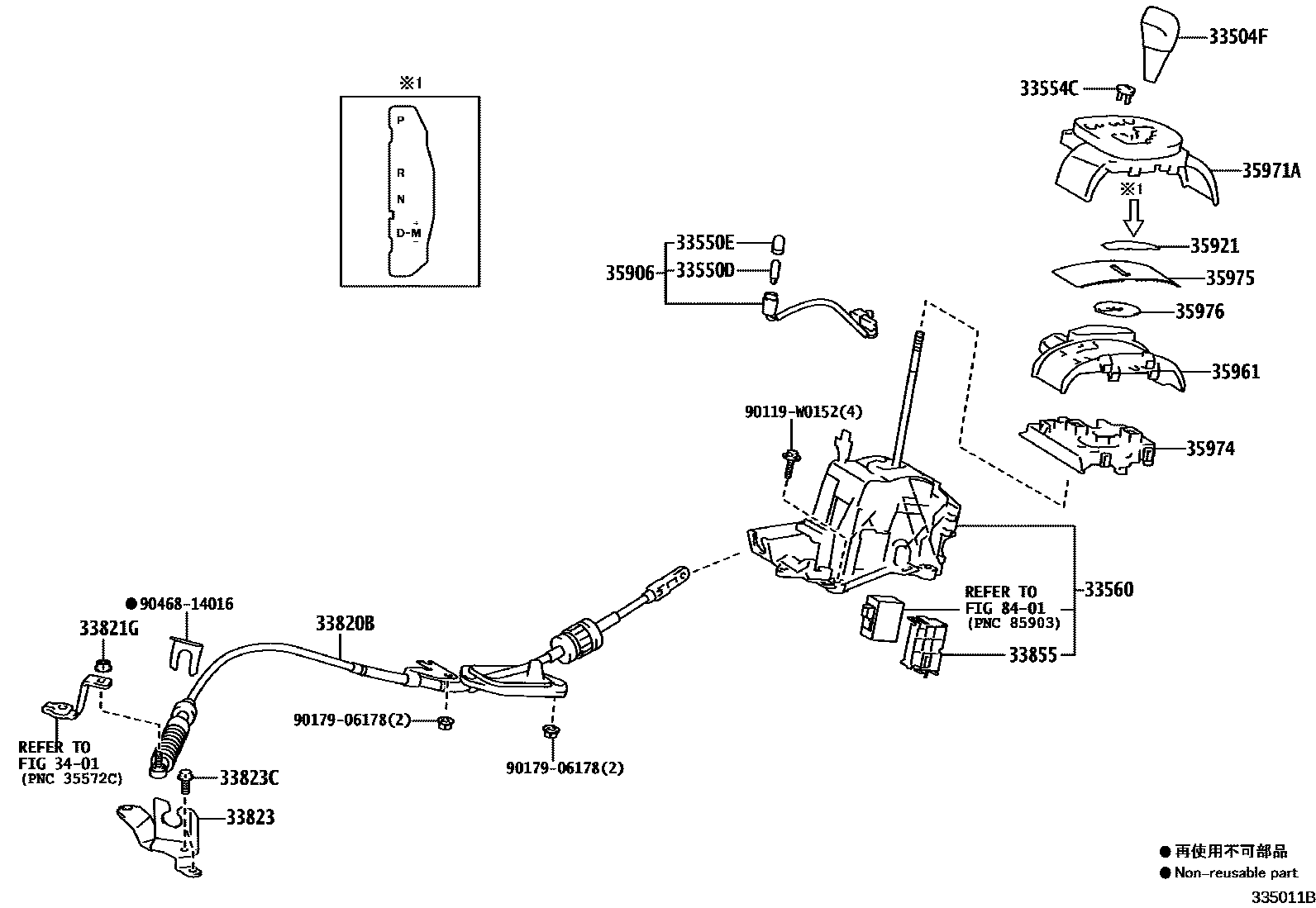

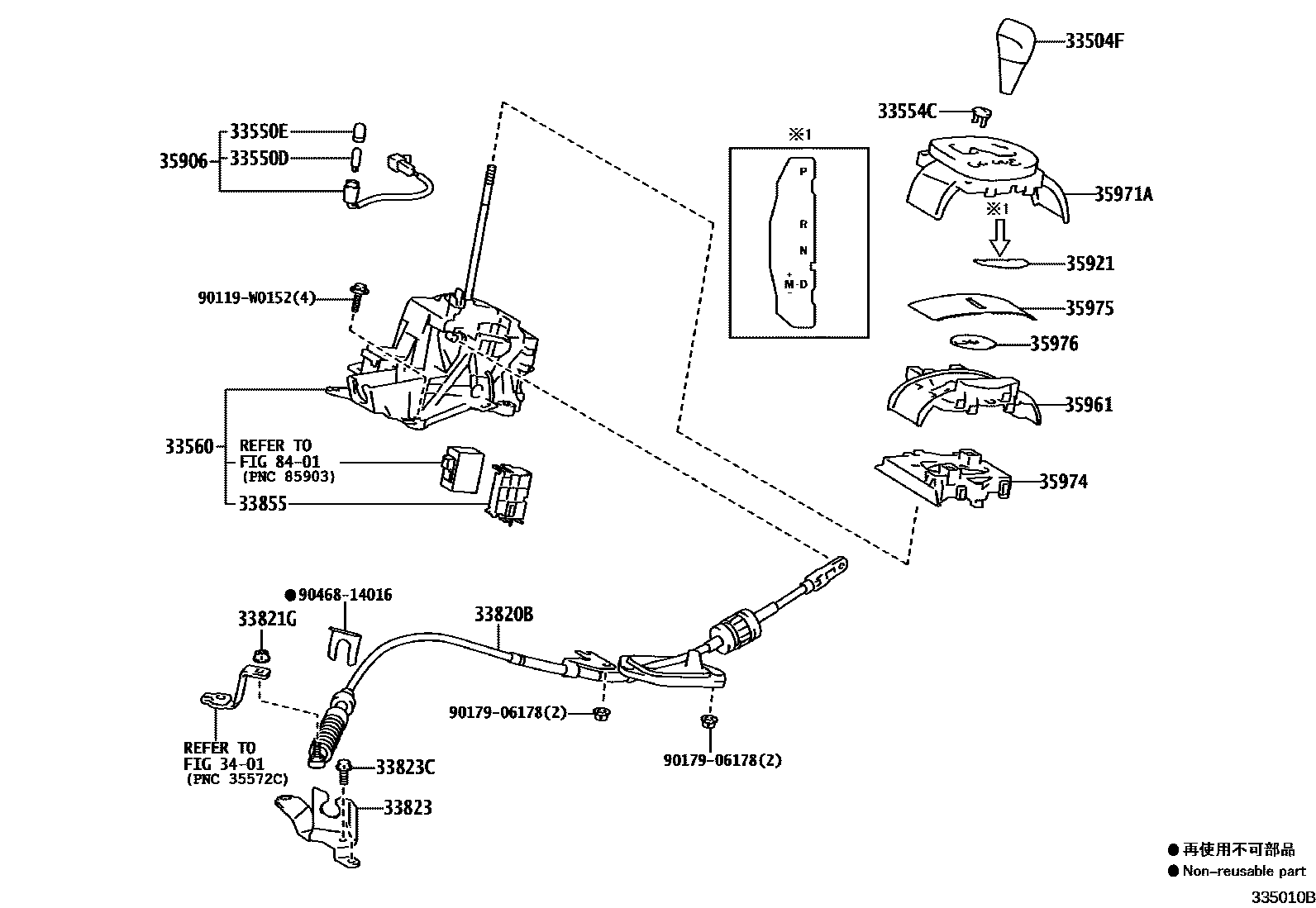

Toyota YARIS Shift Lever & Retainer — Figure 3312
Toyota YARIS EPC diagram 3312, Shift Lever & Retainer, with 8 images and 23 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 33504F | Shift lever handle sub-assembly | 33504-0D250 · 33504-0D450 |
| 33524F | Lever housing bracket (for floor shift) | 33524-52030 |
| 33530F | Shift lever assembly (for floor shift) | 33530-0D040 · 33530-0D070 |
| 33550D | position indicator light bulb | 35955-52010 · 35955-74010 |
| 33550E | position indicator cover | 35956-52010 · 35956-52050 |
| 33554C | Shift lock release button cover | 33554-52090 · 33554-52100 |
| 33560 | Shift lock control unit assembly | 33560-52500 · 33560-52510 · 33560-52520 · 33560-52620 |
| 335A0 | Control cable bracket assembly | 335A0-0D030 · 335A0-0D041 |
| 33820B | Transmission control cable assembly | 33820-0D090 · 33820-0D371 · 33820-0D381 · 33820-52750 · 33820-52810 · 33820-52A30 · 33820-52A60 |
| 33821G | Nut (for transmission control cable) | 94151-80800 |
| 33823 | No. 1 transmission control cable bracket | 33823-0D070 · 33823-52100 · 33823-52150 |
| 33823C | Bolt (for transmission control cable bracket) | 90119-08C60 · 90119-W0027 · 90119-W0255 |
| 33829 | Transmission control cable bracket | 33829-0D090 · 33829-52151 |
| 33829B | Transmission control cable clip | 33829-0D080 |
| 33829K | No. 2 transmission control cable clip | 33829-0D100 |
| 33855 | Shift lock unit cover | 33855-52020 |
| 35906 | Indicator light wiring harness sub-assembly | 35906-52180 · 35906-52270 |
| 35921 | control position indicator board | 35921-52240 · 35921-52250 · 35921-52260 · 35921-52270 · 35921-52300 · 35921-52310 |
| 35961 | position indicator housing | 35961-52010 · 35961-52020 · 35961-52060 · 35961-52070 |
| 35971A | Position indicator light upper shell | 35971-52650 · 35971-52660 · 35971-52670 · 35971-52680 |
| 35974 | Position indicator light lower shell | 35974-52140 · 35974-52150 |
| 35975 | Slide cover (for position indicator light) | 35975-52130 |
| 35976 | Slide No. 2 (for position indicator light) | 35976-52130 |
