Toyota YARIS 换档拨叉和换档杆轴(MTM) — Figure 3307

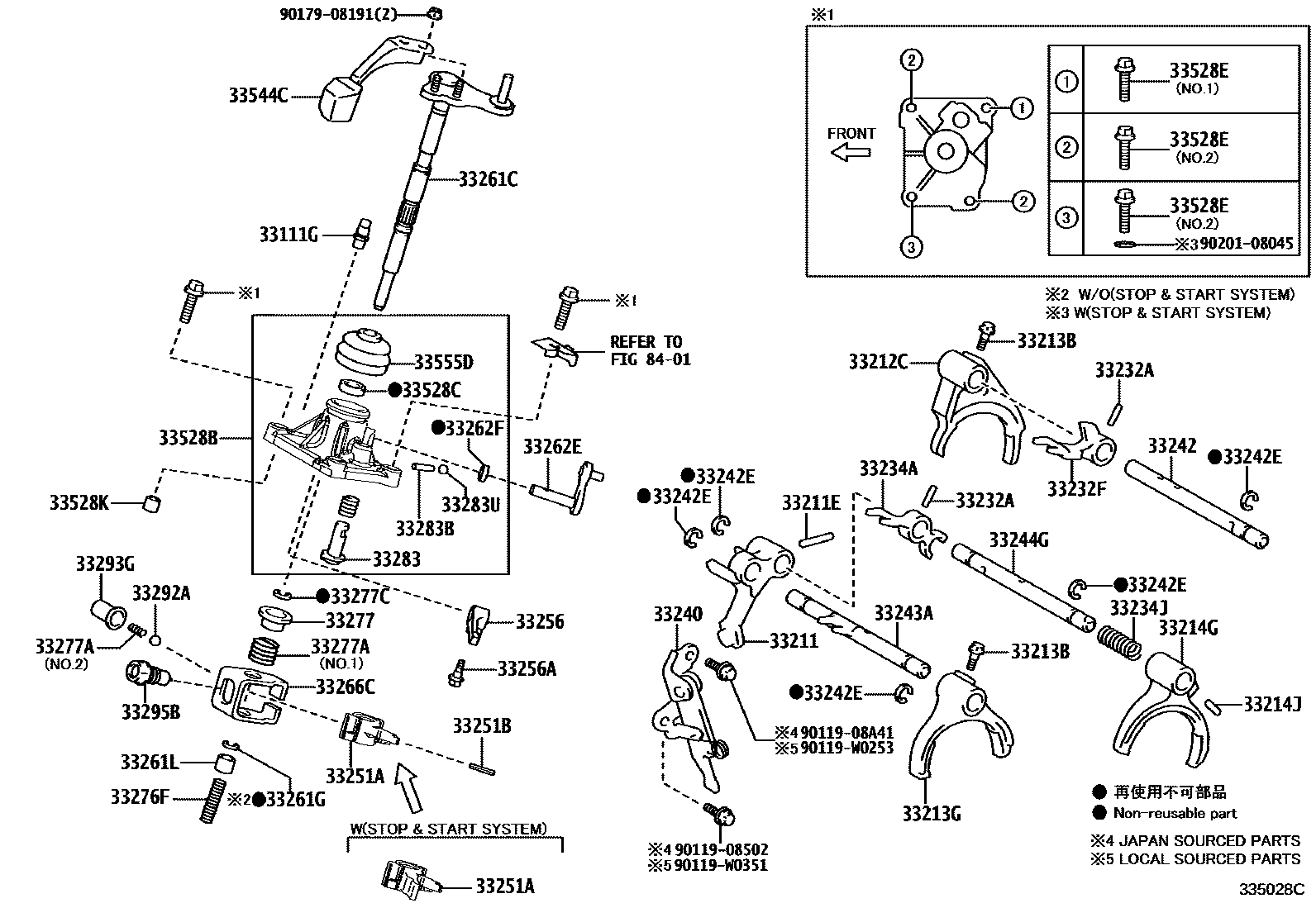

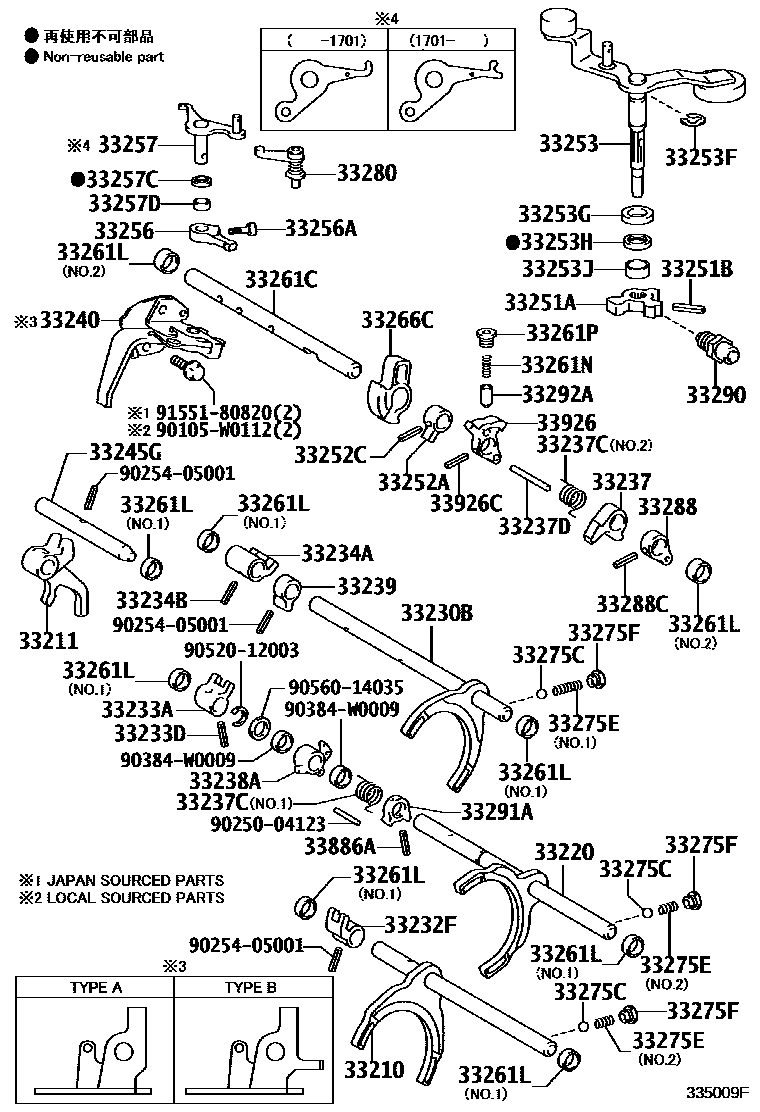

Toyota YARIS EPC diagram 3307, 换档拨叉和换档杆轴(MTM), with 2 images and 78 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 33111G | Breather plug (for manual transmission) | 90930-03114 |
| 33210 | No. 1 shift fork assembly | 33210-02010 · 33210-20020 |
| 33211 | Reverse Shift Fork | 33211-05020 · 33211-0H010 |
| 33211E | Direct sales (for reverse shift fork) | 90250-06032 |
| 33212C | No. 1 shift fork | 33212-0H011 |
| 33213B | Bolt (for securing shift fork) | 90105-06115 |
| 33213G | No. 2 shift fork | 33213-0H011 |
| 33214G | No. 3 shift fork | 33214-0H011 |
| 33214J | Direct sales (for fifth-speed shift fork) | 90250-06031 |
| 33220 | No. 2 shift fork assembly | 33220-02010 · 33220-20020 |
| 33230B | No. 3 shift fork assembly | 33230-02010 · 33230-20030 |
| 33232A | Slotted spring pin (for securing shift guide block) | 90254-05001 |
| 33232F | No. 1 transmission guide block | 33232-02020 · 33232-20070 · 33232-52040 |
| 33233A | No. 2 speed change guide block | 33233-02010 · 33233-20040 |
| 33233D | Slotted spring pin (for No. 2 shift guide) | 90254-05001 |
| 33234A | No. 3 speed change guide block | 33234-02010 · 33234-20020 · 33234-52010 |
| 33234B | Slotted spring pin (for No. 3 shift guide) | 90254-05001 |
| 33234J | Compression spring (for shift return) | 90501-W0003 |
| 33237 | Separate guide block | 33237-0D010 |
| 33237C | Torsion spring (for separating guide block) | 90508-17006 · 90508-27001 |
| 33237D | Direct sales (for detaching guide blocks) | 90250-06042 |
| 33238A | TETE, PRE-BALK INVERSE, NO.2 | 33238-0D010 |
| 33239 | TETE, PRE-BALK INVERSE, NO.3 | 33239-0D010 |
| 33240 | Reverse shift arm bracket assembly | 33240-0D020 · 33240-0D021 · 33240-52010 · 33240-52020 |
| 33242 | No. 1 shift fork shaft | 33242-0H010 |
| 33242E | Shaft snap ring (for shift fork shaft) | 90520-12003 |
| 33243A | No. 2 shift fork shaft | 33243-0H011 |
| 33244G | No. 3 shift fork shaft | 33244-0H010 |
| 33245G | No. 4 shift fork shaft | 33245-05010 |
| 33251A | Internal shift lever No. 1 | 33251-0D010 · 33251-0D011 · 33251-12120 · 33251-52060 · 33251-52090 |
| 33251B | Slotted spring pin (for inner shift lever) | 90254-05011 · 90254-05016 |
| 33252A | Internal shift lever No. 2 | 33252-0D020 |
| 33252C | Slotted spring pin (for inner shift lever No. 2) | 90254-05001 |
| 33253 | No. 1 outer shift lever | 33253-0D010 |
| 33253F | E-ring (for outer shift lever) | 90523-15003 |
| 33253G | Spacer (for outer shift lever) | 90560-18017 |
| 33253H | Oil seal (for outer shift lever) | 90310-18003 |
| 33253J | Bushing (for outer shift lever) | 90384-W0012 |
| 33256 | Internal gear selector | 33256-0D030 · 33256-52010 |
| 33256A | Fixing bolt (for interior gear selector) | 90105-08079 · 90110-08041 |
| 33257 | External gear selector | 33257-0D010 · 33257-0D020 |
| 33257C | Oil seal (for external gear lever) | 90310-15005 |
| 33257D | Bimetallic bushing (for external selector lever) | 90384-W0003 |
| 33261C | shift lever shaft | 33261-05010 · 33261-52201 |
| 33261G | Snap ring (for shift lever shaft) | 90520-13002 |
| 33261L | Bimetallic bushing (for gear selector shaft) | 90384-W0003 · 90384-W0009 · 90384-W0010 |
| 33261N | Compression spring (for shift lever shaft) | 90501-11108 |
| 33261P | Headed straight thread plug (for shift lever shaft) | 90341-16013 |
| 33262E | gear selector shaft | 33262-52010 |
| 33262F | Oil seal (for selector lever shaft) | 90312-16002 |
| 33266C | shift interlock plate | 33266-20061 · 33266-20062 · 33266-52021 · 33266-52050 |
| 33275C | Steel ball (for shift lock) | 90360-10003 |
| 33275E | Compression spring (for shift lock steel ball) | 90501-11110 · 90501-13088 · 90501-13089 |
| 33275F | Screw plug (for gear shift lock steel ball) | 90341-12004 |
| 33276F | No. 1 compression spring (for gear selector return) | 90501-13107 |
| 33277 | No. 2 gear selector spring seat | 33277-52010 |
| 33277A | No. 2 compression spring (for gear selector return) | 90501-18132 · 90501-18137 |
| 33277C | Shaft snap ring (for No. 2 gear selector spring seat) | 90520-15003 |
| 33280 | Reverse gear positioning pin assembly | 33280-20050 |
| 33283 | No. 1 reverse gear positioning pin | 33283-28020 · 33283-52010 |
| 33283B | Direct selling (for reverse gear positioning pin) | 90250-04109 |
| 33283U | Reverse gear positioning pin steel ball | 90360-06004 |
| 33288 | Gear selector stop | 33288-0D010 |
| 33288C | Slotted spring pin (for gear selector stop) | 90254-05001 |
| 33290 | No. 1 locking steel ball assembly | 33290-02010 · 33290-02011 · 33290-02020 |
| 33291A | Shift fork shaft block | 33886-0D010 |
| 33292A | Locking steel ball pin | 33292-05020 · 33292-20010 |
| 33293G | Locking steel ball retainer | 33293-52010 |
| 33295B | Shift positioning plate pin | 33295-52020 |
| 33528B | control shaft cover | 33506-52060 · 33506-52080 |
| 33528C | Oil seal (for control shaft cover) | 90311-18013 |
| 33528E | Bolt (for control shaft cover) | 90119-08429 · 90119-W0251 · 90119-W0355 · 91611-60835 |
| 33528K | Ring pin (for controlling shaft housing retaining bolts) | 90253-11001 |
| 33544C | Gear shifter damper | 33544-0D110 · 33544-52051 |
| 33555D | Gear shift lever dust cover | 33555-28010 |
| 33886A | Slotted spring pin (for shift lever stop) | 90254-05001 |
| 33926 | Front inner shift lever | 33926-0D011 |
| 33926C | Slotted spring pin (for inner shift lever) | 90254-05001 |
