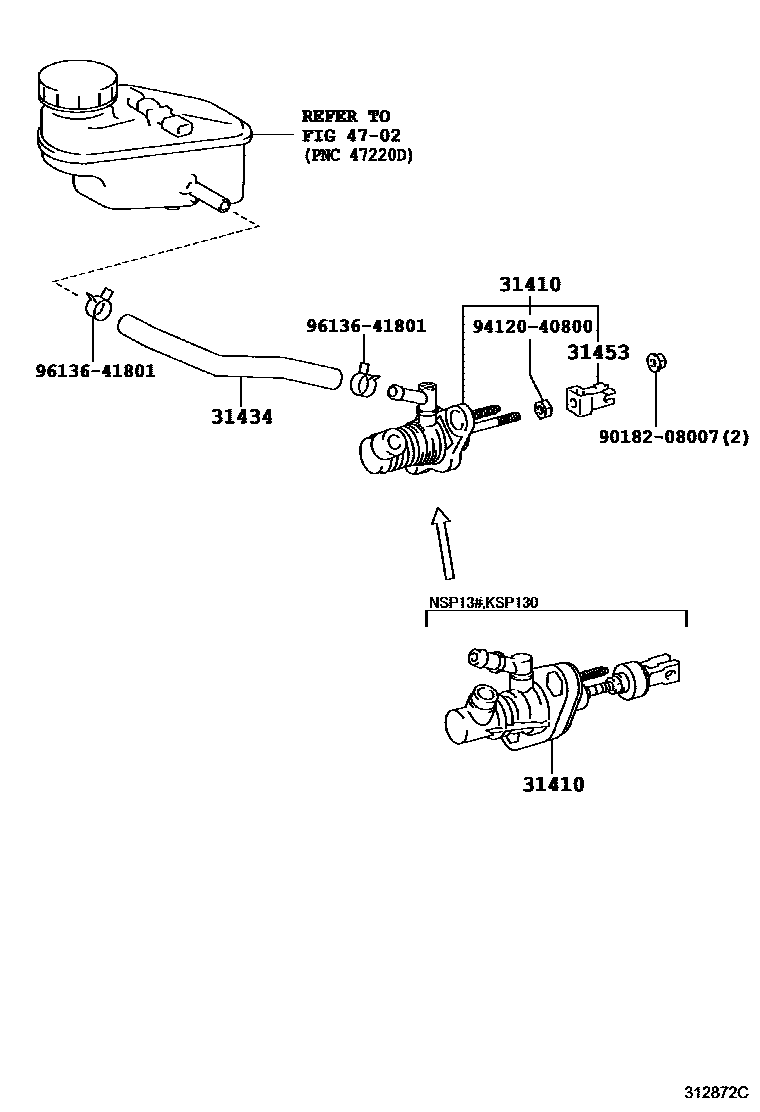

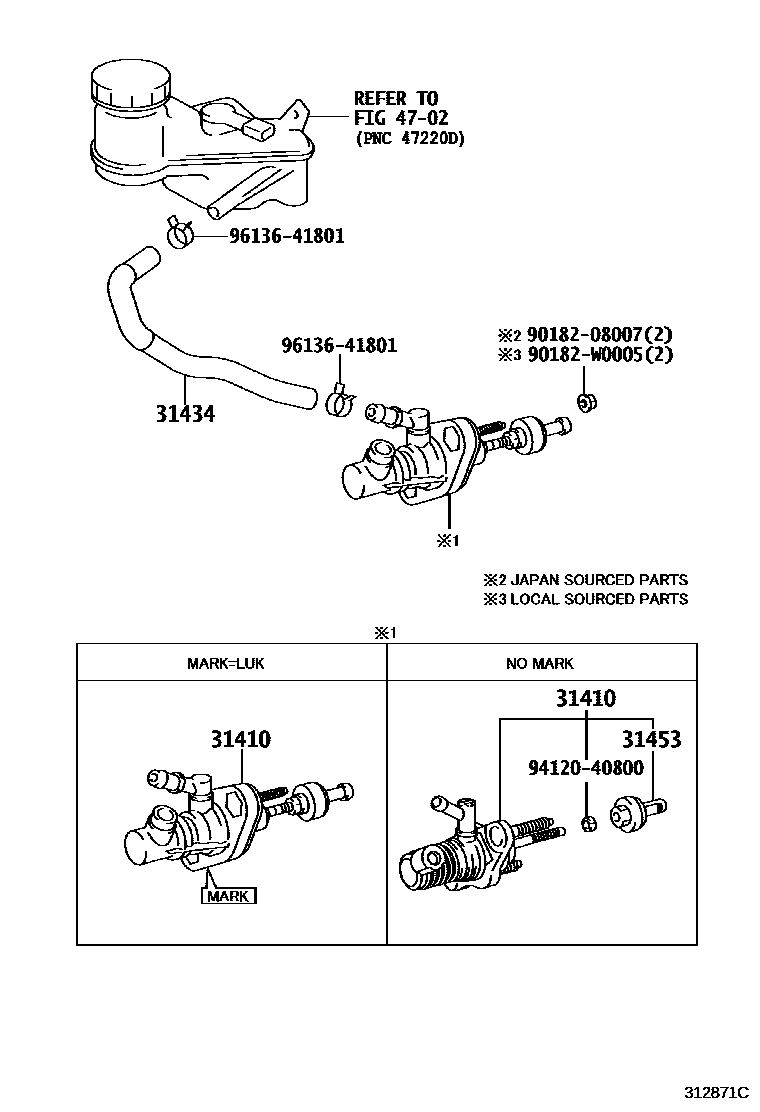

Toyota YARIS 离合器总泵 — Figure 3103
Toyota YARIS EPC diagram 3103, 离合器总泵, with 2 images and 3 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 31410 | Clutch master cylinder assembly | 31420-0D140 · 31420-0D160 · 31420-0D180 · 31420-0D190 · 31420-52050 · 31420-52080 · 31420-52081 |
| 31434 | Clutch reservoir connecting pipe | 31434-52180 · 31434-52250 |
| 31453 | Clutch master cylinder push rod U-shaped clamp | 31453-52010 · 31453-52020 · 31453-52021 |
