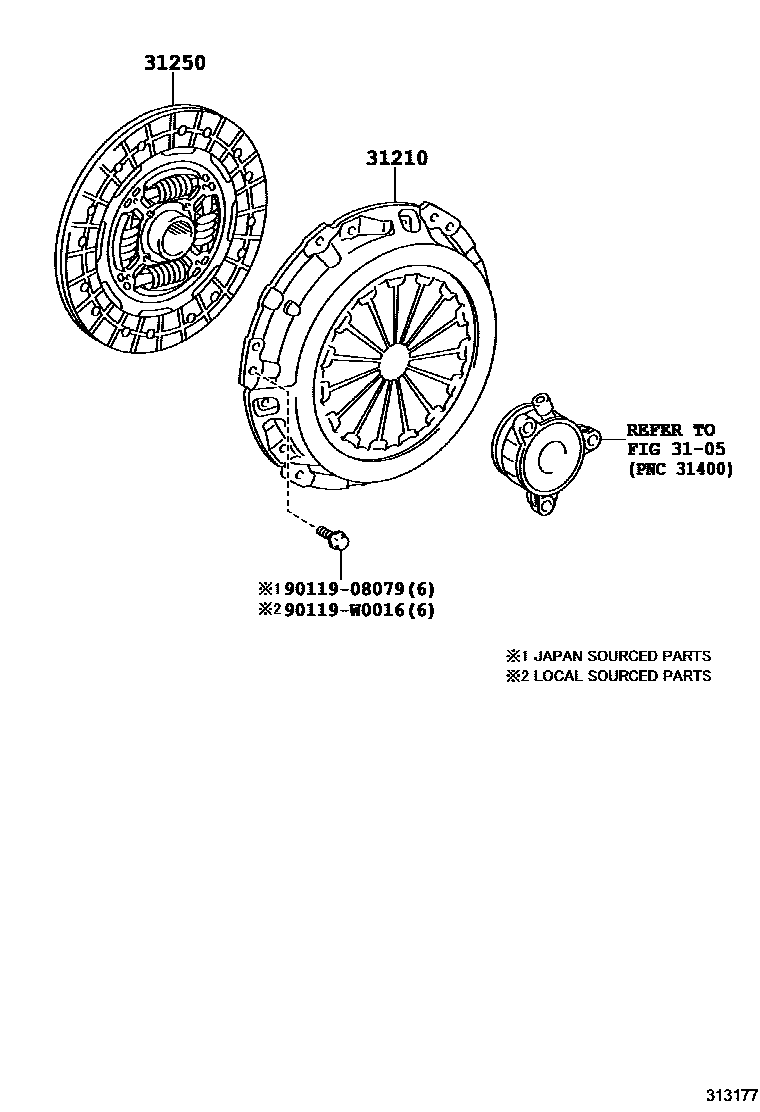

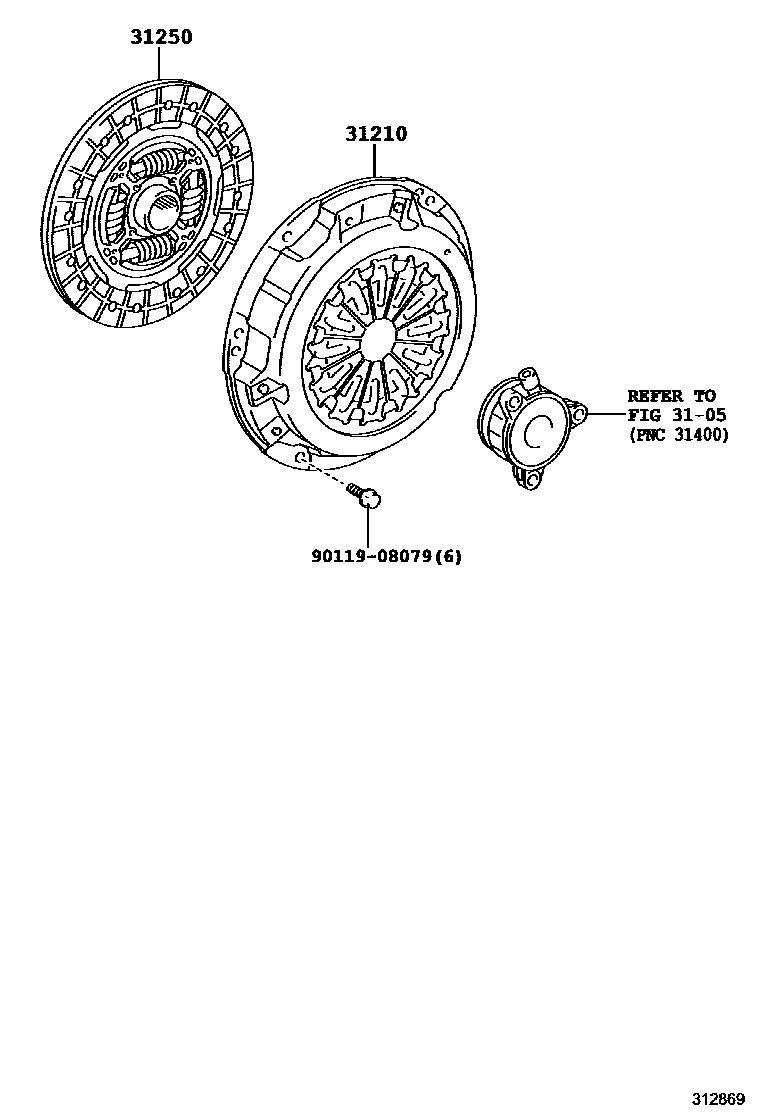

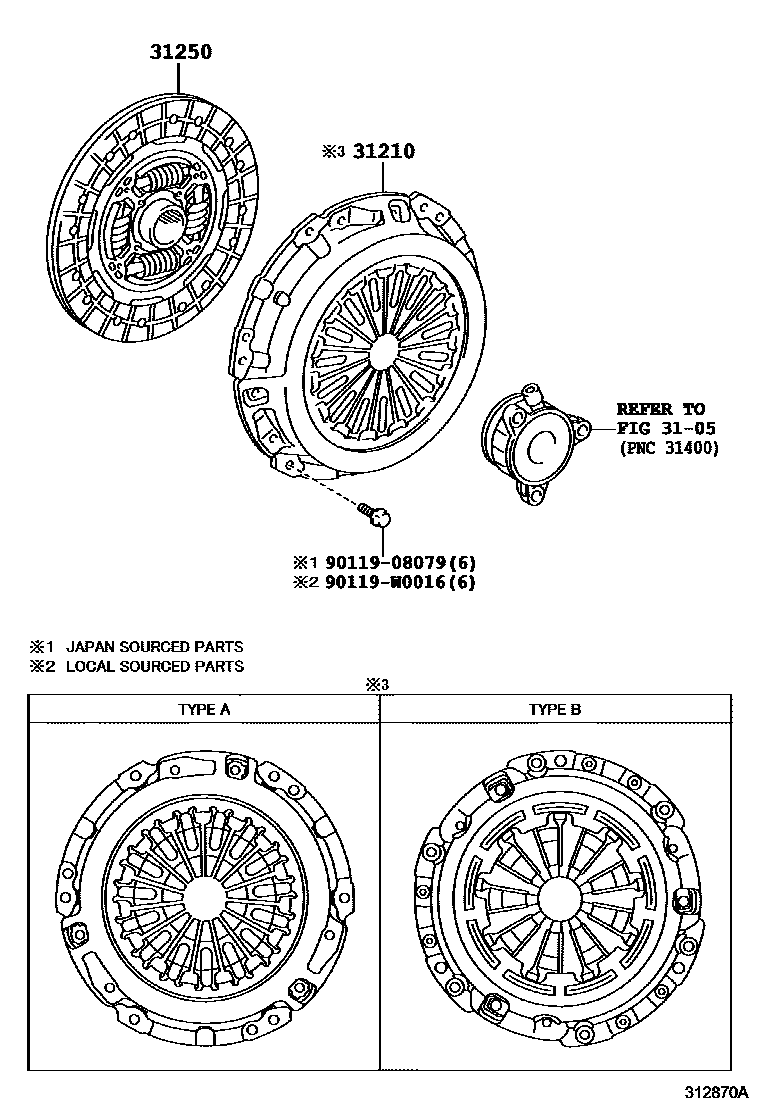

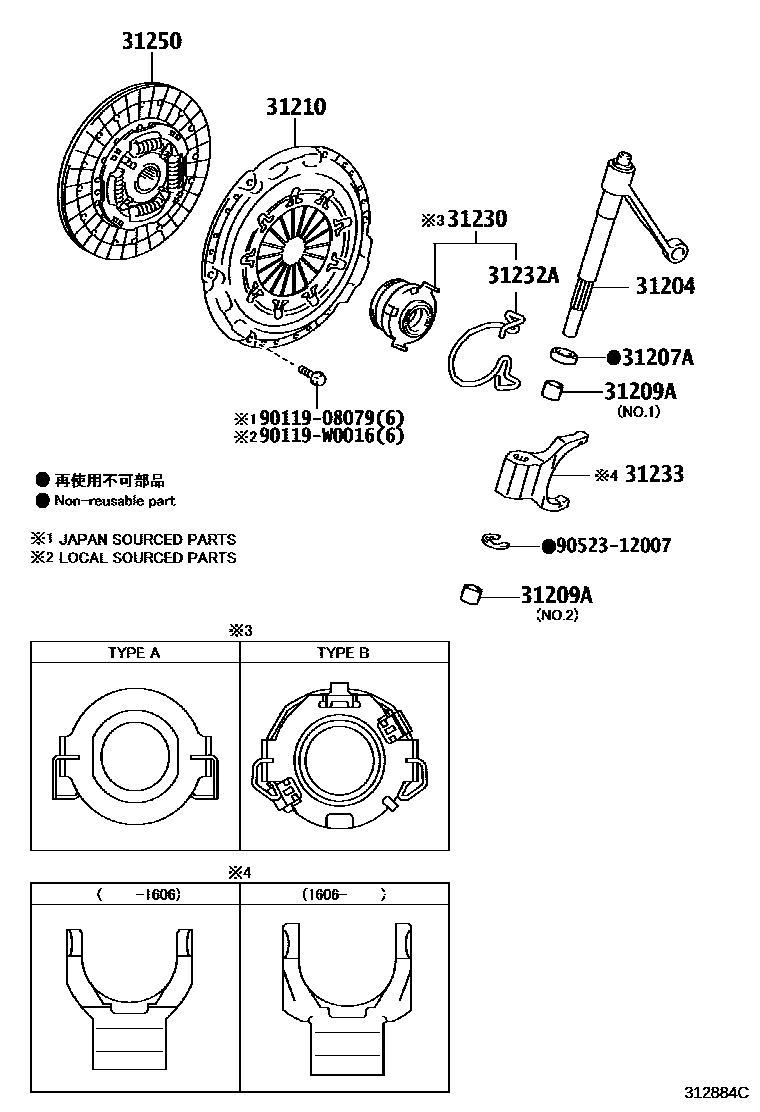

Toyota YARIS 离合器和分离叉 — Figure 3101
Toyota YARIS EPC diagram 3101, 离合器和分离叉, with 4 images and 8 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 31204 | Clutch release fork assembly | 31204-52060 |
| 31207A | Oil seal (for clutch release fork lever) | 90310-W0002 |
| 31209A | Bimetallic bushing (for clutch release lever bracket) | 90384-W0004 · 90384-W0005 |
| 31210 | Clutch cover assembly | 31210-02350 · 31210-0D180 · 31210-0H050 · 31210-52100 · 31210-52170 |
| 31230 | Clutch release bearing assembly | 31230-0D020 · 31230-0H010 · 31230-52040 · 31230-52041 |
| 31232A | Release bearing hub clip | 31232-52040 · 31232-52041 |
| 31233 | clutch release fork | 31233-0D011 · 31233-0D012 |
| 31250 | Clutch disc assembly | 31250-02310 · 31250-0D240 · 31250-0D241 · 31250-0D250 · 31250-52210 · 31250-52211 · 31250-52212 · 31250-52260 · 31250-52261 · 31250-52262 |
