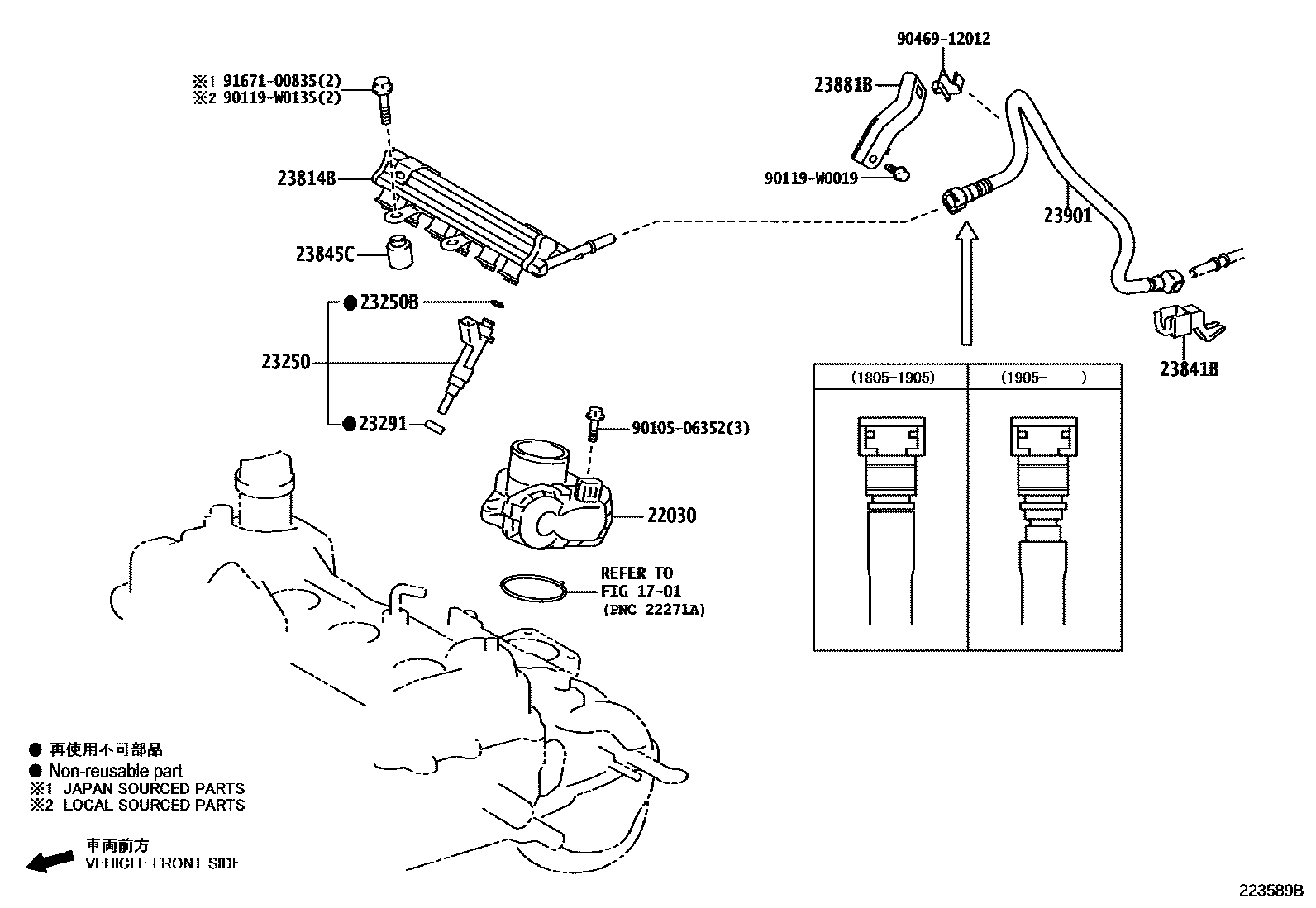

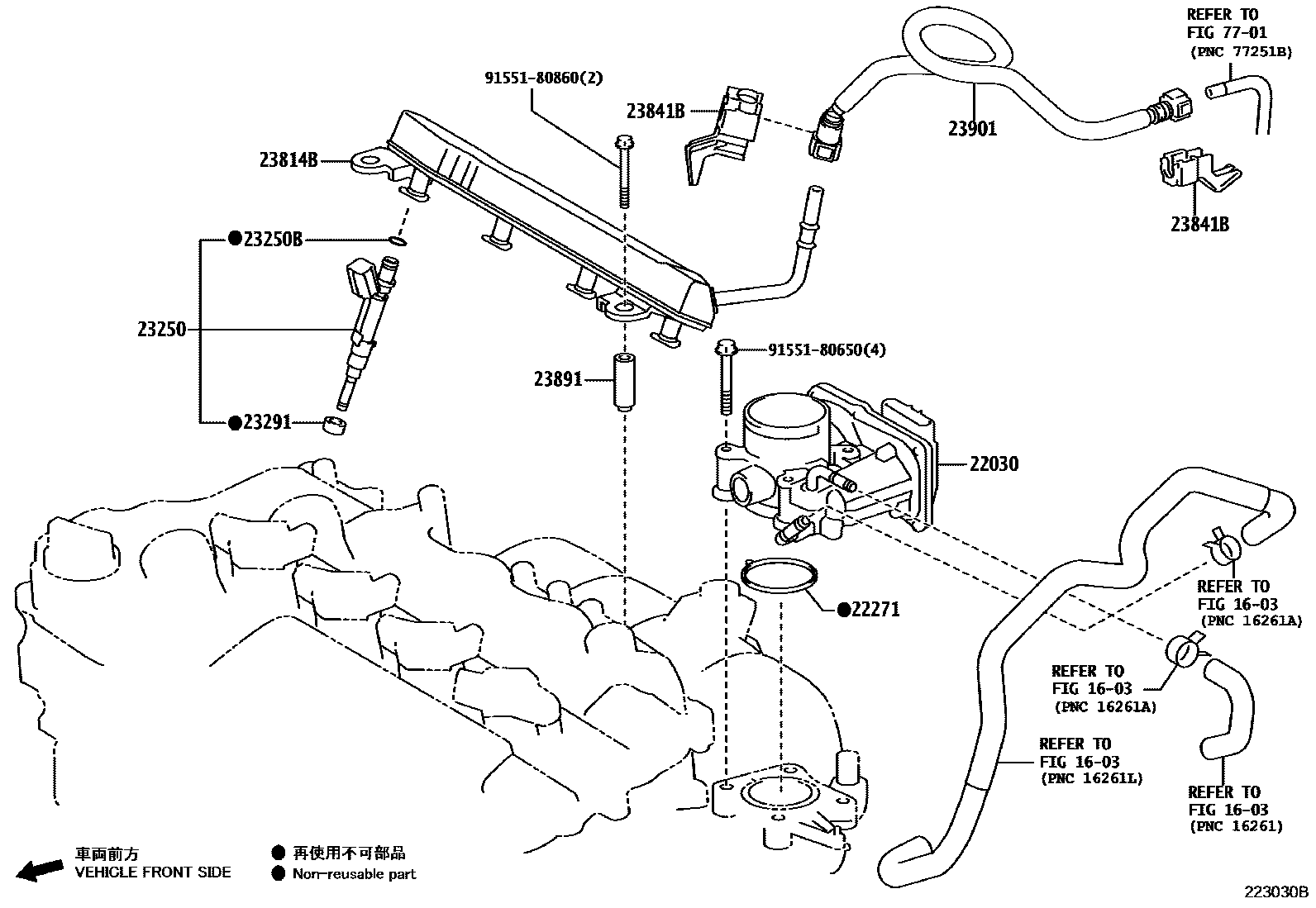

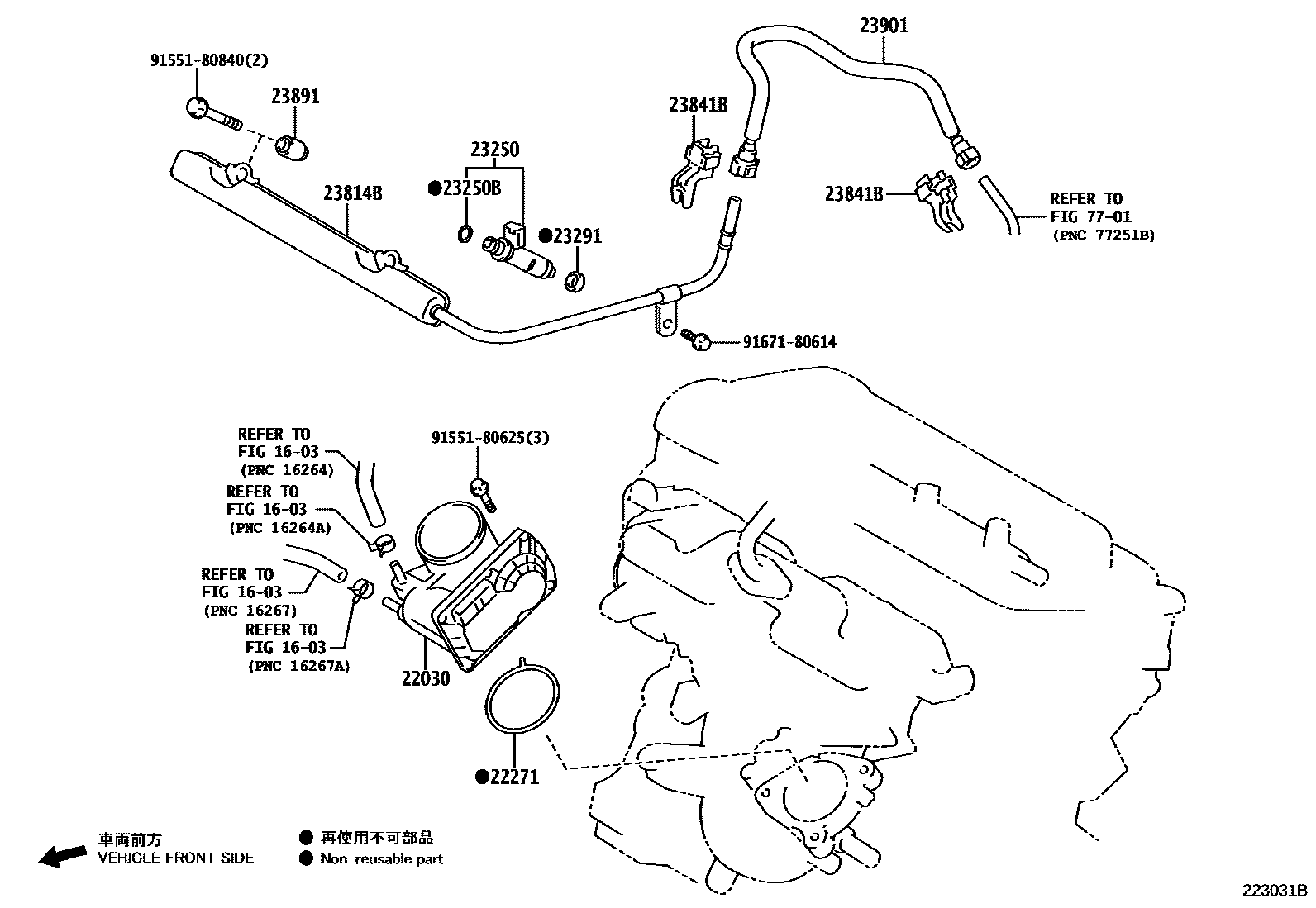

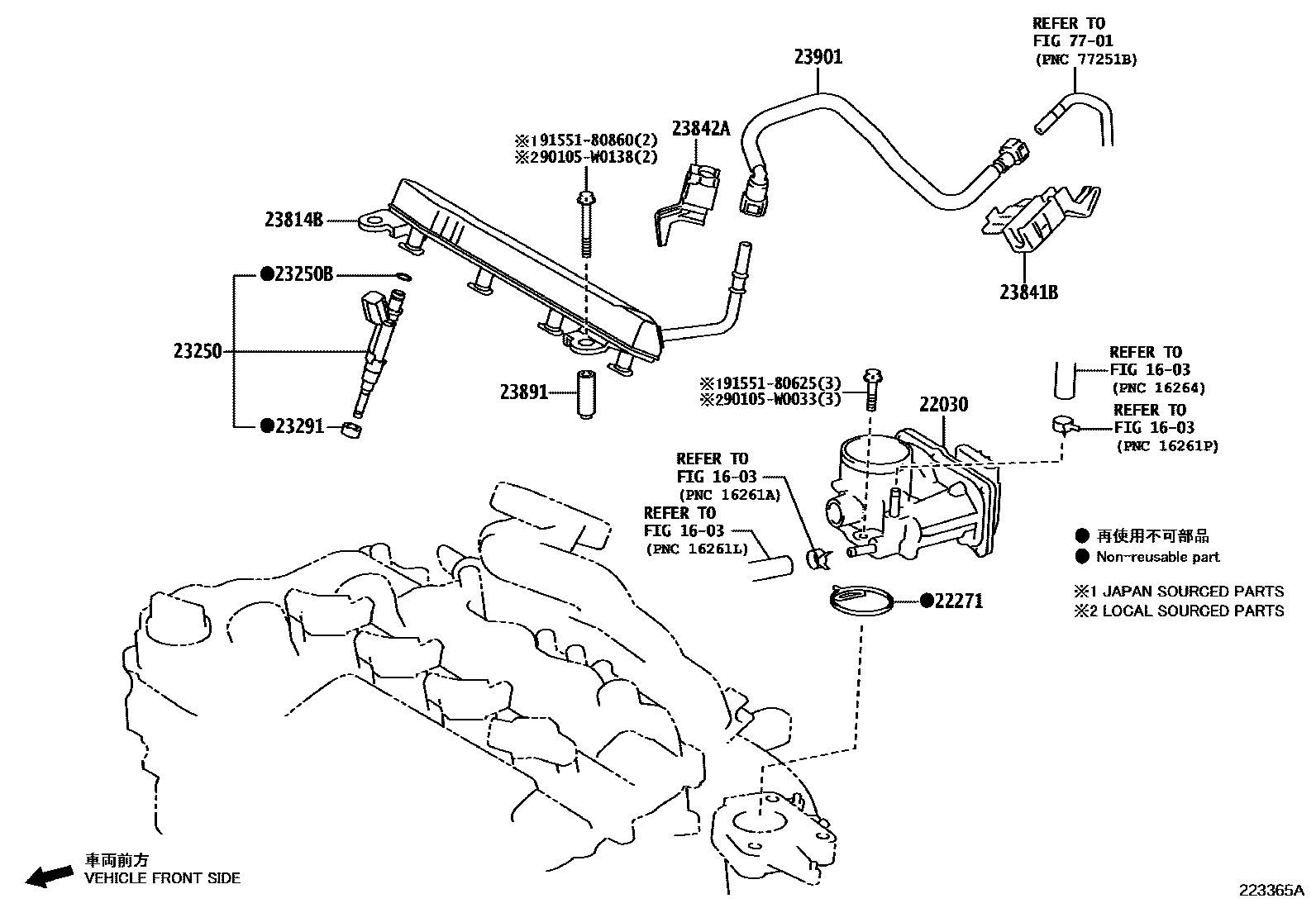

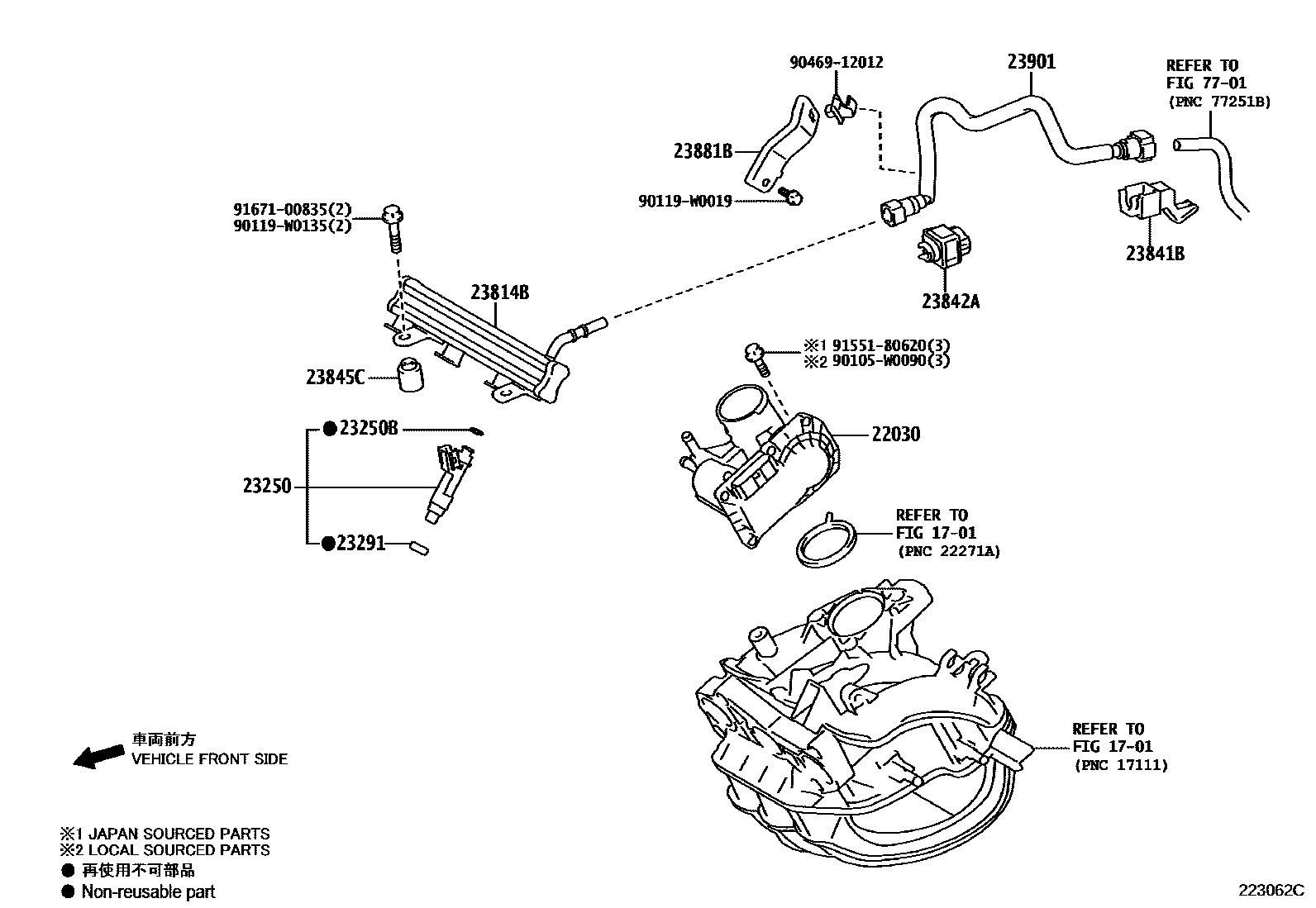

Toyota YARIS 燃油喷射系统 — Figure 2211
Toyota YARIS EPC diagram 2211, 燃油喷射系统, with 5 images and 12 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 22030 | Electronic throttle body assembly | 22030-0Q030 · 22030-0Q040 · 22030-0Y110 · 22030-47010 · 22030-47040 |
| 22271 | Throttle body gasket | 22271-21070 · 22271-47010 · 22271-47050 |
| 23250 | Fuel injector assembly | 23209-09270 · 23209-09420 · 23209-21091 · 23209-49205 · 23209-49275 |
| 23250B | O-ring (for fuel injector) | 90301-07033 · 90301-07037 · 90301-07042 |
| 23291 | Injector vibration isolation pad | 23291-0J020 · 23291-23010 |
| 23814B | oil pipeline | 23814-21073 · 23814-40040 · 23814-40050 · 23814-47050 · 23814-47051 |
| 23841B | No. 1 fuel pipe clamp (for EFI) | 23841-21050 · 23841-37090 |
| 23842A | No. 2 fuel line clamp (for EFI) | 23841-21050 · 23842-47020 |
| 23845C | Fuel pipe vibration isolation pad | 23845-40010 |
| 23881B | fuel hose bracket | 23881-0Q020 · 23881-0Q040 |
| 23891 | oil pipe septum | 23891-21010 · 23891-47030 |
| 23901 | Fuel pipe sub-assembly | 23901-0M020 · 23901-0M050 · 23901-0Q060 · 23901-0Q080 · 23901-0Q110 · 23901-0Y050 · 23901-0Y240 · 23901-0Y410 |
