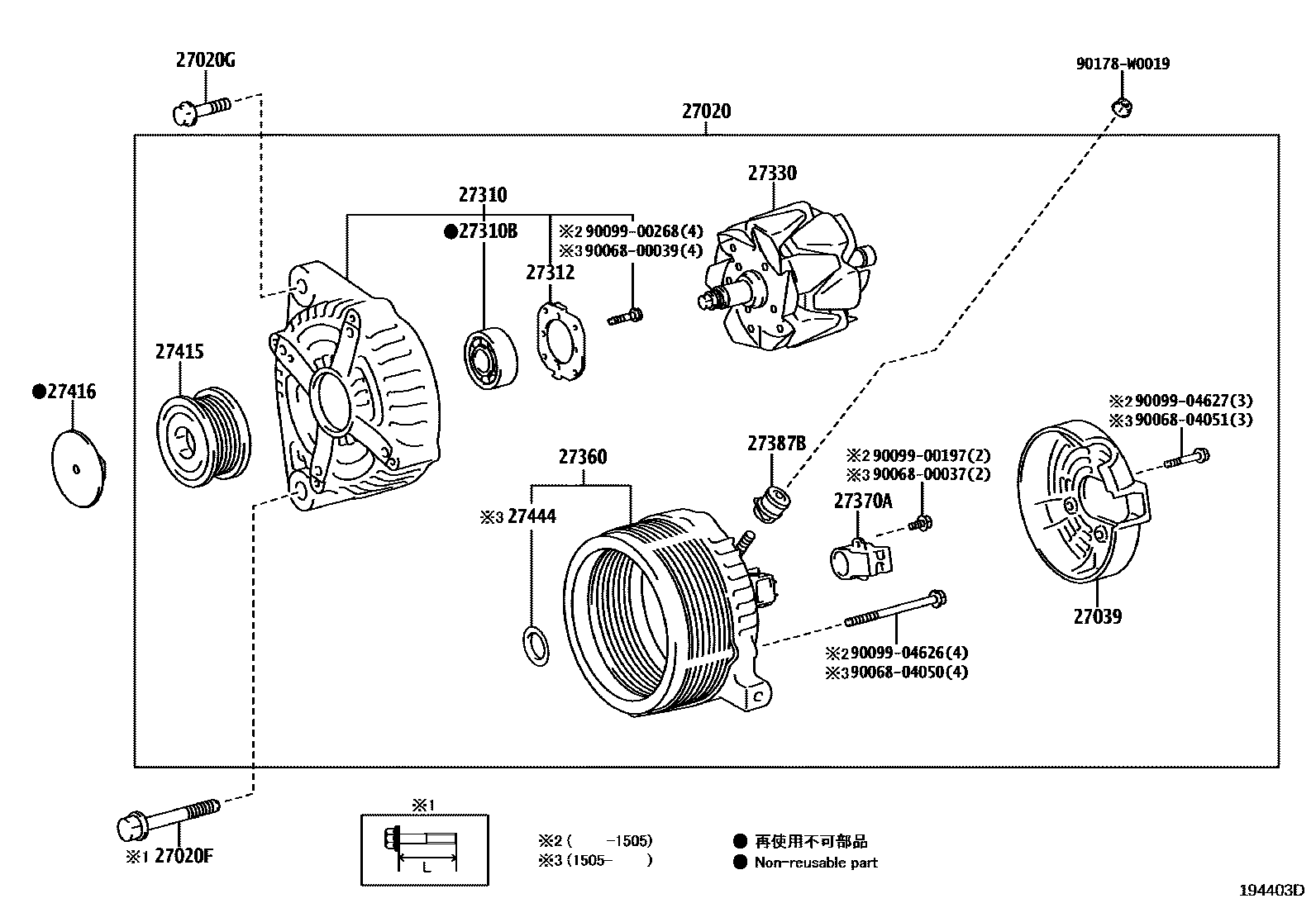

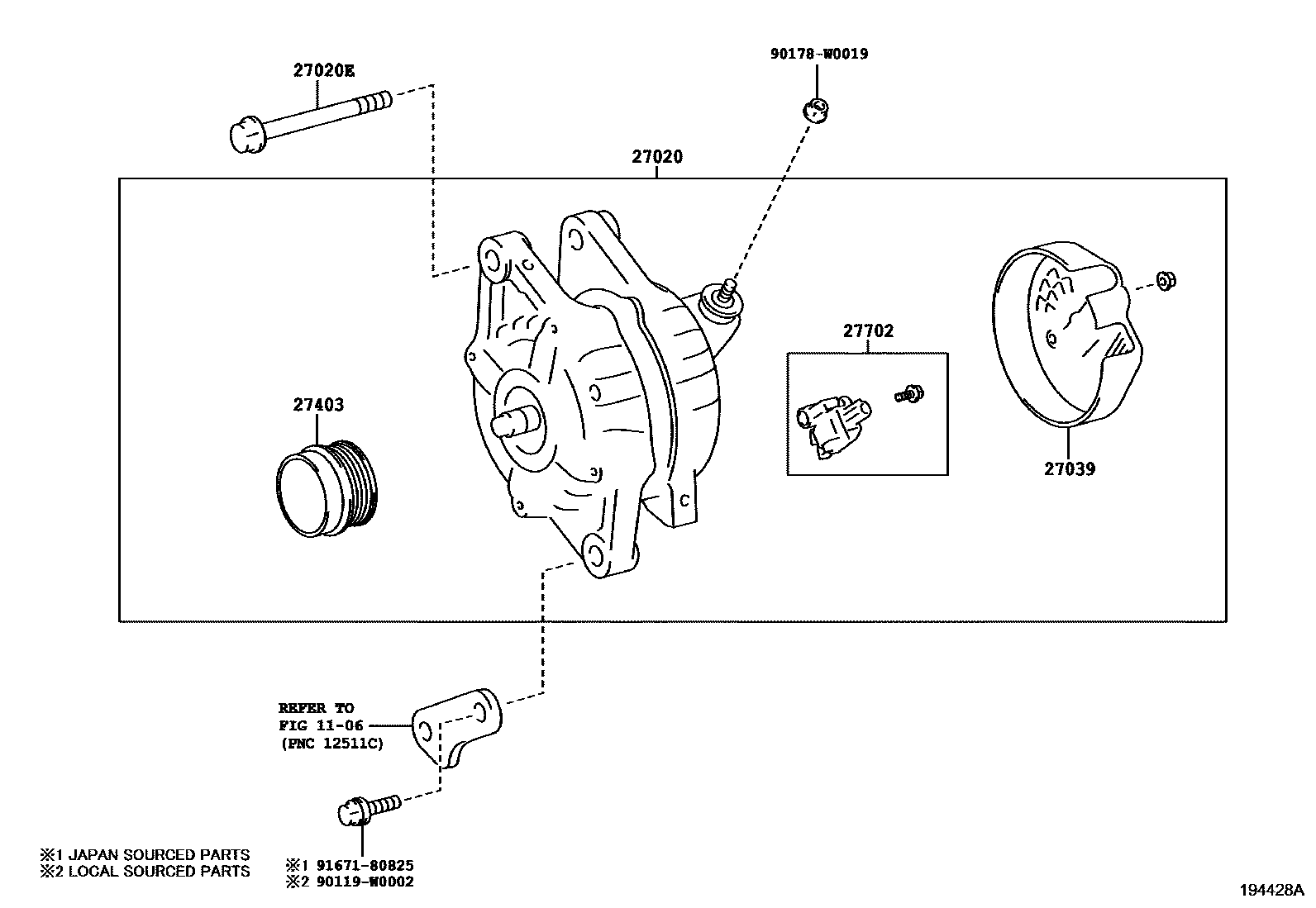

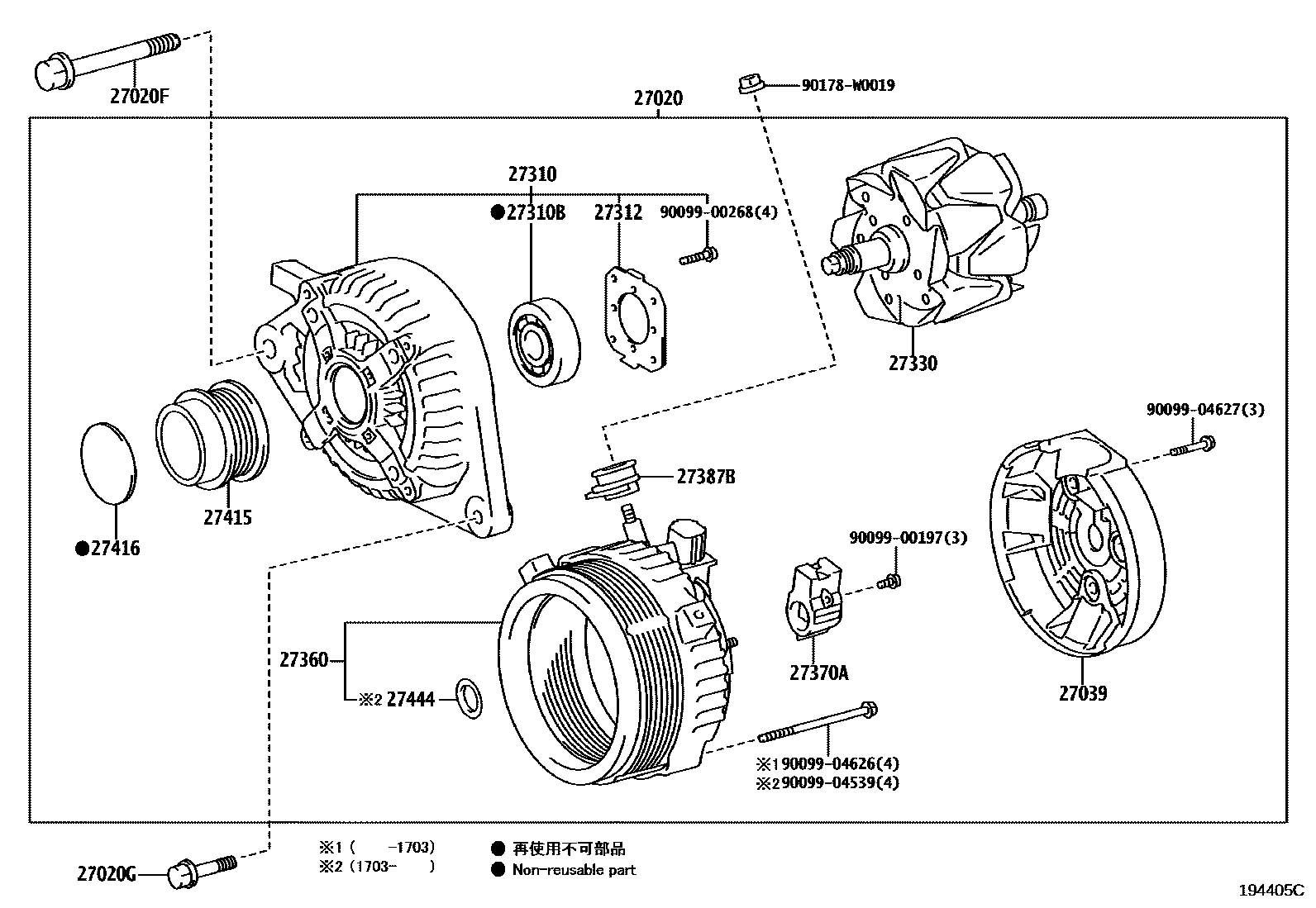

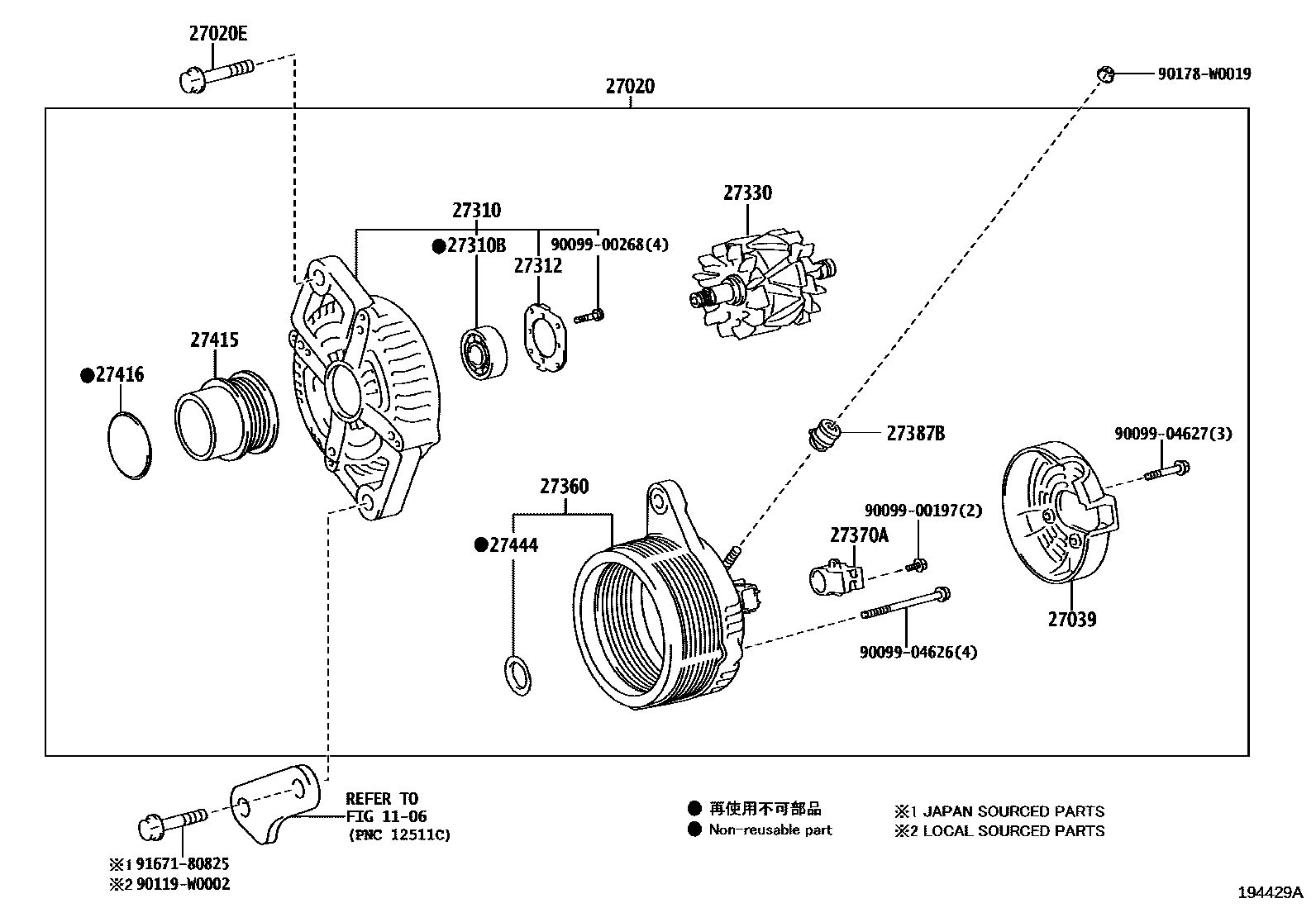

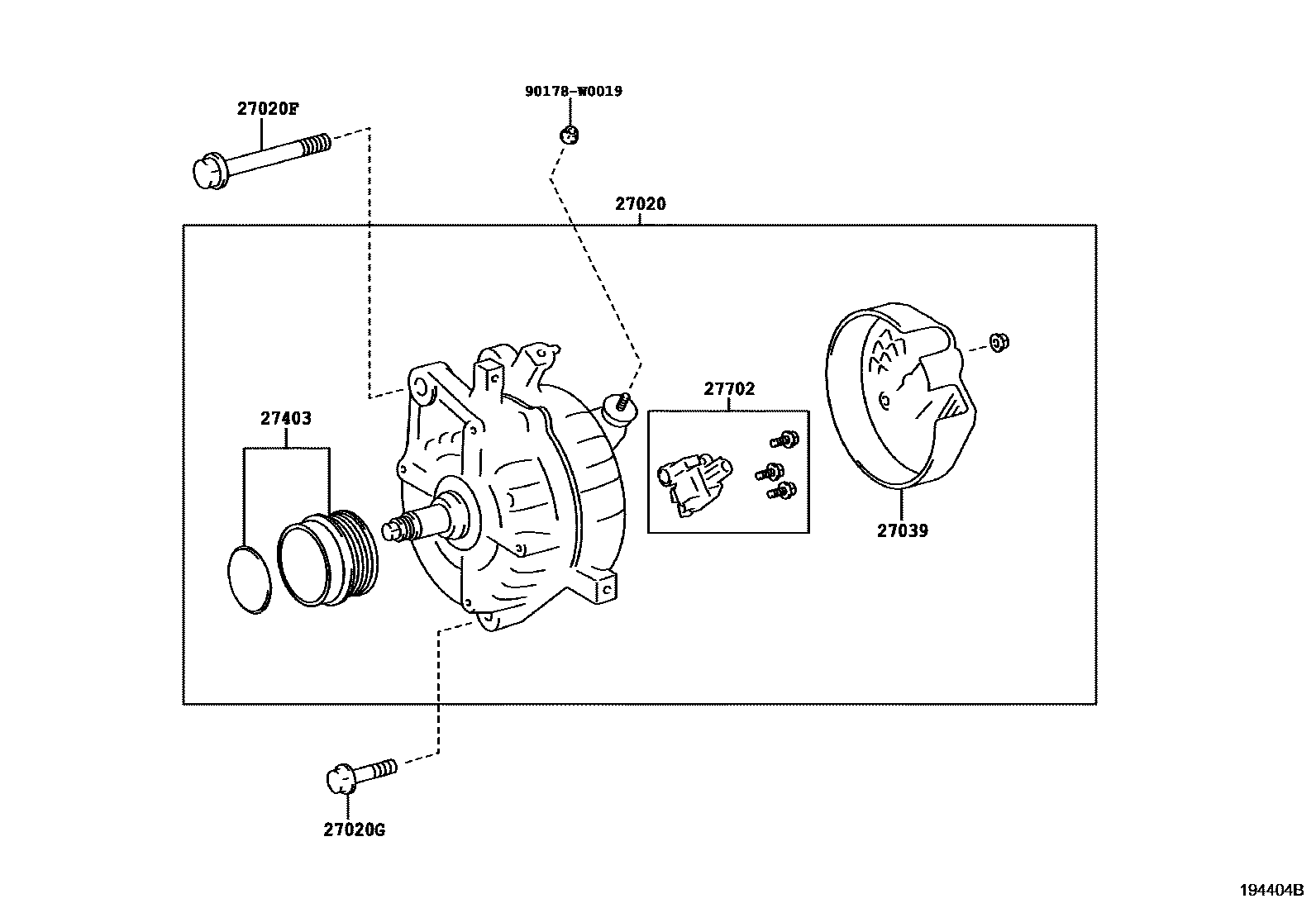

Toyota YARIS Alternator — Figure 1903
Toyota YARIS EPC diagram 1903, Alternator, with 5 images and 17 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 27020 | Alternator Assembly | 27060-0N100 · 27060-0N140 · 27060-0Q151 · 27060-0Q200 · 27060-0Y120 · 27060-0Y160 · 27060-0Y270 · 27060-0Y370 · 27060-0Y380 |
| 27020E | Bolts (for generator) | 90105-10075 |
| 27020F | Bolt No. 1 (for generator) | 90105-10571 · 90105-W0044 · 90105-W0113 |
| 27020G | Bolt No. 2 (for generator) | 90105-W0204 · 90119-W0238 · 91552-81050 · 91671-00845 |
| 27039 | Alternator Rear End Cover | 27039-0Q140 · 27039-0Y150 · 27039-0Y370 |
| 27310 | Alternator Drive End Frame Assembly | 27310-0N080 · 27310-0N120 · 27310-0Q131 · 27310-0Y150 |
| 27310B | Bearing (for Alternator Drive End Frame) | 90068-10033 · 90099-10223 · 90099-10231 |
| 27312 | Retainer Plate | 27312-0T300 · 27312-72100 |
| 27330 | Alternator Rotor Assembly | 27330-0Y150 |
| 27360 | Alternator Stator Coil Assembly | 27360-0N080 · 27360-0Q131 · 27360-0Y150 · 27360-0Y360 |
| 27370A | Alternator Brush Holder Assembly | 27370-0Y150 |
| 27387B | Generator terminal insulation pad | 27387-0Y150 |
| 27403 | Generator pulley assembly | 27403-0Q180 · 27403-0Y121 · 27403-0Y370 |
| 27415 | PULLEY, ALTERNATOR W/CLUTCH | 27415-0W220 · 27415-0Y061 · 27415-33100 |
| 27416 | Generator pulley cover | 27416-0W020 · 27416-0W050 · 27416-27010 |
| 27444 | Generator bearing cap seals | 27444-0T300 · 27444-21190 |
| 27702 | Generator (with brush) voltage regulator sub-assembly | 27702-0Q140 · 27702-0Y370 |
