Toyota YARIS vacuum tube — Figure 1708

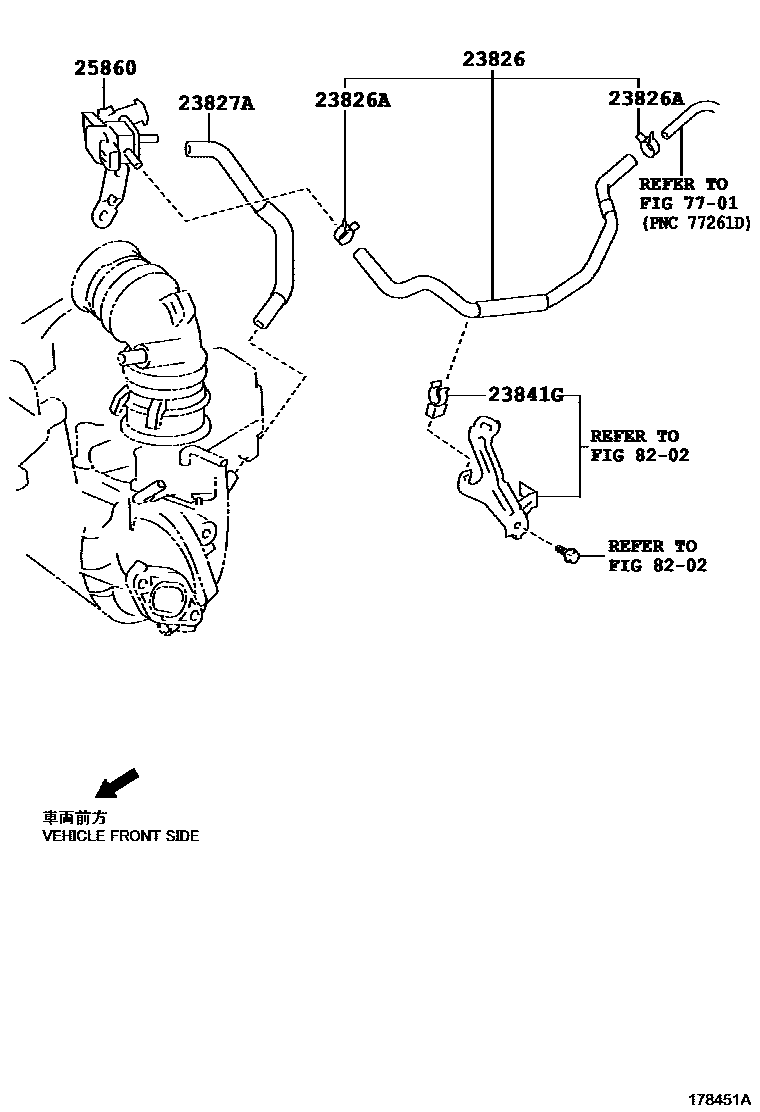

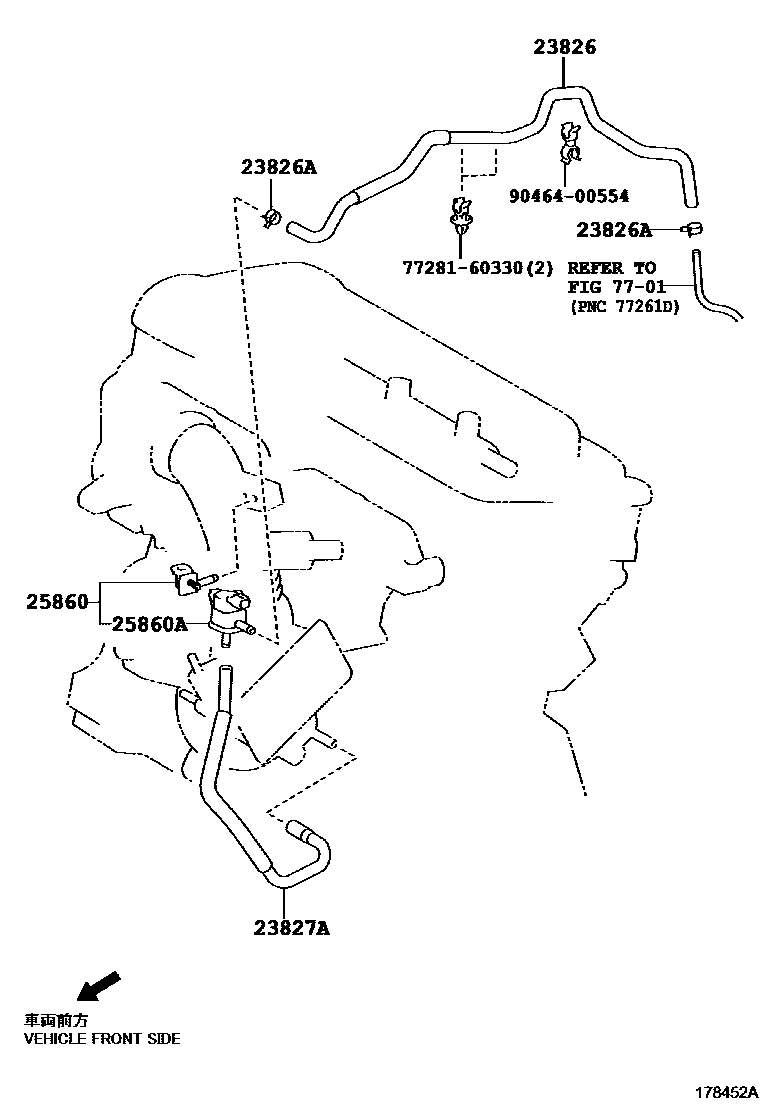

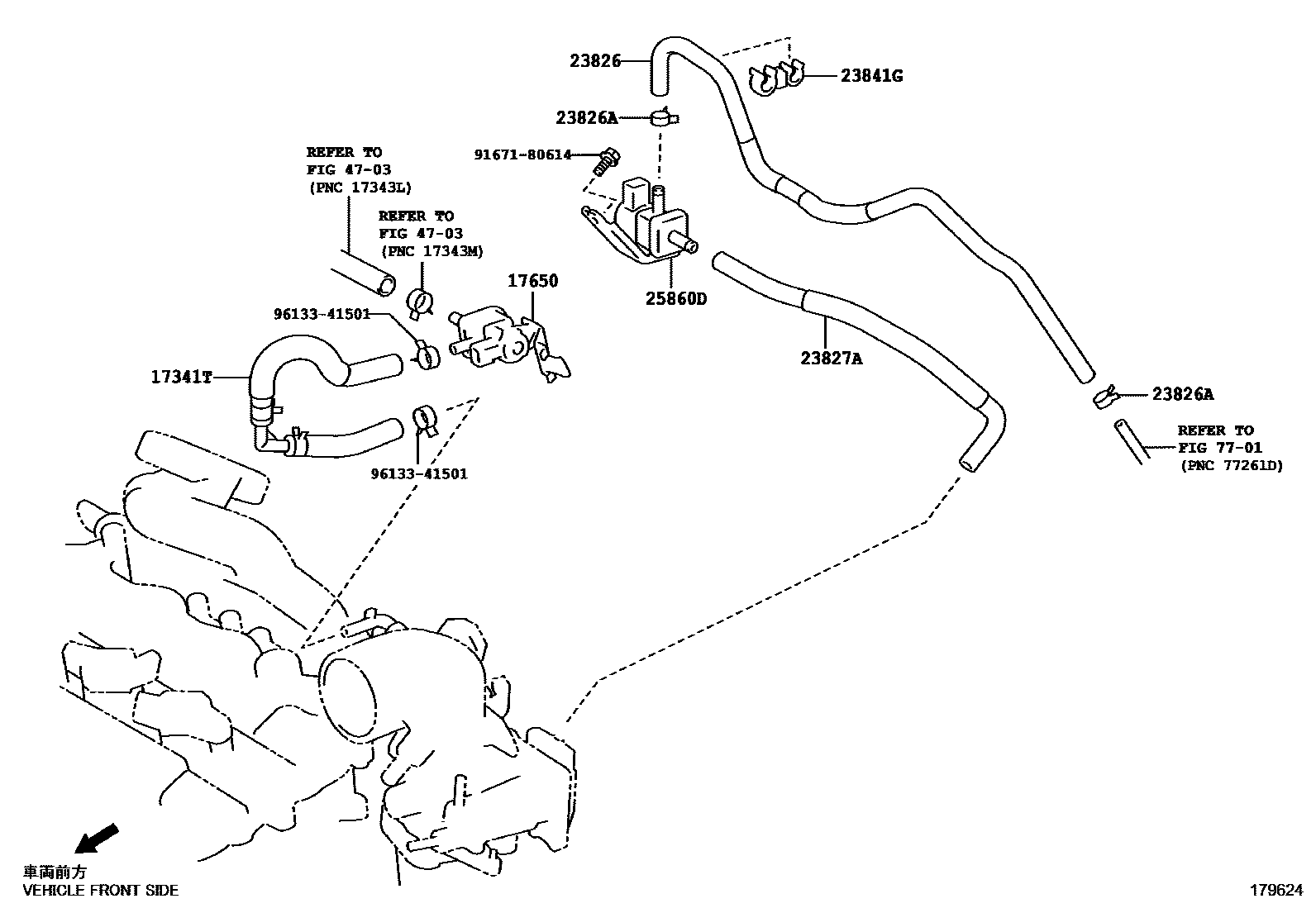

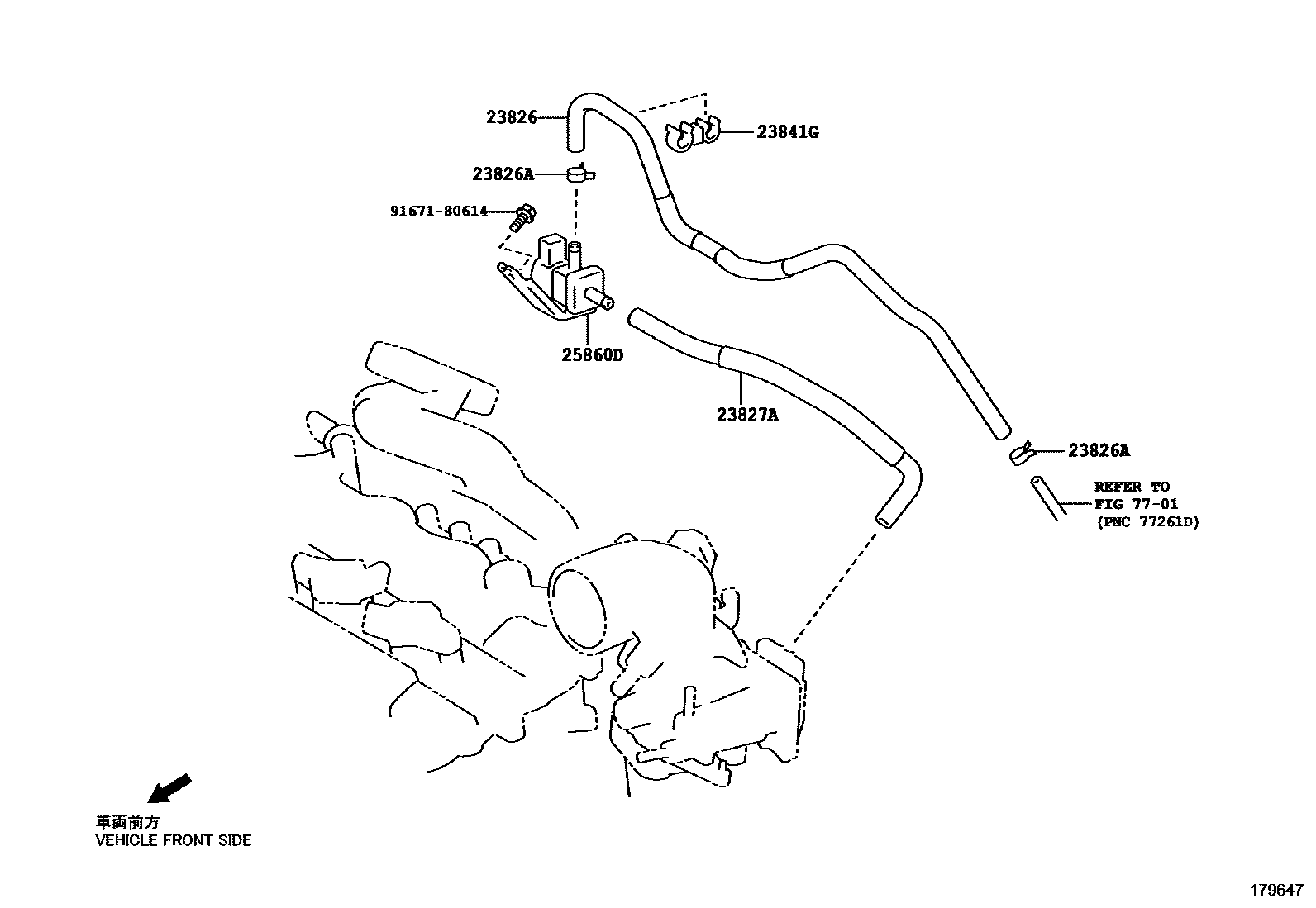

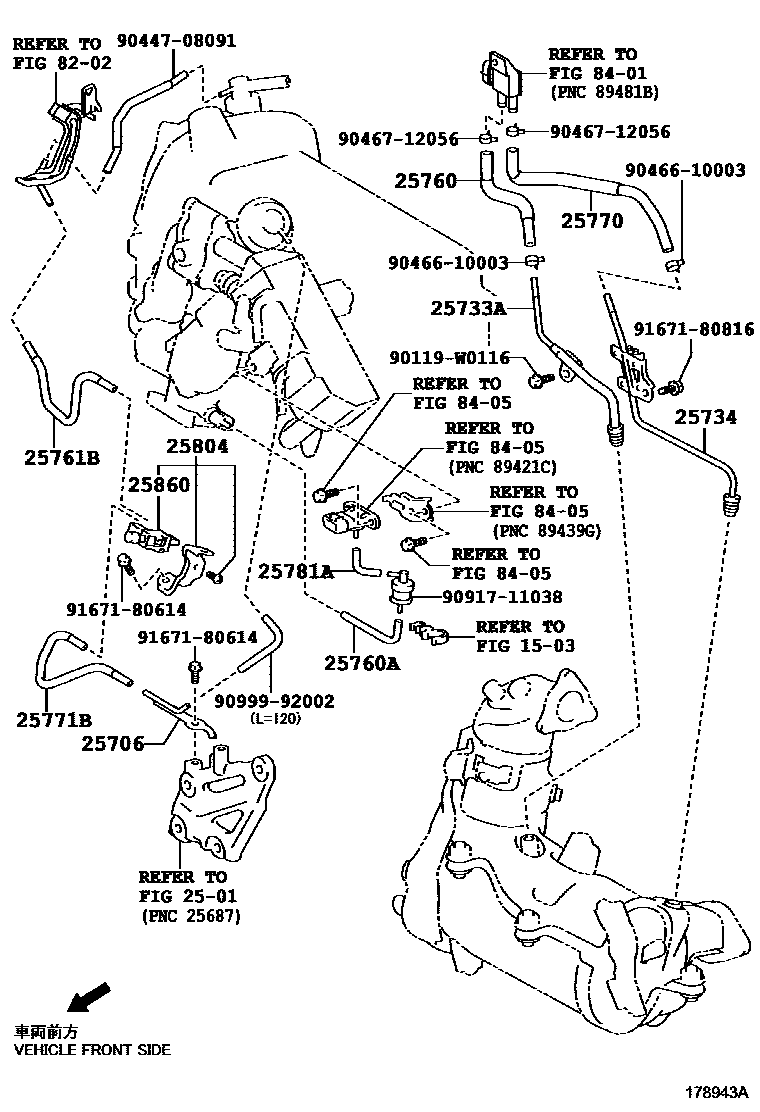

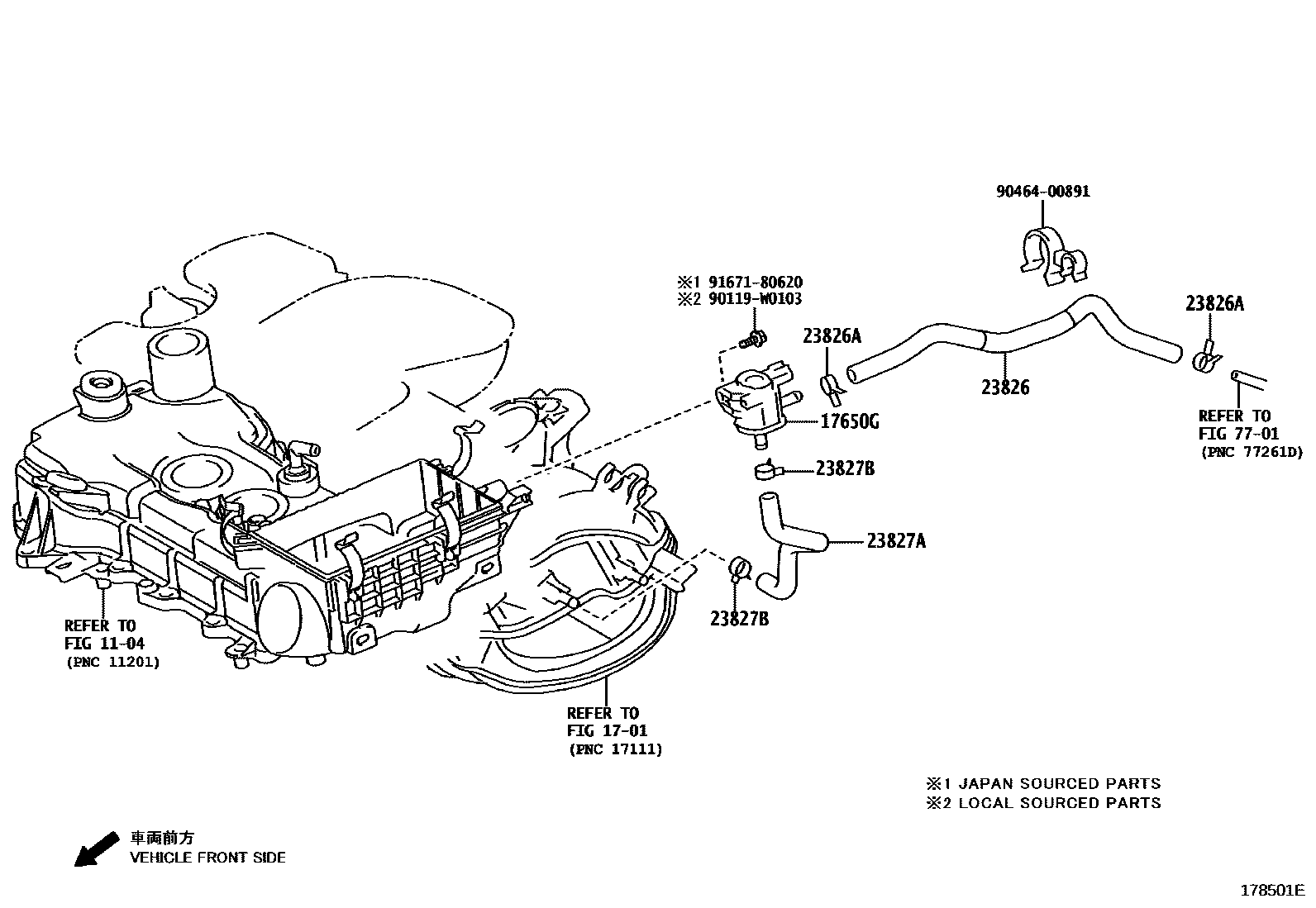

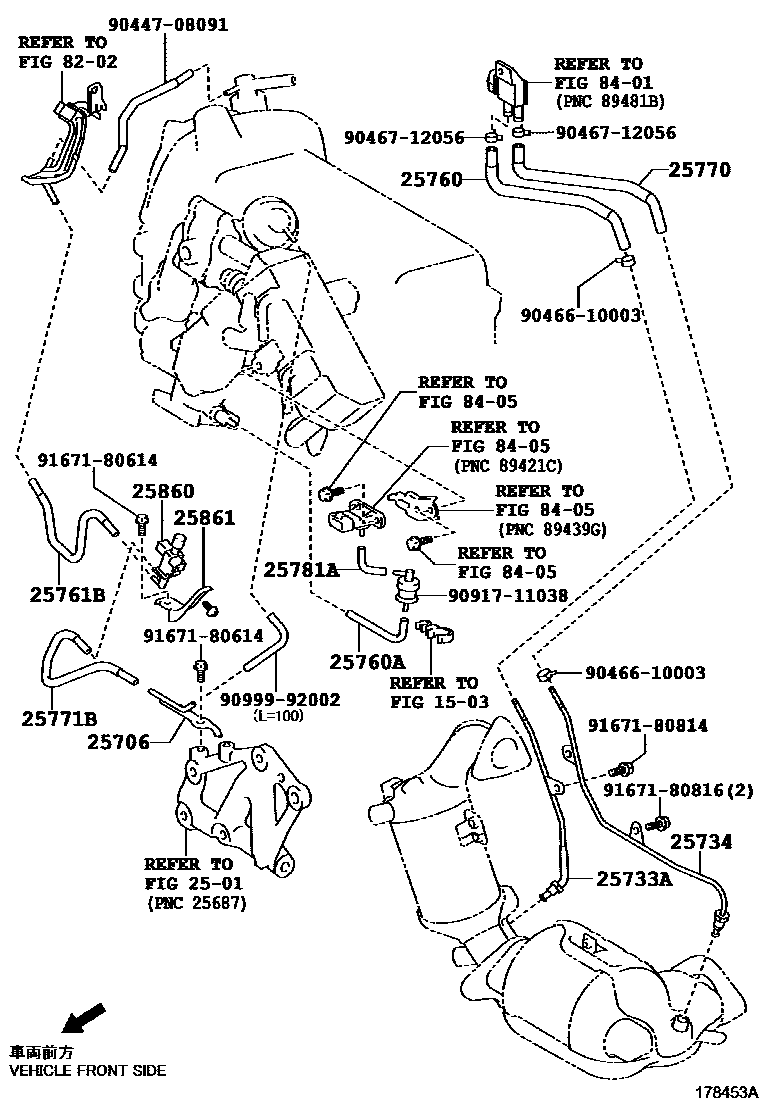

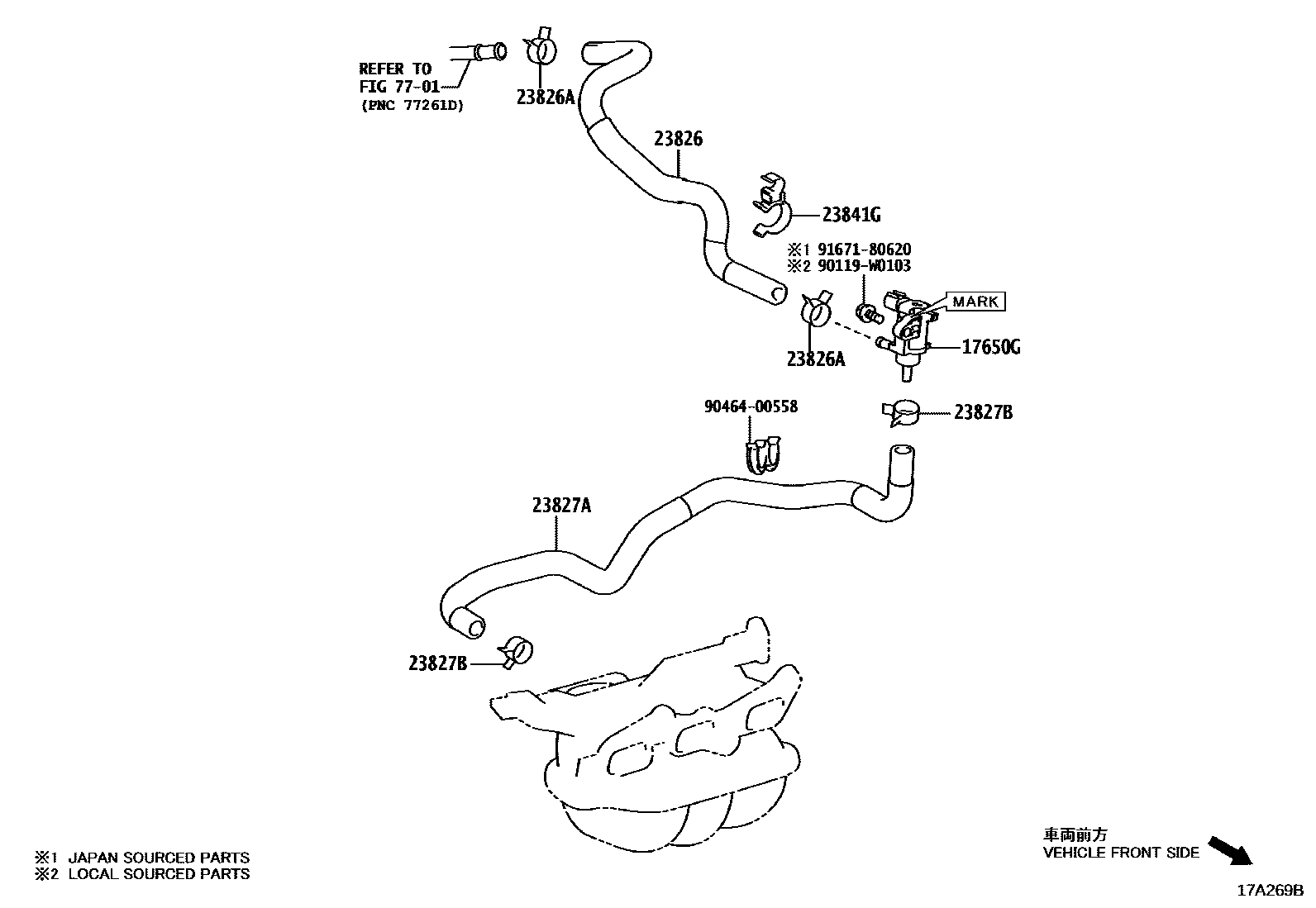

Toyota YARIS EPC diagram 1708, vacuum tube, with 8 images and 22 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 17341T | Air hose No. 1 | 44726-52020 |
| 17650 | Vacuum switch valve assembly | 25860-0Y110 |
| 17650G | Duty cycle controlled vacuum switching valve | 90910-12280 · 90910-12282 · 90910-WC003 |
| 23826 | No. 1 fuel vapor supply hose | 23826-0M050 · 23826-0Y010 · 23826-0Y250 · 23826-0Y251 · 23826-40030 |
| 23826A | Clamp (for No. 1 fuel vapor supply hose) | 90466-11003 · 96132-51100 |
| 23827A | No. 2 fuel vapor supply hose | 23827-0M050 · 23827-0Q010 · 23827-0Y010 · 23827-0Y210 · 23827-40050 |
| 23827B | Clamp (for No. 2 fuel vapor supply hose) | 96133-41301 · 96137-41301 · 96137-41501 · 96138-41501 |
| 23841G | fuel hose clamp | 23841-28050 · 23841-40040 · 23847-47010 |
| 25706 | No. 1 vacuum transfer tube sub-assembly | 25706-33080 |
| 25733A | No. 1 vacuum tube | 25733-0N010 · 25733-33010 |
| 25734 | No. 2 vacuum tube | 25734-0N010 · 25734-33010 |
| 25760 | Vacuum transfer hose assembly | 25760-33080 · 25760-33090 |
| 25760A | Vacuum transfer hose assembly | 257A1-33010 |
| 25761B | No. 1 Vacuum Transfer Hose | 25761-33060 · 25761-33080 |
| 25770 | No. 2 vacuum transmission hose assembly | 25770-33020 · 25770-33060 |
| 25771B | No. 2 vacuum transfer hose | 25771-33050 · 25791-33020 |
| 25781A | No. 3 vacuum transfer hose | 25791-33010 |
| 25804 | Vacuum control valve assembly | 25804-33030 |
| 25860 | No. 1 vacuum switch valve assembly | 25860-0M010 · 25860-0Y010 · 25860-30070 · 25860-47020 |
| 25860A | No. 1 vacuum switch valve | 90910-TC001 |
| 25860D | No. 2 vacuum switch valve assembly | 25860-47030 |
| 25861 | Vacuum switch valve bracket | 25861-33020 |
