Toyota YARIS Exhaust Pipe — Figure 1702

Toyota YARIS EPC diagram 1702, Exhaust Pipe, with 5 images and 6 PNC and OE references.

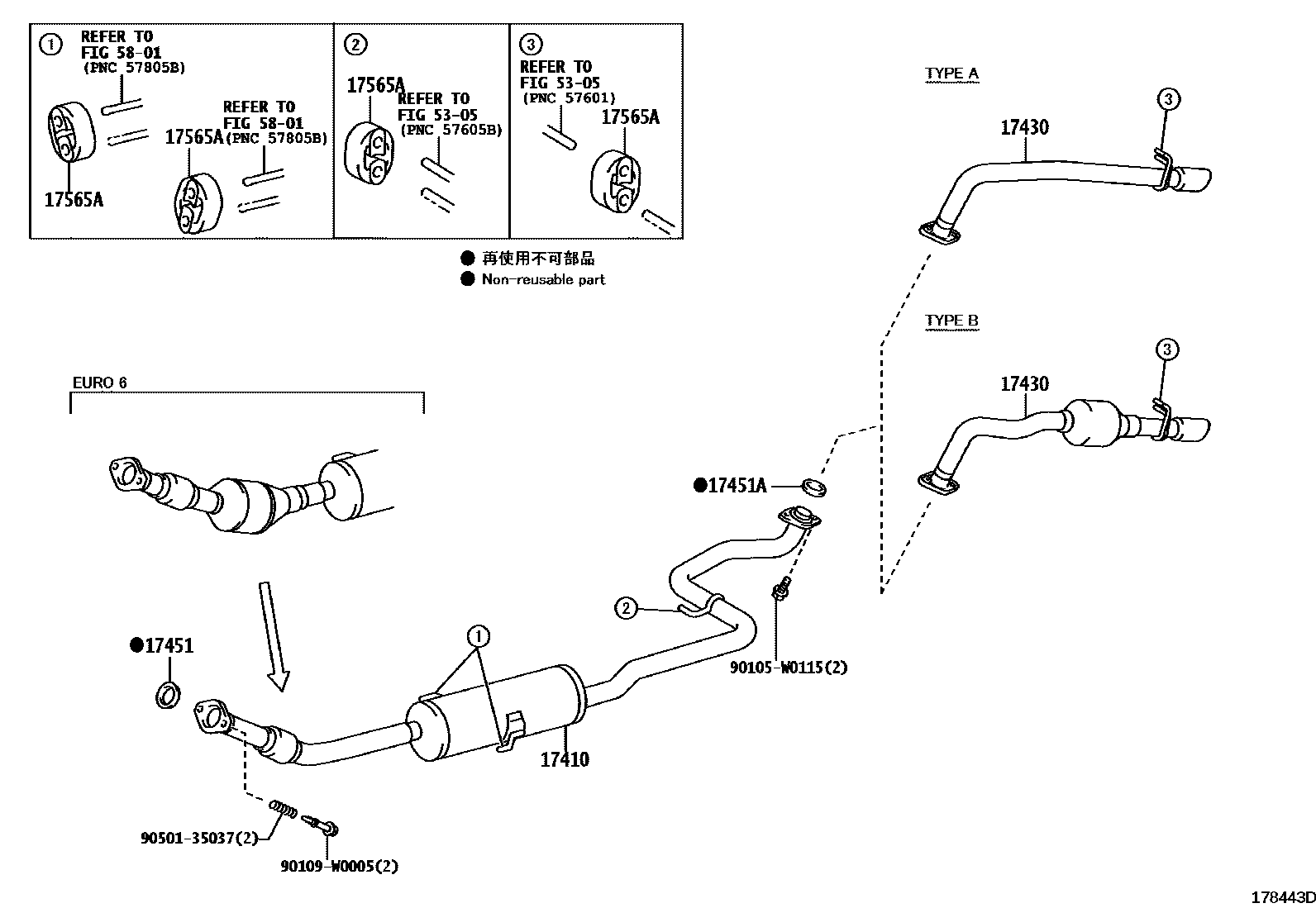

Toyota YARIS Exhaust Pipe EPC diagram — 178443D
Exhaust Pipe — 178443D (201407 – 999999)

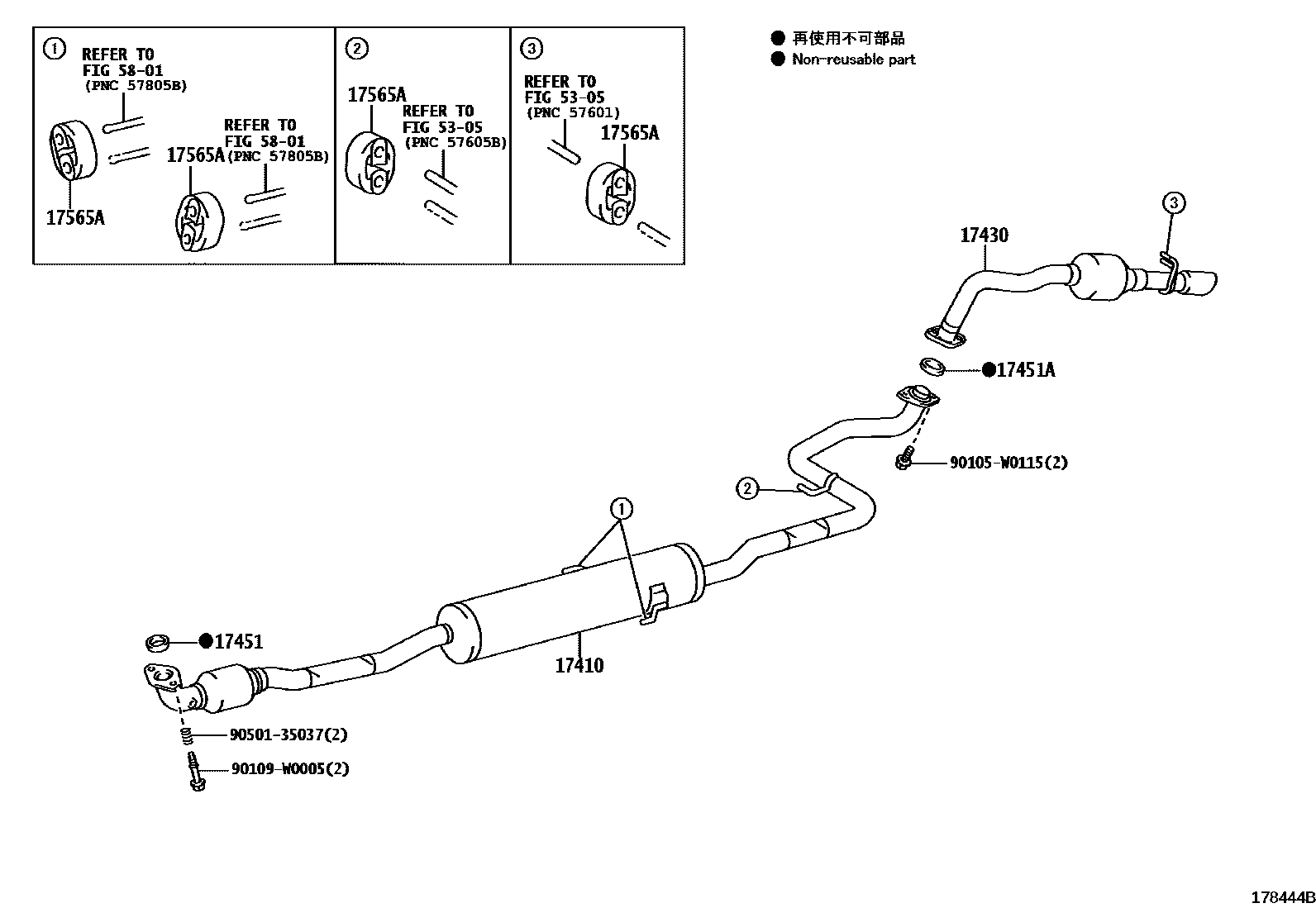

Toyota YARIS Exhaust Pipe EPC diagram — 178444B
Exhaust Pipe — 178444B (201407 – 999999)

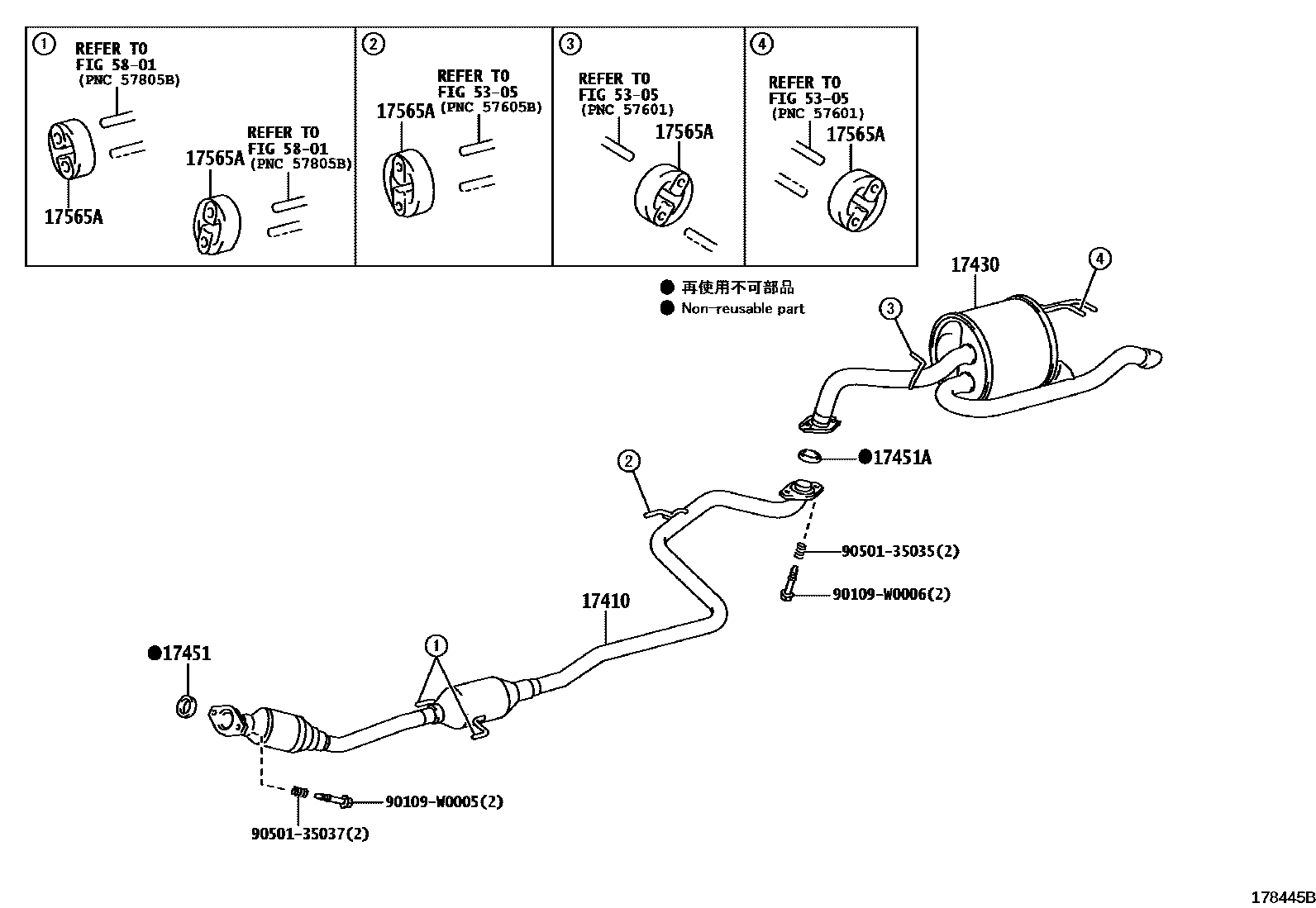

Toyota YARIS Exhaust Pipe EPC diagram — 178445B
Exhaust Pipe — 178445B (201407 – 999999)

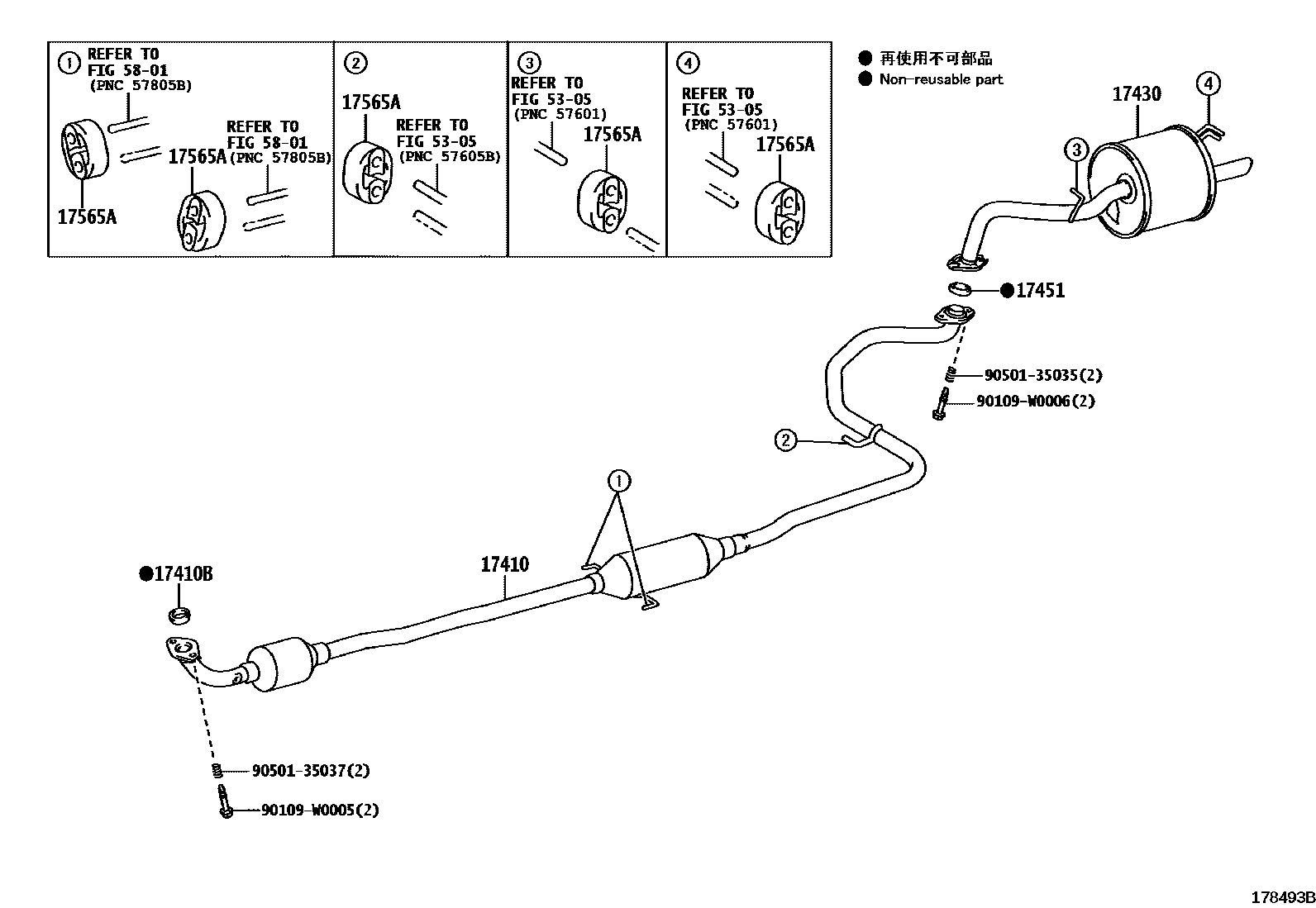

Toyota YARIS Exhaust Pipe EPC diagram — 178493B
Exhaust Pipe — 178493B (201407 – 999999)

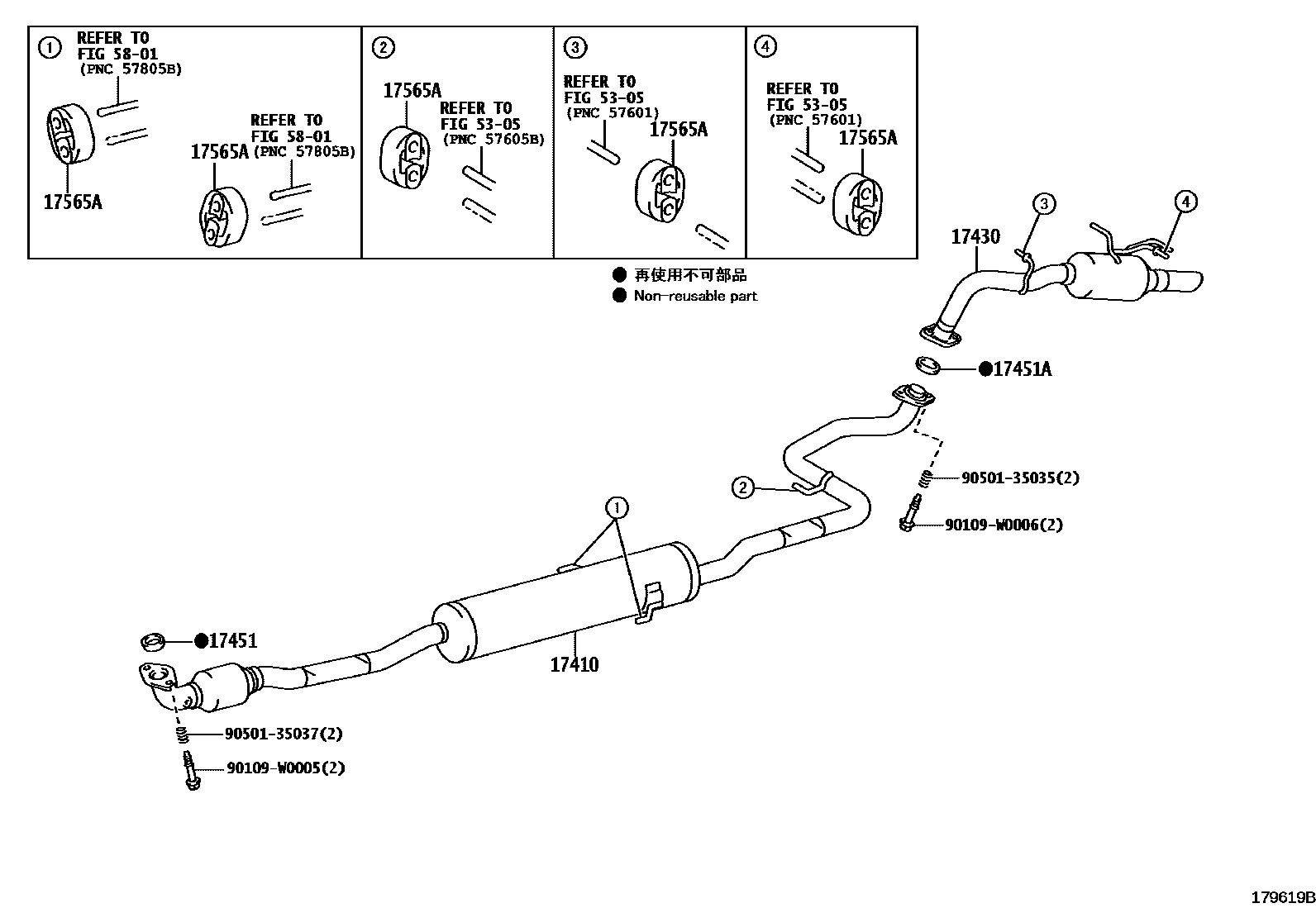

Toyota YARIS Exhaust Pipe EPC diagram — 179619B
Exhaust Pipe — 179619B (201703 – 999999)

PNC and OE references

PNCPart nameOE numbers
17410Front exhaust pipe assembly17410-0M180 · 17410-0M181 · 17410-0N130 · 17410-0N190 · 17410-0Q070 · 17410-0Q100 · 17410-0Y120 · 17410-0Y770
17410BExhaust pipe gasket17451-0Q010 · 17451-0Q030
17430Exhaust tailpipe assembly17430-0M120 · 17430-0N080 · 17430-0N150 · 17430-0Q070 · 17430-0Y020 · 17430-0Y390
17451Exhaust pipe gasket17451-0J030 · 17451-0Q022 · 17451-0R010
17451ANo. 2 exhaust pipe gasket17451-0J022 · 17451-0Q022 · 90917-06039
17565ANo. 4 exhaust pipe lifting lug17565-0Q030
