Toyota YARIS Manifold — Figure 1701

Toyota YARIS EPC diagram 1701, Manifold, with 8 images and 40 PNC and OE references.

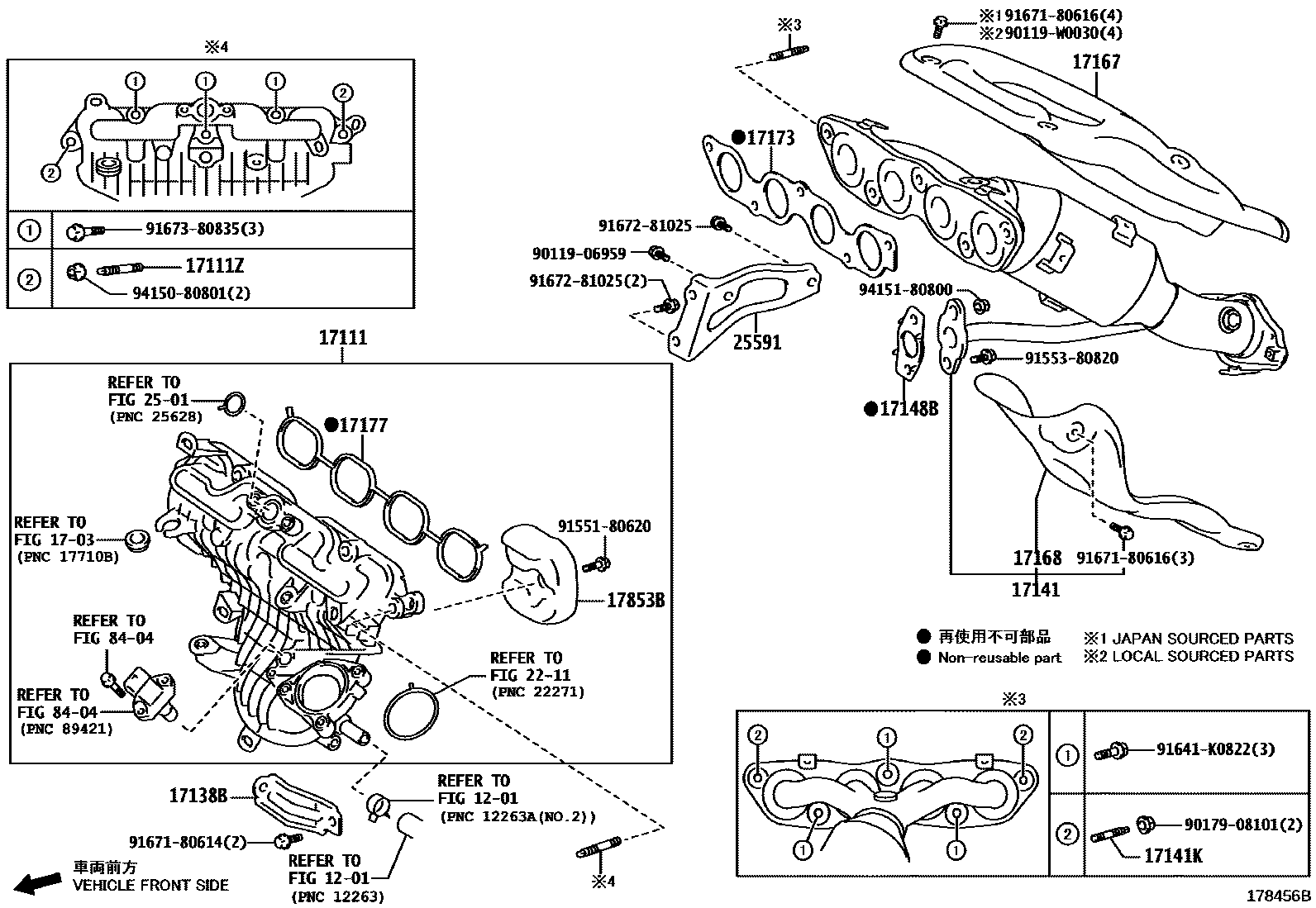

Toyota YARIS Manifold EPC diagram — 178456B
Manifold — 178456B (201407 – 999999)

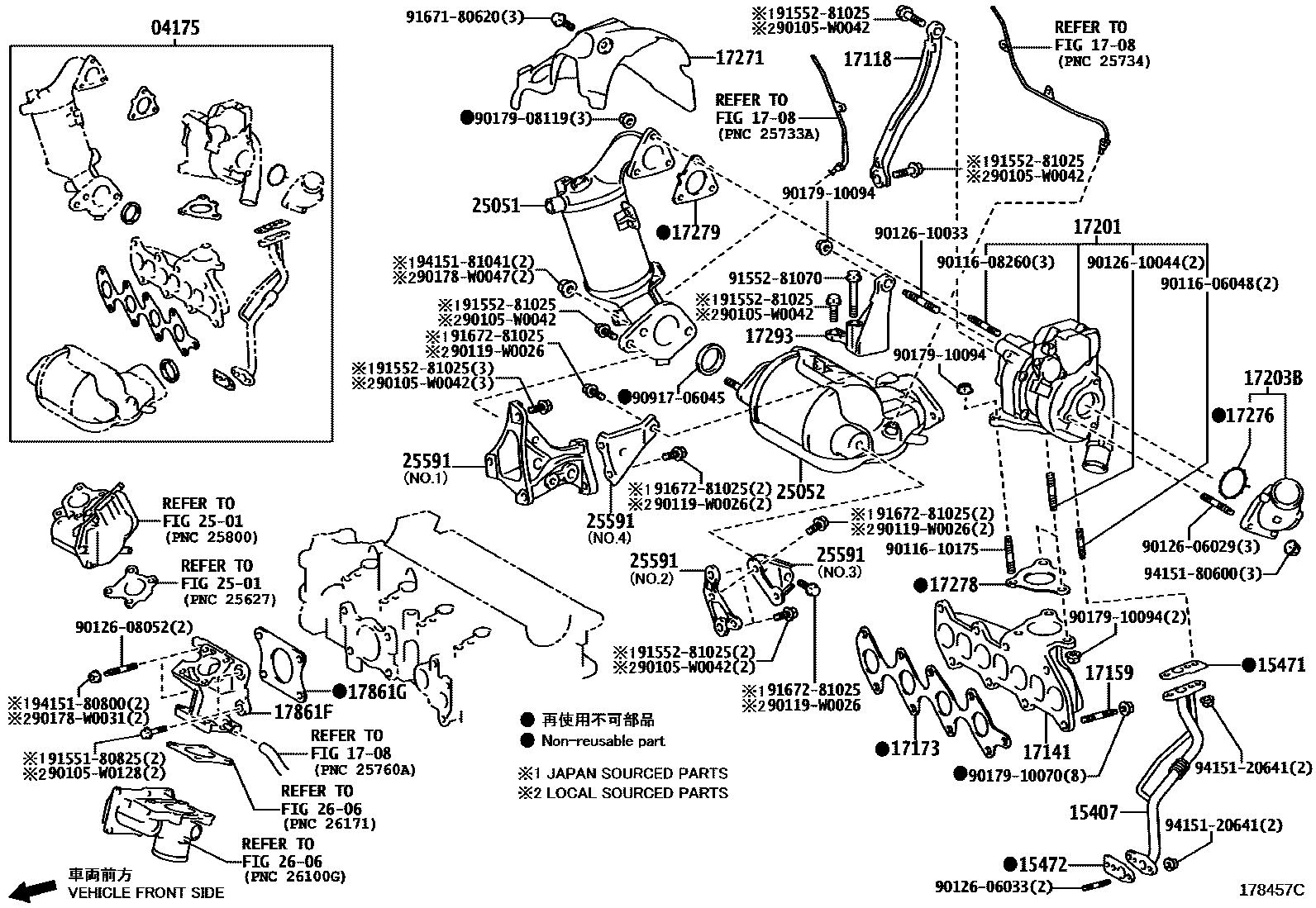

Toyota YARIS Manifold EPC diagram — 178457C
Manifold — 178457C (201407 – 999999)

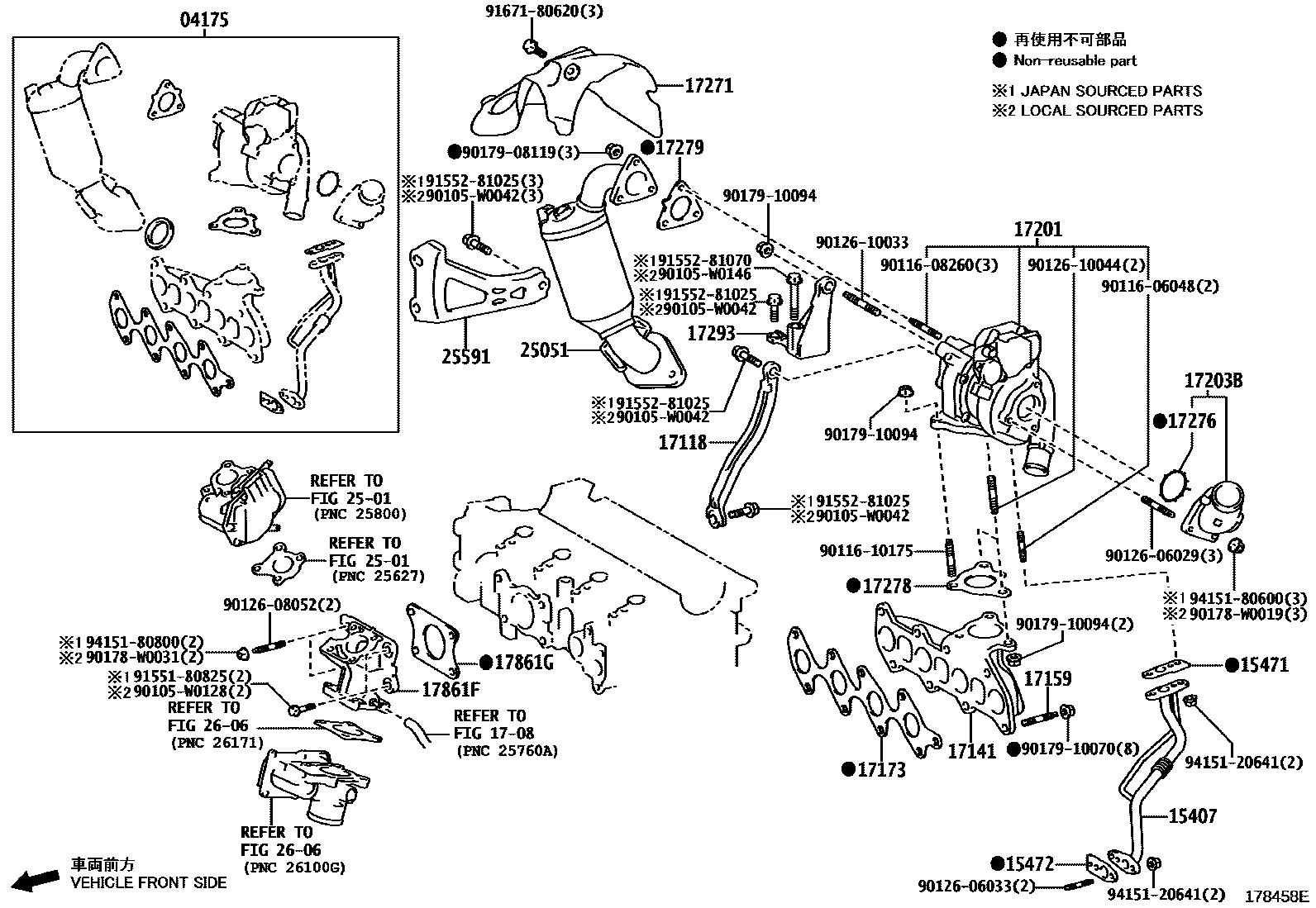

Toyota YARIS Manifold EPC diagram — 178458E
Manifold — 178458E (201407 – 999999)

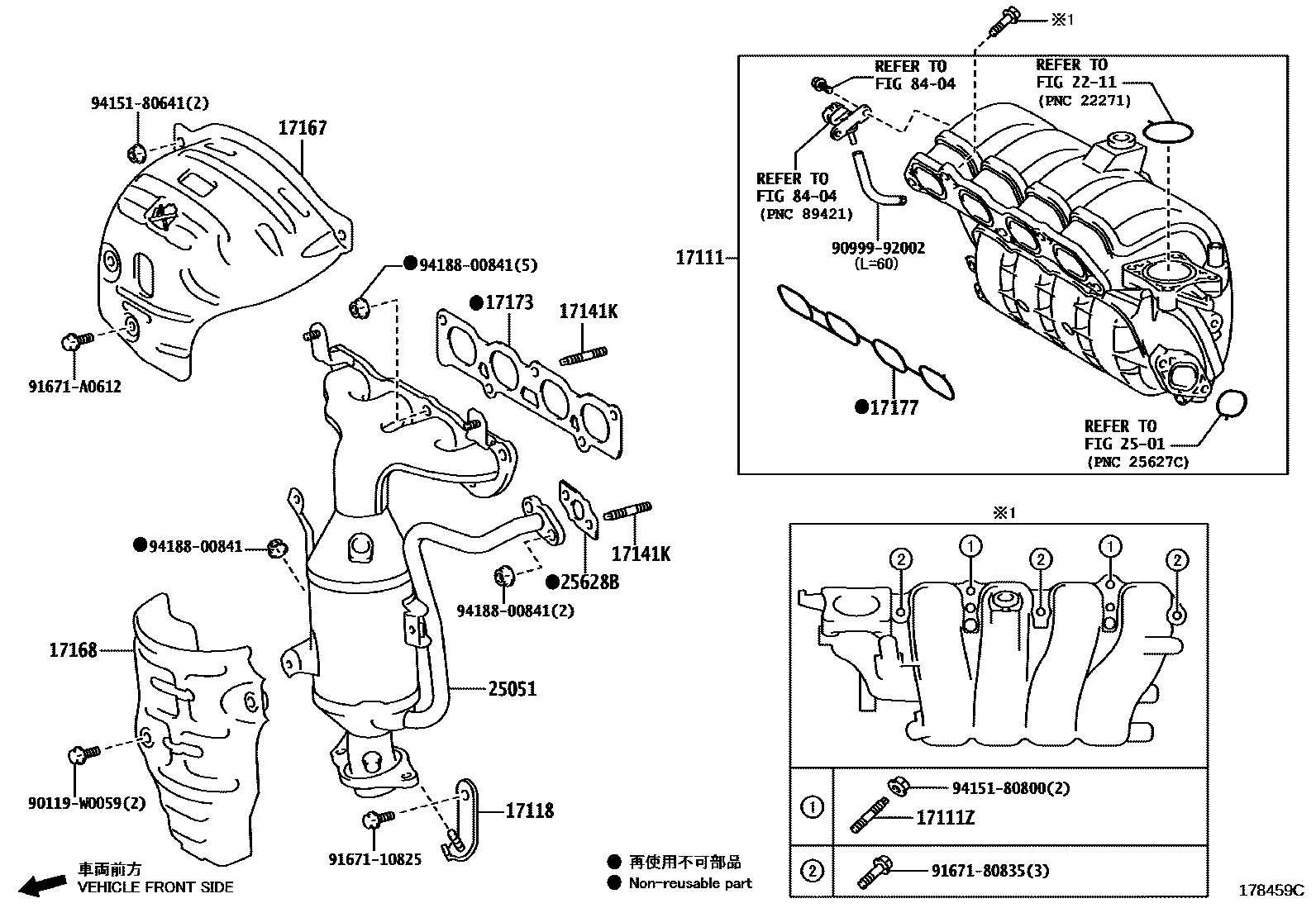

Toyota YARIS Manifold EPC diagram — 178459C
Manifold — 178459C (201407 – 999999)

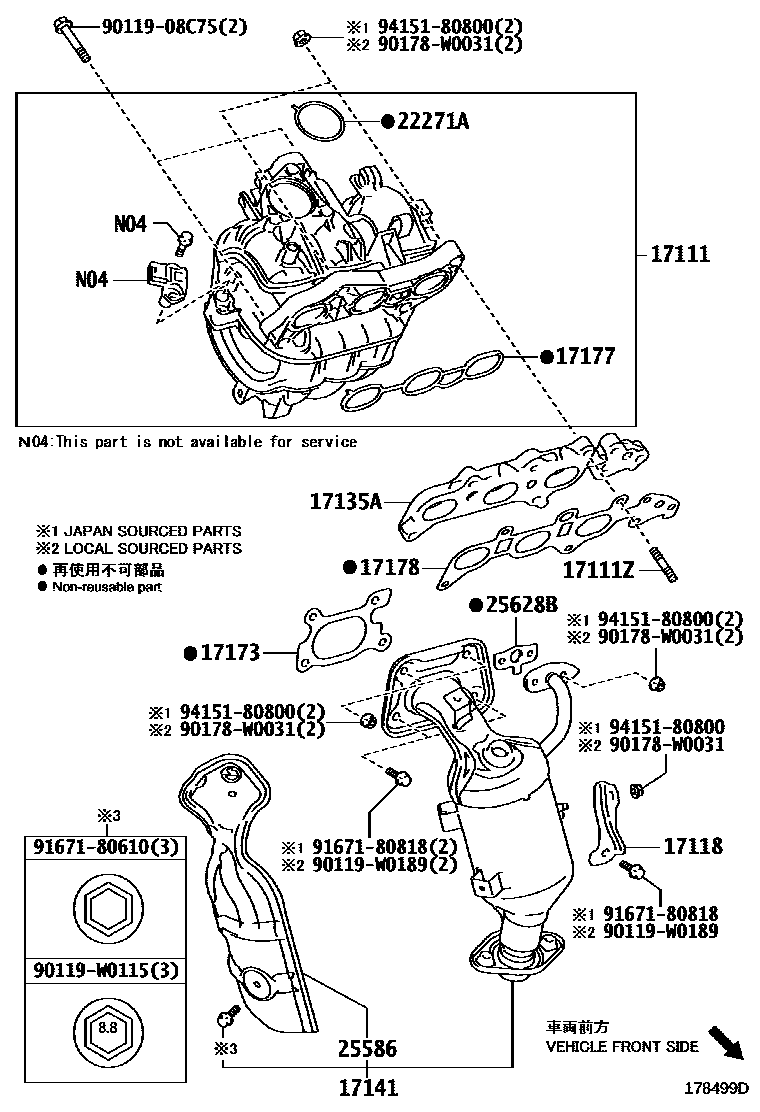

Toyota YARIS Manifold EPC diagram — 178499D
Manifold — 178499D (201407 – 201805)

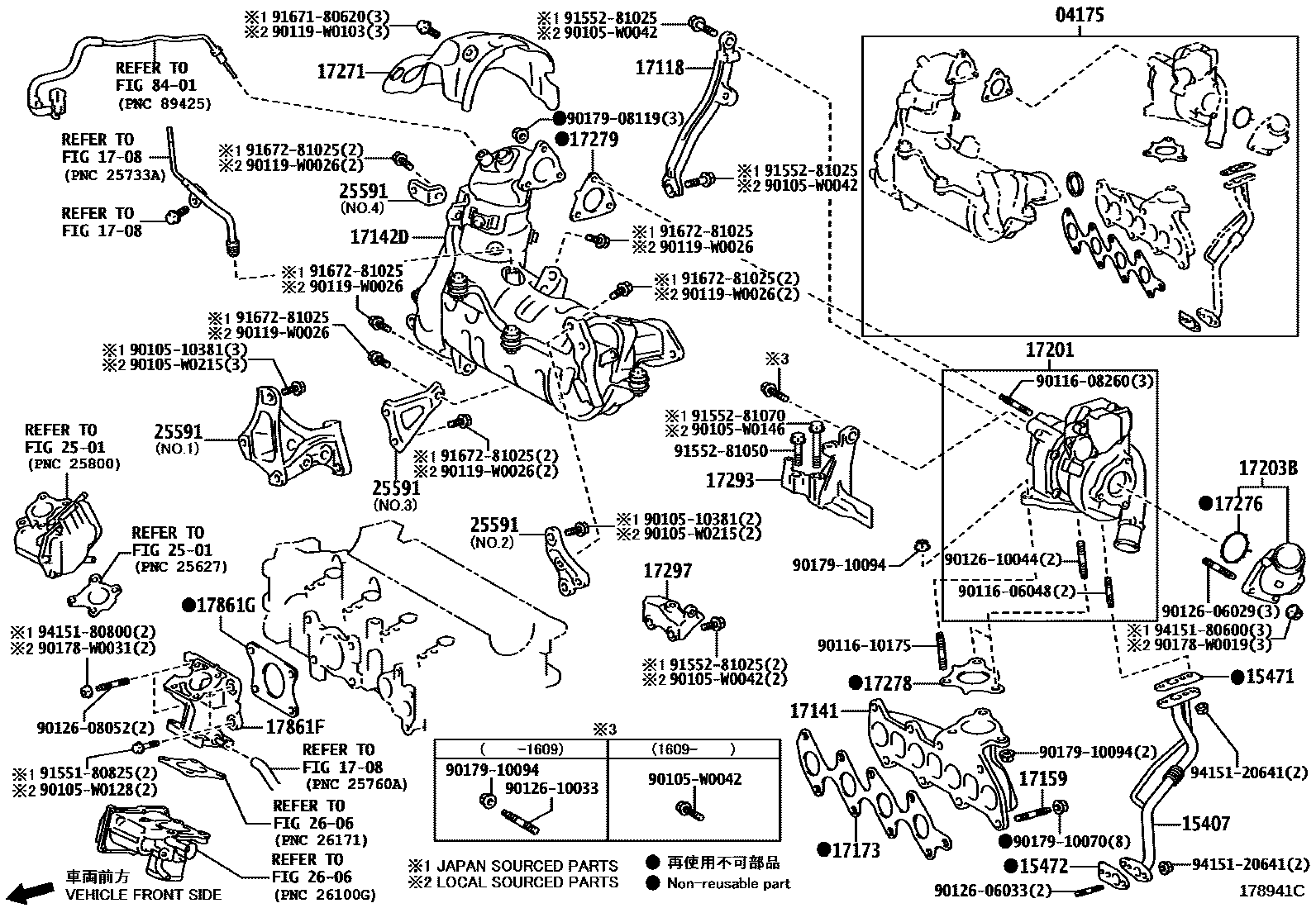

Toyota YARIS Manifold EPC diagram — 178941C
Manifold — 178941C (201505 – 999999)

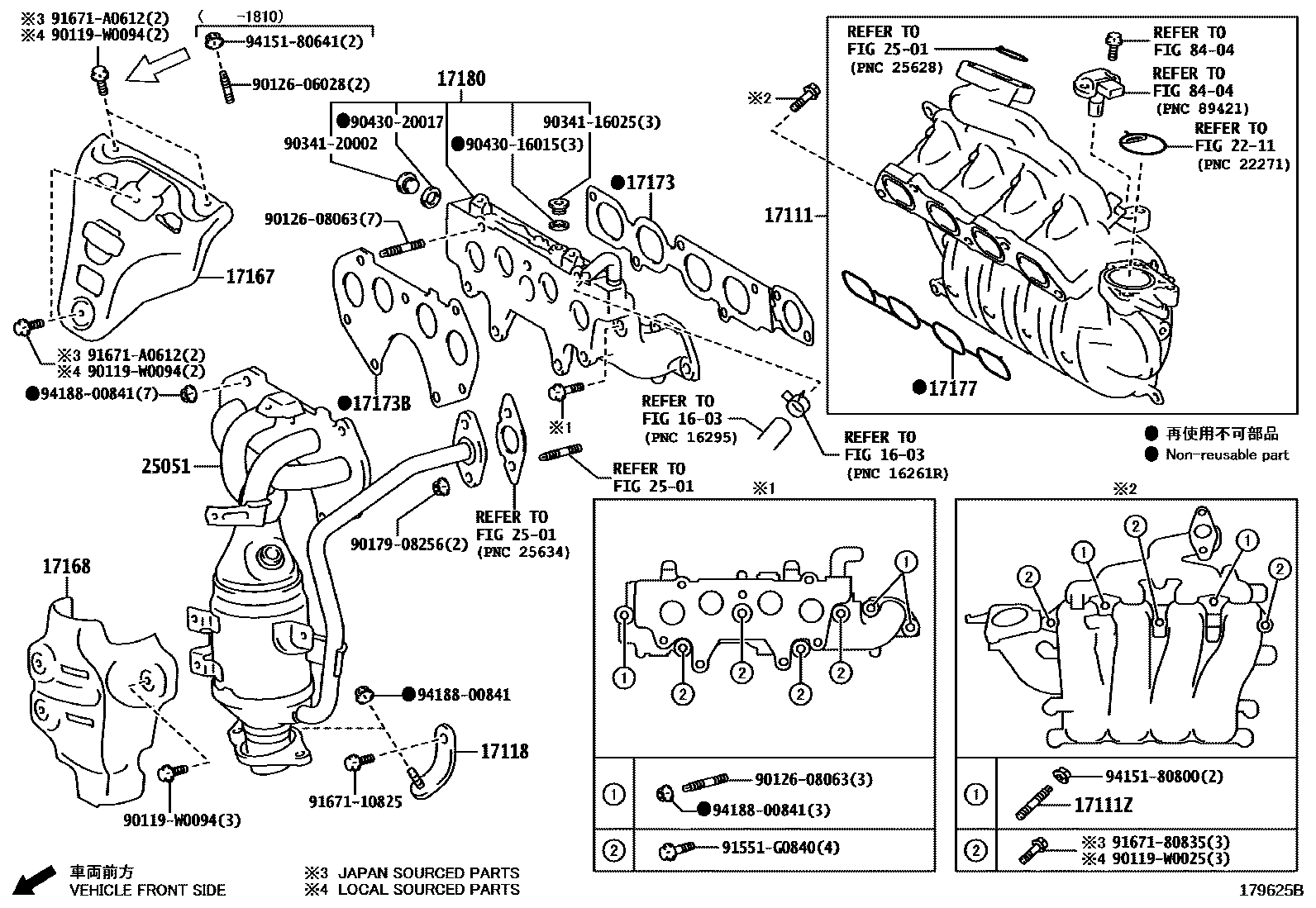

Toyota YARIS Manifold EPC diagram — 179625B
Manifold — 179625B (201703 – 999999)

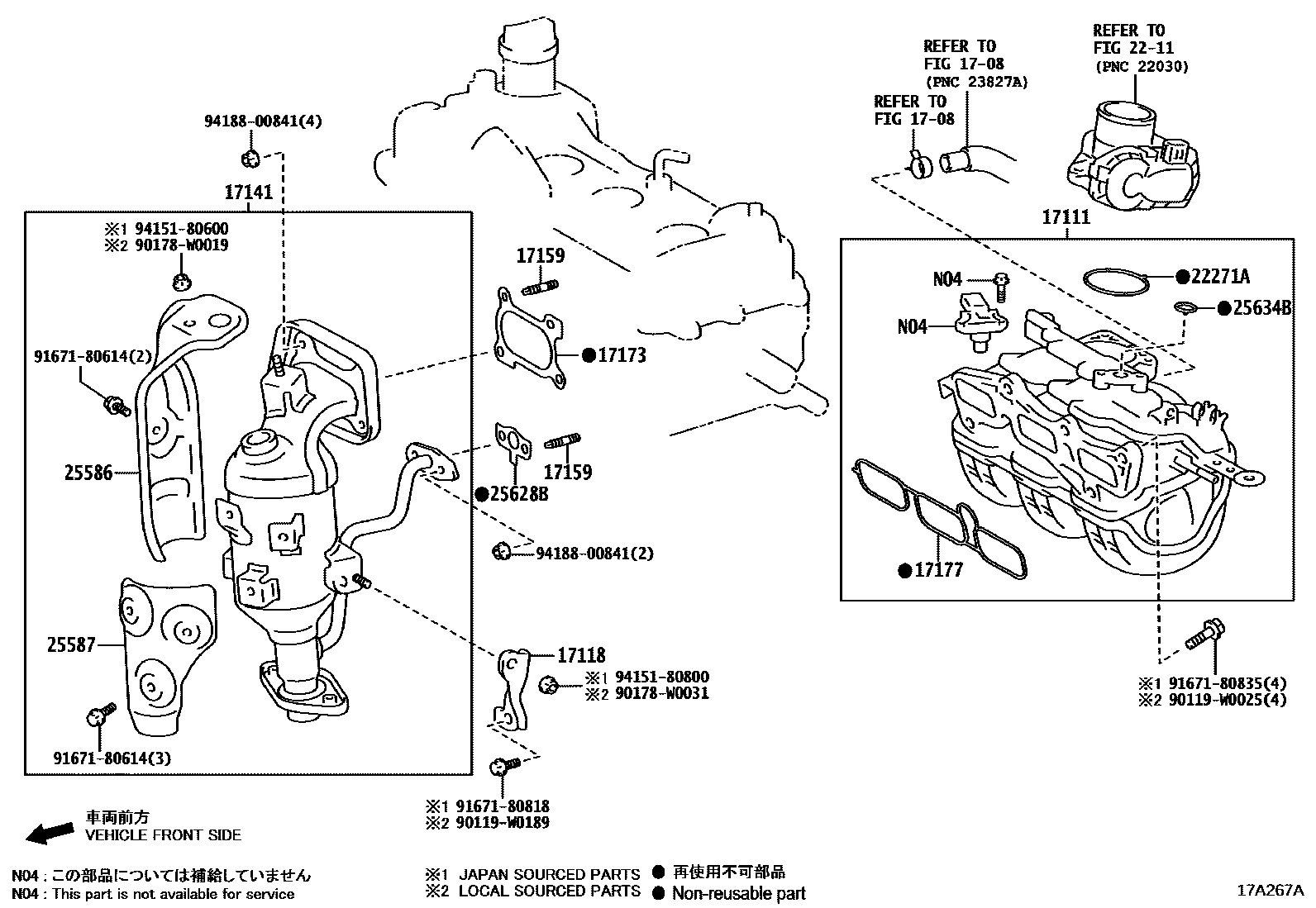

Toyota YARIS Manifold EPC diagram — 17A267A
Manifold — 17A267A (201805 – 999999)

PNC and OE references

PNCPart nameOE numbers
04175Turbocharger gasket assembly04175-33070 · 04175-33071 · 04175-33110
15407Turbine oil inlet pipe sub-assembly15407-0N010 · 15407-33021
15471Turbine oil inlet pipe gasket15471-0N010 · 15471-33010
15472No. 1 turbine oil outlet pipe gasket15472-33020
17111Intake Manifold17120-0Q040 · 17120-0Q050 · 17120-21060 · 17120-47032 · 17120-47110
17111ZStud bolts (for intake manifold to cylinder head)90126-08026 · 90126-08060 · 92122-80845
17118Manifold stays17118-0Q020 · 17118-33040 · 17118-33070 · 17118-47010 · 17118-47011
17135AIntake manifold No. 1 heat shield17135-40030
17138BIntake manifold stay17138-21020
17141exhaust manifold17140-0Q090 · 17140-0Q100 · 17140-0Q110 · 17140-21110 · 17141-33050 · 17141-33080
17141KStud bolts (for exhaust manifold to cylinder head)90126-08037 · 90126-08063
17142DExhaust manifold No. 217140-0N030
17148BEGR air intake gasket25634-21020
17159Studs (for manifold to cylinder head)90126-08055 · 90126-10033
17167Exhaust manifold No. 1 heat shield17167-21170 · 17167-21171 · 17167-47011 · 17167-47040
17168Exhaust manifold No.2 insulation pad17168-21061 · 17168-21090 · 17168-47030 · 17168-47041
17173Gasket (exhaust manifold to cylinder head)17173-0Q030 · 17173-21020 · 17173-33030 · 17173-33031 · 17173-40050 · 17173-47021 · 17173-47040
17173BJOINT D'ETANCHEITE, COLLECTEUR D'ECHAPPEMENT17173-47050
17177No. 1 gasket (intake manifold to cylinder head)17177-0Q030 · 17177-0Q040 · 17177-21040 · 17177-47011
17178No. 2 gasket (intake manifold to cylinder head)17178-0Q020
17180ENS. REFROIDISSEUR, ECHAPPEMENT17180-47010
17201Turbocharger sub-assembly17201-0N042 · 17201-0N070
17203BCompressor oil inlet elbow sub-assembly17203-0N010 · 17203-33010
17271No. 1 turbine vibration isolation pad17271-33060 · 17271-33080 · 17271-33090
17276Compressor oil inlet gasket17276-33010
17278Gasket (turbo to exhaust manifold)17278-33010 · 17278-33040
17279Turbine outlet elbow gasket17279-27020
17293Turbocharger stay17293-0N010 · 17293-33010 · 17293-33030
17297No. 2 turbocharger stay17297-33020
17853BIntake manifold heat shield17853-21010
17861FIntake connecting pipe17861-0N010 · 17861-33080
17861GIntake connecting pipe gasket26171-33050
22271AThrottle body gasket22271-0Q010 · 22271-0Q020
25051Exhaust manifold three-way catalytic converter sub-assembly25051-33060 · 25051-33090 · 25051-47130 · 25051-47180
25052No. 2 exhaust manifold three-way catalytic converter sub-assembly25052-33040
25586No. 1 manifold three-way catalytic converter vibration isolation pad25586-0Q040 · 25586-0Q050
25587No. 2 manifold three-way catalytic converter vibration isolation pad25587-40010
25591Manifold bracket25591-0N010 · 25591-21070 · 25591-21100 · 25591-33030 · 25591-33050 · 25591-33070 · 25592-33020 · 25592-33030 · 25593-0N010 · 25593-33010 · 25594-0N010 · 25594-33010 · 25594-33030 · 25595-33010
25628BEGR air intake gasket25628-0Q010 · 25628-40020 · 25628-47010
25634BJOINT, TUYAU EGR25634-40010
