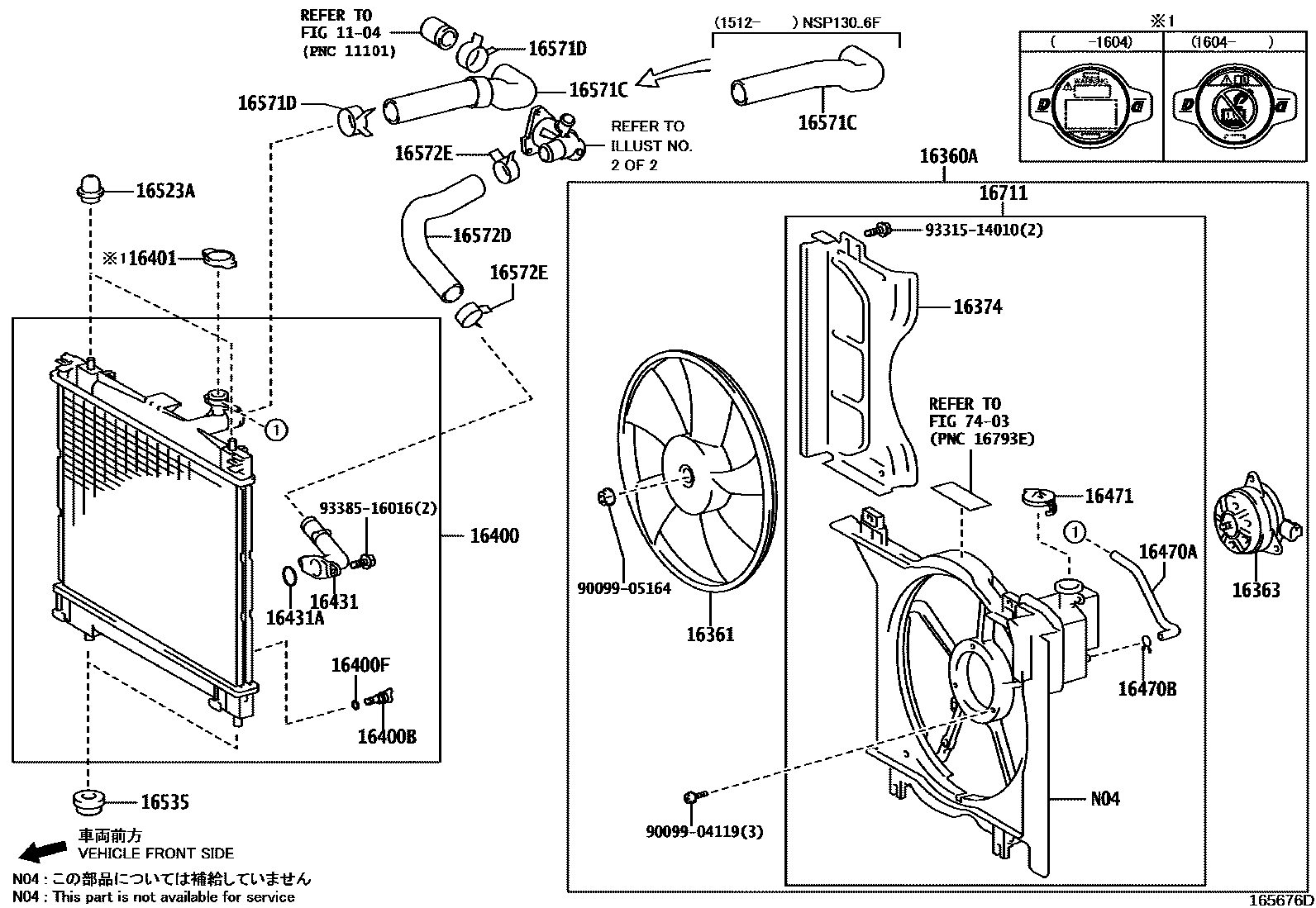

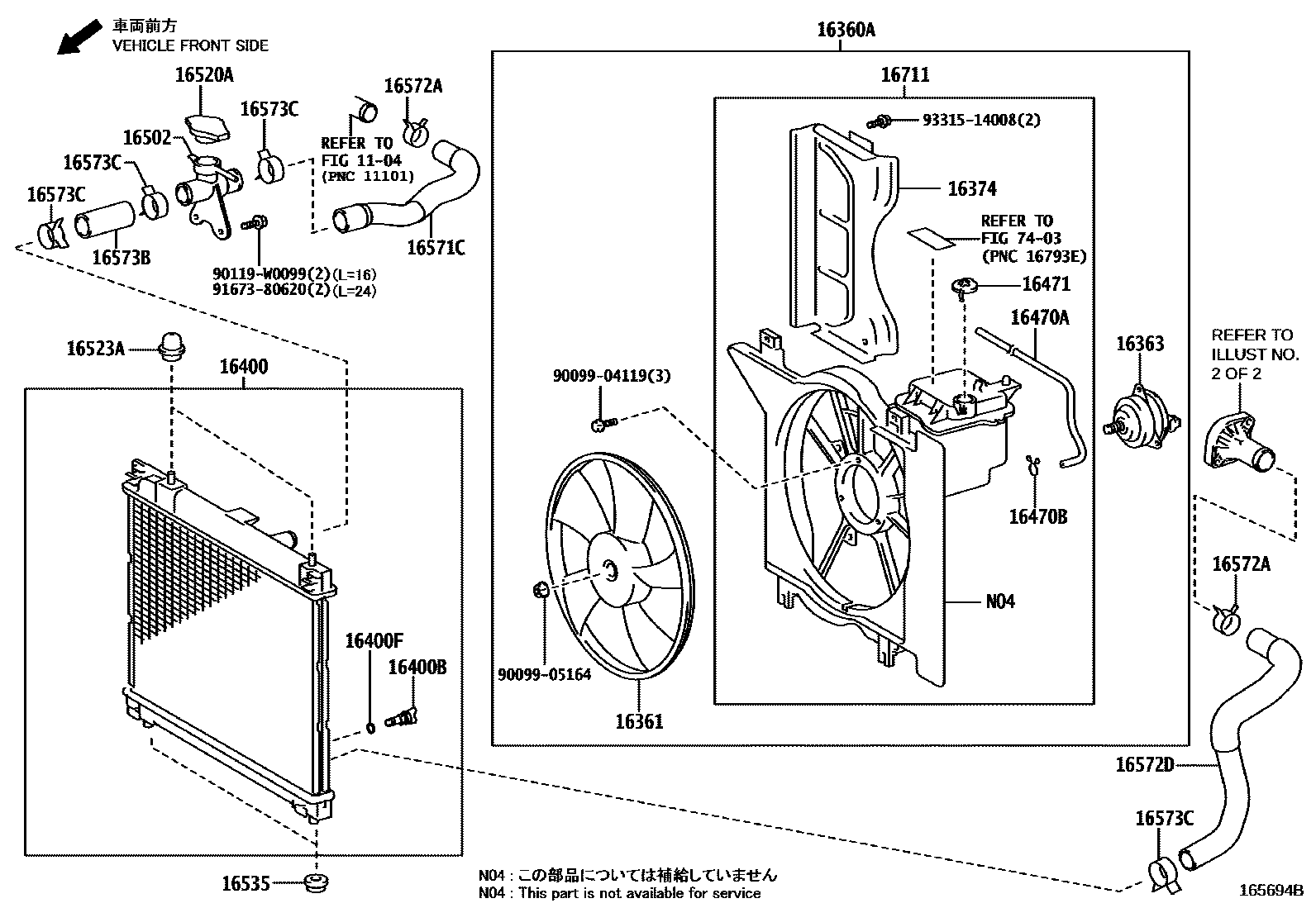

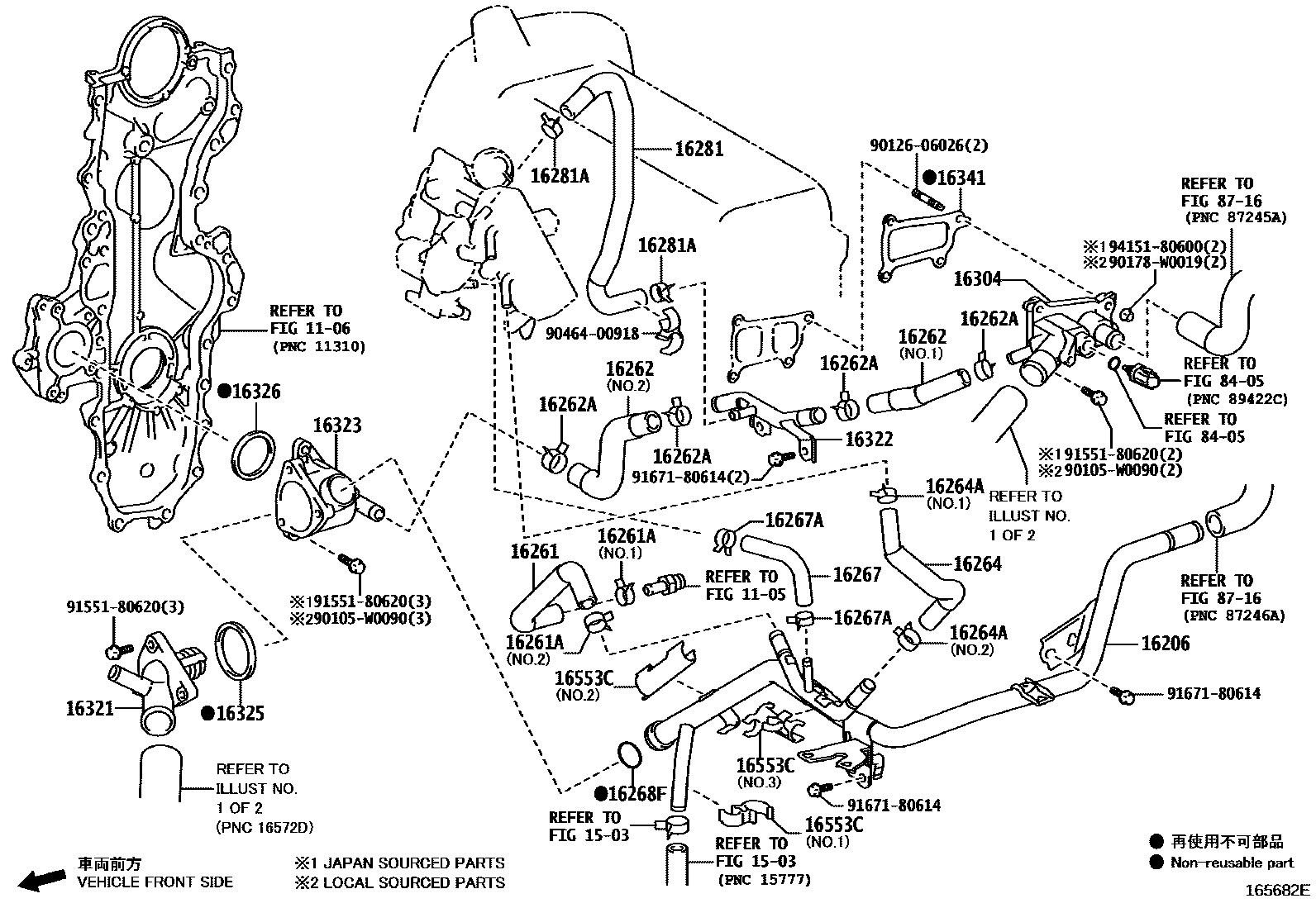

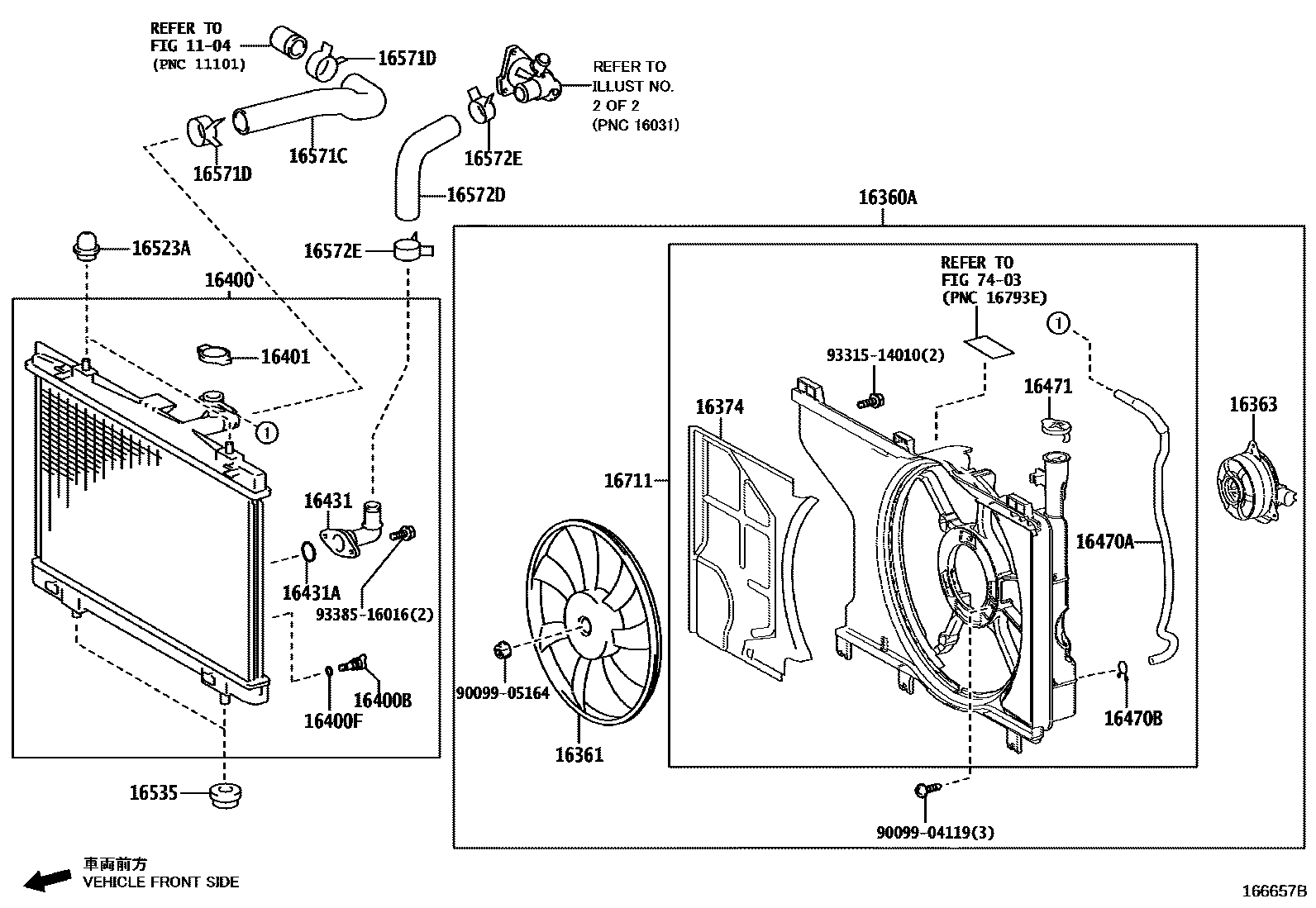

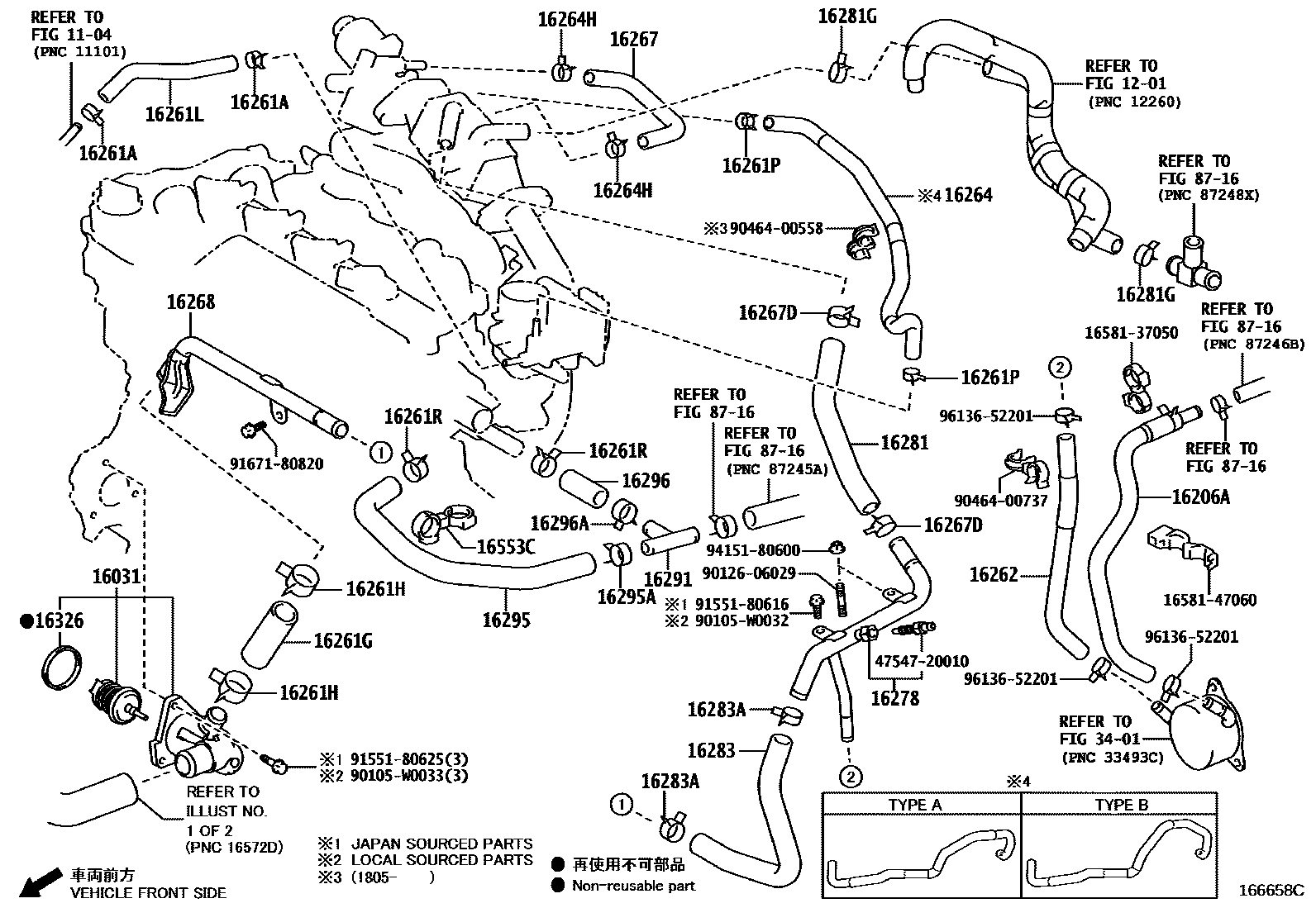

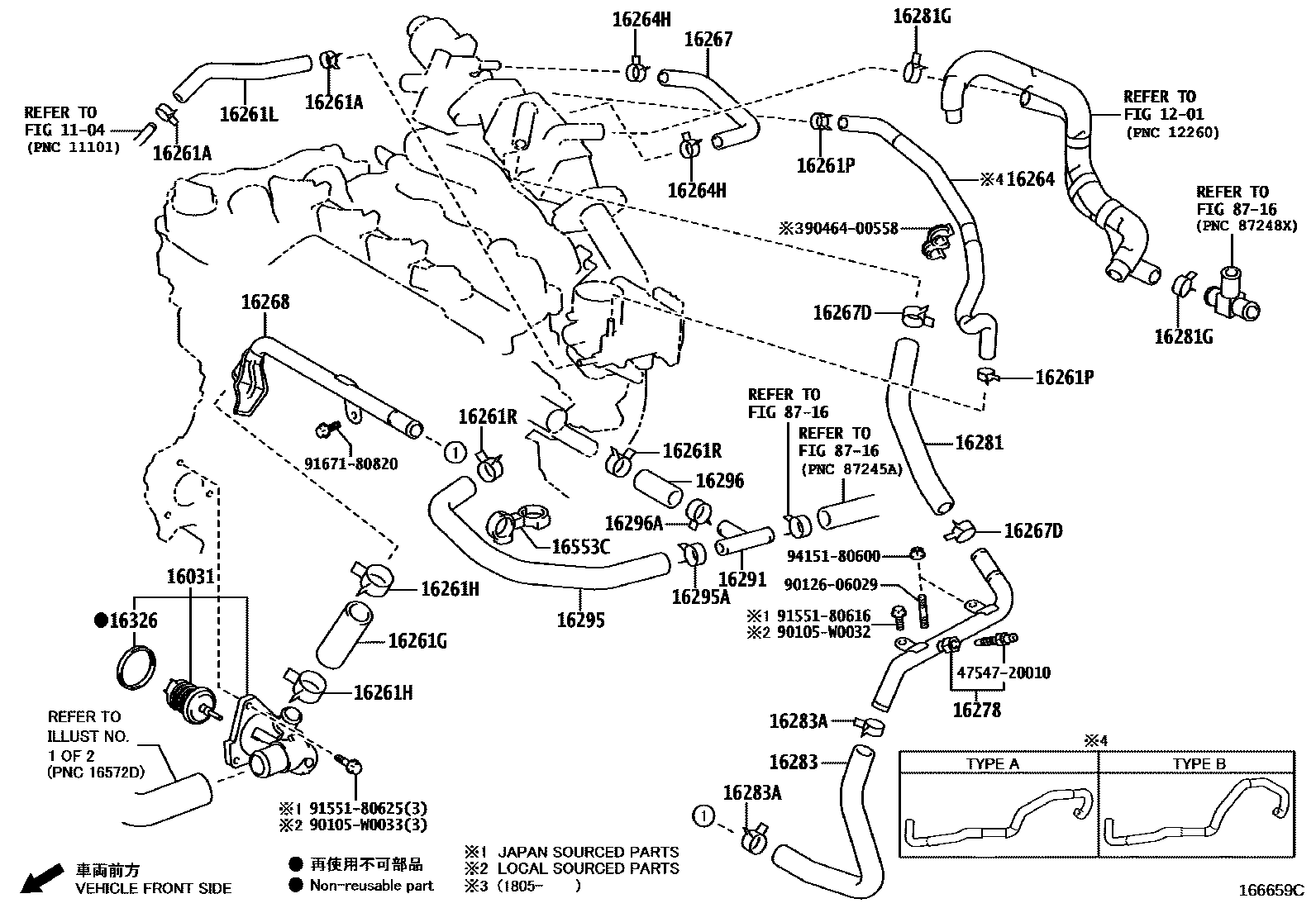

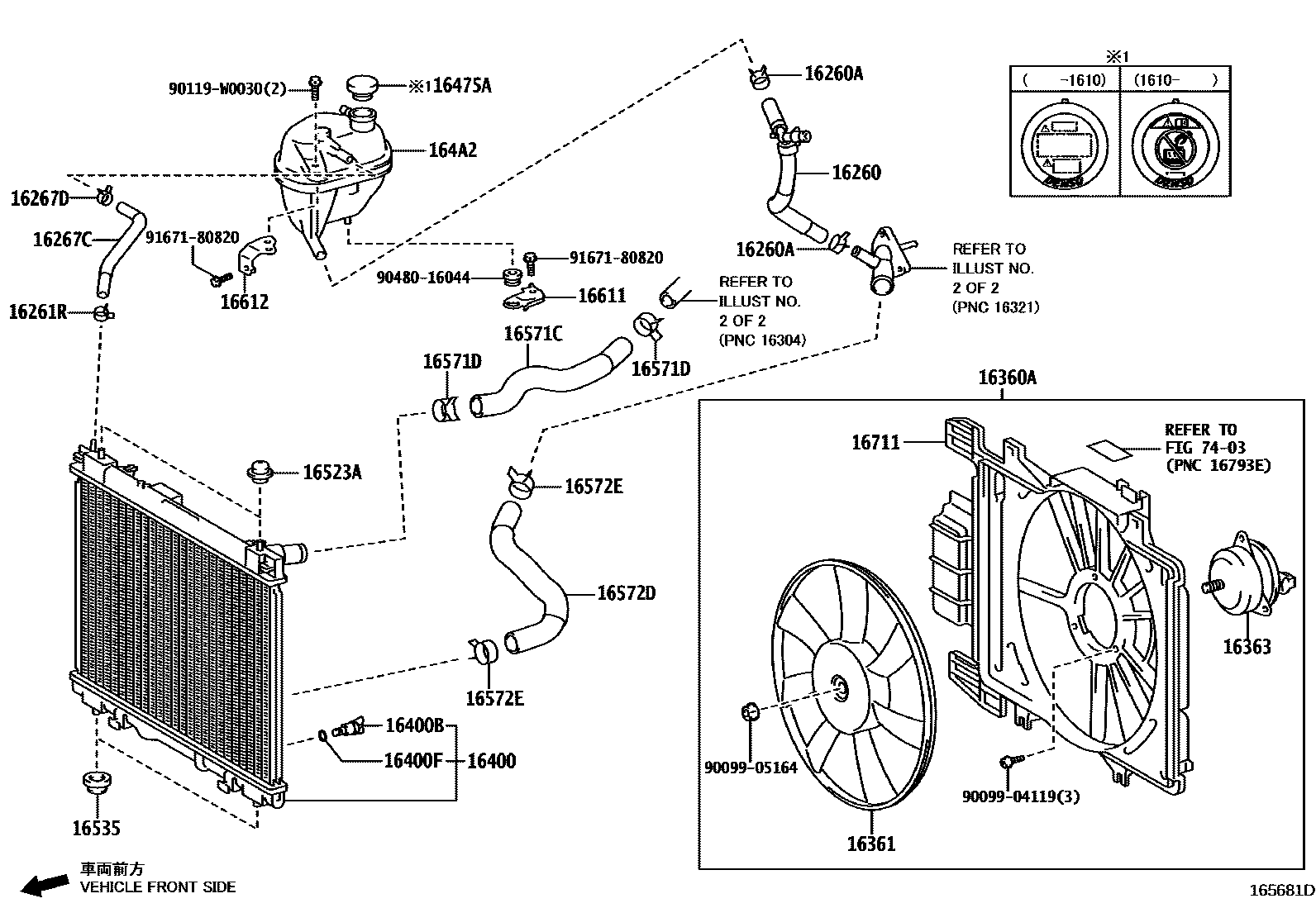

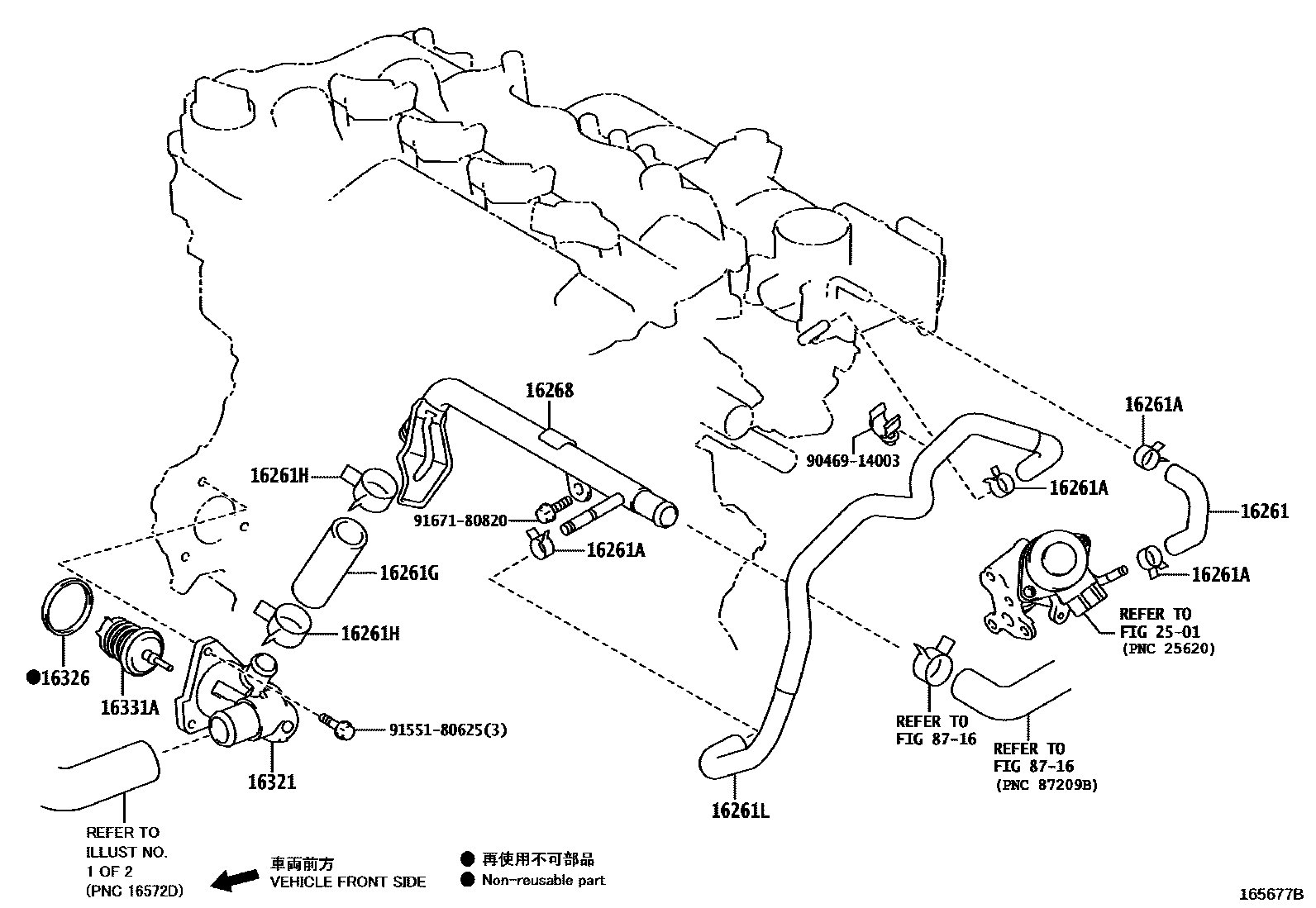

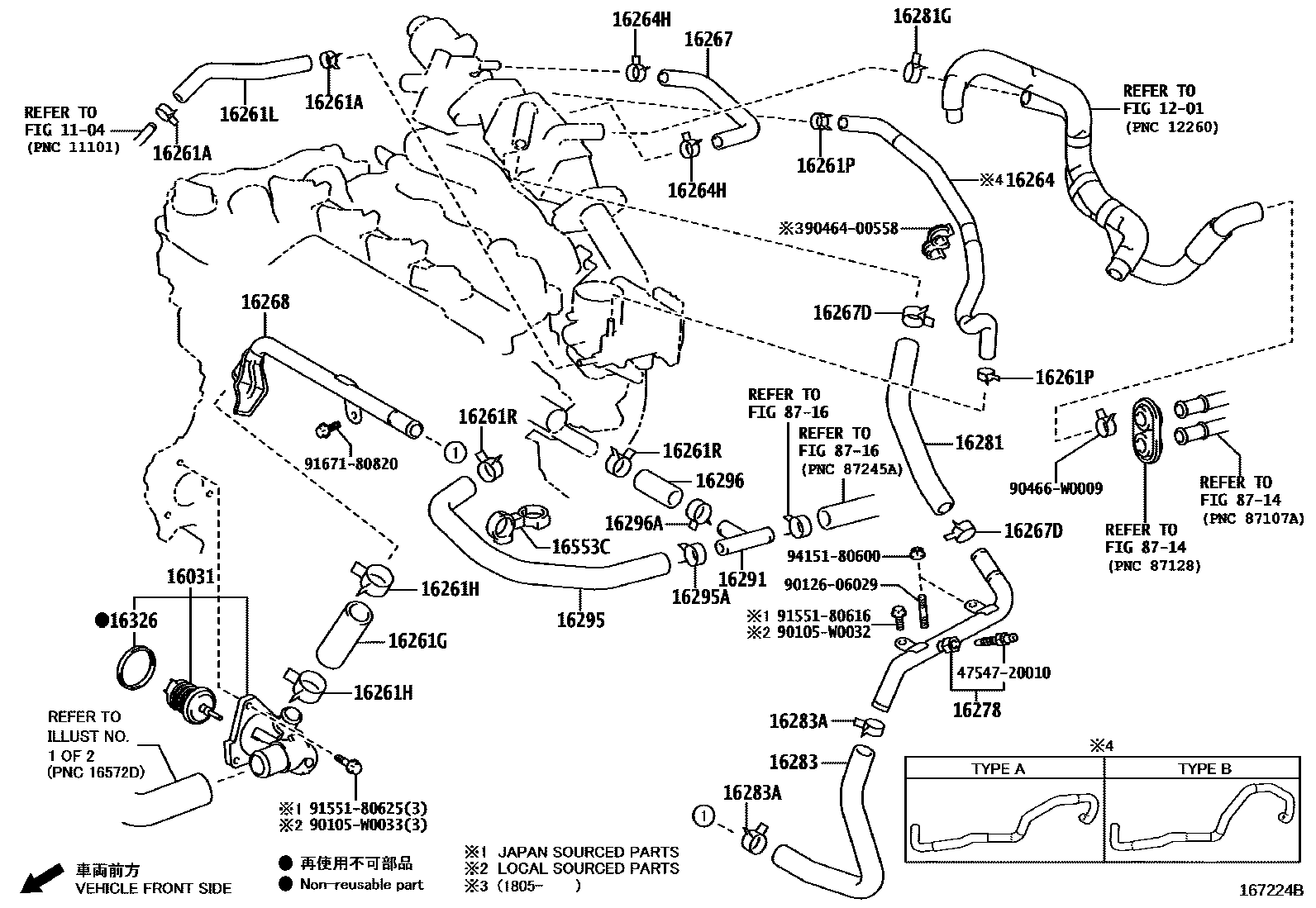

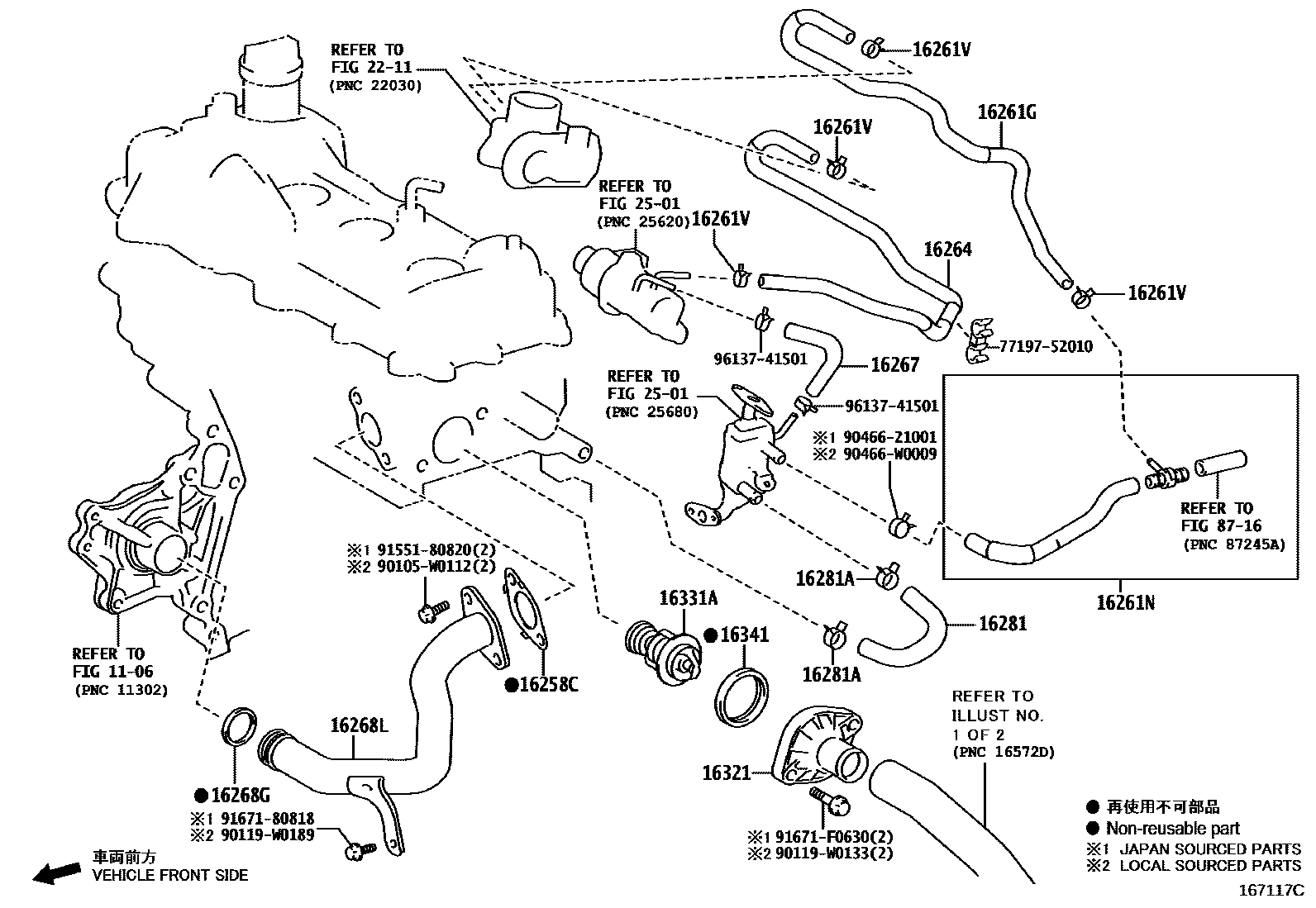

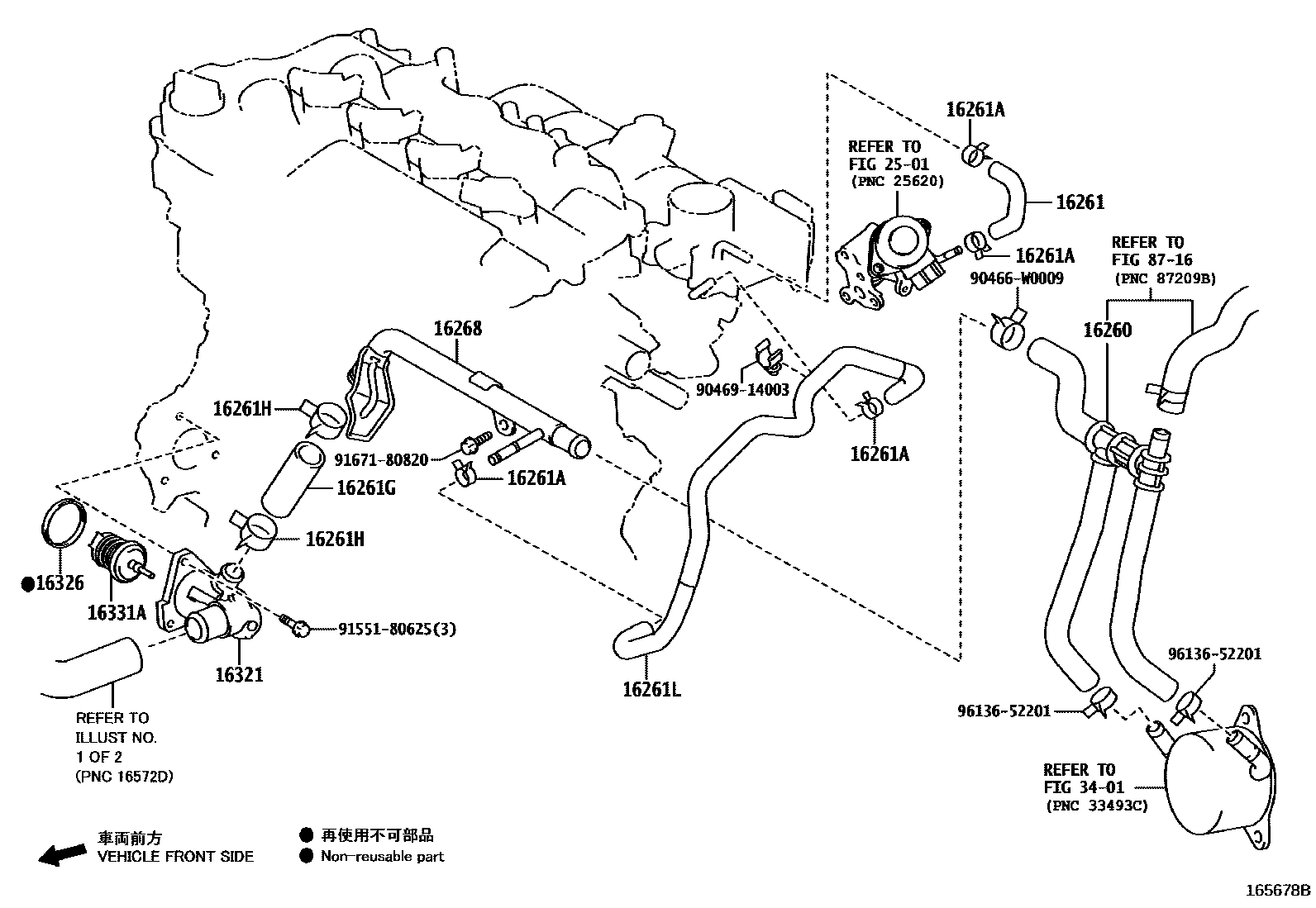

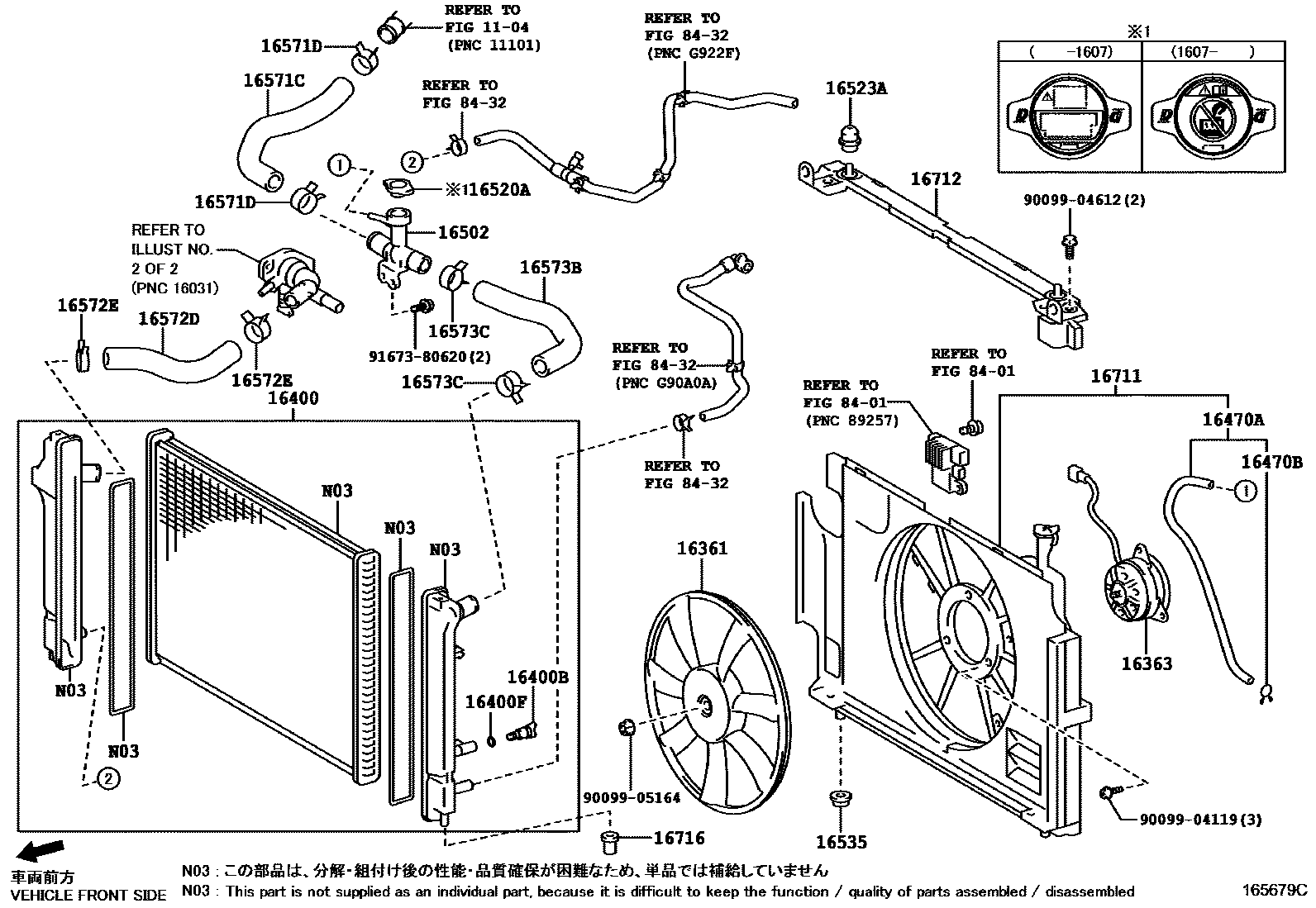

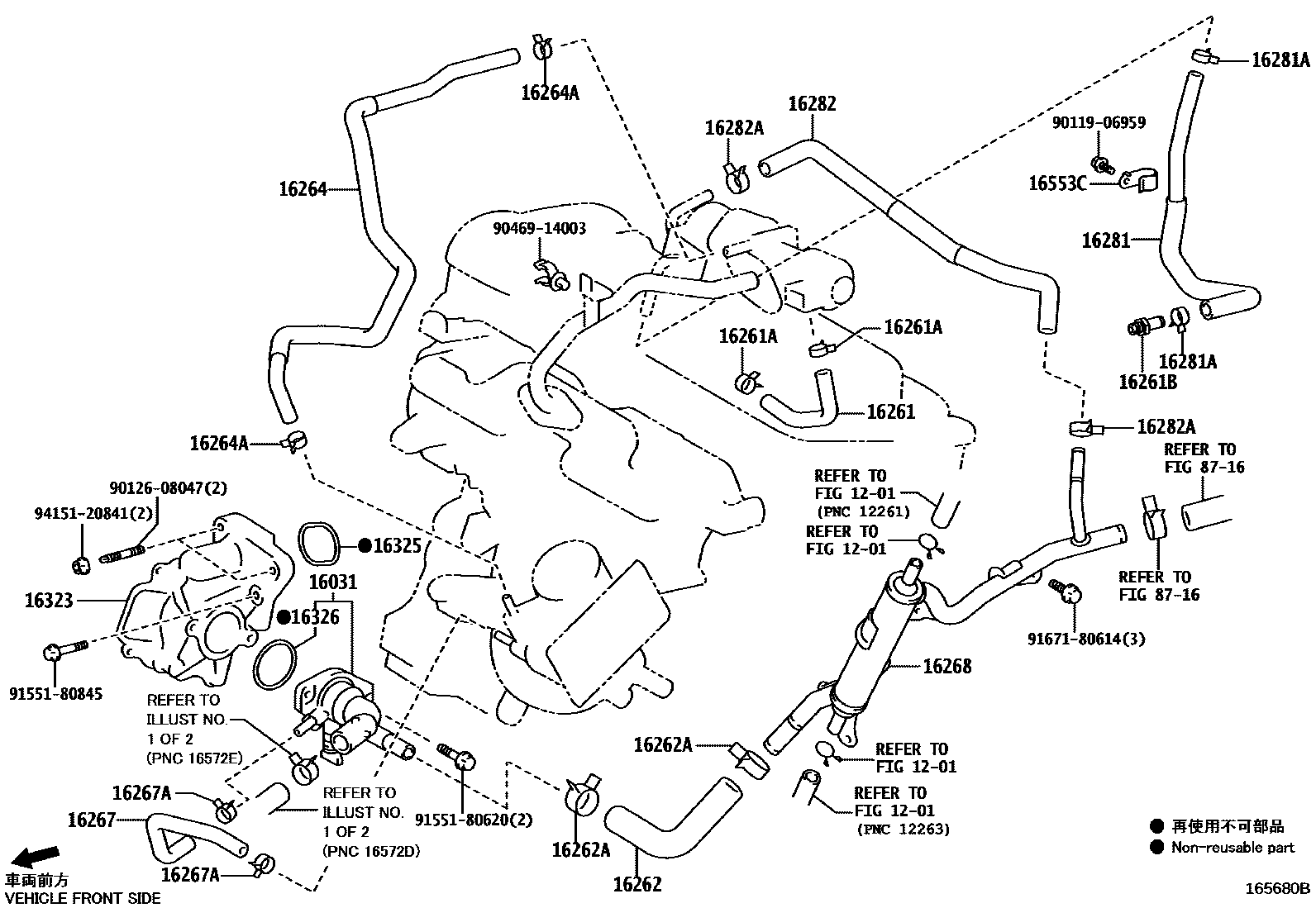

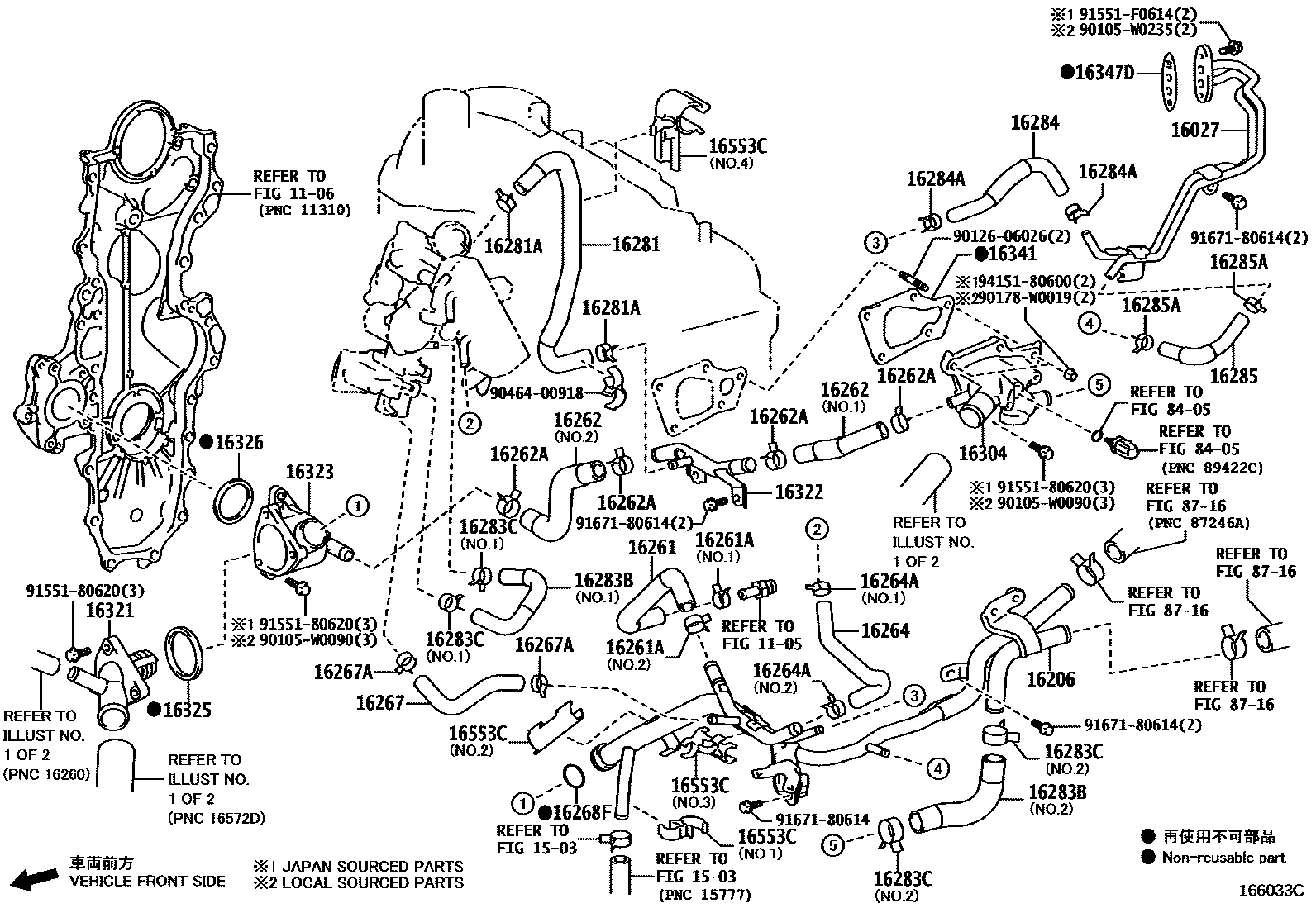

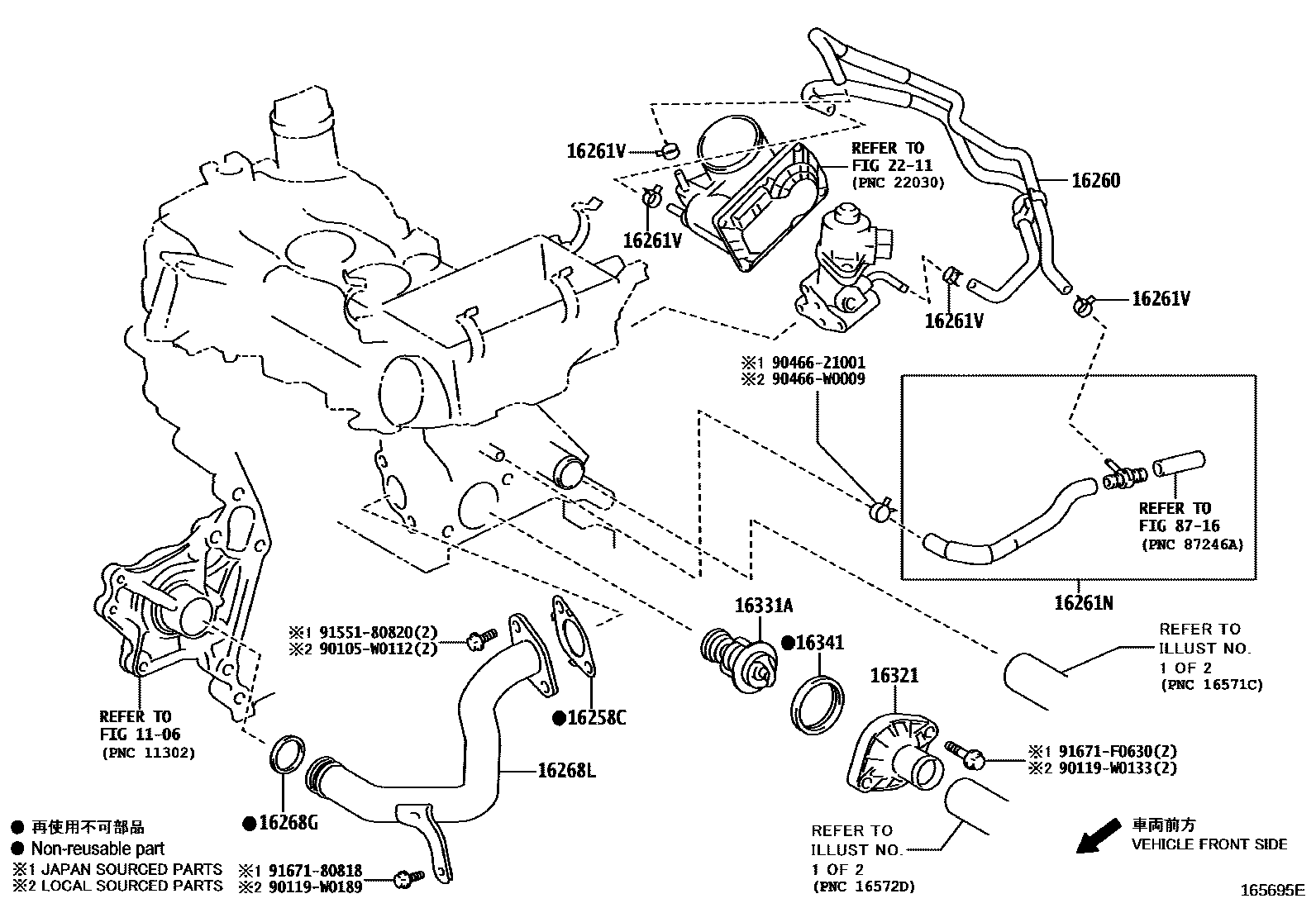

Toyota YARIS RADIATOR & WATER OUTLET — Figure 1603
Toyota YARIS EPC diagram 1603, RADIATOR & WATER OUTLET, with 15 images and 90 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 16027 | No. 1 turbine water pipe sub-assembly | 16027-33010 |
| 16031 | INLET SUB-ASSY, WATER W/THERMOSTAT | 16031-21010 · 16031-47041 |
| 16206 | PIPE SUB-ASSY, WATER BY-PASS | 16206-33060 · 16206-33090 |
| 16206A | No. 2 water bypass pipe sub-assembly | 16260-47140 |
| 16258C | Gasket (for water bypass pipe) | 16258-40021 |
| 16260 | Water bypass hose assembly | 16260-0Q090 · 16260-0Y030 · 16260-33100 |
| 16260A | Clamp (for water bypass hose assembly) | 90466-W0007 |
| 16261 | HOSE, WATER BY-PASS | 16261-0N050 · 16261-21100 · 16261-33050 · 16261-47010 |
| 16261A | CLAMP OR CLIP, WATER BY-PASS HOSE | 96136-41501 · 96137-41701 · 96137-41901 |
| 16261B | Connector (for water bypass hose) | 90404-52042 |
| 16261G | HOSE, WATER BY-PASS, NO.1 | 16261-0Q090 · 16261-40190 · 16261-47020 |
| 16261H | CLIP, WATER BY-PASS HOSE NO.1 | 96136-42901 |
| 16261L | HOSE, WATER BY-PASS | 16261-47030 · 16261-47100 |
| 16261N | HOSE, WATER BY-PASS, NO.2 | 16260-40180 · 16260-40210 · 16260-40211 |
| 16261P | CLIP, WATER BY-PASS HOSE NO.2 | 96136-41501 |
| 16261R | Clip or clip (for water bypass hose) | 90466-W0007 · 96136-52101 |
| 16261V | CLAMP OR CLIP, WATER BY-PASS HOSE | 96137-41501 · 96138-41501 |
| 16262 | water inlet hose | 16262-0N011 · 16262-21060 · 16262-33011 · 16262-47030 · 16263-0N010 · 16263-33030 |
| 16262A | Clamp (for water inlet hose) | 96136-42501 · 96136-52201 |
| 16264 | HOSE, WATER BY-PASS, NO.2 | 16264-0N030 · 16264-0Q030 · 16264-0Y180 · 16264-0Y181 · 16264-21100 · 16264-33040 · 16264-40080 · 16264-40081 |
| 16264A | CLAMP OR CLIP, WATER BY-PASS HOSE NO.2 | 96136-41501 · 96137-41701 · 96137-41901 |
| 16264H | Clamp (for No. 3 water bypass hose) | 96136-41501 |
| 16267 | HOSE, WATER BY-PASS, NO.3 | 16267-0N050 · 16267-0Q010 · 16267-21050 · 16267-21100 · 16267-33030 · 16267-33040 · 16267-40020 · 16267-47010 |
| 16267A | CLAMP OR CLIP, WATER BY-PASS HOSE NO.3 | 96136-41501 |
| 16267C | HOSE, WATER BY-PASS, NO.4 | 16281-33060 · 16281-33110 |
| 16267D | CLIP, WATER BY-PASS HOSE NO.4 | 90466-W0007 · 96136-52101 |
| 16268 | PIPE, WATER BY-PASS, NO.1 | 16268-21101 · 16268-21130 · 16268-47031 · 16268-47090 |
| 16268F | O-ring (for water bypass pipe) | 90301-20016 |
| 16268G | Gasket (for water bypass pipe) | 16258-0Q010 |
| 16268L | PIPE, WATER BY-PASS | 16268-0Q010 · 16268-0Q020 |
| 16278 | PIPE, WATER BY-PASS, NO.2 | 16270-47030 · 16270-47040 |
| 16281 | HOSE, WATER BY-PASS, NO.4 | 16281-0N070 · 16281-0Q010 · 16281-21050 · 16281-33030 · 16281-40020 · 16281-47030 |
| 16281A | CLAMP OR CLIP, WATER BY-PASS HOSE NO.4 | 90466-21004 · 90466-W0007 · 96136-41501 · 96137-41901 |
| 16281G | CLIP, WATER BY-PASS HOSE NO.5 | 90466-21001 · 90466-W0009 |
| 16282 | HOSE, WATER BY-PASS, NO.5 | 16282-21030 |
| 16282A | Clip or clip (for No. 5 water bypass hose) | 96137-41901 |
| 16283 | HOSE, WATER BY-PASS, NO.6 | 16283-47050 |
| 16283A | CLAMP OR CLIP, WATER BY-PASS HOSE NO.6 | 90466-W0007 |
| 16283B | HOSE, WATER BY-PASS | 16282-33090 · 16283-33070 |
| 16283C | Clip or clip (for water bypass hose) | 96136-41501 · 96136-52501 |
| 16284 | Turbine Water Hose No. 1 | 16284-33010 |
| 16284A | Clamp (for No. 1 turbine water hose) | 96136-41501 |
| 16285 | Turbine Water Hose No. 2 | 16285-33010 |
| 16285A | Clamp (for No. 2 turbine water hose) | 96136-41501 |
| 16291 | water hose connector | 16291-47060 |
| 16295 | HOSE, WATER BY-PASS, NO.7 | 16295-47040 |
| 16295A | CLIP, WATER BY-PASS HOSE NO.7 | 96138-42501 |
| 16296 | HOSE, WATER BY-PASS, NO.8 | 16296-47040 |
| 16296A | CLIP, WATER BY-PASS HOSE NO.8 | 96138-42501 |
| 16304 | Water outlet sub-assembly | 16304-33011 · 16304-33030 |
| 16321 | water inlet | 16321-0Q010 · 16321-33040 · 16321-40010 · 16321-47011 |
| 16322 | PIPE, WATER INLET | 16322-33010 |
| 16323 | HOUSING, WATER INLET | 16323-21010 · 16323-33030 |
| 16325 | GASKET, WATER INLET HOUSING, NO.1 | 16325-21010 · 16325-33010 |
| 16326 | GASKET, WATER INLET HOUSING, NO.2 | 16326-33030 · 16326-47010 · 16326-47020 |
| 16331A | thermostat | 90916-03147 · 90916-03150 · 90916-03153 |
| 16341 | GASKET, WATER OUTLET | 16341-33010 · 16341-33020 · 16341-35010 |
| 16347D | water bypass liner | 16347-33010 |
| 16360A | Fan assembly with motor | 16360-0N051 · 16360-0Q031 · 16360-0Y040 · 16360-0Y110 |
| 16361 | Fan | 16361-0M100 · 16361-0N030 · 16361-0Q030 · 16361-0Y250 |
| 16363 | cooling fan motor | 16363-0D090 · 16363-0G051 · 16363-0M061 |
| 16374 | Cooling fan motor vibration isolation pad | 16366-0Q030 · 16366-0Y110 |
| 16400 | Radiator assembly | 16400-0N050 · 16400-0N051 · 16400-0Q040 · 16400-0Y060 · 16400-0Y260 · 16400-21330 · 16400-21331 |
| 16400B | Radiator drain switch screw plug | 16417-0Q040 · 16417-21280 |
| 16400F | Seal (for radiator drain switch) | 16492-21050 |
| 16401 | Radiator cover sub-assembly | 16401-31520 · 16401-36020 |
| 16431 | Radiator water inlet | 16431-0Y070 · 16431-0Y260 |
| 16431A | O-ring (for radiator water inlet) | 16492-0Y070 |
| 16470A | Hoses or tubes (for radiator reservoir) | 16378-0Y110 · 16378-21180 · 90445-12067 |
| 16470B | Clip or clip (for radiator reservoir hose) | 90467-11085 |
| 16471 | Liquid storage tank cover sub-assembly | 16471-23030 |
| 16475A | Reservoir tank cover | 16475-28140 · 16475-51010 · 16475-51011 |
| 164A2 | Closed reservoir water tank without lid | 164A2-0N020 |
| 16502 | Water injection port sub-assembly | 16502-0Q010 · 16502-21090 |
| 16520A | Water injection port cover sub-assembly | 16401-31520 · 16401-36020 |
| 16523A | Radiator bracket cushion | 16523-0Q020 |
| 16535 | Radiator lower support | 90480-W0005 |
| 16553C | hose clamp | 16581-21130 · 16581-33040 · 16581-33050 · 16581-33120 · 16581-33140 · 16581-37050 |
| 16571C | Radiator hose No. 1 | 16571-0M060 · 16571-0N060 · 16571-0Q021 · 16571-47080 · 16571-47120 |
| 16571D | No. 1 radiator hose clip | 90466-W0011 · 90467-33006 |
| 16572A | Hose clamp or clip (for radiator outlet No. 1) | 90466-W0015 |
| 16572D | Radiator hose No. 2 | 16572-0M080 · 16572-0Q040 · 16572-33080 · 16572-47070 · 16572-47140 |
| 16572E | No. 2 radiator hose clip | 90466-W0011 · 90467-33006 |
| 16573B | Radiator hose No. 3 | 16573-0M060 · 16573-0Q010 |
| 16573C | No. 3 radiator hose clamp or clip | 90466-W0011 |
| 16611 | Radiator reservoir bracket | 16611-0N010 |
| 16612 | No. 2 radiator reservoir bracket | 16612-0N010 |
| 16711 | fan cover | 16711-0M100 · 16711-0N031 · 16711-0Q030 · 16711-0Y040 · 16711-0Y230 |
| 16712 | No. 2 fan cover | 16712-0M030 |
| 16716 | fan cover cushion | 16716-37010 |
