Toyota YARIS Water Pump — Figure 1601

Toyota YARIS EPC diagram 1601, Water Pump, with 5 images and 3 PNC and OE references.

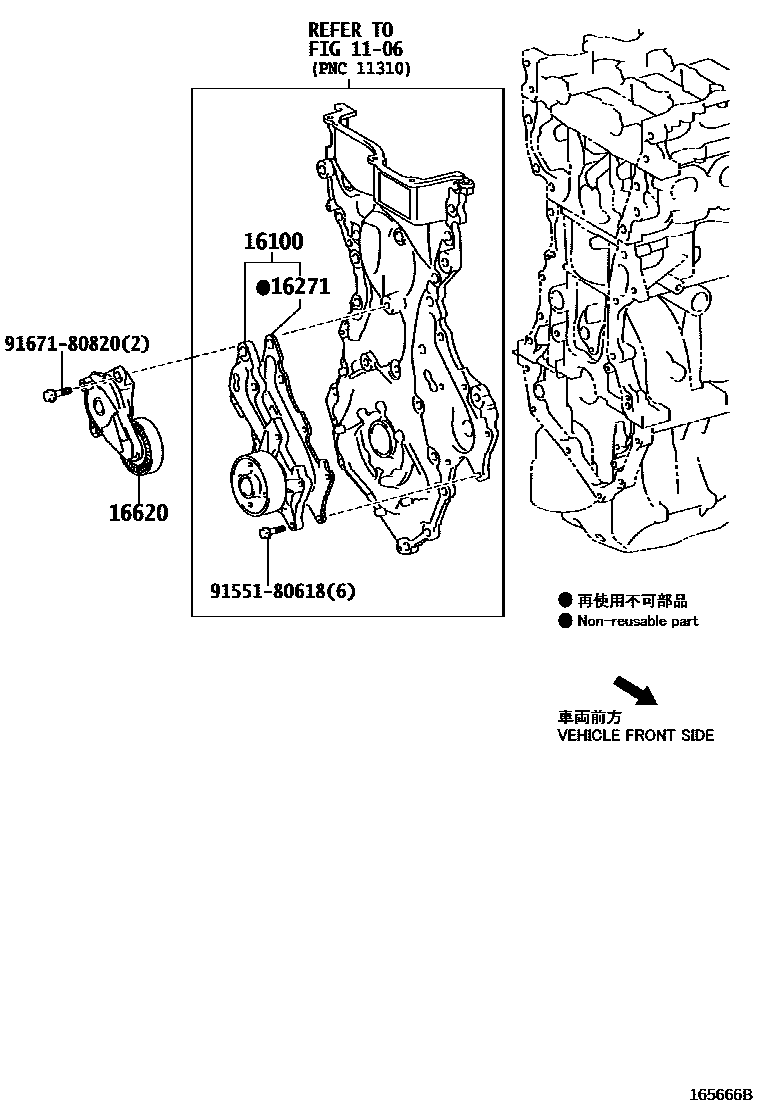

Toyota YARIS Water Pump EPC diagram — 165666B
Water Pump — 165666B (201407 – 999999)

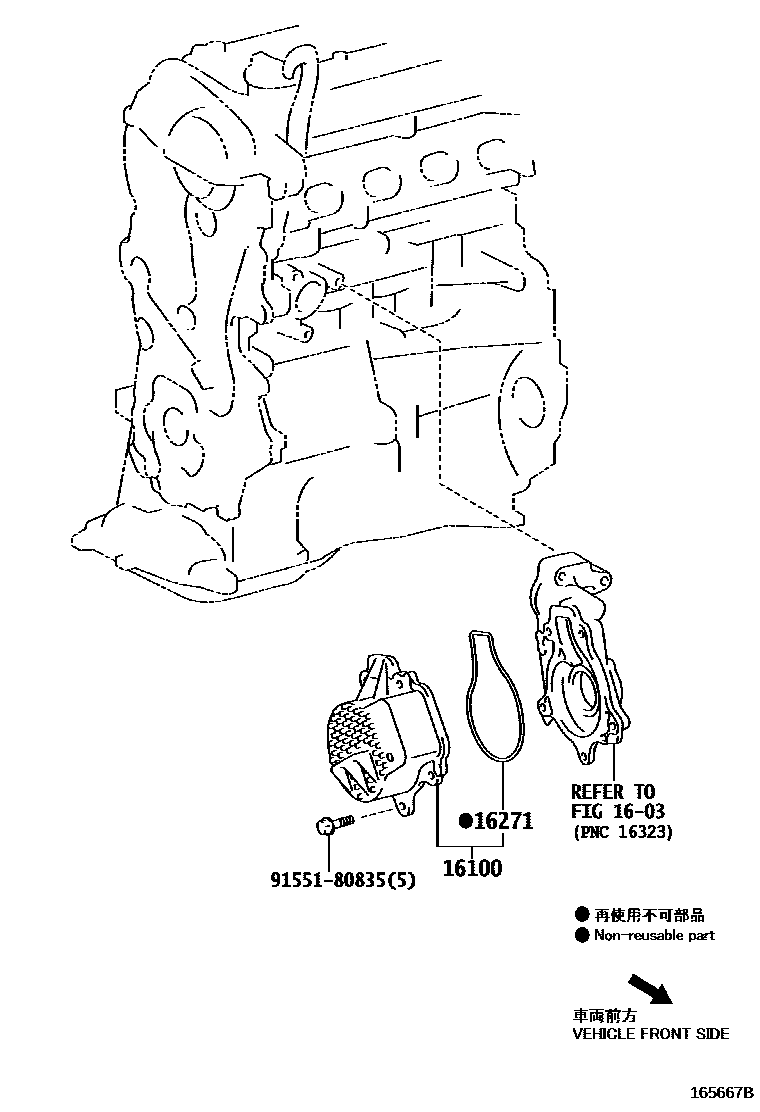

Toyota YARIS Water Pump EPC diagram — 165667B
Water Pump — 165667B (201407 – 999999)

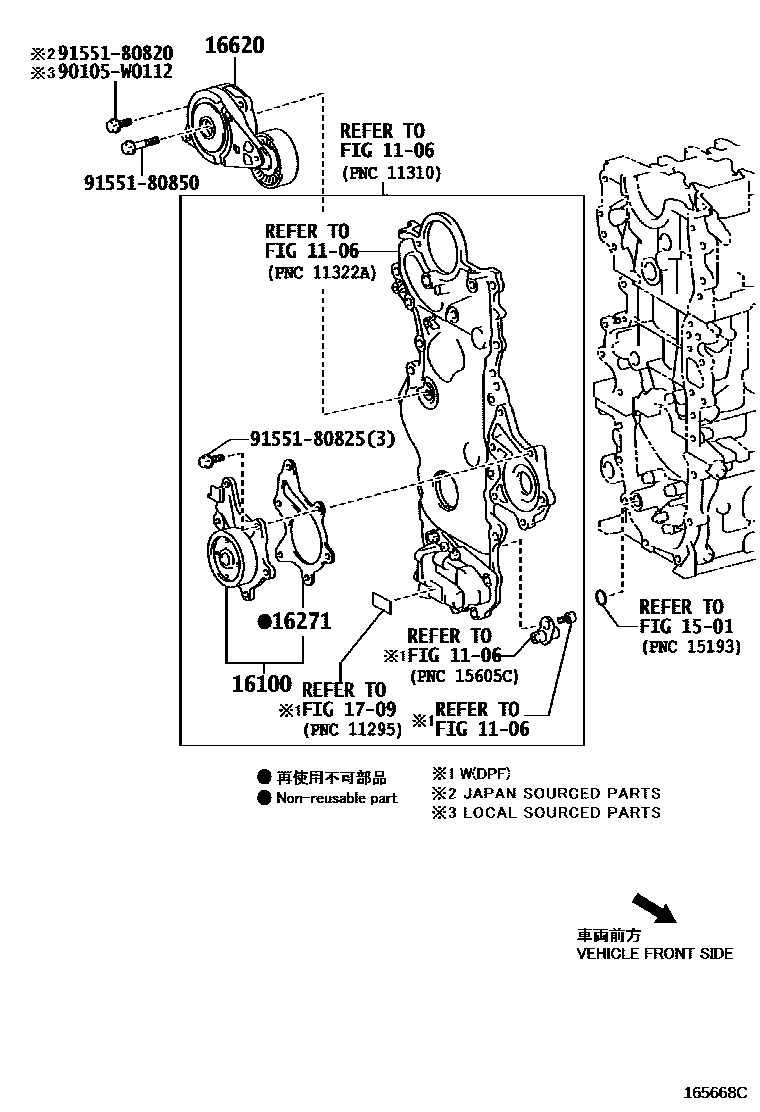

Toyota YARIS Water Pump EPC diagram — 165668C
Water Pump — 165668C (201407 – 999999)

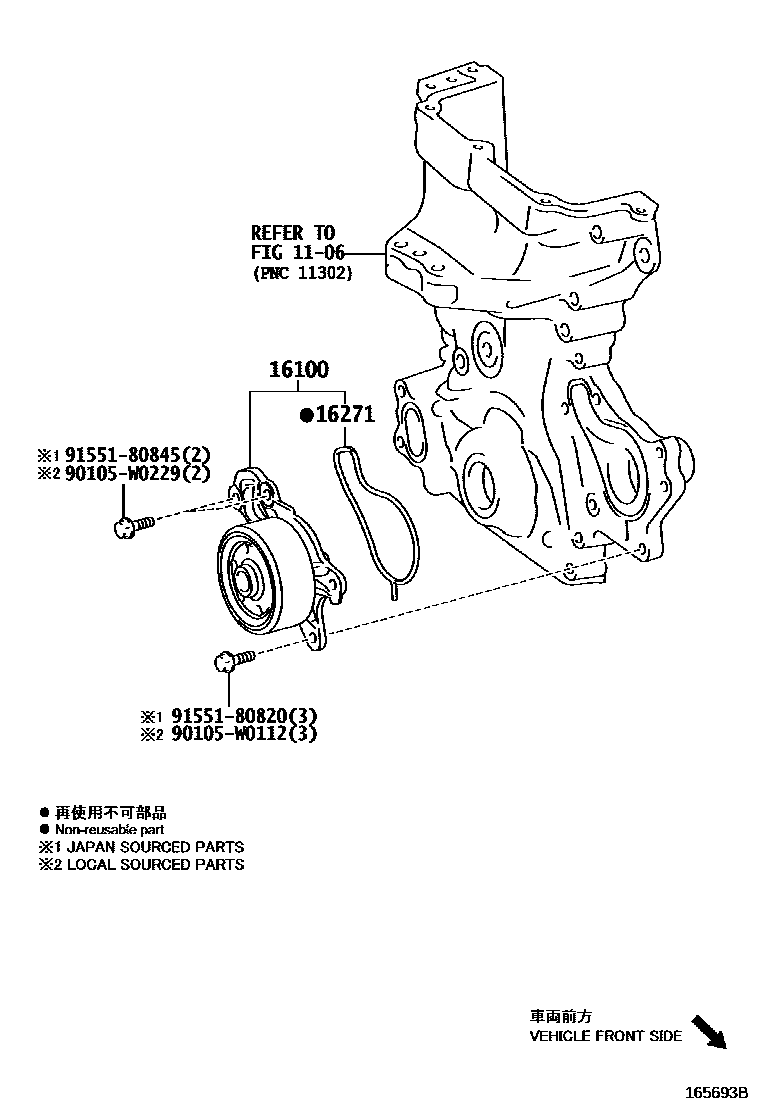

Toyota YARIS Water Pump EPC diagram — 165693B
Water Pump — 165693B (201407 – 999999)

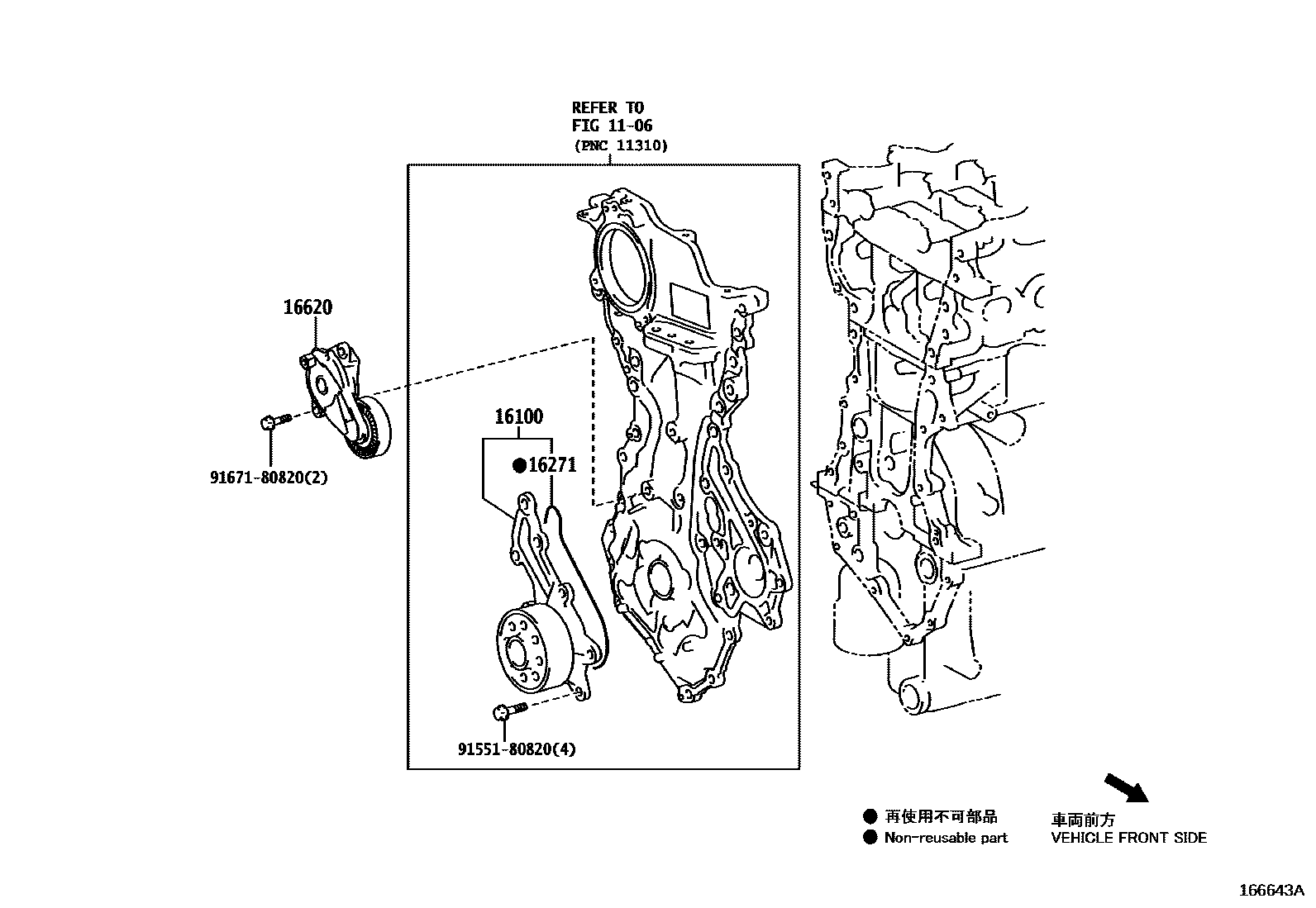

Toyota YARIS Water Pump EPC diagram — 166643A
Water Pump — 166643A (201703 – 999999)

PNC and OE references

PNCPart nameOE numbers
16100Engine water pump assembly16100-09610 · 16100-09640 · 16100-09641 · 16100-09642 · 16100-09680 · 16100-09750 · 16100-09780 · 16100-39525 · 16100-39526 · 16100-80010 · 161A0-29015
16271water pump gasket16271-0Q020 · 16271-0Y030 · 16271-33030 · 16271-37020 · 16271-47031
16620Poly V-belt tensioner assembly16620-0N010 · 16620-33021 · 16620-33022 · 16620-33023 · 16620-33024 · 16620-33025 · 16620-33040 · 16620-33041 · 16620-47030
