Toyota YARIS Oil Filter — Figure 1502

Toyota YARIS EPC diagram 1502, Oil Filter, with 4 images and 12 PNC and OE references.

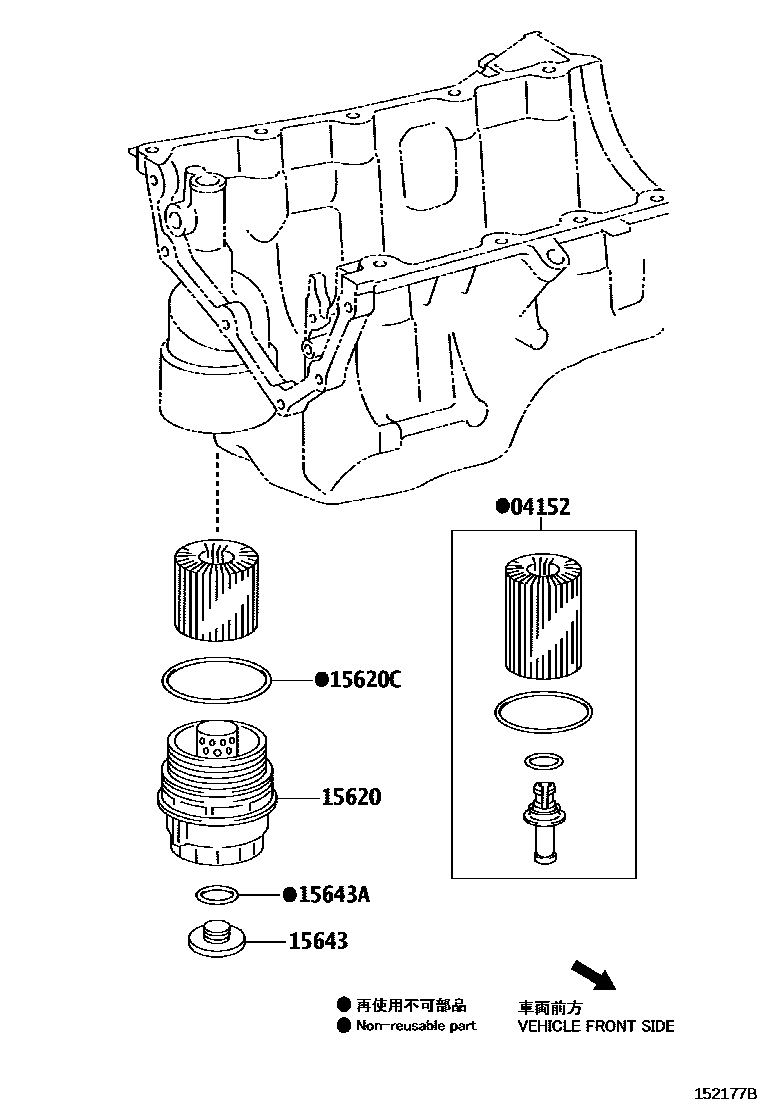

Toyota YARIS Oil Filter EPC diagram — 152177B
Oil Filter — 152177B (201407 – 999999)

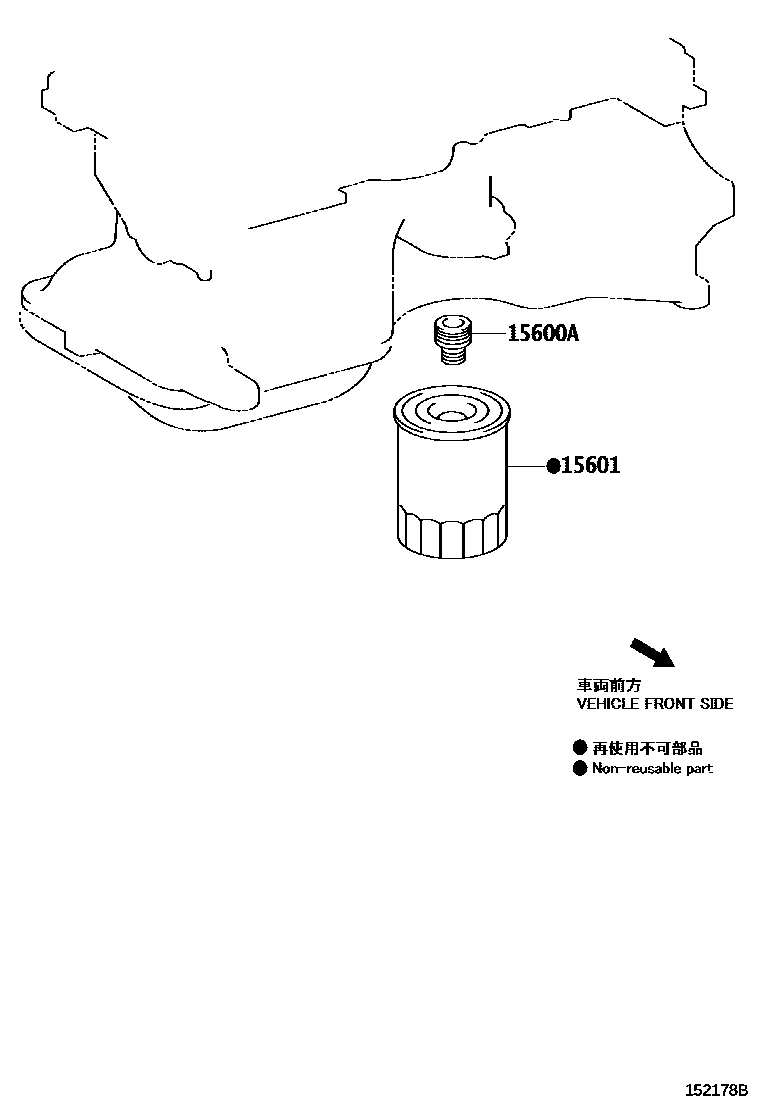

Toyota YARIS Oil Filter EPC diagram — 152178B
Oil Filter — 152178B (201407 – 999999)

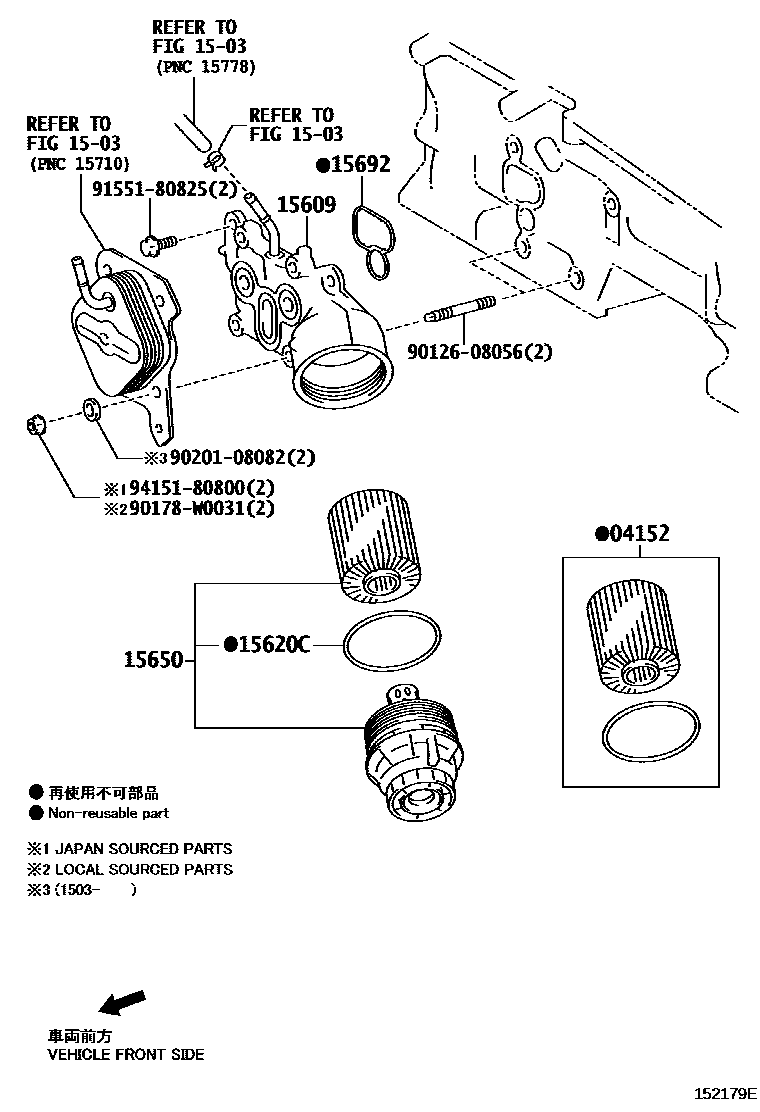

Toyota YARIS Oil Filter EPC diagram — 152179E
Oil Filter — 152179E (201407 – 999999)

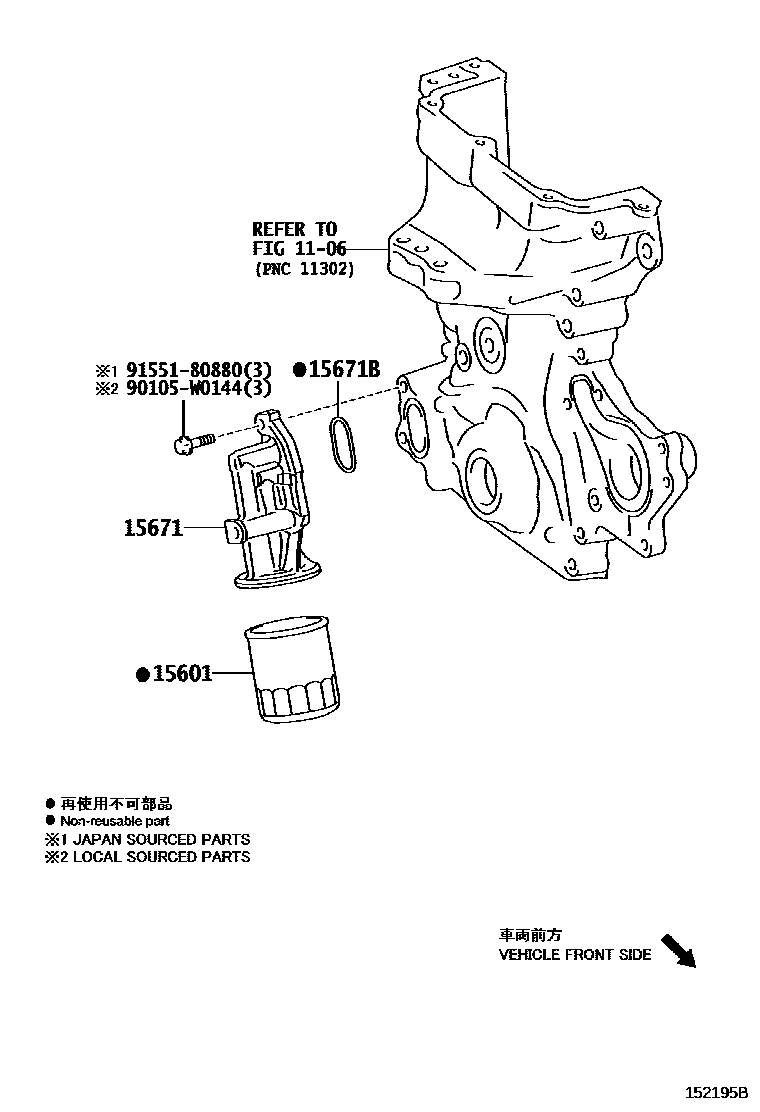

Toyota YARIS Oil Filter EPC diagram — 152195B
Oil Filter — 152195B (201407 – 999999)

PNC and OE references

PNCPart nameOE numbers
04152Oil Filter Element Kit04152-31110 · 04152-40060
15600AConnector (for oil filter)90904-04004
15601Oil filter sub-assembly90915-10003 · 90915-CA003 · 90915-TA001
15609Oil filter bracket sub-assembly15609-0N010 · 15609-33030
15620Oil filter cover assembly15620-40030
15620CGasket (for oil filter cover)90301-69011 · 90301-79006
15643Oil filter drain plug15643-31050
15643AO-ring (for oil filter drain plug)96723-35028
15650Oil filter cover assembly with filter element15650-33010
15671Oil filter bracket15671-0Q010
15671BOil filter holder gasket15691-40020
15692Oil filter holder gasket15692-33010
