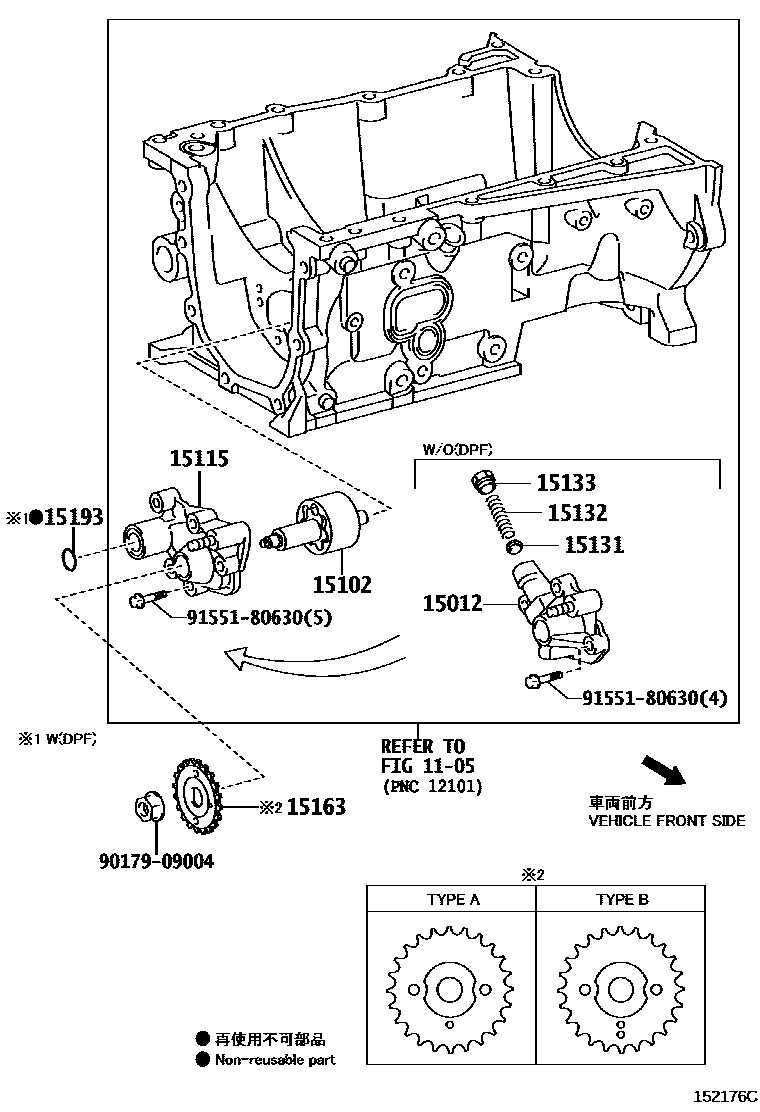

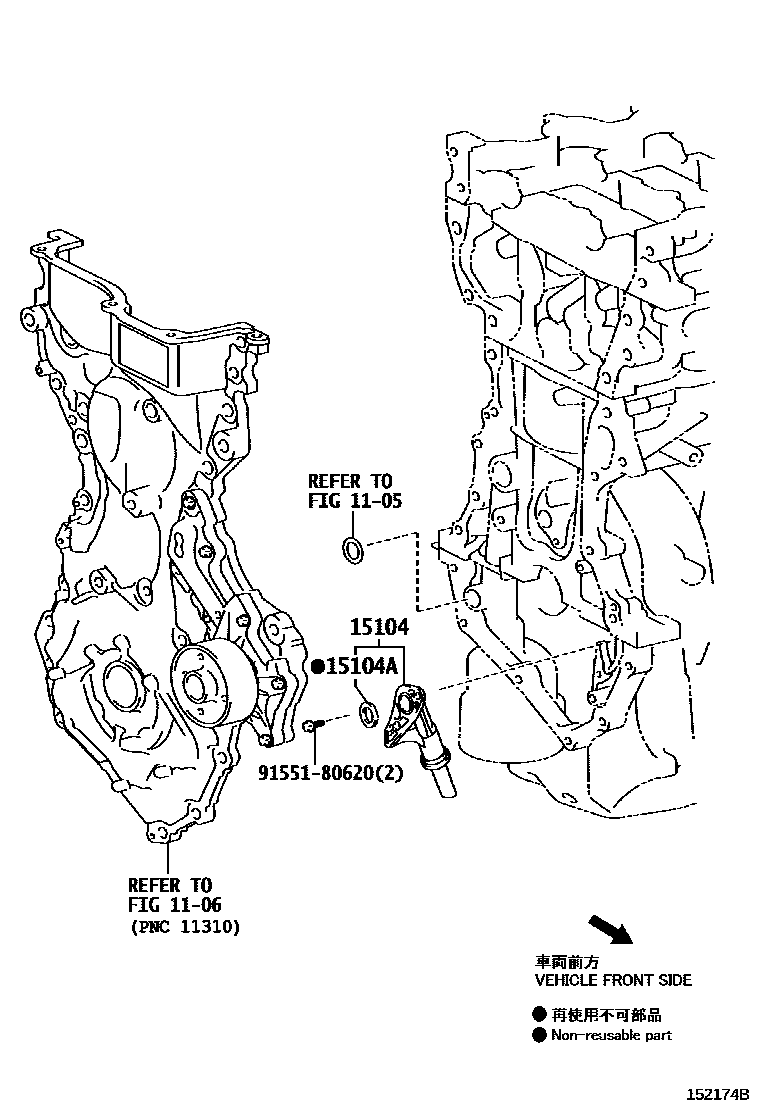

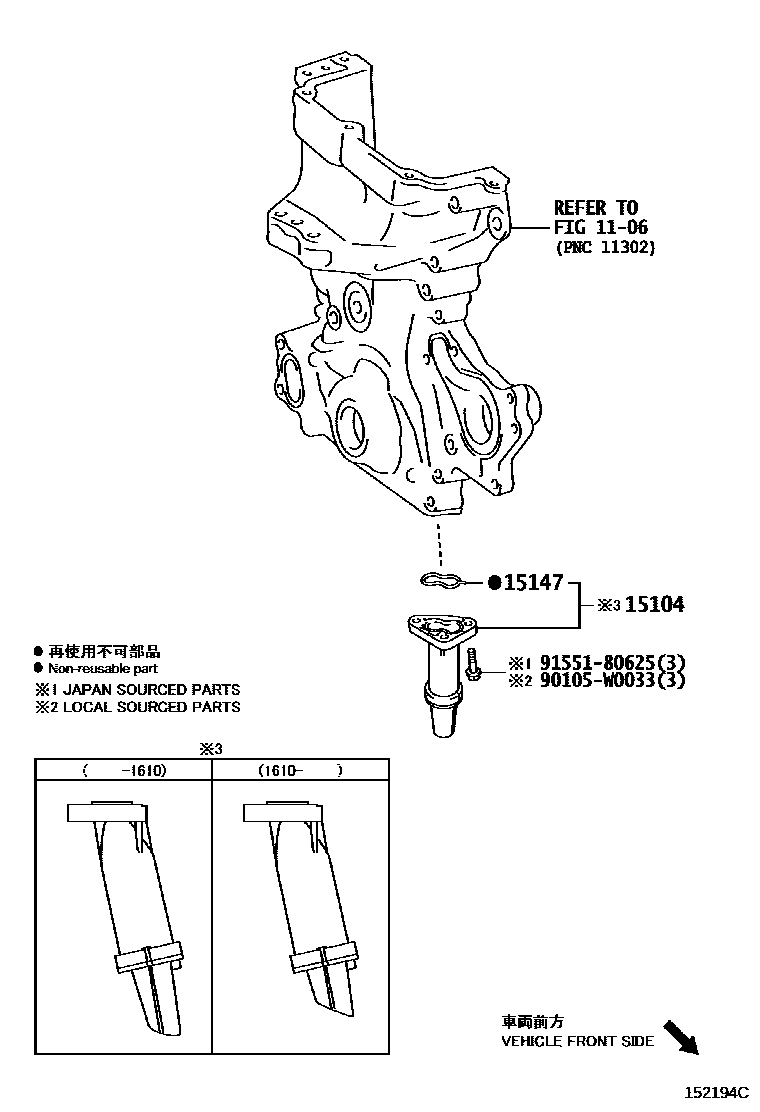

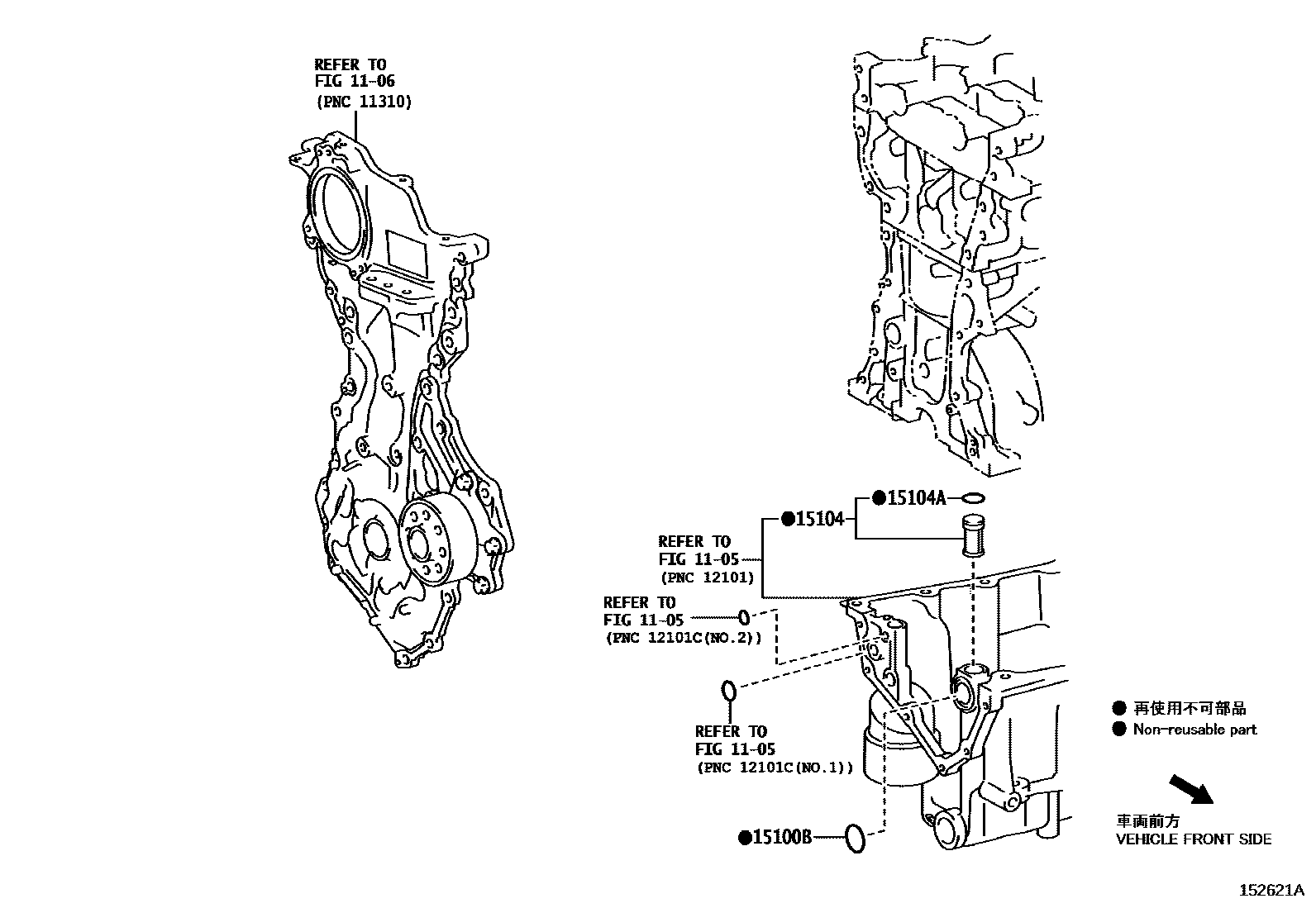

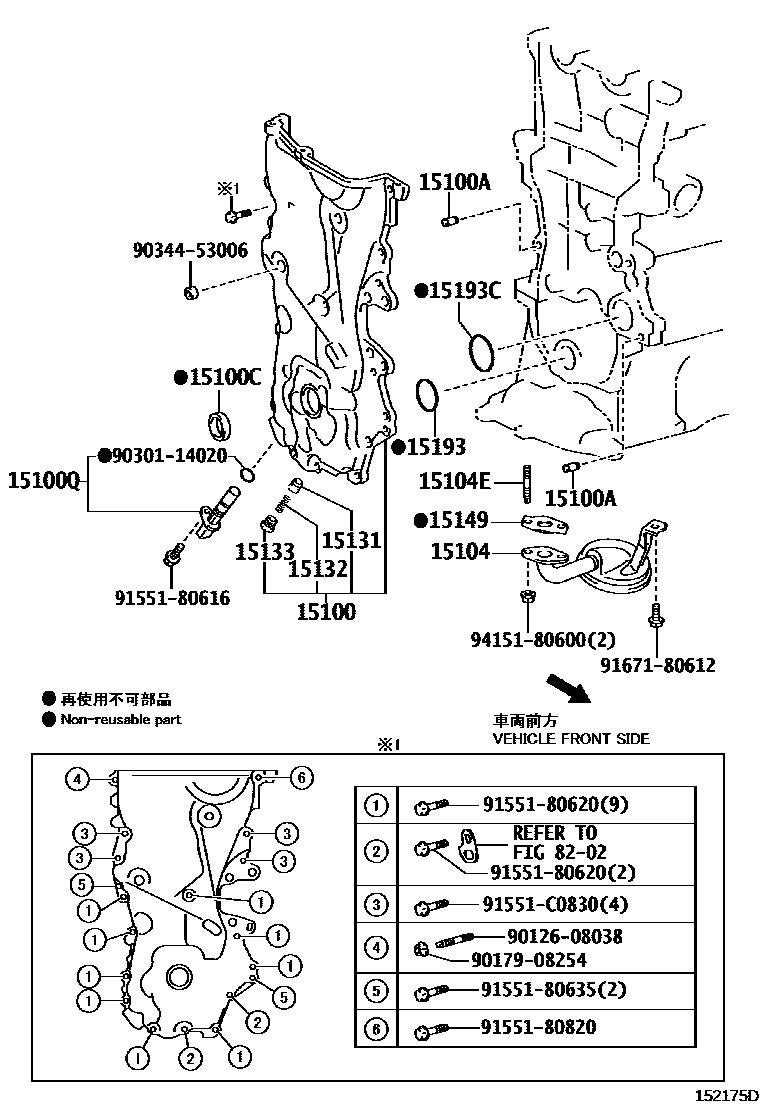

Toyota YARIS Engine Oil Pump — Figure 1501
Toyota YARIS EPC diagram 1501, Engine Oil Pump, with 5 images and 19 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 15012 | Oil pump cover sub-assembly | 15012-33060 |
| 15100 | Oil pump assembly | 15100-21072 |
| 15100A | Ring pin (for oil pump assembly) | 90253-08003 |
| 15100B | O-ring (for oil pump) | 90301-27014 |
| 15100C | Seals (for oil pump) | 90311-25033 |
| 15100Q | crankshaft position sensor | 90919-05087 |
| 15102 | Oil pump rotor assembly | 15102-0N010 · 15102-33060 |
| 15104 | Oil filter sub-assembly | 15104-0Q020 · 15104-0Q021 · 15104-0Q030 · 15104-21022 · 15104-47040 · 15104-47060 |
| 15104A | O-ring (for oil filter) | 90301-22018 · 96723-19018 |
| 15104E | Stud bolts (for oil filter) | 90126-06021 |
| 15115 | oil pump cover | 15120-0N010 · 15120-33080 |
| 15131 | Oil pump pressure reducing valve | 15131-21020 · 15131-38010 |
| 15132 | Oil pump pressure reducing valve spring | 15132-21050 · 15132-33020 |
| 15133 | PLUG, OIL PUMP RELIEF VALVE | 15133-20010 · 15133-21030 |
| 15147 | Oil filter gasket | 15147-0Q020 · 15147-40040 |
| 15149 | Oil filter flange gasket | 16258-21030 |
| 15163 | Oil pump drive shaft gear | 15163-33010 · 15163-33020 |
| 15193 | oil pump gasket | 12151-21010 · 15193-33020 |
| 15193C | No. 2 oil pump gasket | 11497-21010 |
