Toyota YARIS Ventilation Hose — Figure 1201

Toyota YARIS EPC diagram 1201, Ventilation Hose, with 6 images and 13 PNC and OE references.

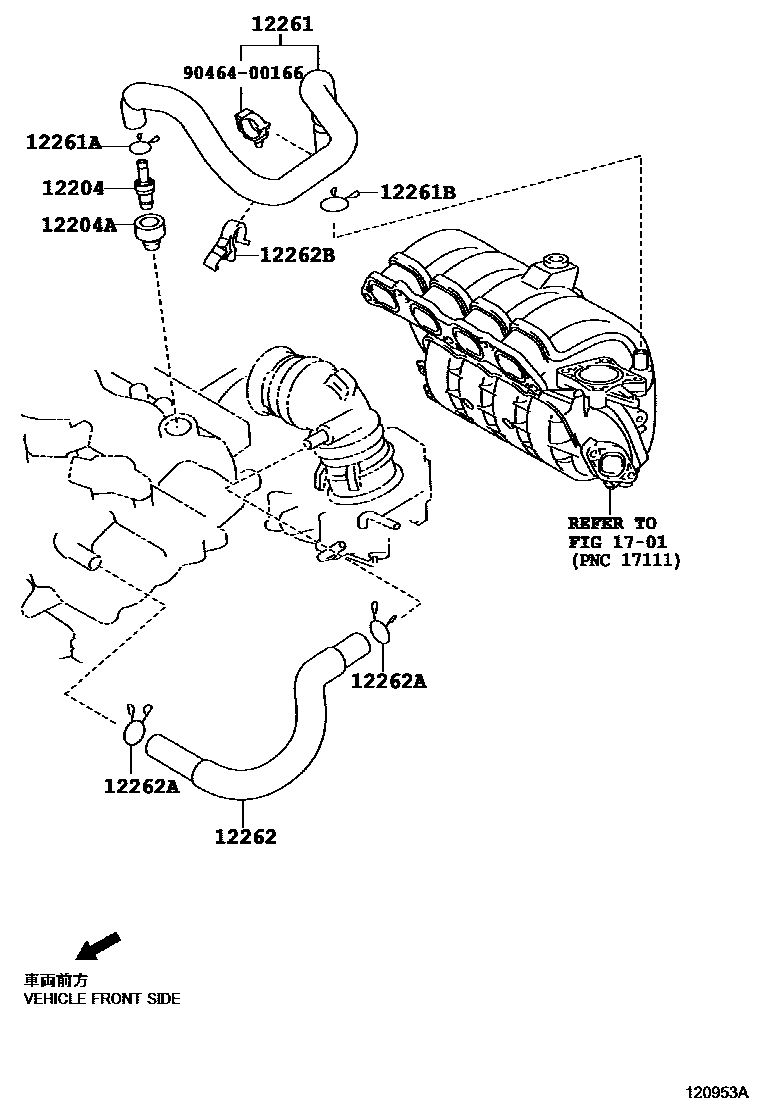

Toyota YARIS Ventilation Hose EPC diagram — 120953A
Ventilation Hose — 120953A (201407 – 999999)

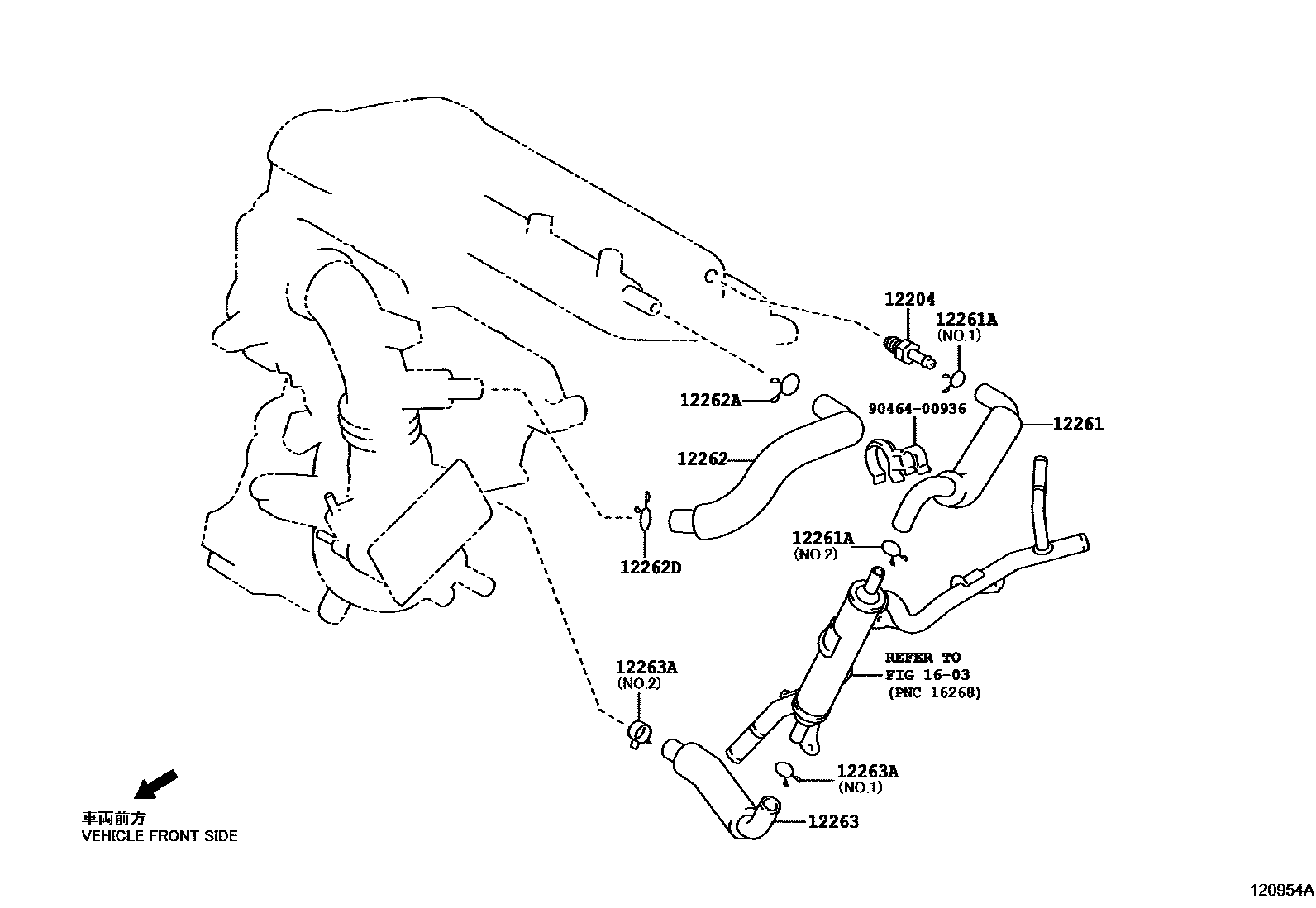

Toyota YARIS Ventilation Hose EPC diagram — 120954A
Ventilation Hose — 120954A (201407 – 999999)

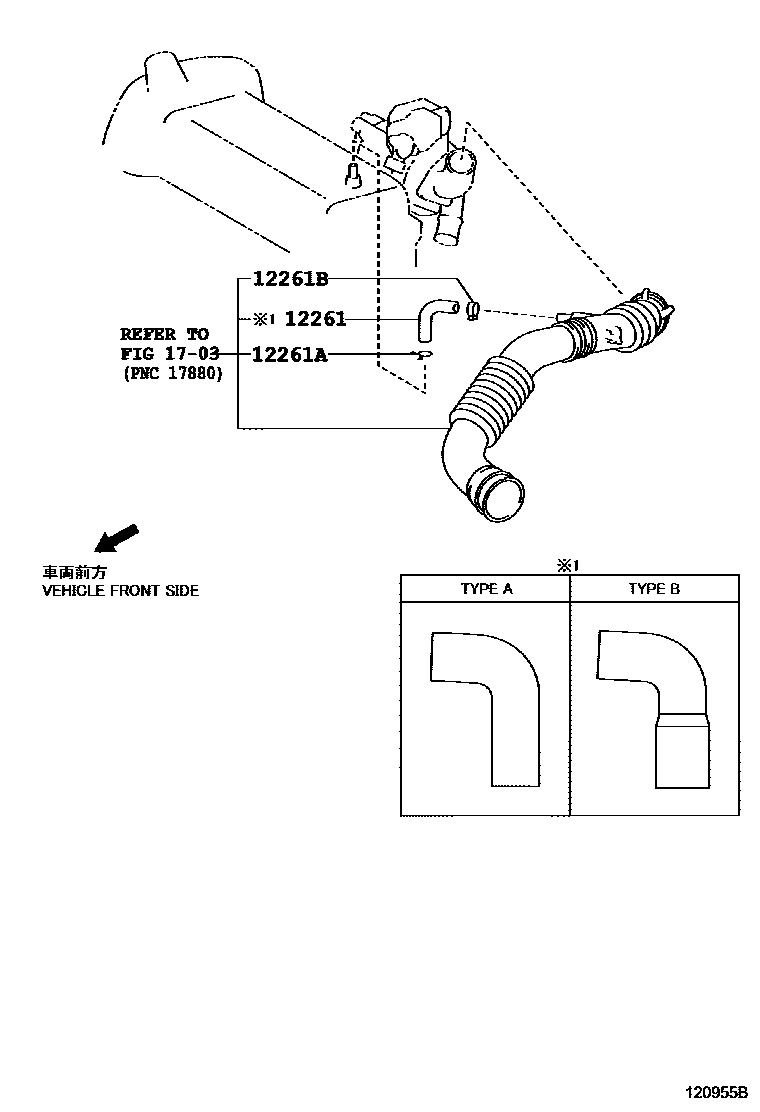

Toyota YARIS Ventilation Hose EPC diagram — 120955B
Ventilation Hose — 120955B (201407 – 999999)

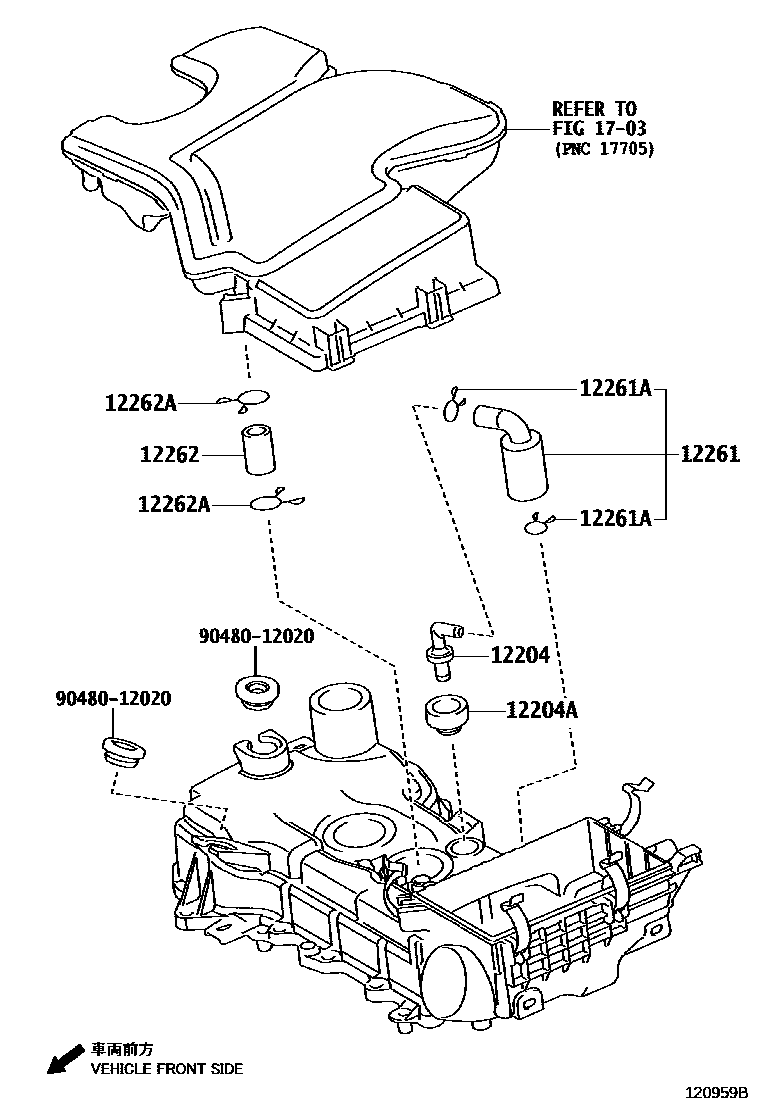

Toyota YARIS Ventilation Hose EPC diagram — 120959B
Ventilation Hose — 120959B (201407 – 201805)

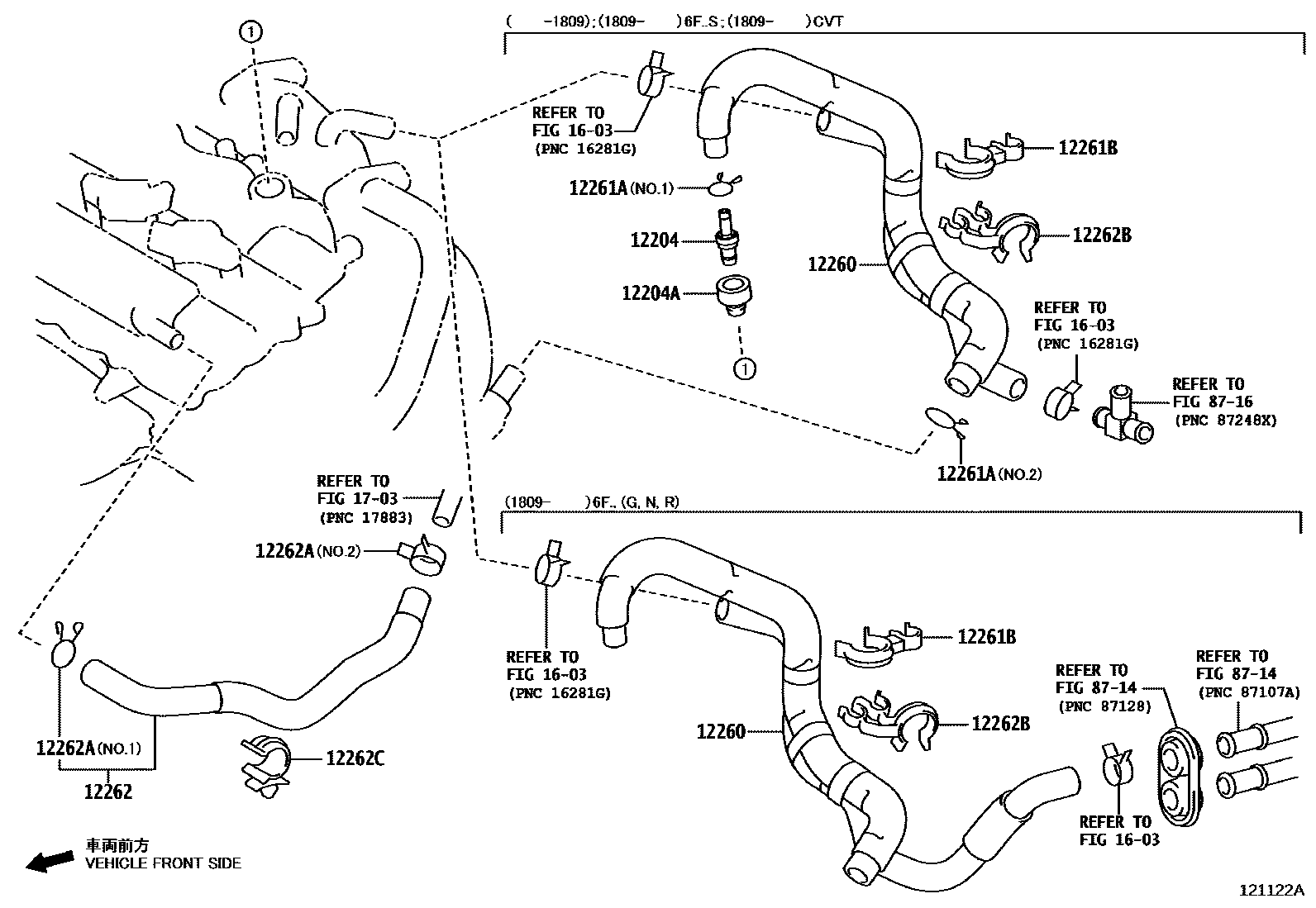

Toyota YARIS Ventilation Hose EPC diagram — 121122A
Ventilation Hose — 121122A (201703 – 999999)

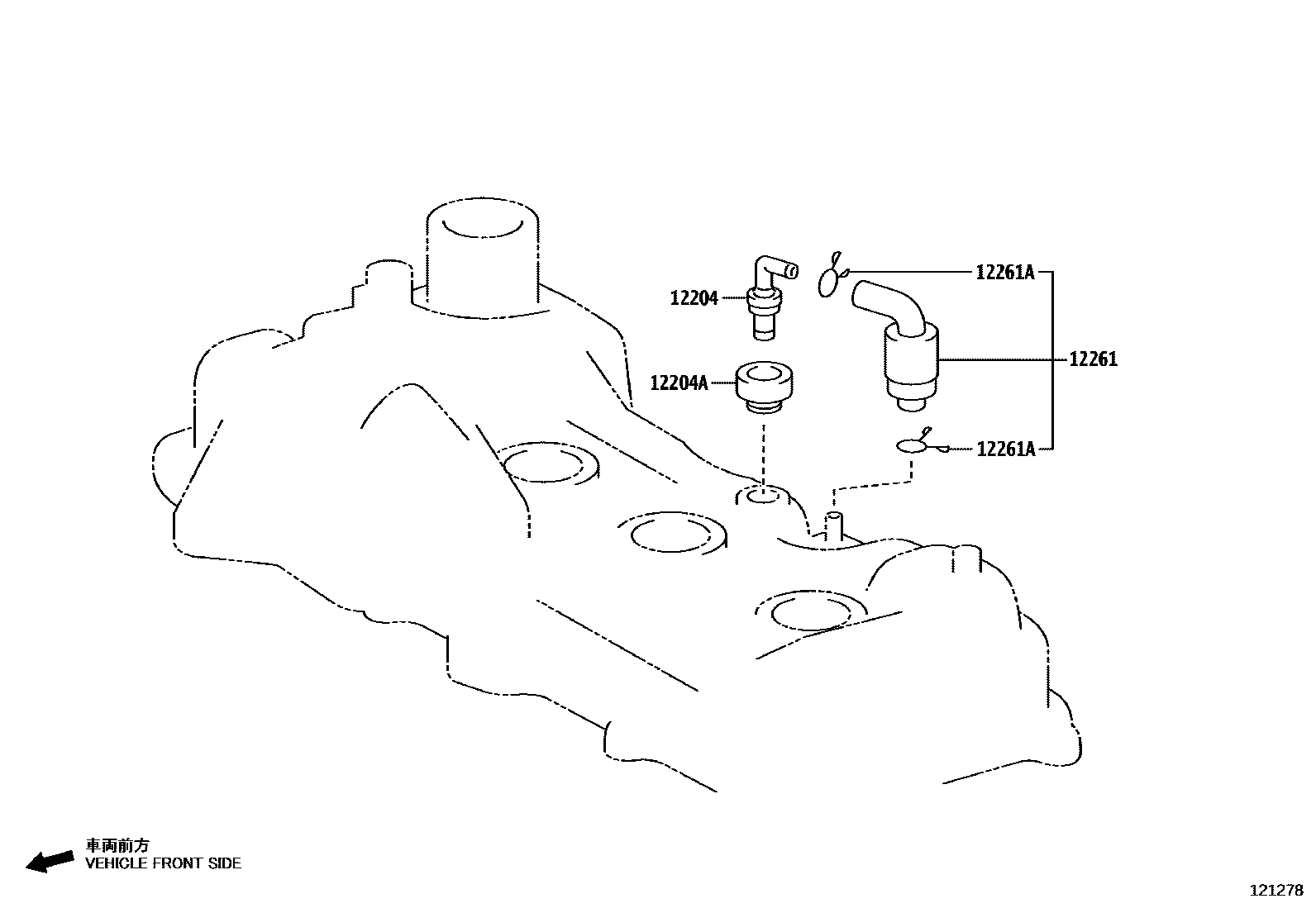

Toyota YARIS Ventilation Hose EPC diagram — 121278
Ventilation Hose — 121278 (201805 – 999999)

PNC and OE references

PNCPart nameOE numbers
12204Ventilation valve sub-assembly12204-21013 · 12204-40040 · 12204-47060 · 12204-47100
12204AGasket (for ventilation system)11249-47020 · 90480-18016
12260Ventilation hose assembly12029-47030 · 12029-47040
12261Ventilation Hose12261-0Q010 · 12261-21101 · 12261-33100 · 12261-33140 · 12261-40040 · 12261-40060 · 12261-47010
12261AClip or clip (for vent hose)90466-17004 · 90466-W0017 · 90467-15120 · 90467-16035 · 90467-21004 · 96138-42501
12261BClip or clip (for vent hose)16581-47120 · 90466-W0007 · 90467-21010 · 90467-22010
12262Ventilation hose No. 212262-21110 · 12262-40040 · 12262-47010 · 12262-47040
12262AClamp (for vent hose No. 2)16581-21050 · 90467-21004 · 96136-42201
12262BClamp (for ventilation hose)16581-47020 · 16581-47130
12262CVentilation hose clamp No. 212251-47030
12262DClamp (for vent hose No. 2)90467-21004
12263No. 3 ventilation hose12263-21020
12263AClip (for ventilation hose)90466-17004 · 96137-41901
