Toyota YARIS Engine Mounting — Figure 1107

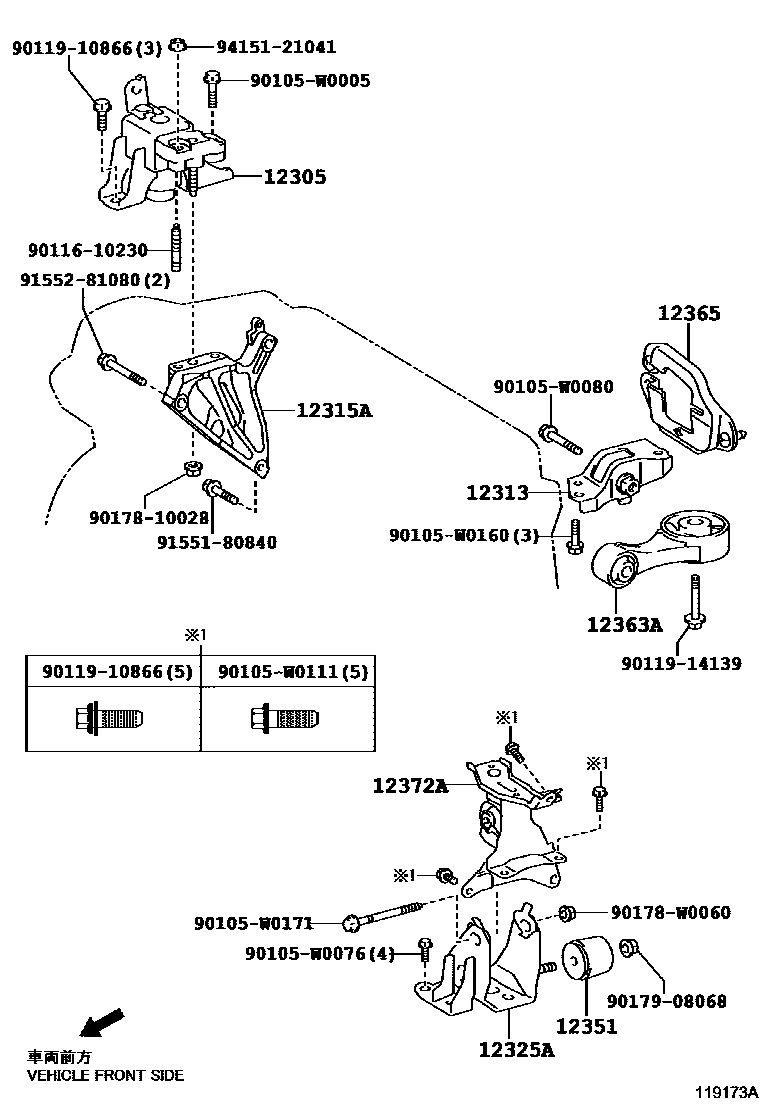

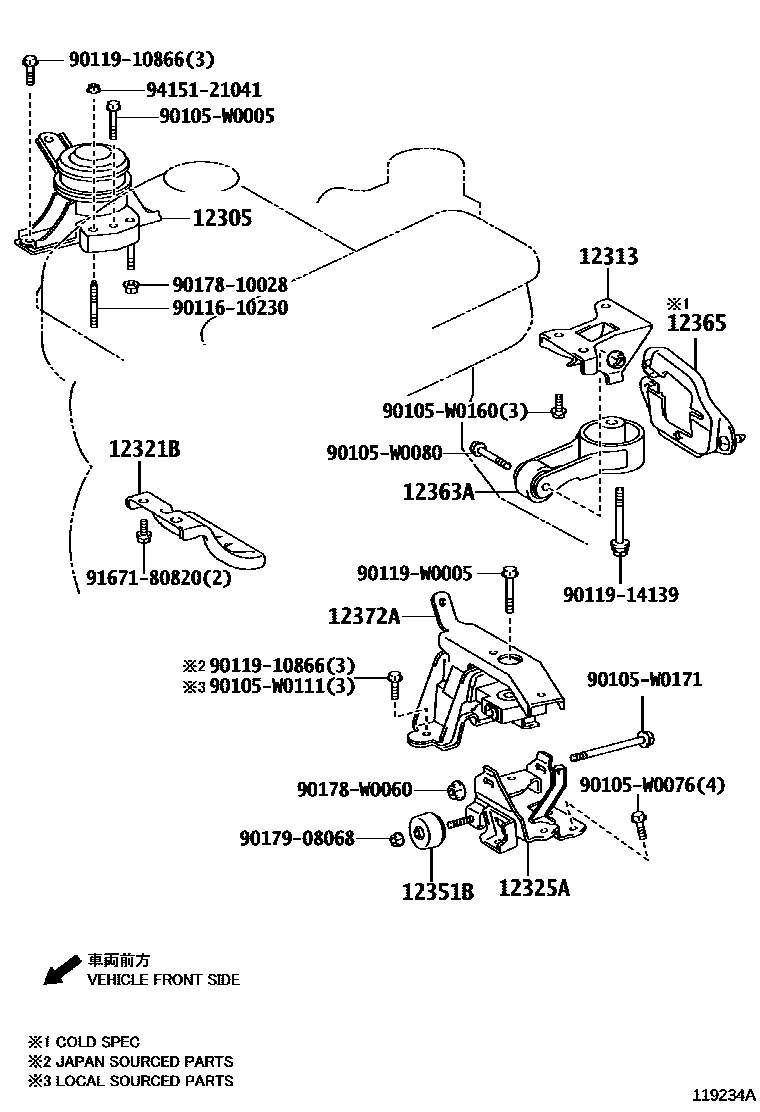

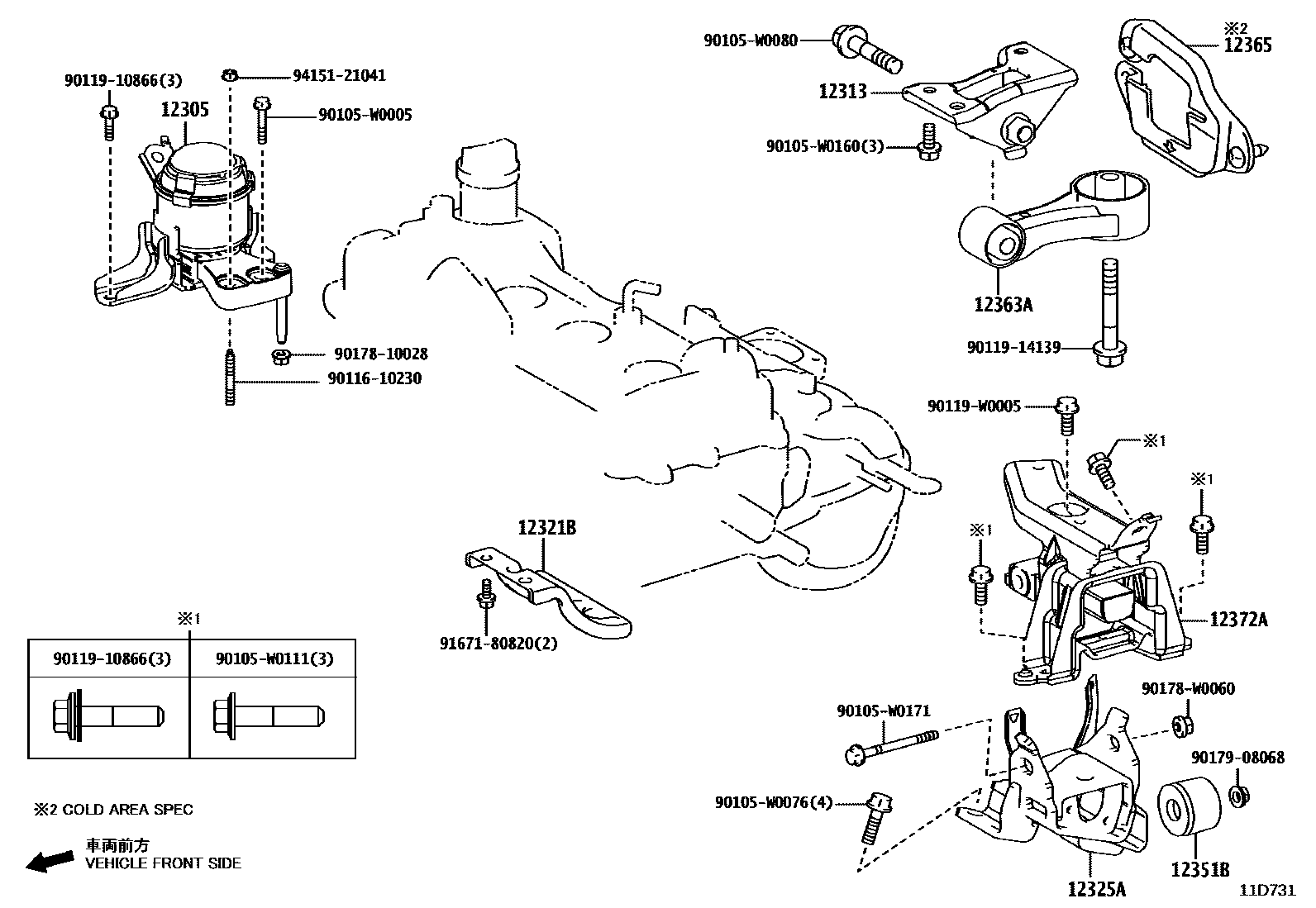

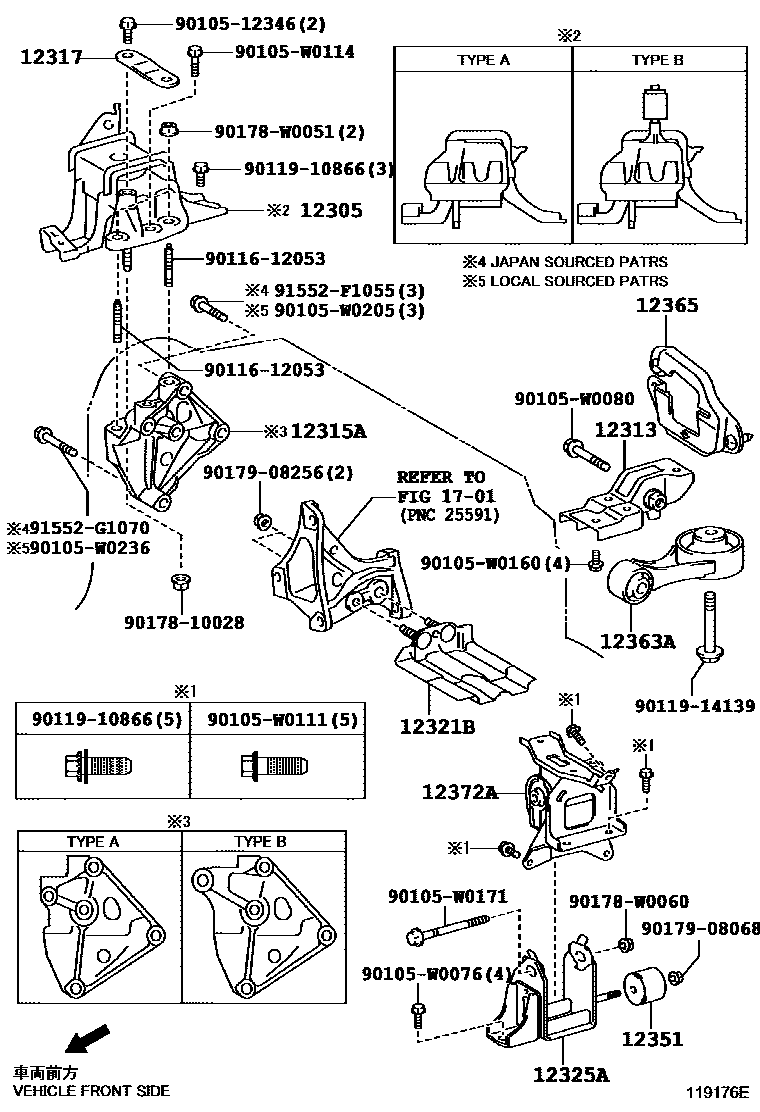

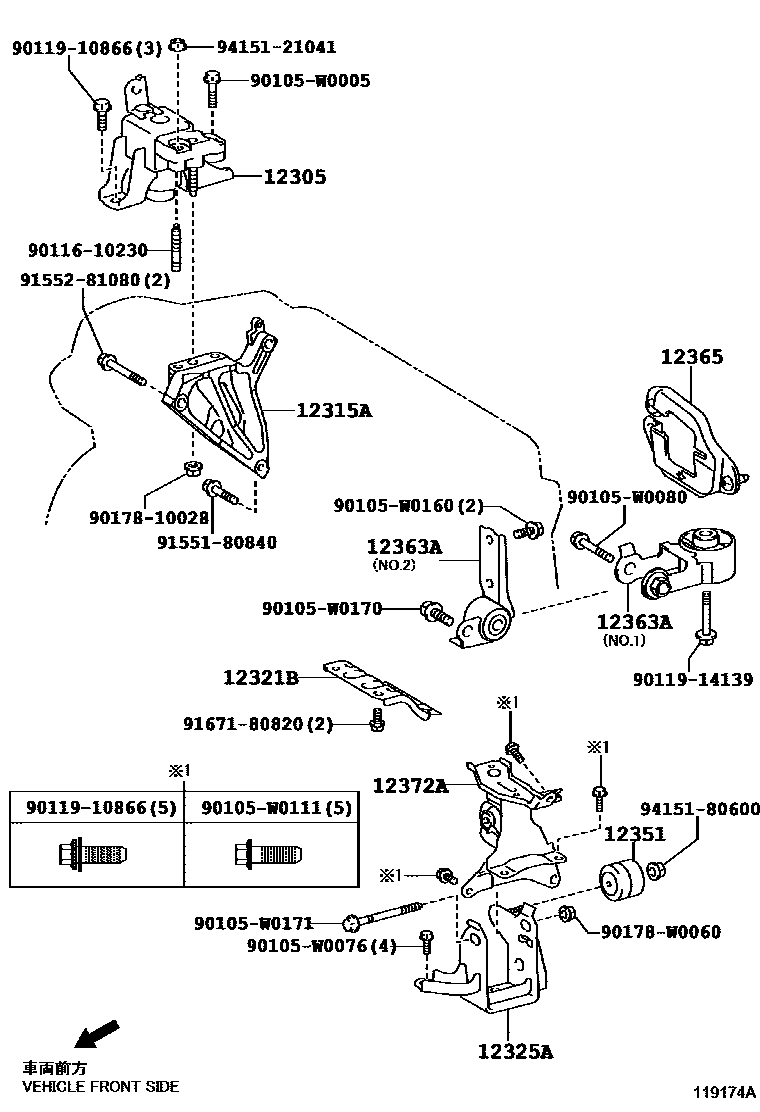

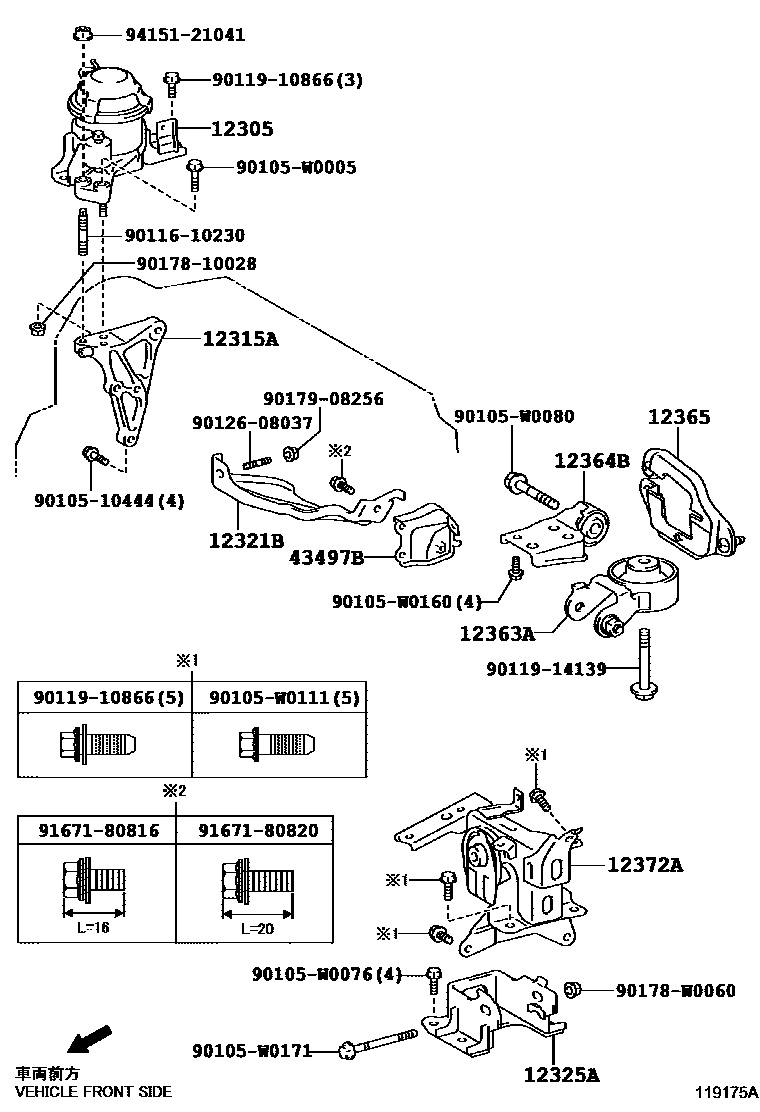

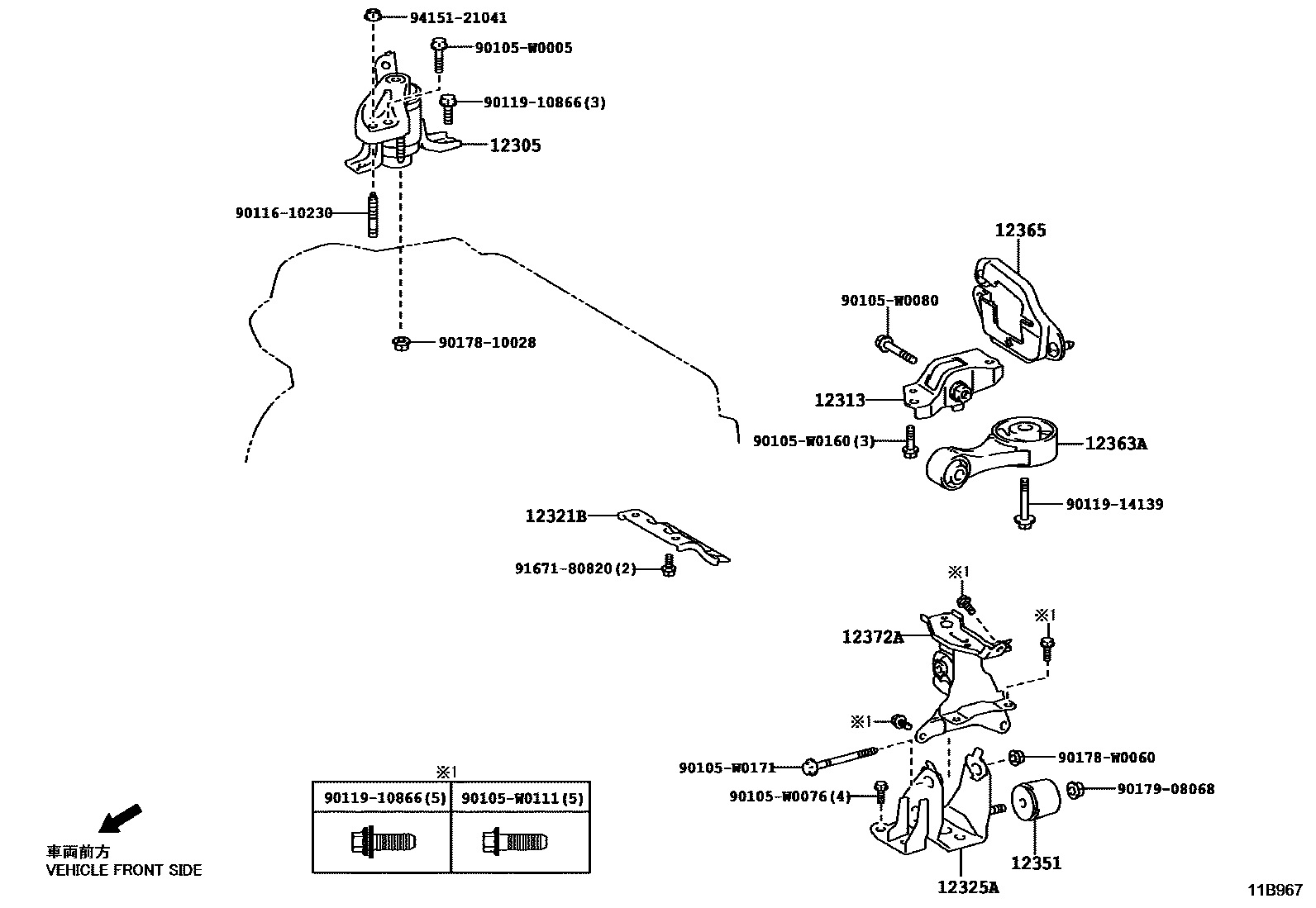

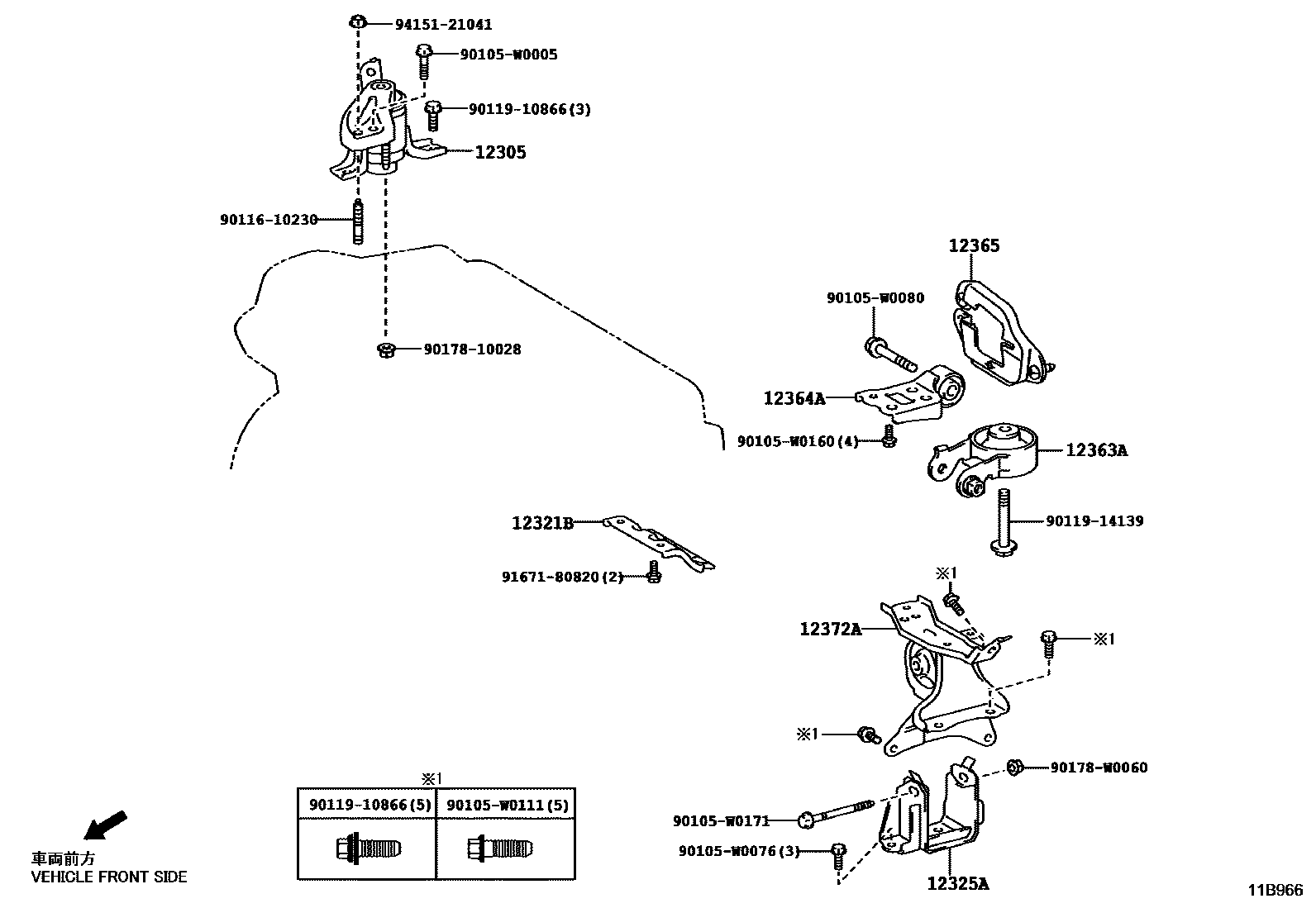

Toyota YARIS EPC diagram 1107, Engine Mounting, with 8 images and 14 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 12305 | Engine right side mounting vibration isolation pad sub-assembly | 12305-0M100 · 12305-0M140 · 12305-0N080 · 12305-0N120 · 12305-0Q022 · 12305-0Q050 · 12305-0Y050 · 12305-0Y220 |
| 12313 | Engine mount control bracket (for transversely mounted engines) | 12313-0N010 · 12313-0Q020 · 12313-0Y010 |
| 12315A | Engine right side mounting bracket (for transversely mounted engine) | 12315-0N010 · 12315-21060 · 12315-33050 · 12315-33080 · 12315-47040 |
| 12317 | Engine right mounting bracket | 12317-0N020 |
| 12321B | Drive shaft heat insulation pad sub-assembly | 43409-52040 · 43498-0D080 · 43498-12070 · 43498-52070 · 43498-52090 |
| 12325A | Engine left side mounting bracket (for transversely mounted engine) | 12325-0M130 · 12325-0N070 · 12325-0Q030 · 12325-0Y060 · 12325-0Y070 · 12325-47130 |
| 12351 | engine mount shock absorber | 12351-0N040 · 12351-0Y030 · 12351-0Y040 |
| 12351B | engine mount shock absorber | 12351-0Q010 |
| 12363A | Engine movement control lever | 12363-0M070 · 12363-0M120 · 12363-0N020 · 12363-0Q030 · 12363-0Y040 · 12363-0Y240 · 12363-23010 · 12364-47010 |
| 12364A | Engine lateral control lever | 12364-0Y150 |
| 12364B | Engine No. 2 motion control lever | 12364-0M050 |
| 12365 | Engine motion control lever cover | 12365-40010 |
| 12372A | Engine left-side mounting vibration isolation pad (for transversely mounted engines) | 12372-0M100 · 12372-0M120 · 12372-0N090 · 12372-0Q020 · 12372-0Y150 · 12372-47110 · 12372-47180 |
| 43497B | Driveshaft insulation pad bracket | 43497-52050 |
