Toyota YARIS Engine Overhaul Gasket Kit — Figure 1103
Toyota YARIS EPC diagram 1103, Engine Overhaul Gasket Kit, with 14 images and 2 PNC and OE references.

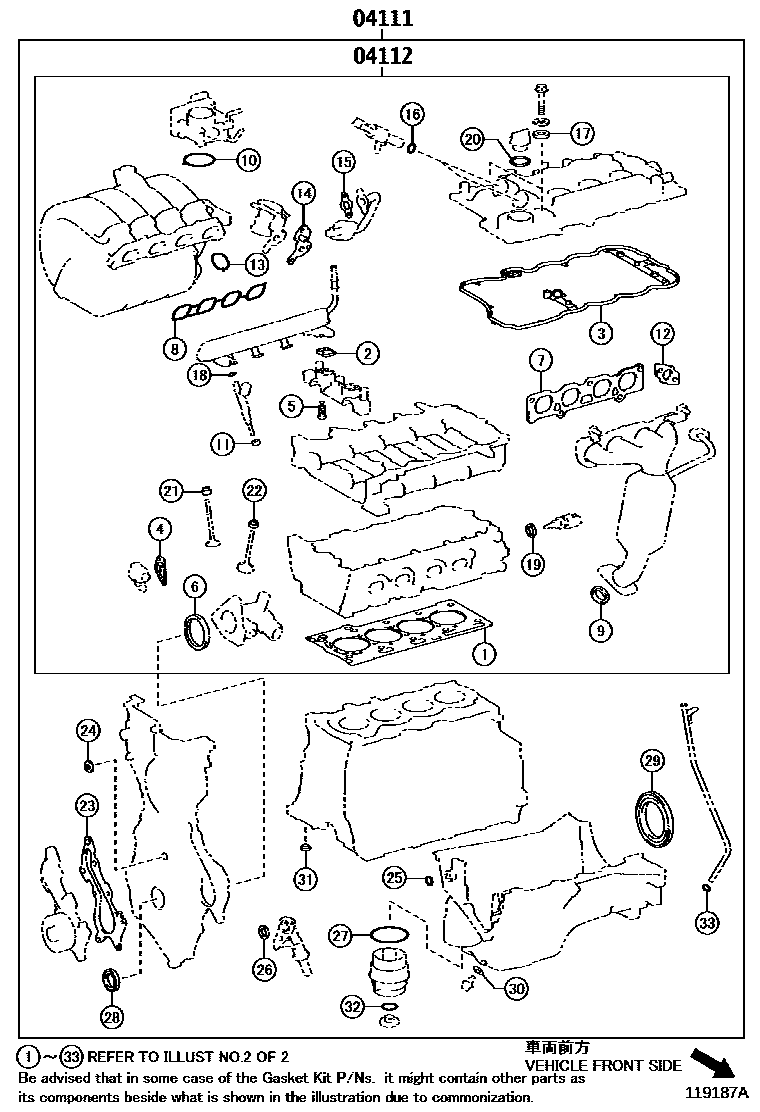

Engine Overhaul Gasket Kit — 119187A (201407 – 999999)

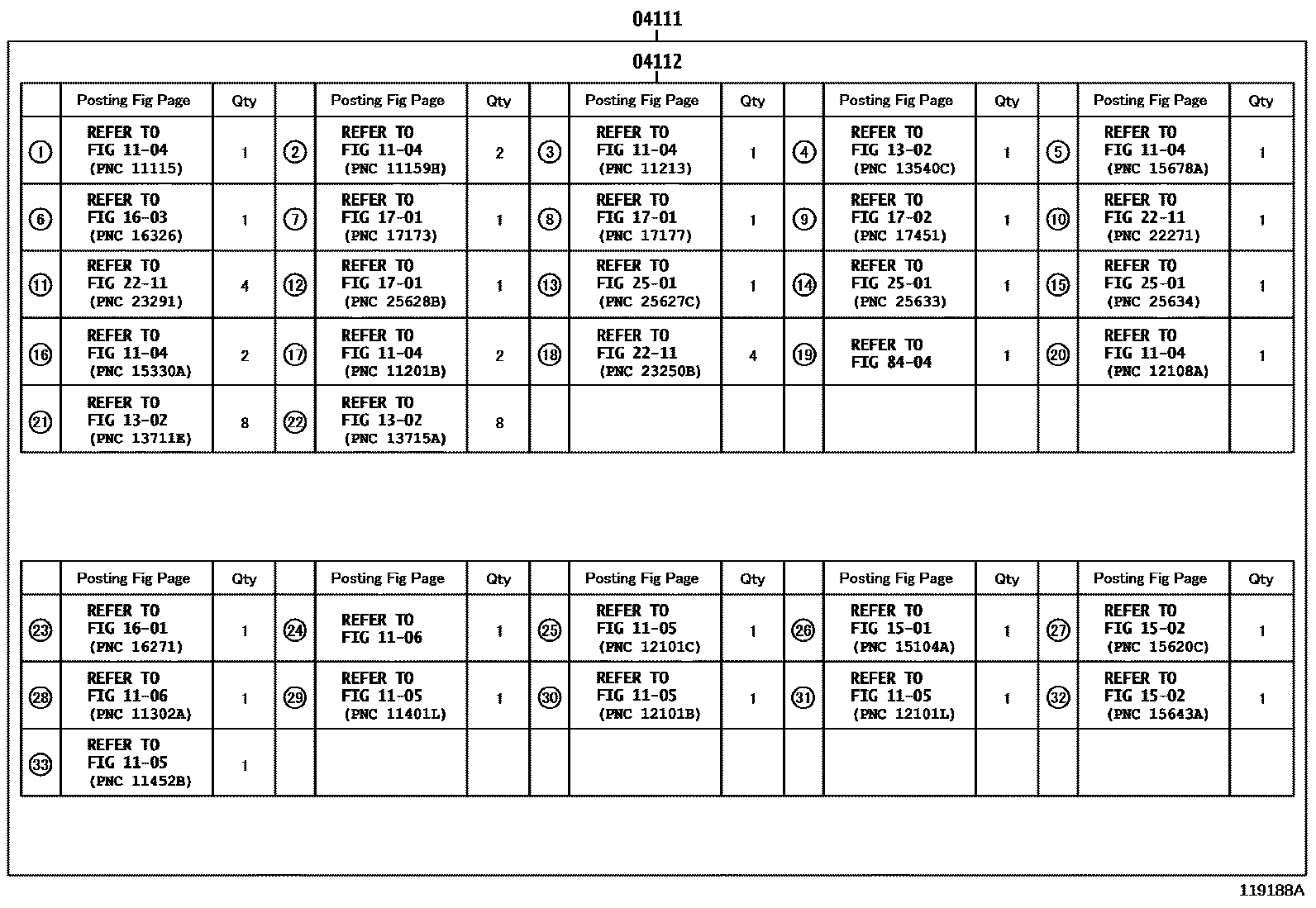

Engine Overhaul Gasket Kit — 119188A (201407 – 999999)

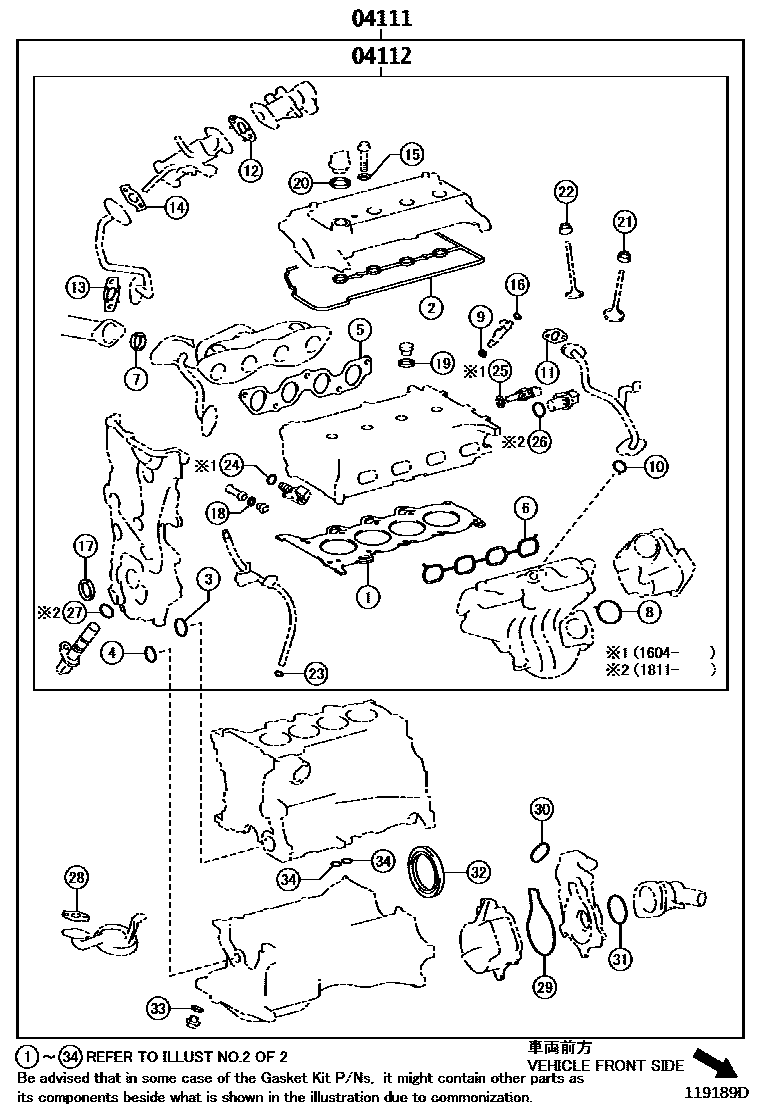

Engine Overhaul Gasket Kit — 119189D (201407 – 999999)

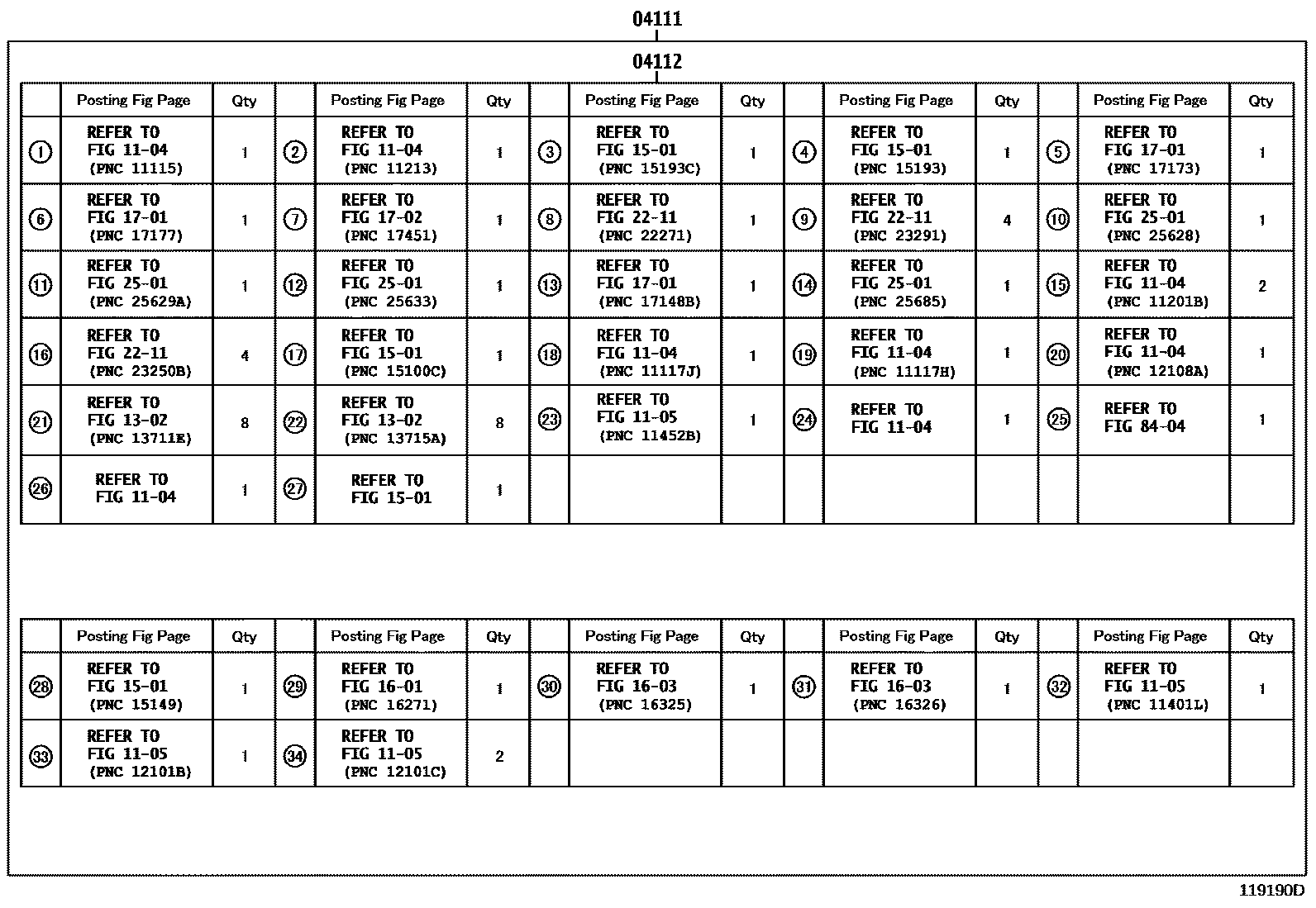

Engine Overhaul Gasket Kit — 119190D (201407 – 999999)

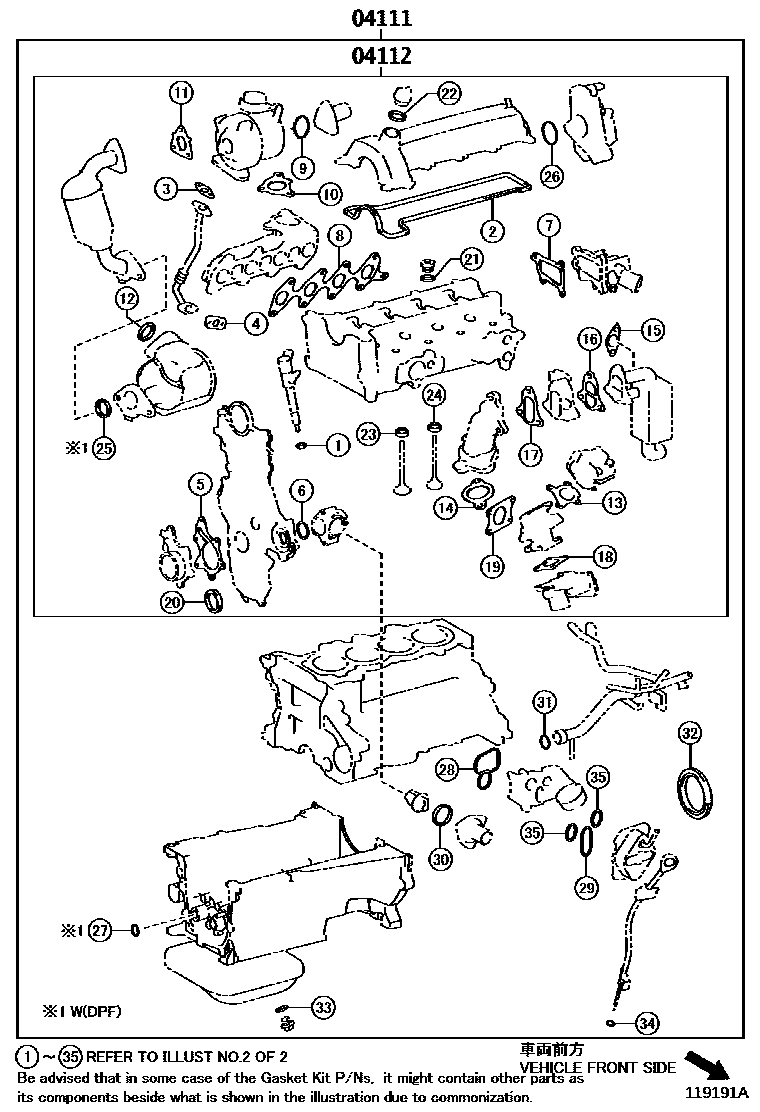

Engine Overhaul Gasket Kit — 119191A (201407 – 999999)

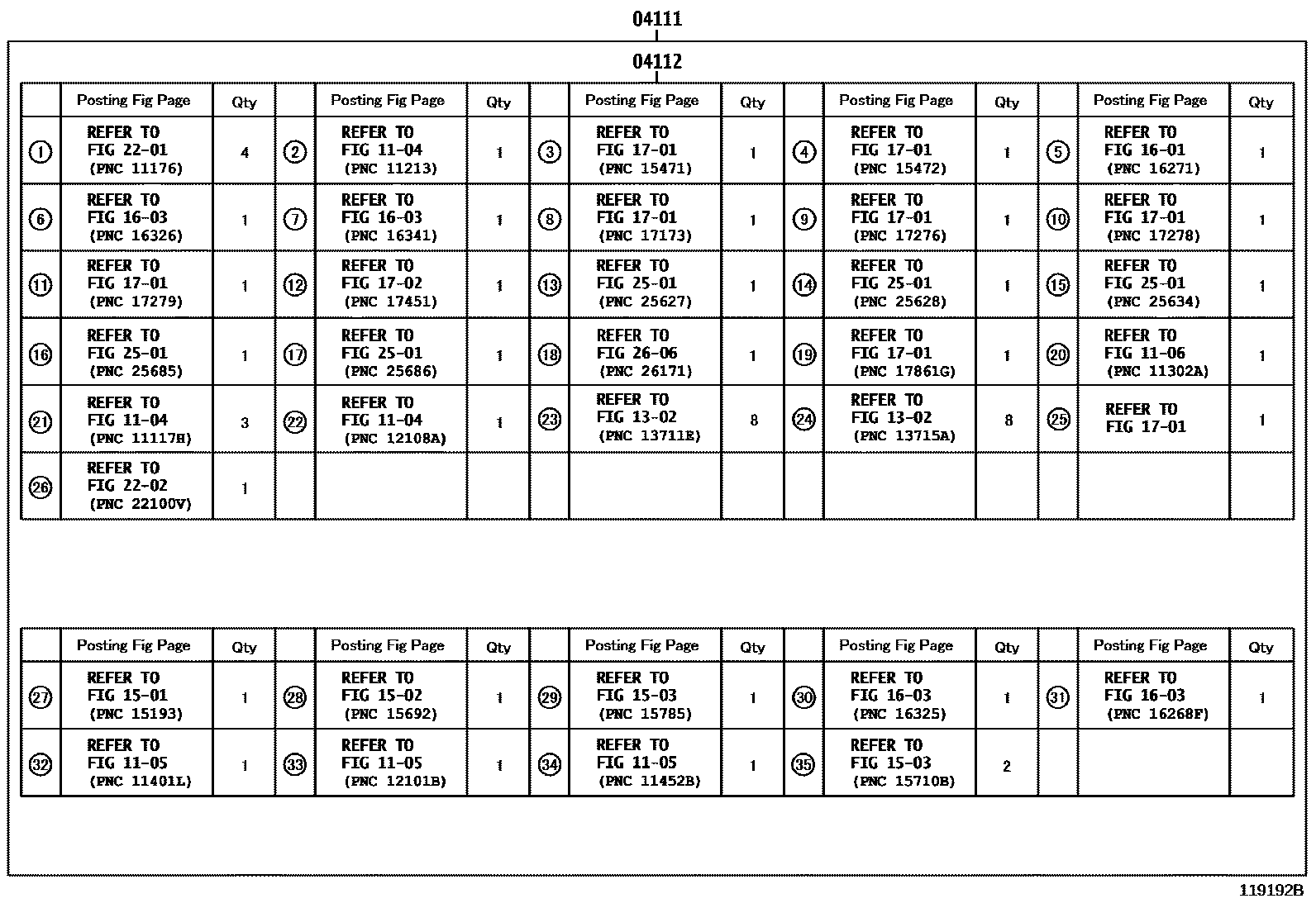

Engine Overhaul Gasket Kit — 119192B (201407 – 999999)

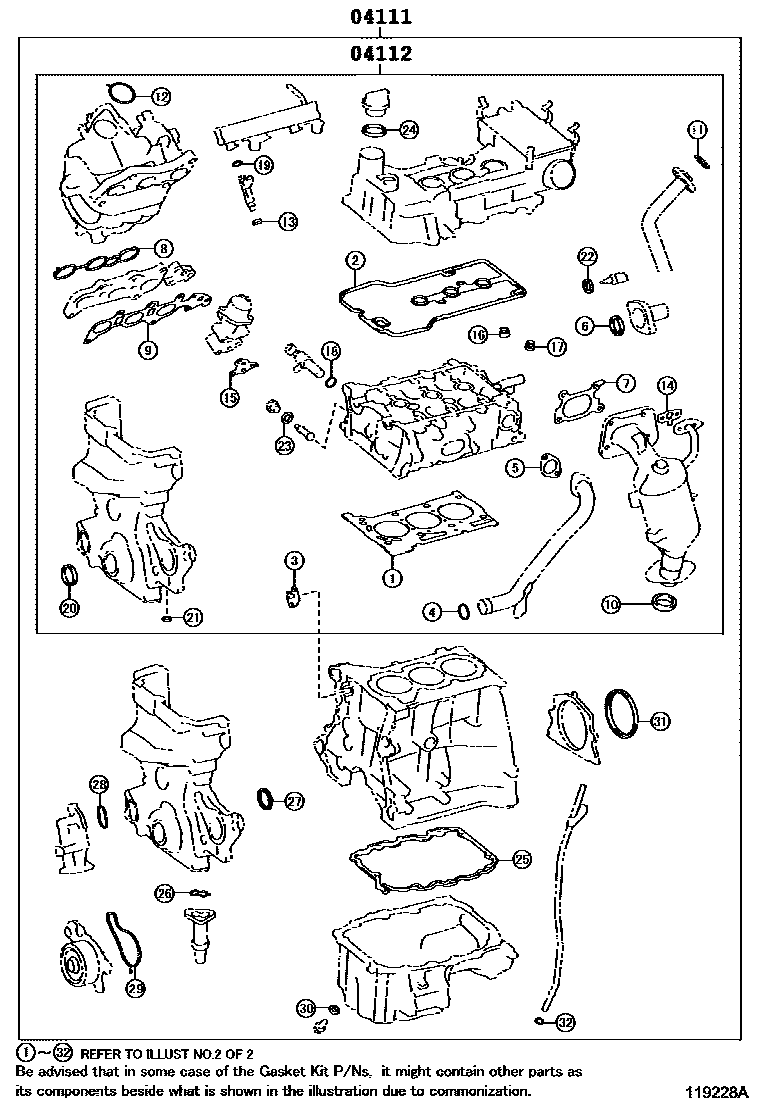

Engine Overhaul Gasket Kit — 119228A (201407 – 201805)

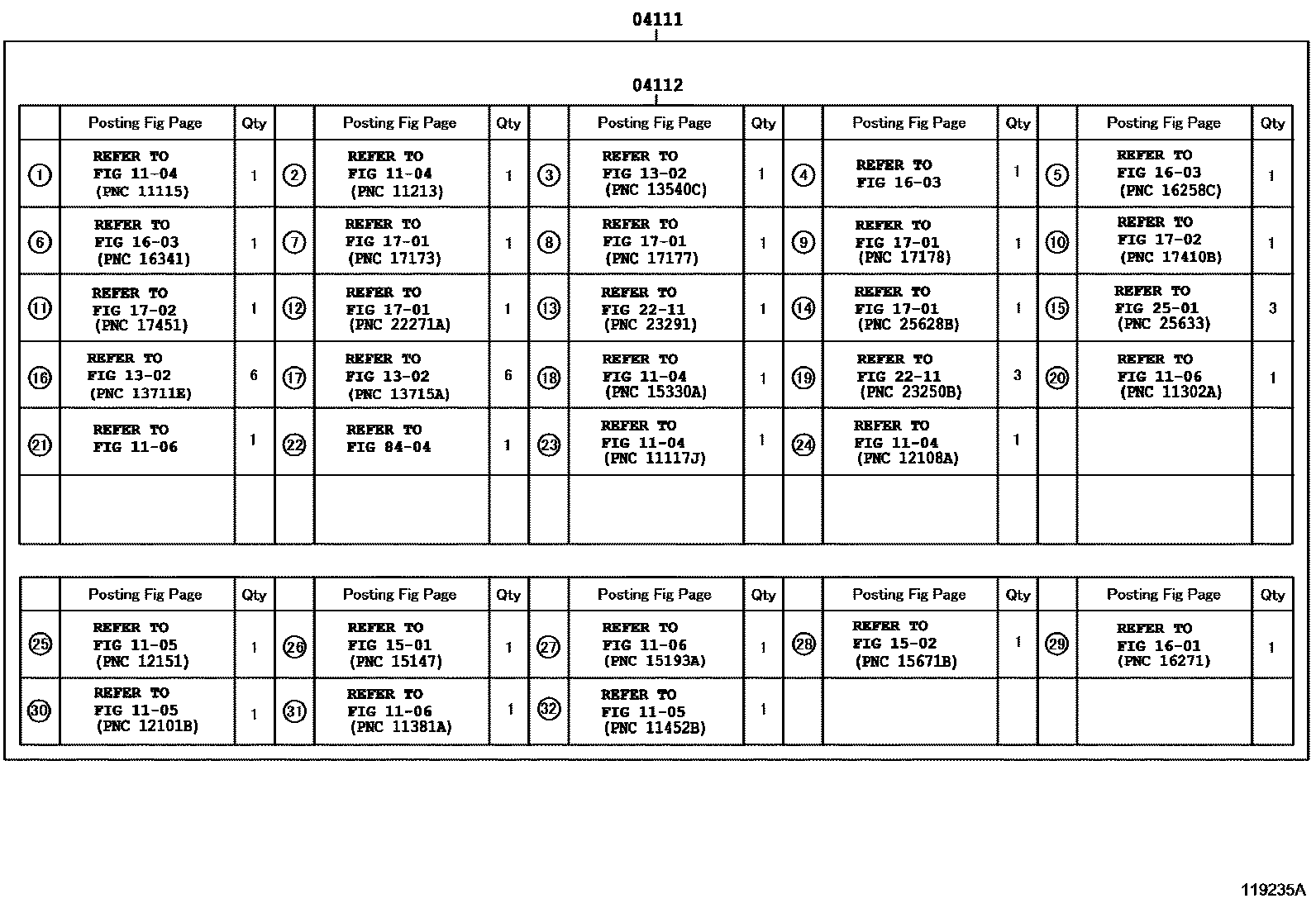

Engine Overhaul Gasket Kit — 119235A (201407 – 201805)

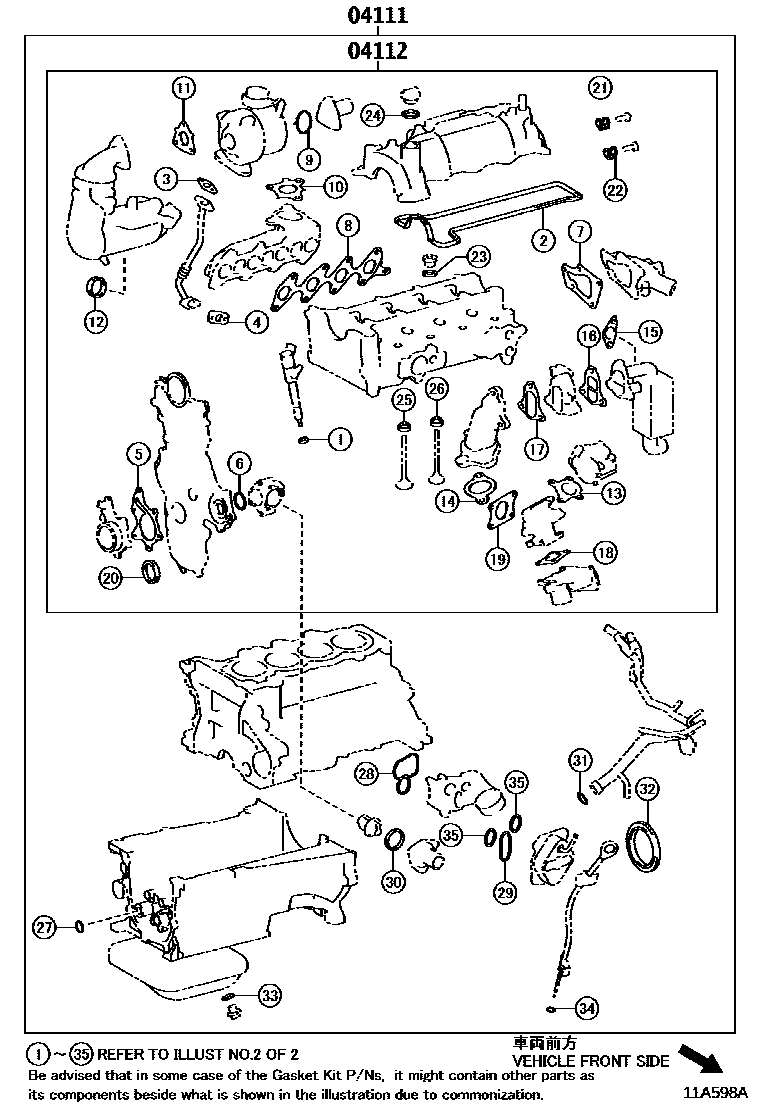

Engine Overhaul Gasket Kit — 11A598A (201505 – 999999)

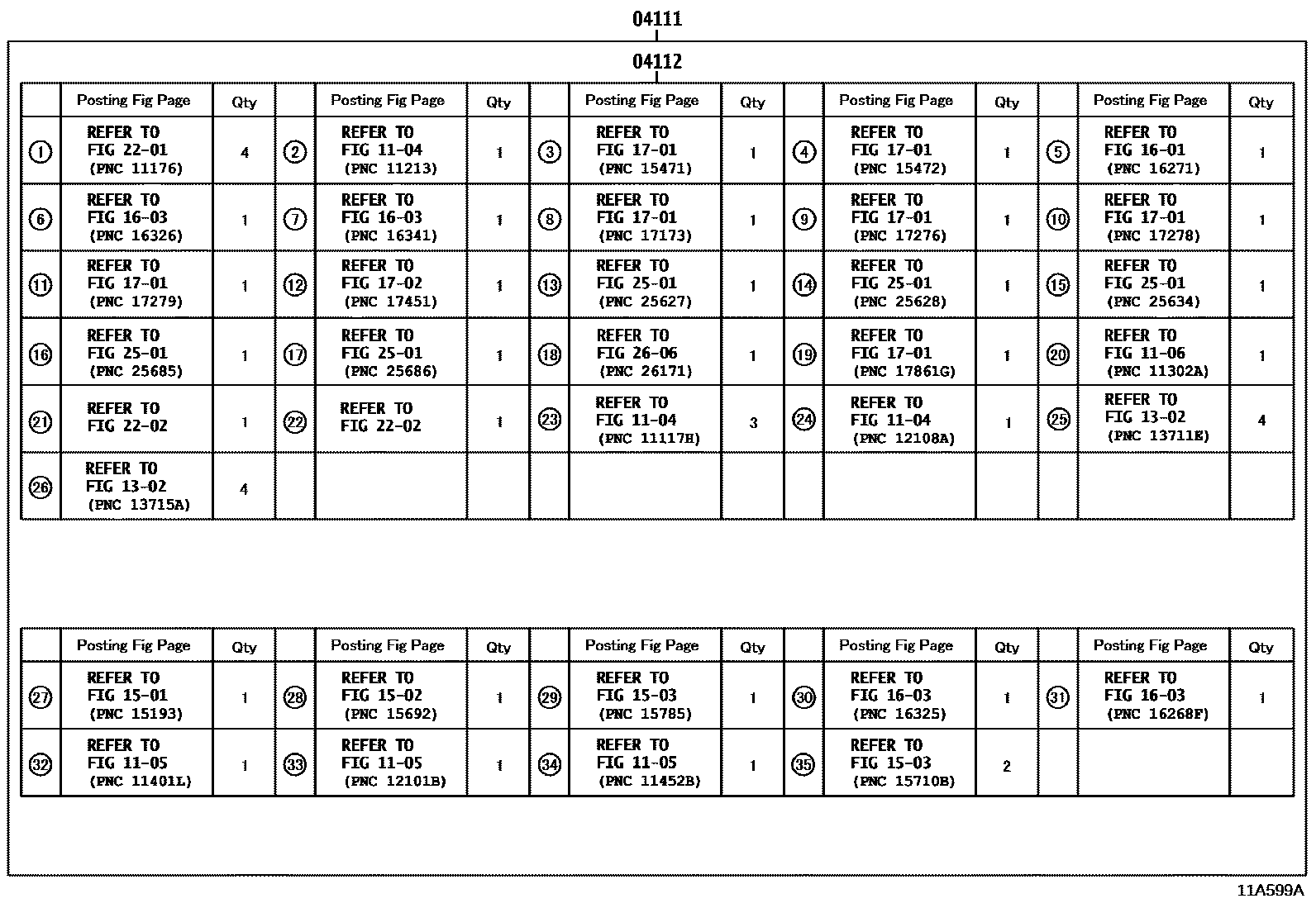

Engine Overhaul Gasket Kit — 11A599A (201505 – 999999)

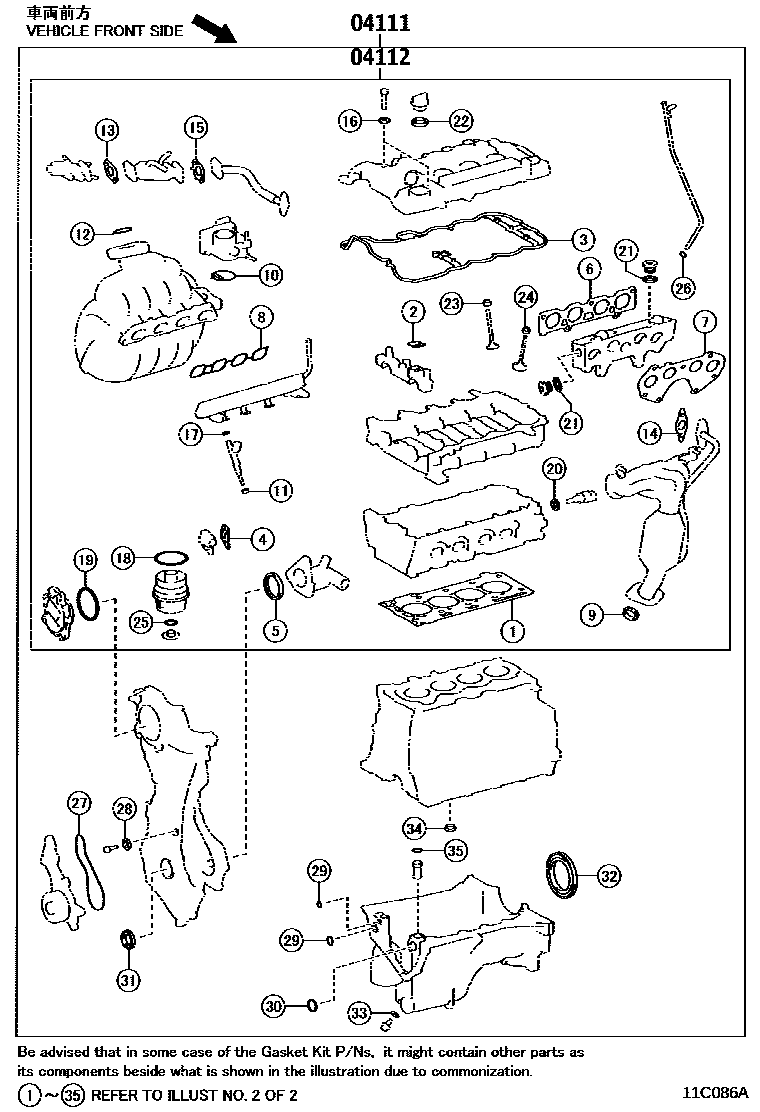

Engine Overhaul Gasket Kit — 11C086A (201703 – 999999)

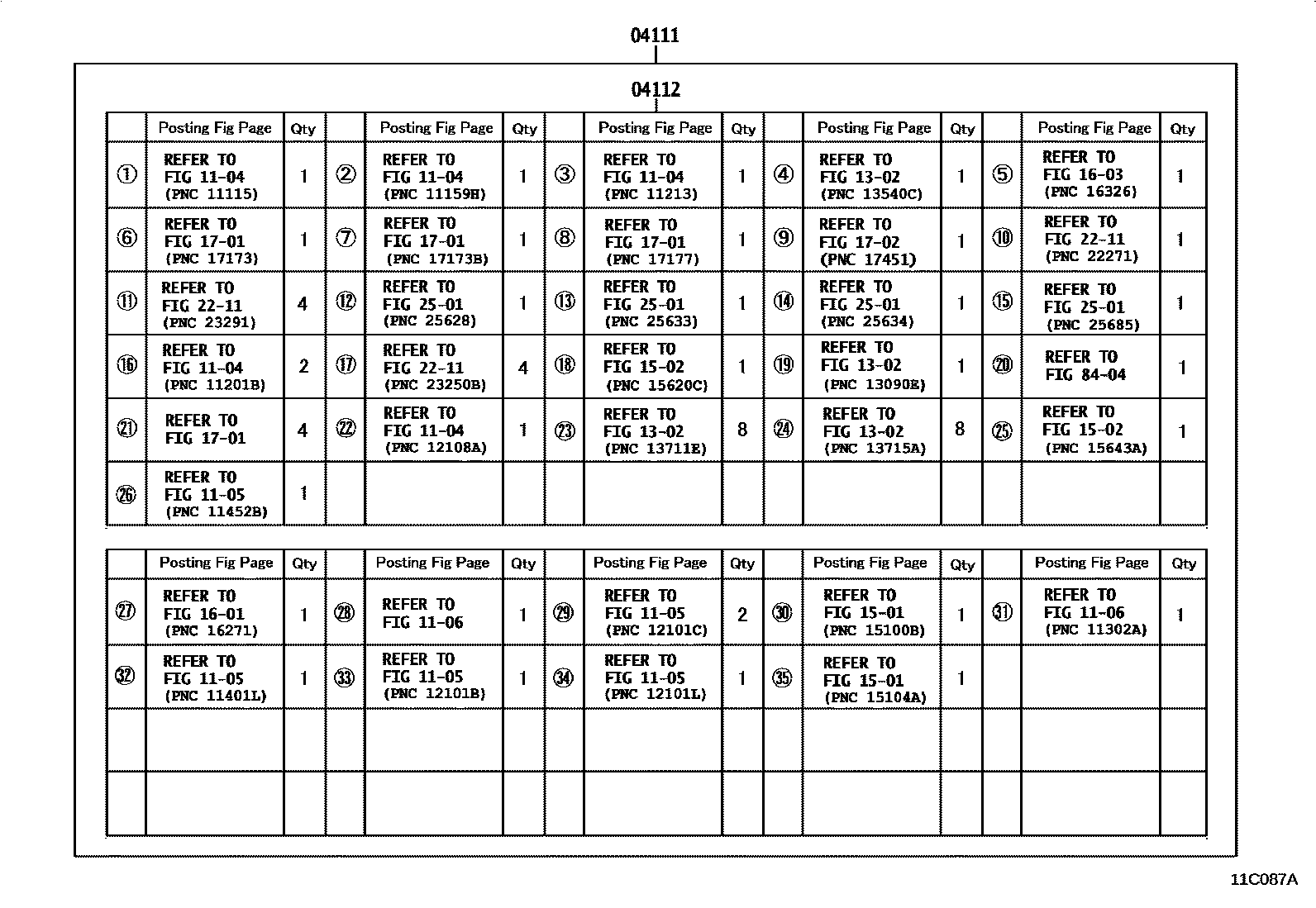

Engine Overhaul Gasket Kit — 11C087A (201703 – 999999)

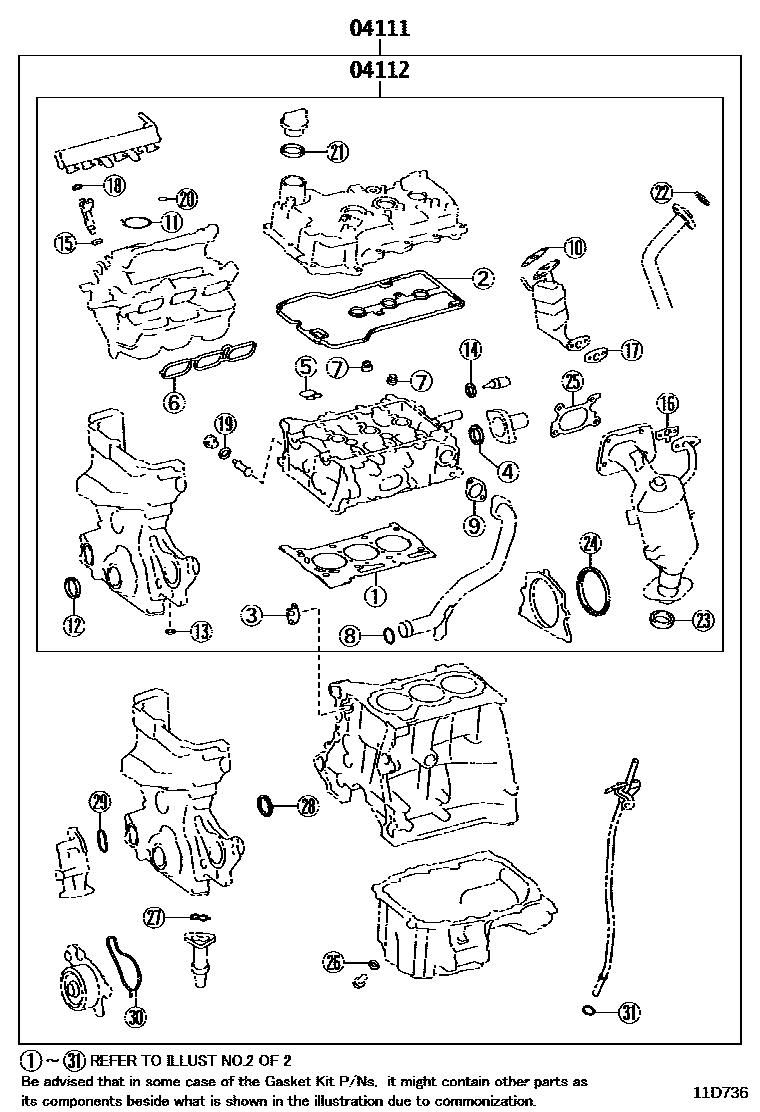

Engine Overhaul Gasket Kit — 11D736 (201805 – 999999)

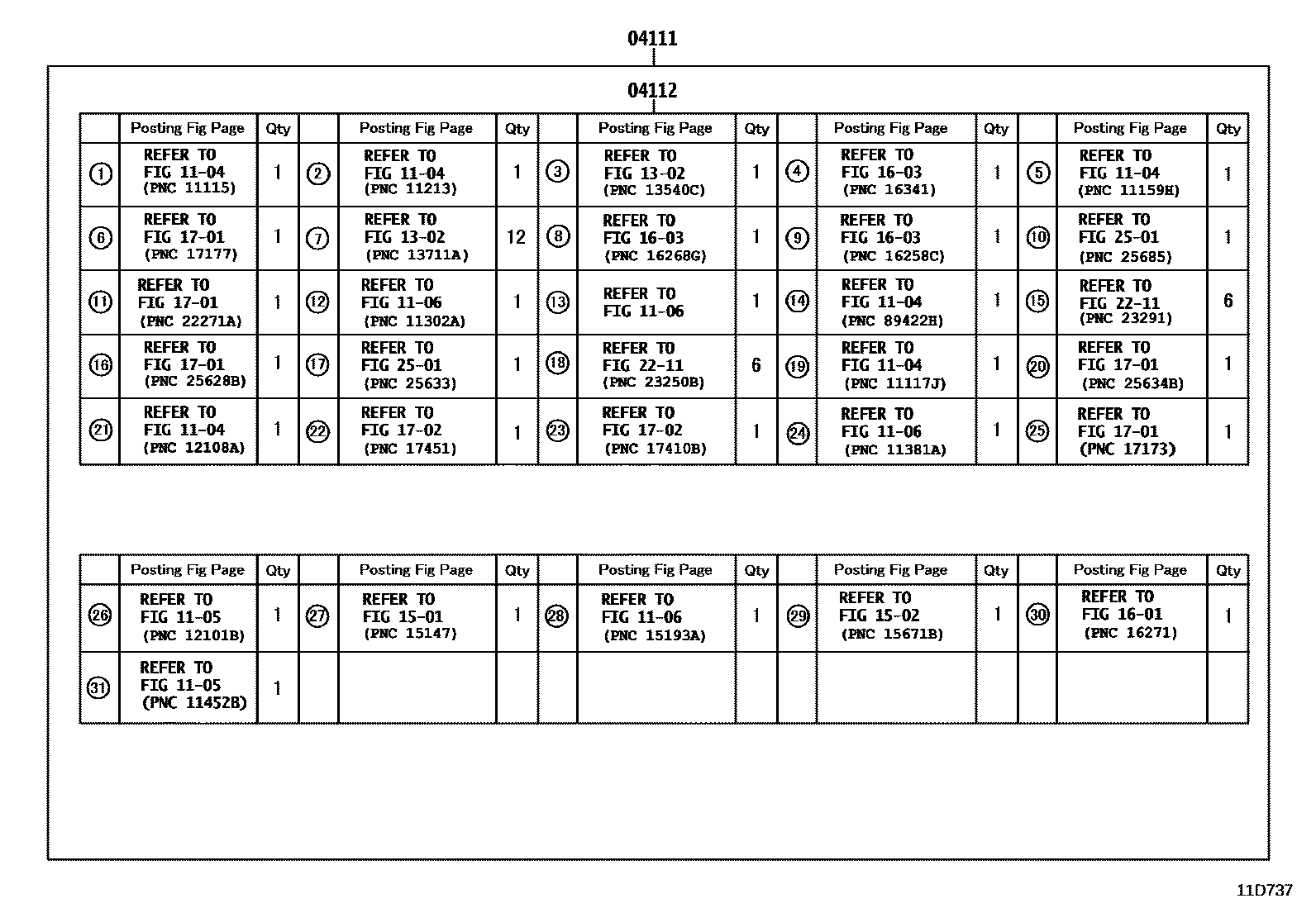

Engine Overhaul Gasket Kit — 11D737 (201805 – 999999)PNC and OE references
| PNC | Part name | OE numbers |
|---|
| 04111 | Engine overhaul gasket assembly | 04111-0Q062 · 04111-0Q090 · 04111-0Q091 · 04111-0Y130 · 04111-21324 · 04111-21325 · 04111-21326 · 04111-33181 · 04111-33182 · 04111-33191 · 04111-33192 · 04111-33220 · 04111-33230 · 04111-33240 · 04111-47170 |
| 04112 | Engine valve grinding pad assembly | 04112-0Q061 · 04112-0Q090 · 04112-0Q091 · 04112-0Y130 · 04112-21323 · 04112-21324 · 04112-21325 · 04112-33181 · 04112-33182 · 04112-33200 · 04112-33210 · 04112-47120 |
