Toyota YARIS Short Block Assembly — Figure 1102

Toyota YARIS EPC diagram 1102, Short Block Assembly, with 2 images and 1 PNC and OE references.

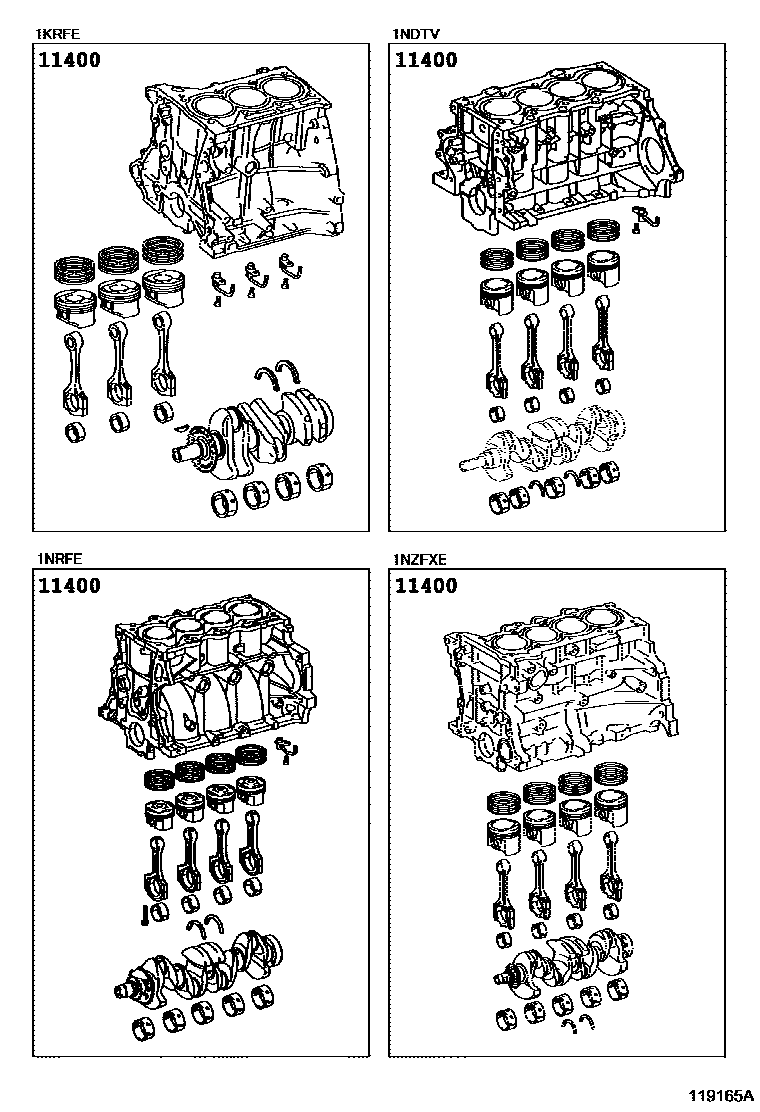

Toyota YARIS Short Block Assembly EPC diagram — 119165A
Short Block Assembly — 119165A (201407 – 999999)

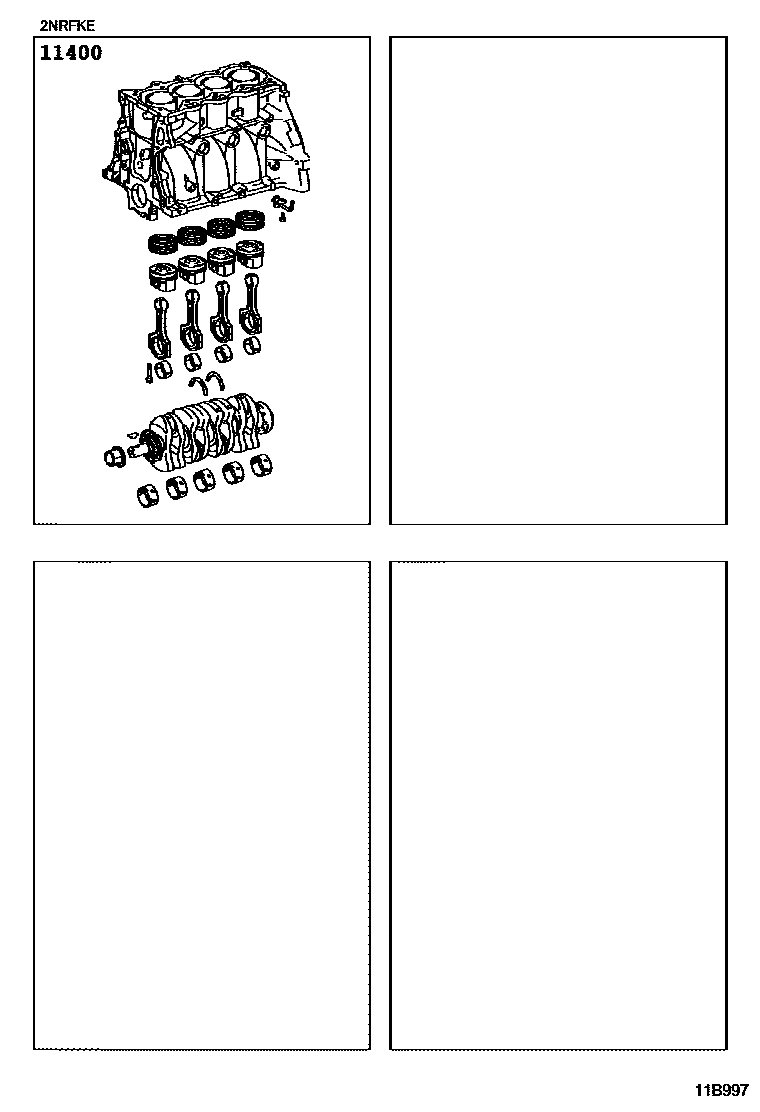

Toyota YARIS Short Block Assembly EPC diagram — 11B997
Short Block Assembly — 11B997 (201703 – 999999)

PNC and OE references

PNCPart nameOE numbers
11400Short Block Assembly11400-0N070 · 11400-0N090 · 11400-0N100 · 11400-0Q040 · 11400-0Q050 · 11400-0Q060 · 11400-0Q070 · 11400-0Q080 · 11400-0Q090 · 11400-0Y240 · 11400-21430 · 11400-47140
