Toyota YARIS Partial Engine Assembly — Figure 1101

Toyota YARIS EPC diagram 1101, Partial Engine Assembly, with 2 images and 1 PNC and OE references.

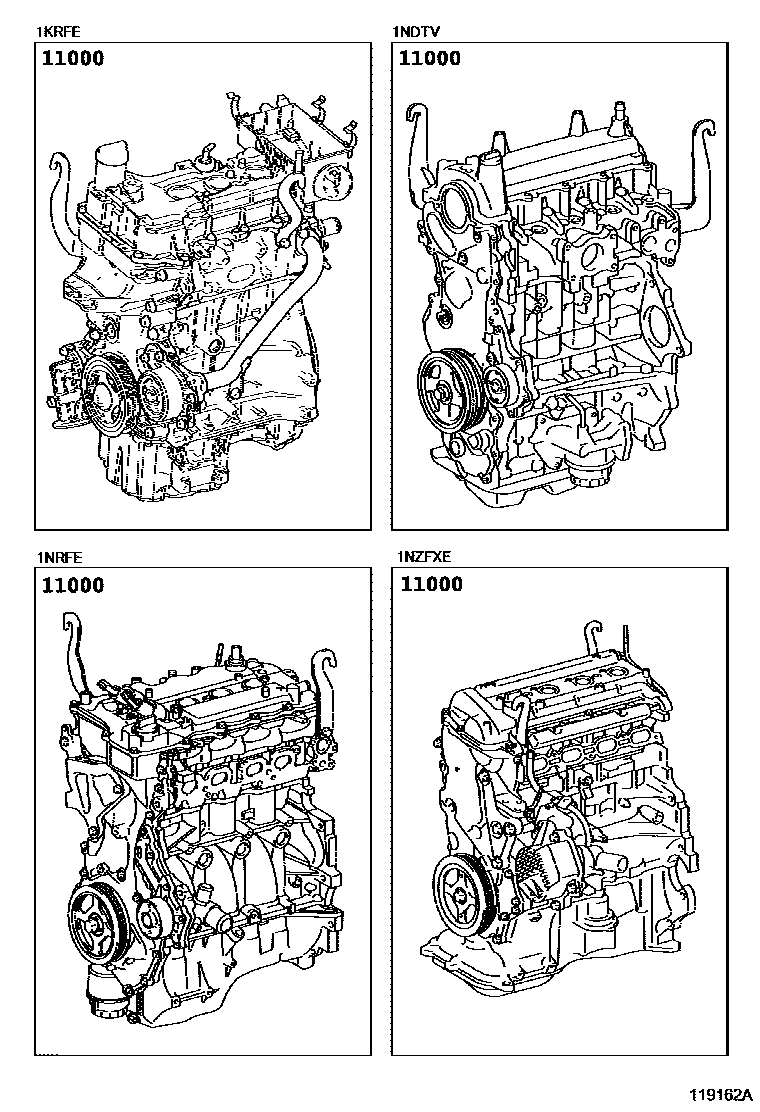

Toyota YARIS Partial Engine Assembly EPC diagram — 119162A
Partial Engine Assembly — 119162A (201407 – 999999)

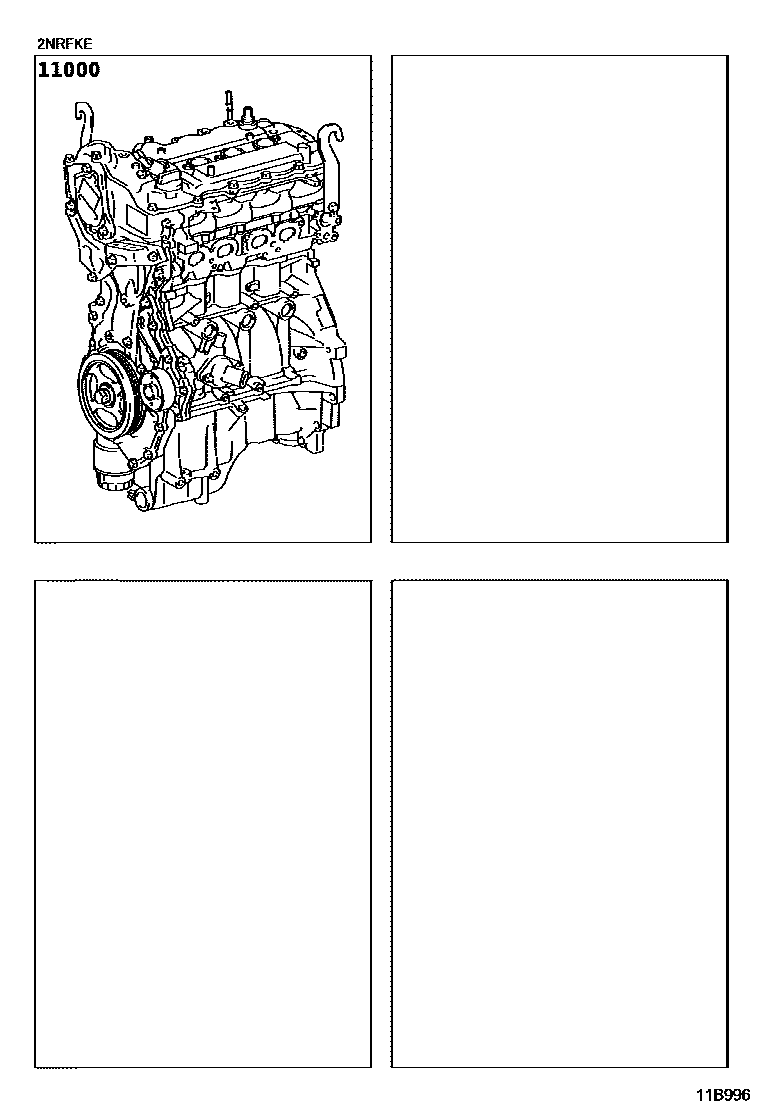

Toyota YARIS Partial Engine Assembly EPC diagram — 11B996
Partial Engine Assembly — 11B996 (201703 – 999999)

PNC and OE references

PNCPart nameOE numbers
11000Partial Engine Assembly19000-0N052 · 19000-0N061 · 19000-0N110 · 19000-0N120 · 19000-0N130 · 19000-0Q070 · 19000-0Q071 · 19000-0Q072 · 19000-0Q080 · 19000-0Q081 · 19000-0Q082 · 19000-0Q090 · 19000-0Q091 · 19000-0Q092 · 19000-0Q120 · 19000-0Q130 · 19000-0Q140 · 19000-0Y300 · 19000-21D01 · 19000-47310 · 19000-47340 · 19000-47360 · 19000-47370
