Toyota YARIS Heating & Air Conditioning - Compressor — Figure 8719
Toyota YARIS EPC diagram 8719, Heating & Air Conditioning - Compressor, with 5 images and 2 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|

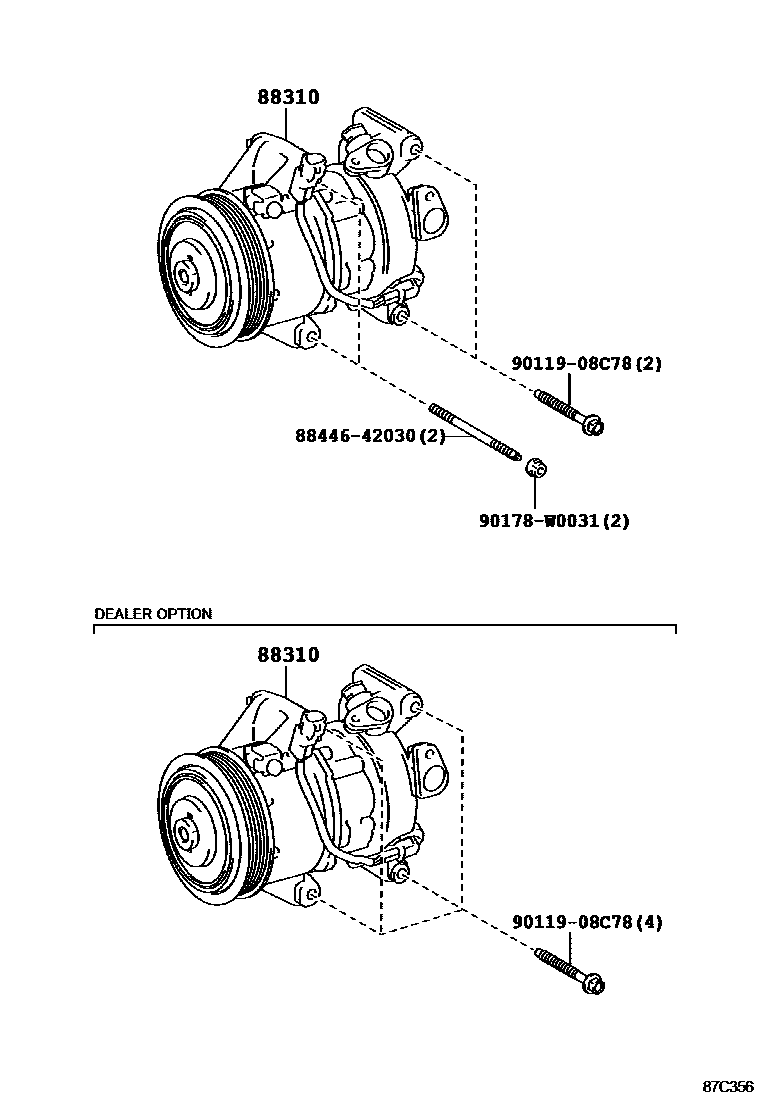

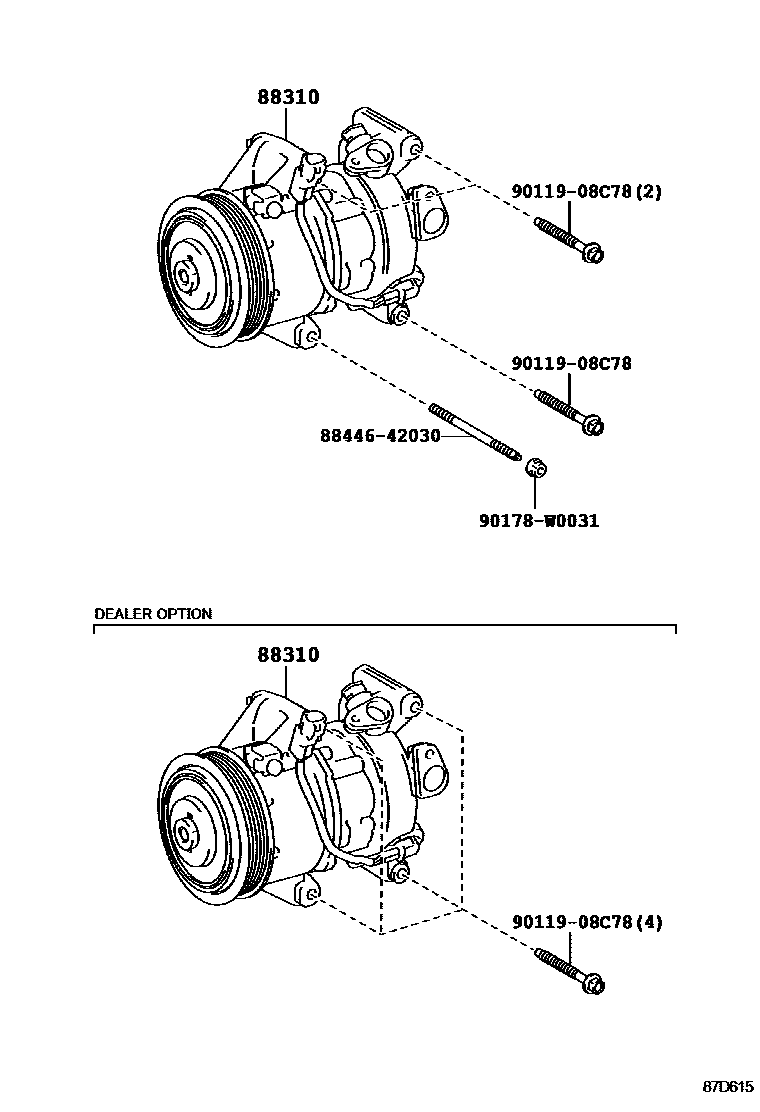

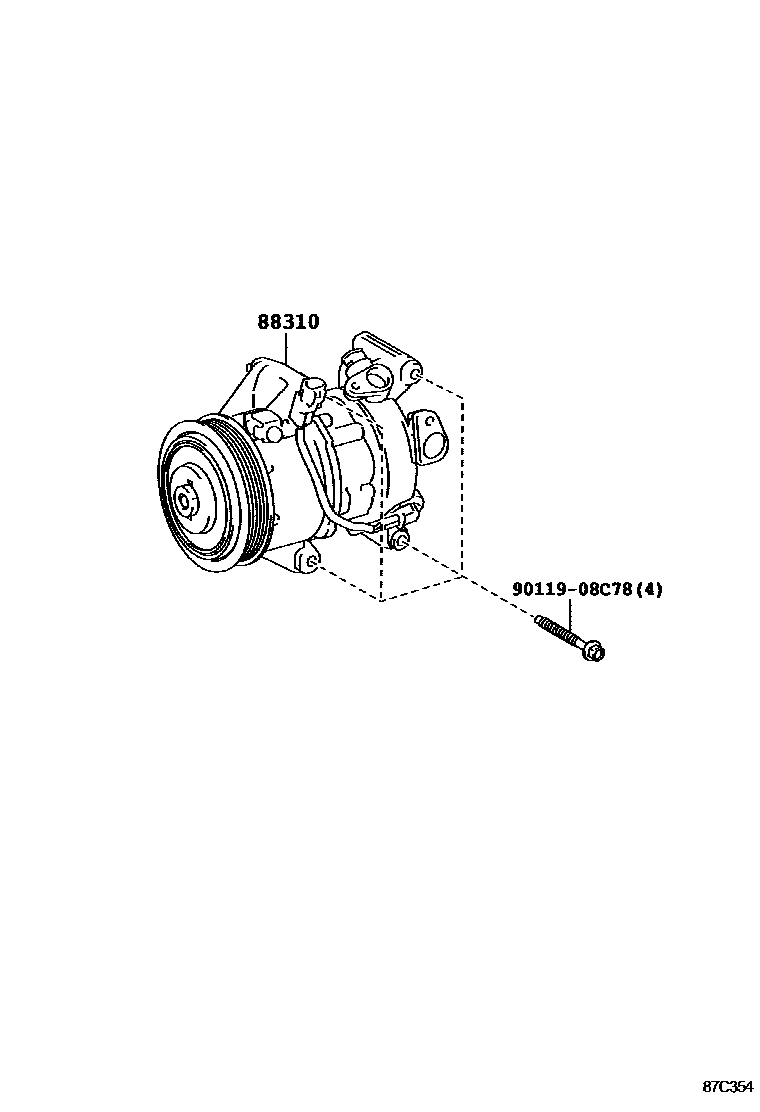

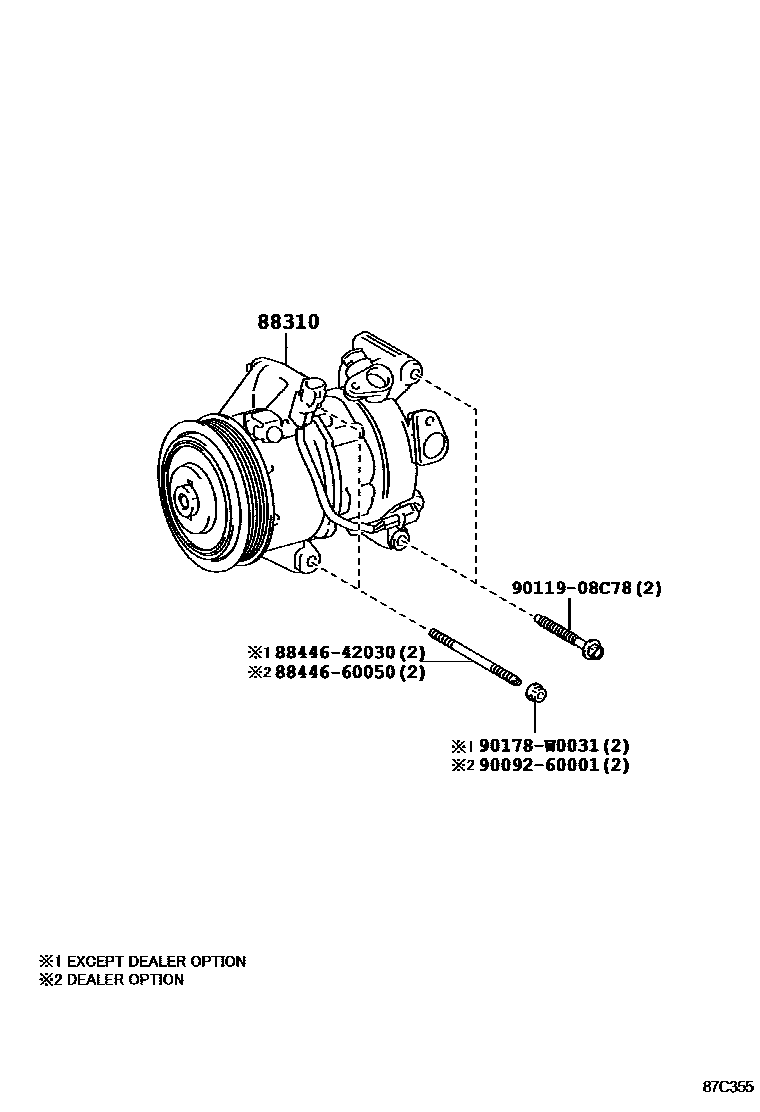

| 88310 | Compressor assembly with pulley | 88310-0D380 · 88310-0D400 · 88310-0D410 · 88310-0D420 |

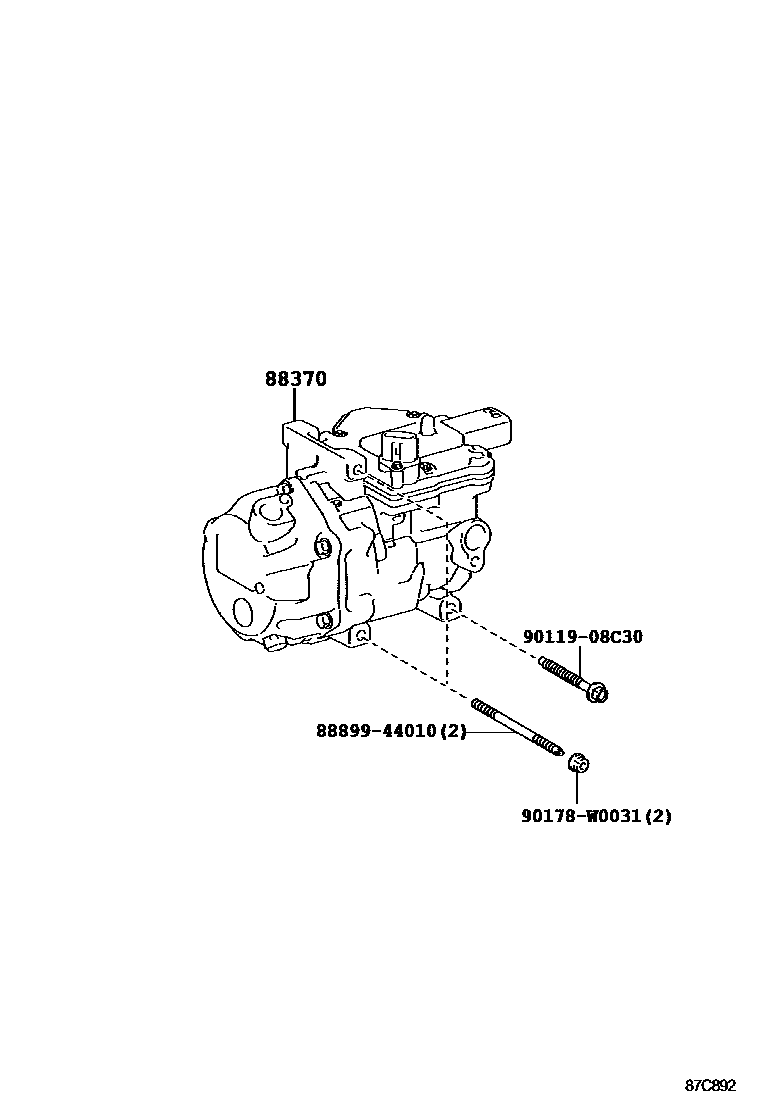

| 88370 | Compressor assembly with motor | 88370-52010 · 88370-52011 |
