Toyota YARIS Heating & Air Conditioning - Cooler Piping — Figure 8718

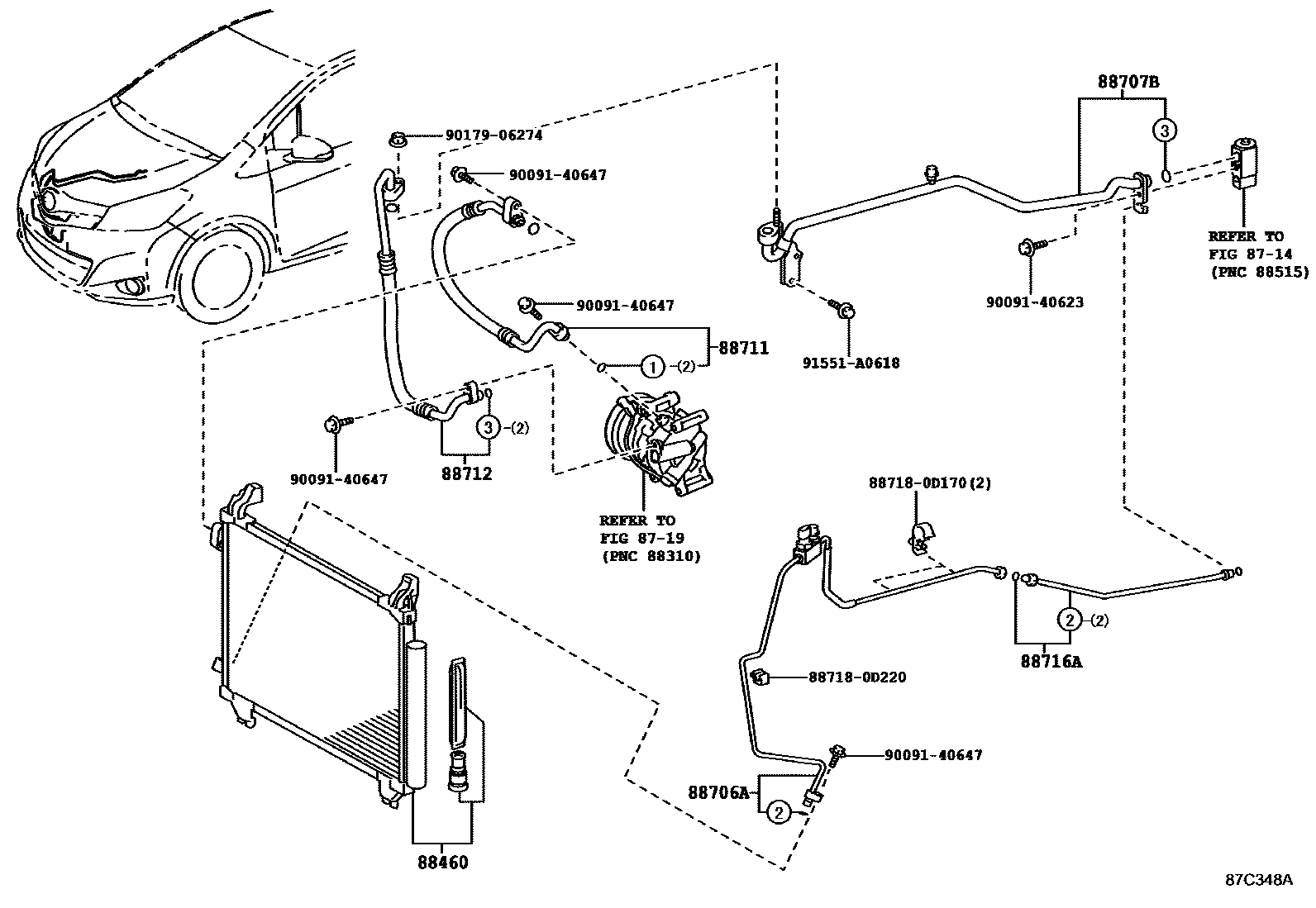

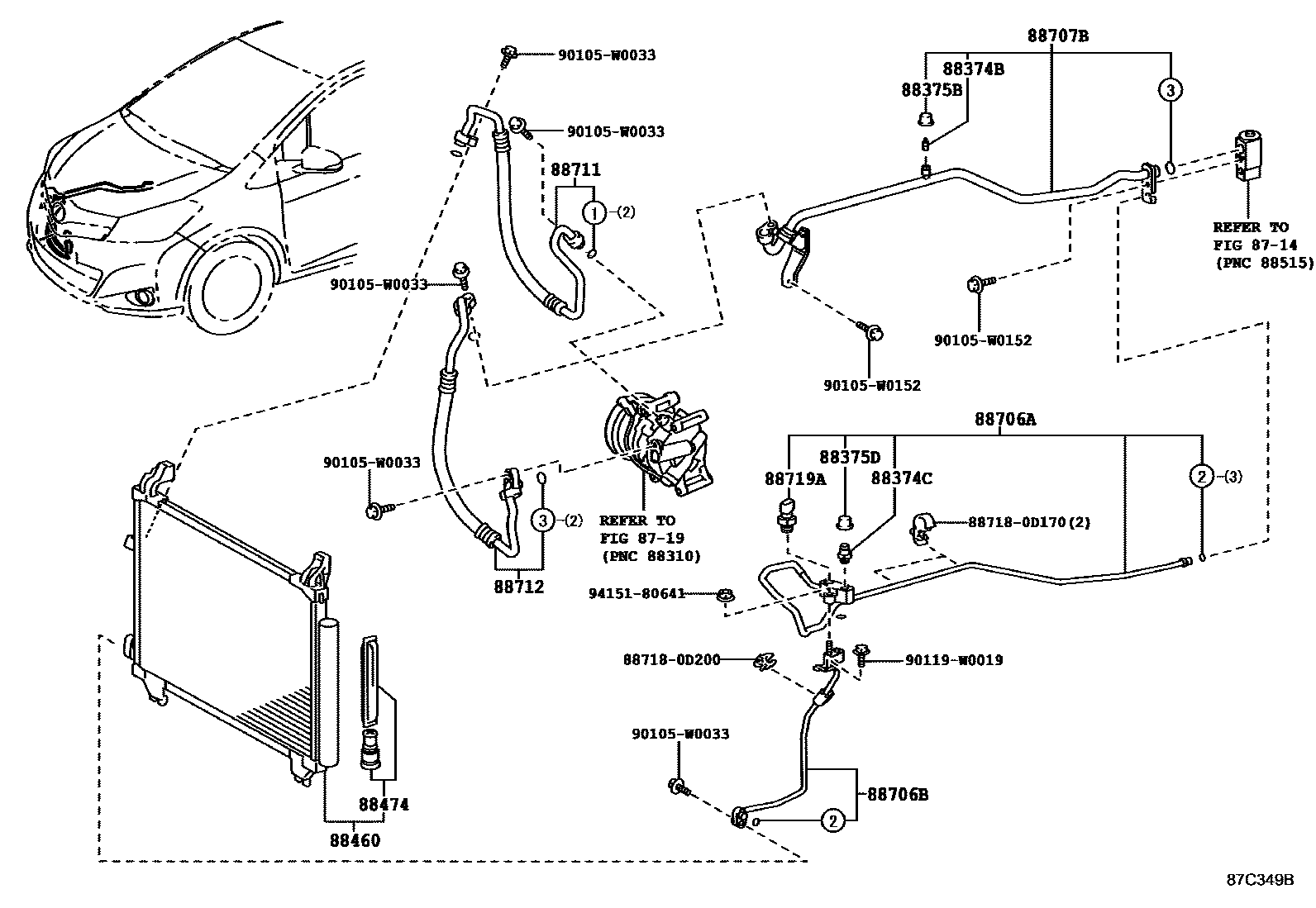

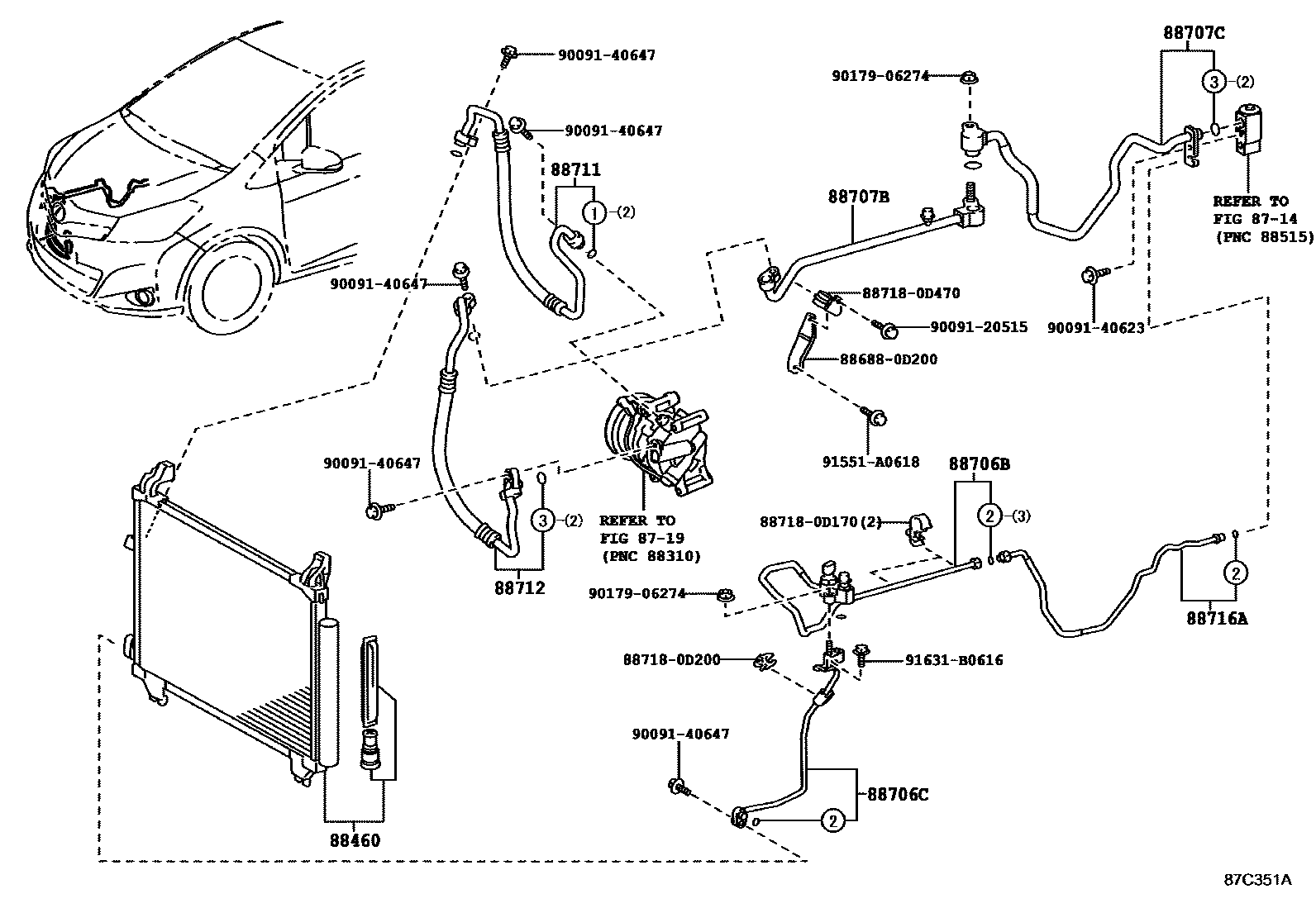

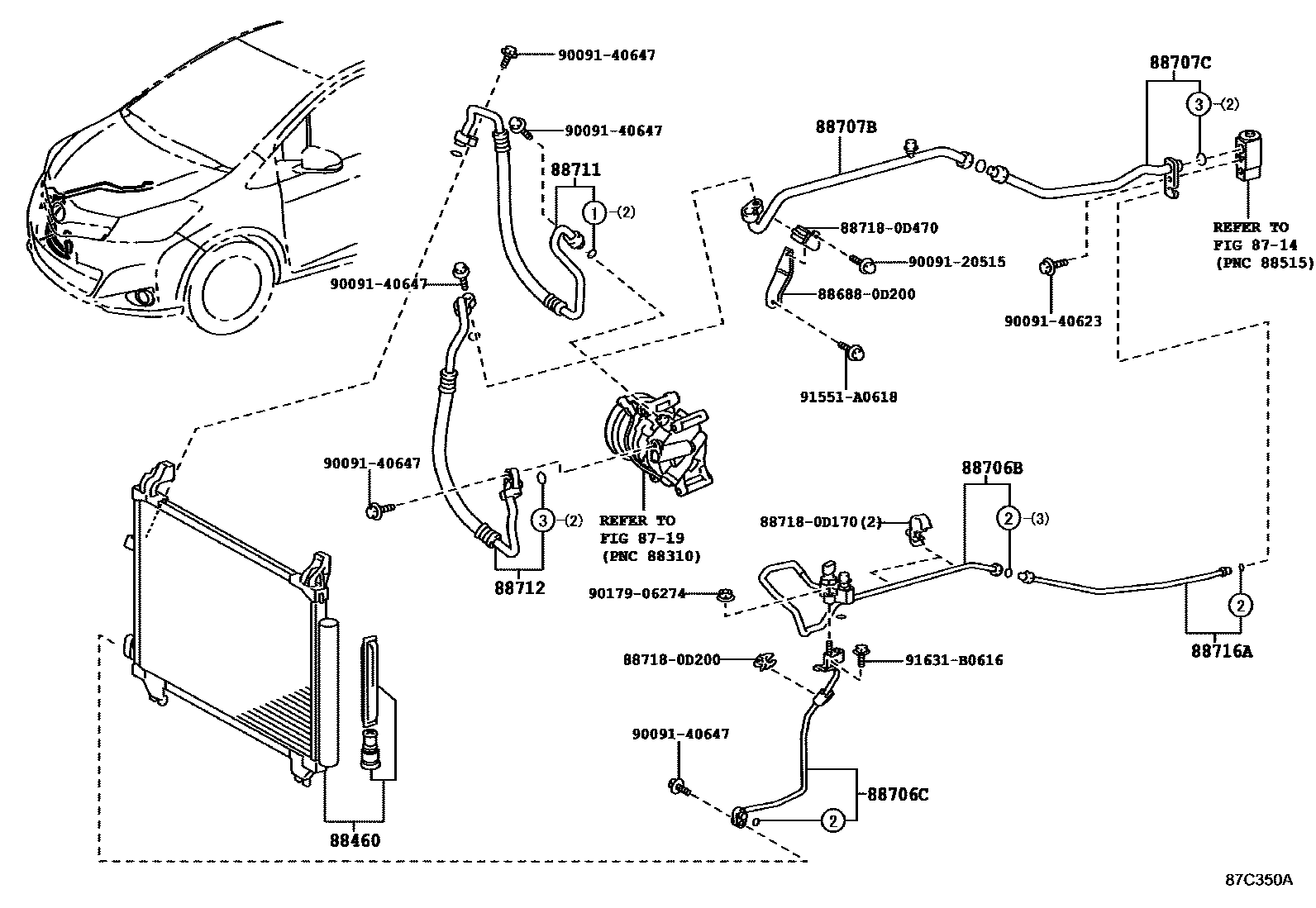

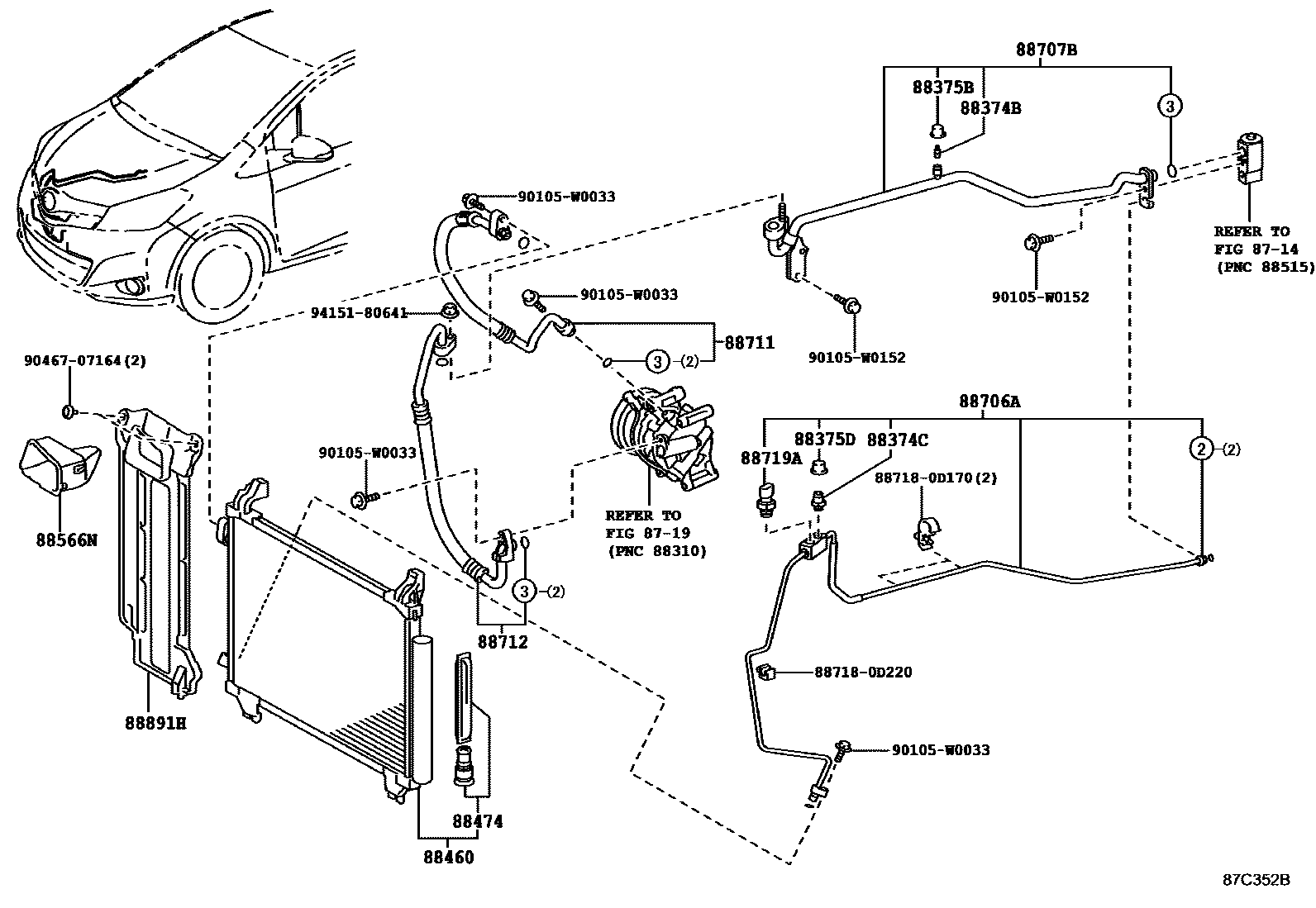

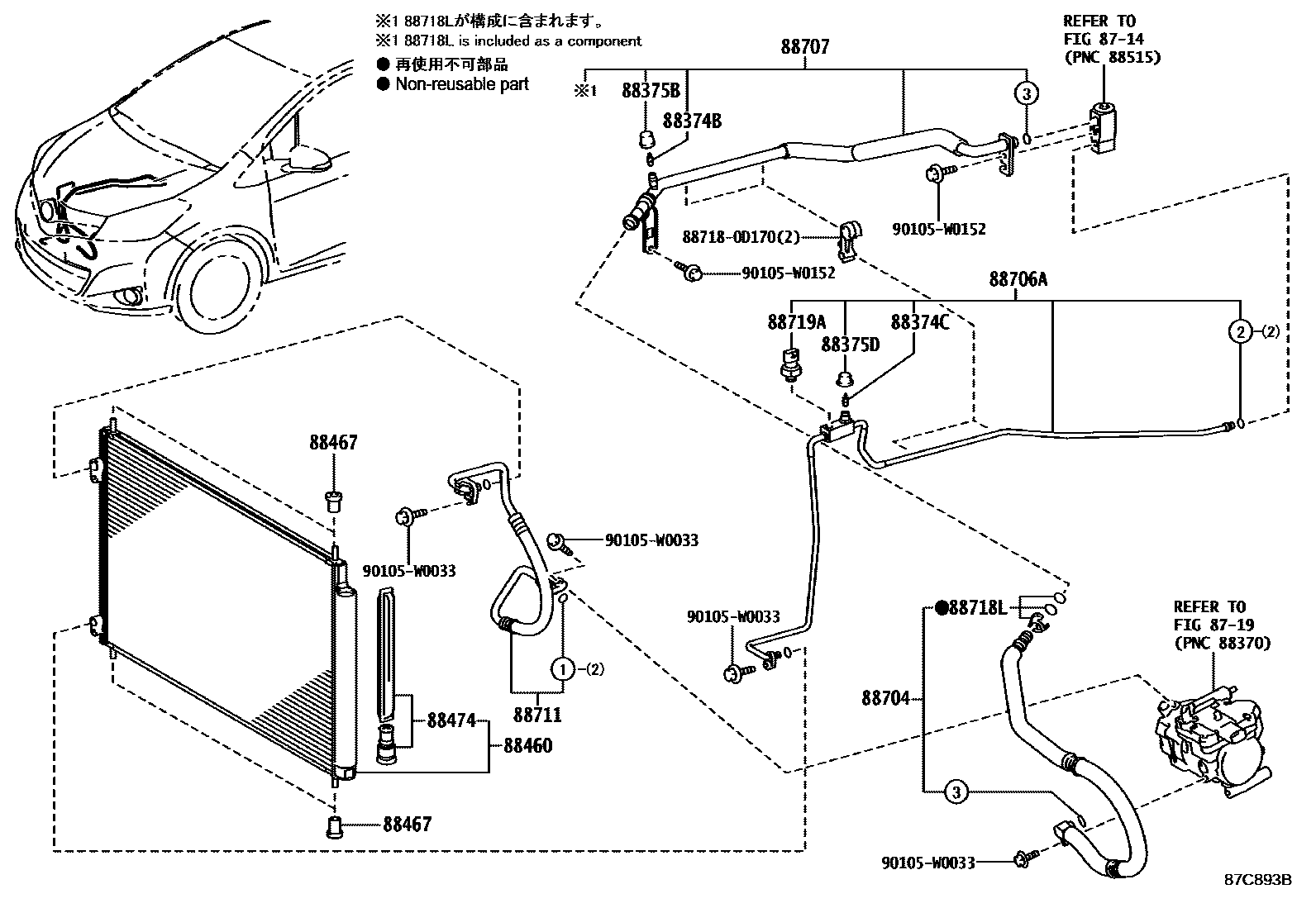

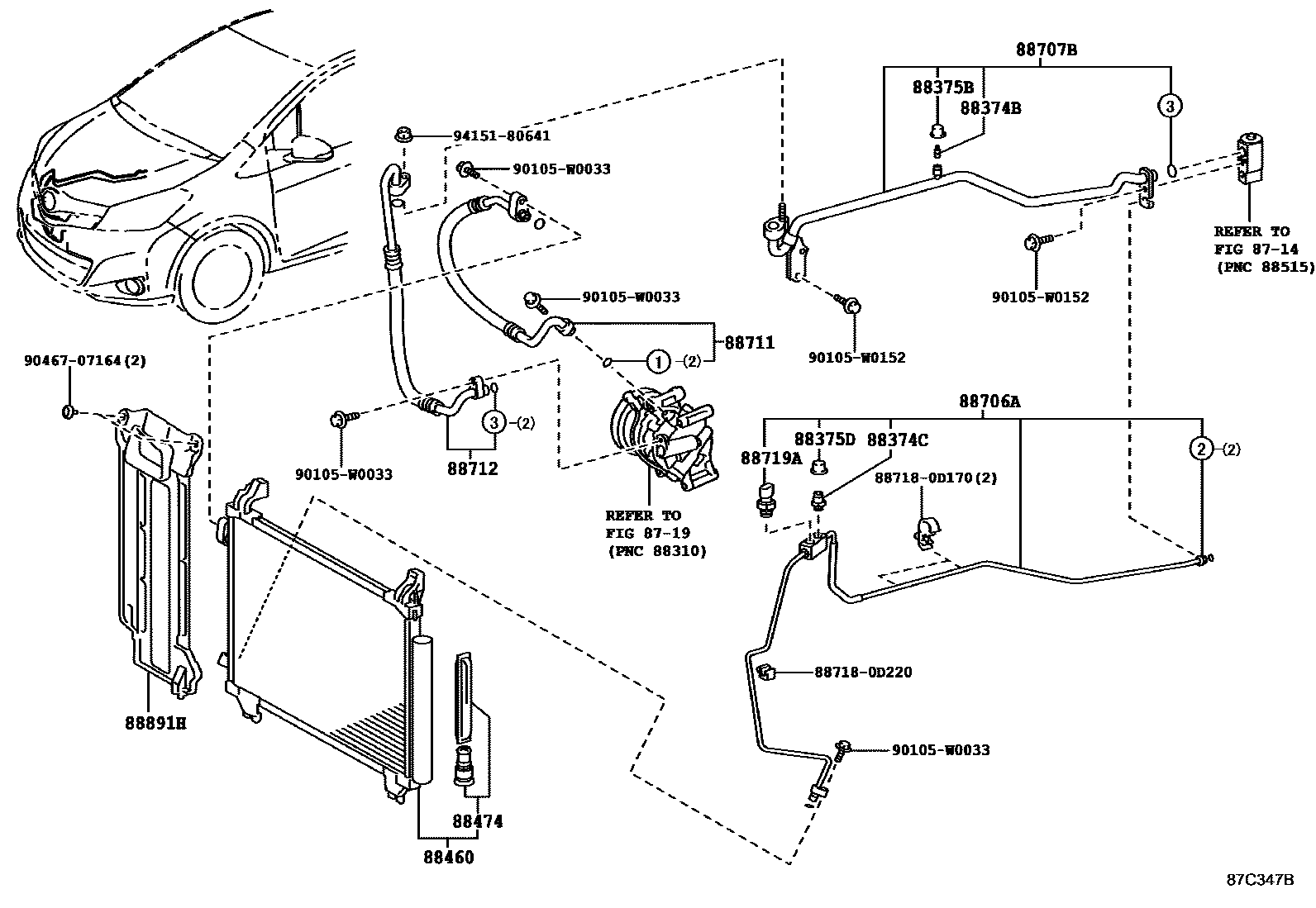

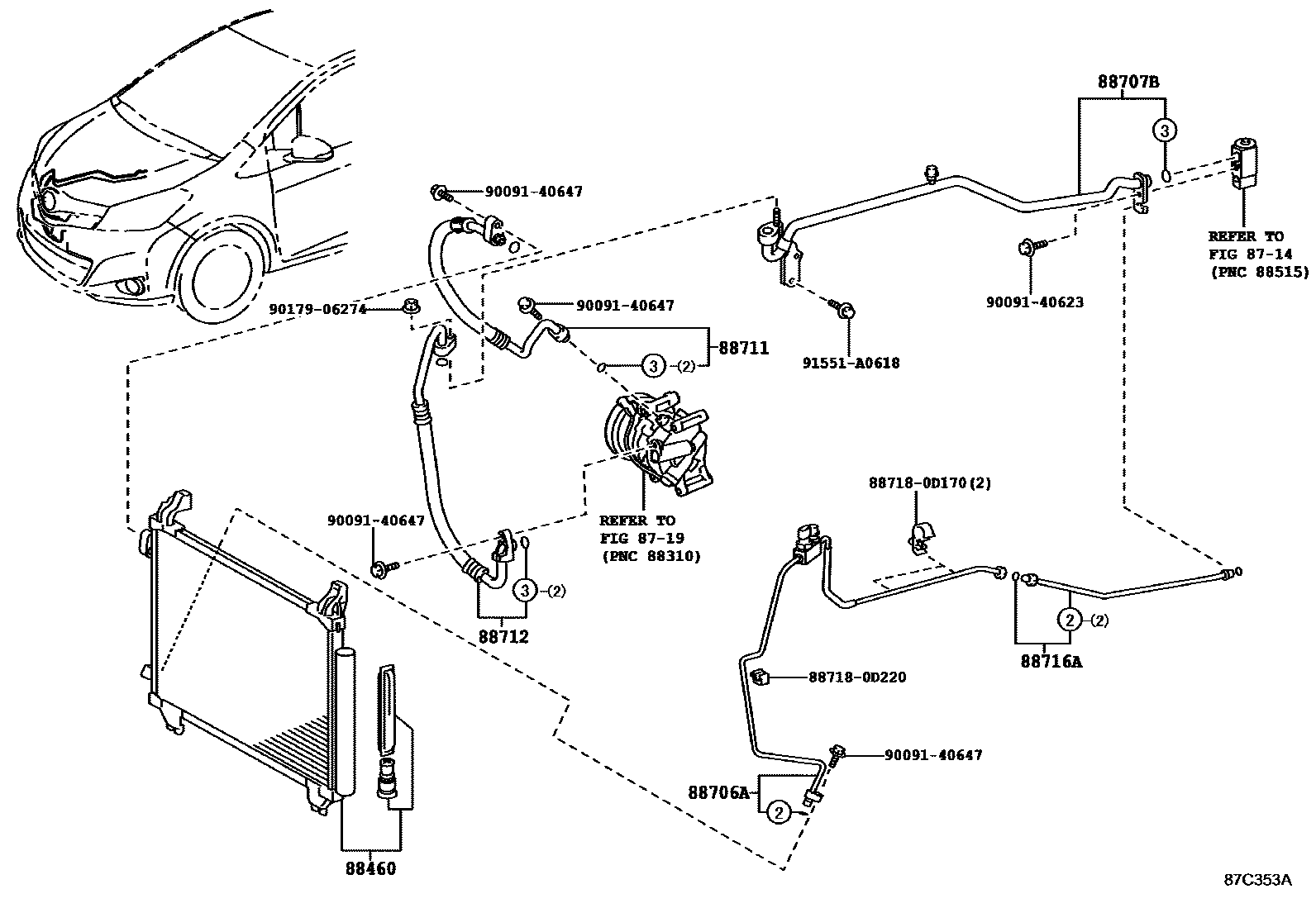

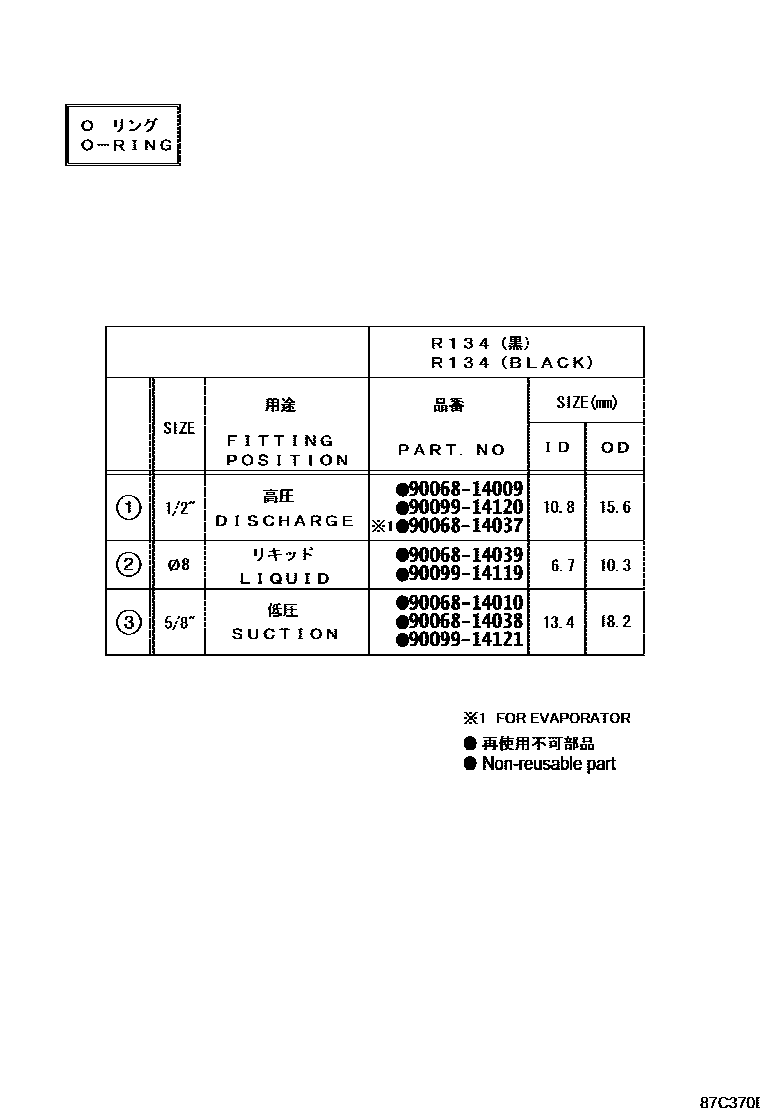

Toyota YARIS EPC diagram 8718, Heating & Air Conditioning - Cooler Piping, with 9 images and 21 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 88374B | Service valve No. 1 | 88374-30010 |
| 88374C | Service valve No. 2 | 88374-33010 · 88374-33070 |
| 88375B | No. 1 maintenance valve cover | 88375-30290 |
| 88375D | No. 2 maintenance valve cover | 88375-30280 |
| 88460 | Air conditioning condenser assembly | 88460-0D200 · 88460-0D210 · 88460-0D220 |
| 88467 | No. 1 air conditioning condenser buffer pad | 16716-28010 |
| 88474 | cooler dryer | 88474-17010 · 88474-47020 |
| 88566N | Cooler No. 1 air duct | 88566-0D010 |
| 88704 | Oil suction hose sub-assembly | 88704-0D070 |
| 88706A | Liquid pipe A sub-assembly | 88706-0D400 · 88706-0D410 · 88706-0D440 · 88706-0D470 |
| 88706B | Liquid pipe B sub-assembly | 88706-0D420 · 88706-0D450 · 88706-0D460 |
| 88706C | Liquid pipe C sub-assembly | 88706-0D420 |
| 88707 | Suction pipe sub-assembly | 88707-0D290 |
| 88707B | Suction pipe B sub-assembly | 88707-0D230 · 88707-0D240 · 88707-0D250 · 88707-0D270 |
| 88707C | Suction pipe C sub-assembly | 88707-0D260 · 88707-0D280 |
| 88711 | Cooler No. 1 refrigerant drain hose | 88711-0D320 · 88711-0D330 · 88711-0D340 · 88711-0D370 |
| 88712 | Cooler No. 1 refrigerant suction hose | 88712-0D410 · 88712-0D420 · 88712-0D430 |
| 88716A | Cooler refrigerant liquid pipe A | 88716-0D450 · 88716-0D460 · 88716-0D470 |
| 88718L | Pipe clamp | 88718-52280 |
| 88719A | Air conditioning pressure sensor | 88719-33020 |
| 88891H | Cooler cover No. 1 | 88891-0D190 |
