Toyota YARIS 暖风和空调系统 - 水管 — Figure 8716

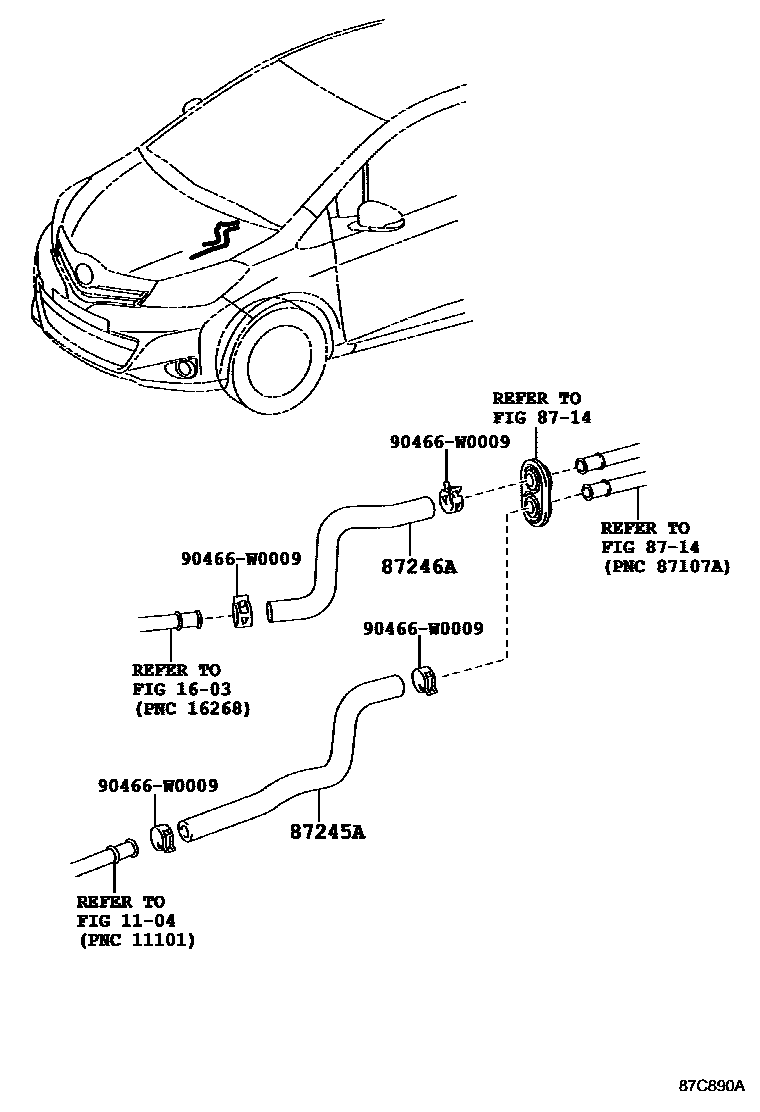

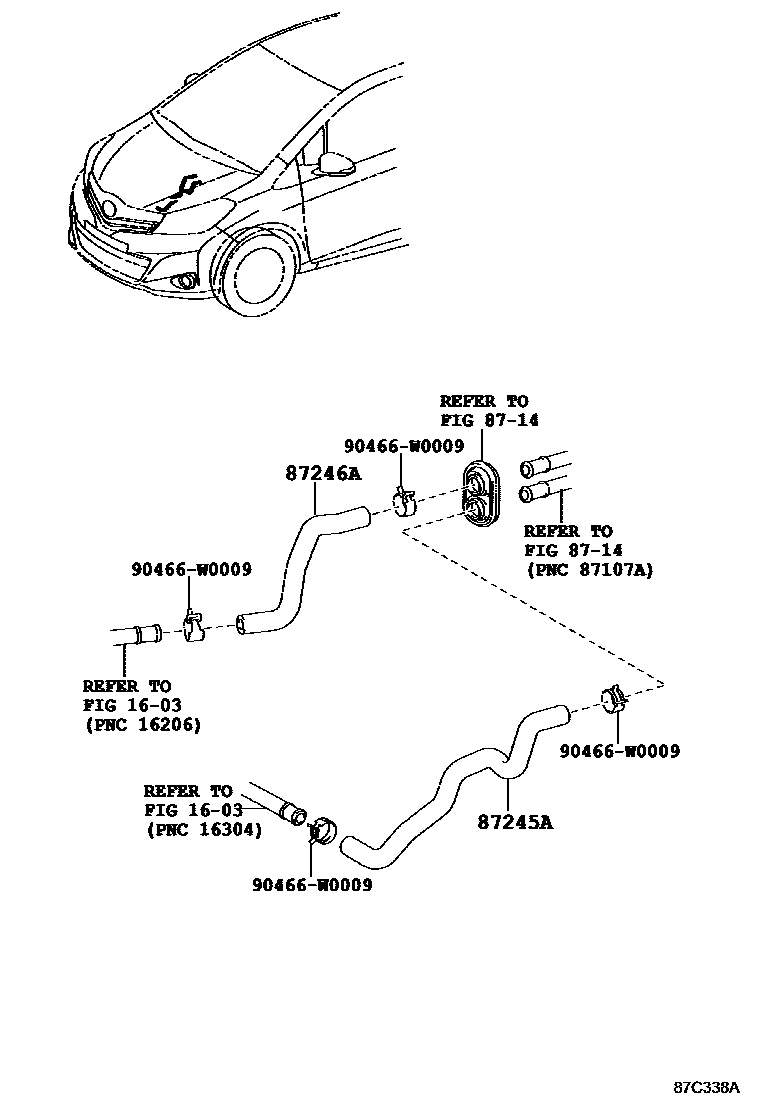

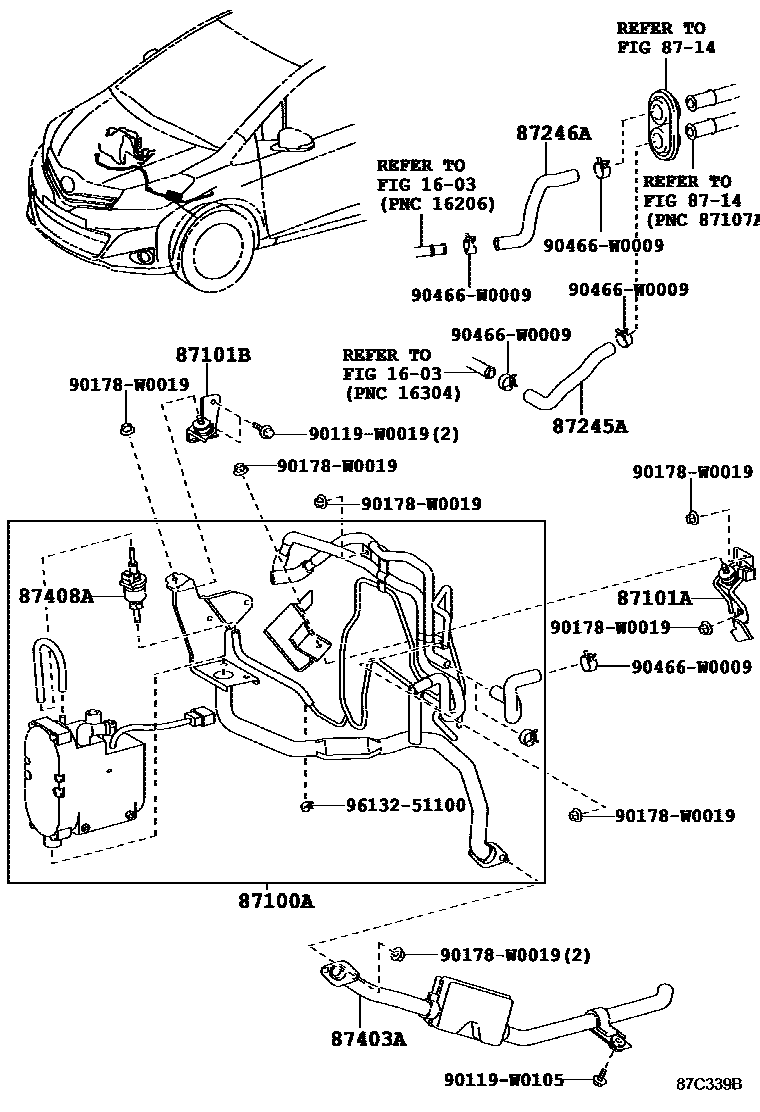

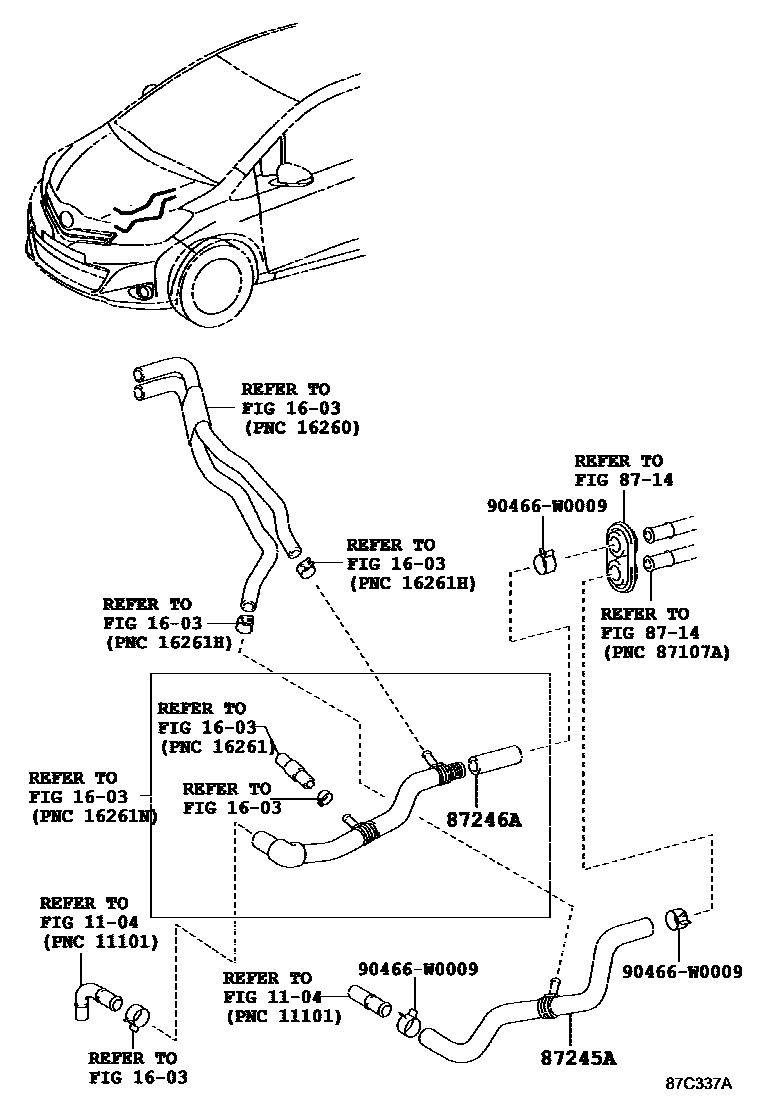

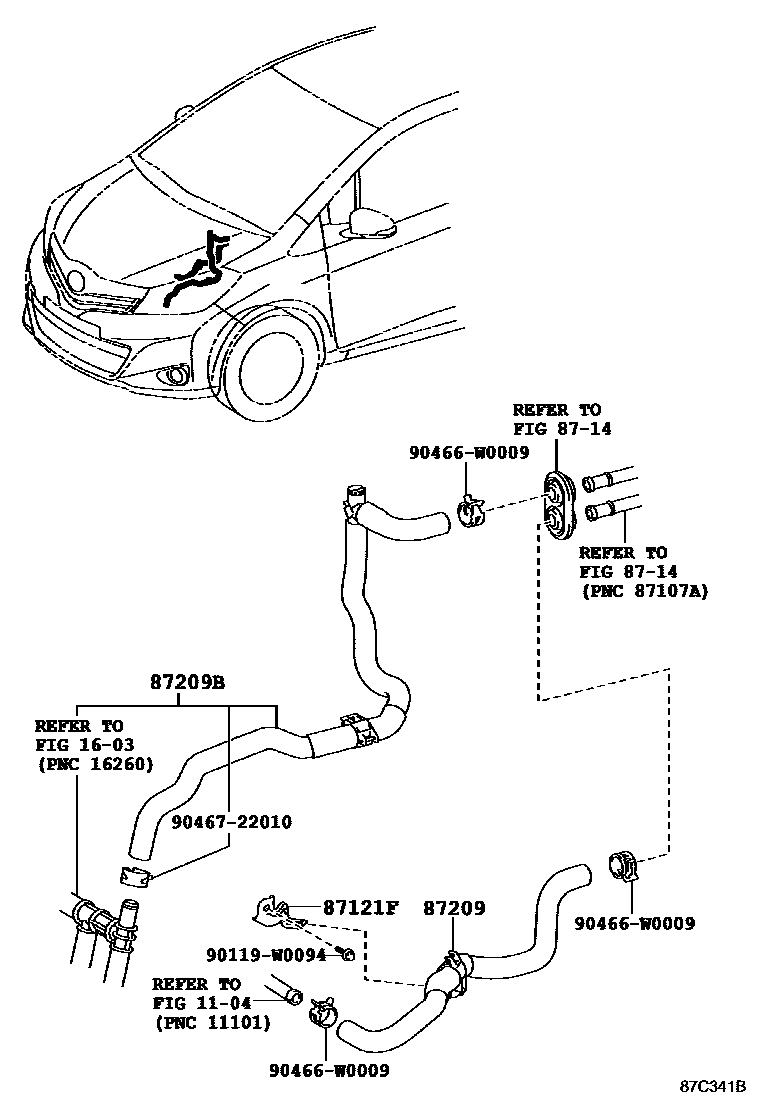

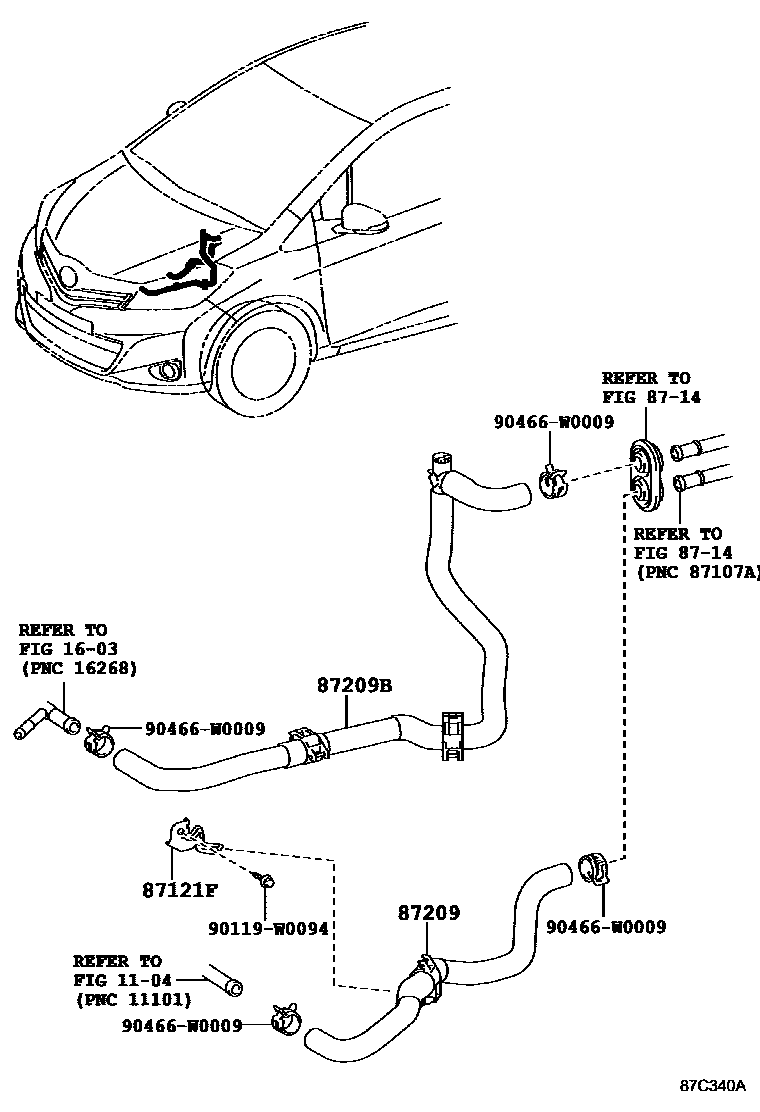

Toyota YARIS EPC diagram 8716, 暖风和空调系统 - 水管, with 6 images and 10 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 87100A | Heater and accessories assembly | 87100-0D040 |
| 87101A | No. 1 heater bracket sub-assembly | 87101-0D050 |
| 87101B | No. 2 heater bracket sub-assembly | 87101-0D040 |
| 87121F | heater bracket | 87121-0D050 |
| 87209 | Water hose sub-assembly | 87209-0D190 |
| 87209B | Water hose sub-assembly B | 87209-0D200 · 87209-0D210 |
| 87245A | Heater water inlet hose A | 87209-0D081 · 87209-0D230 · 87245-0D430 · 87245-0D450 |
| 87246A | Heater outlet hose A | 87245-0D440 · 87245-0D470 · 87245-52190 |
| 87403A | Exhaust pipe sub-assembly | 87403-0D020 |
| 87408A | Fuel pump sub-assembly | 87408-0D011 |
