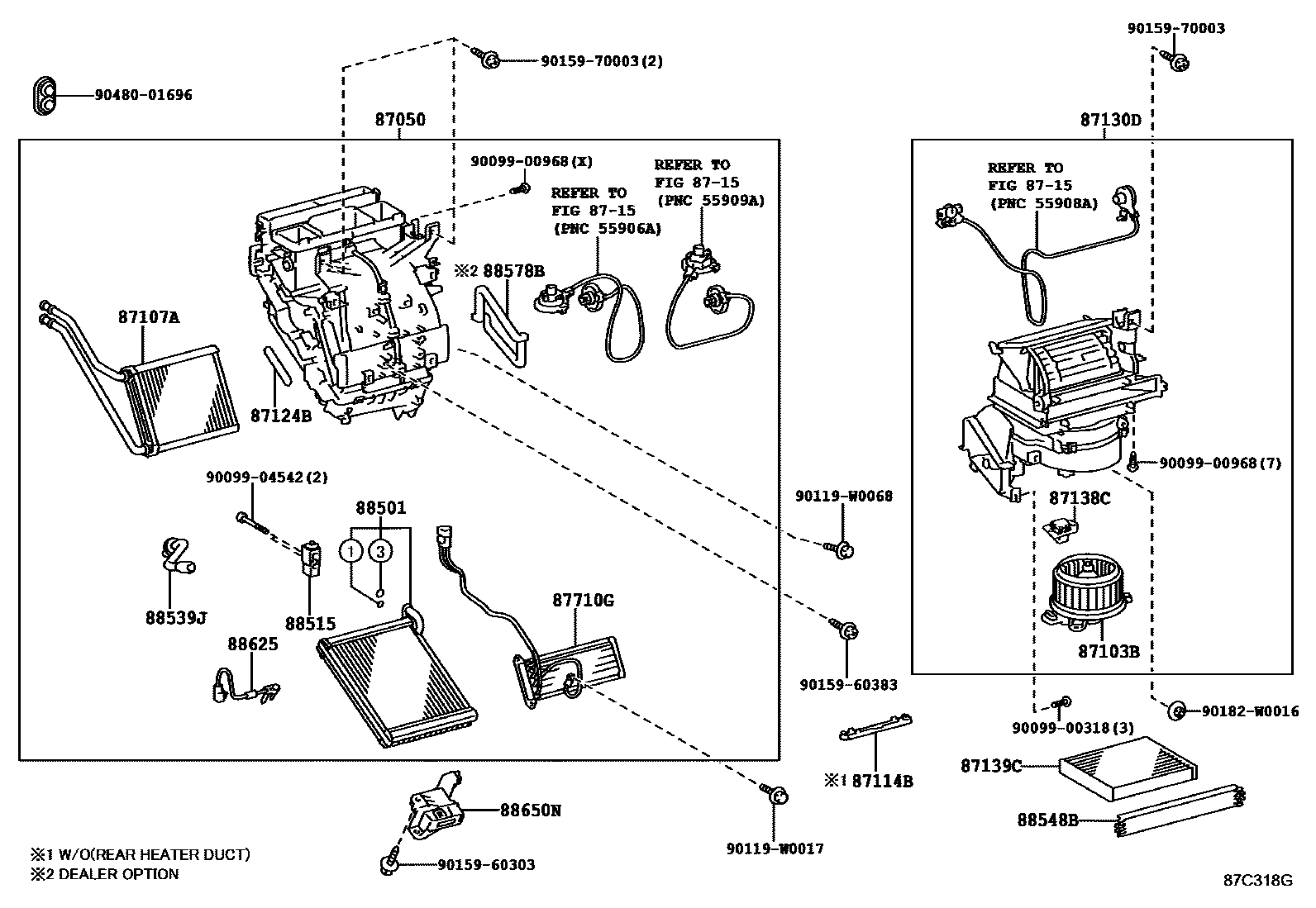

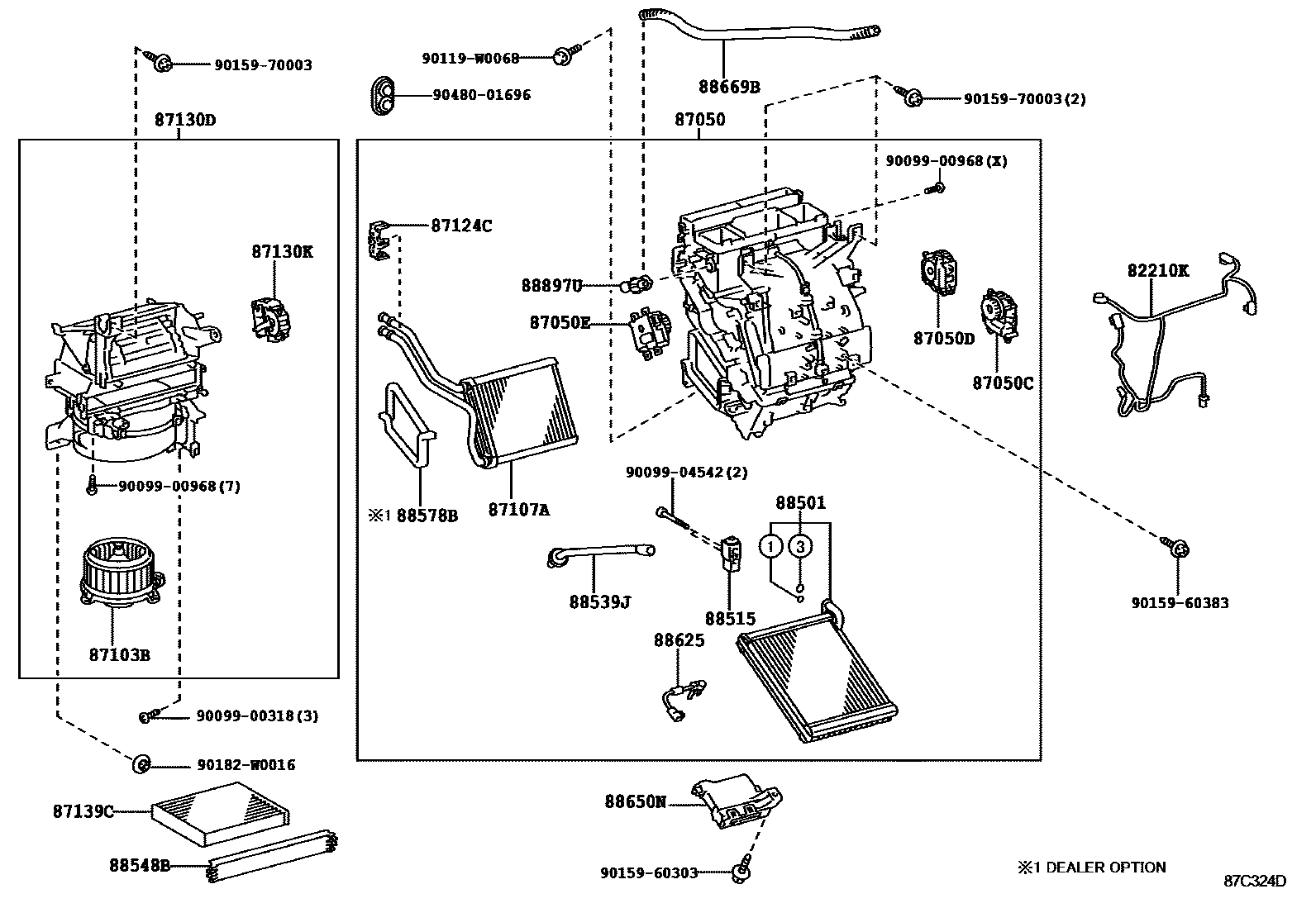

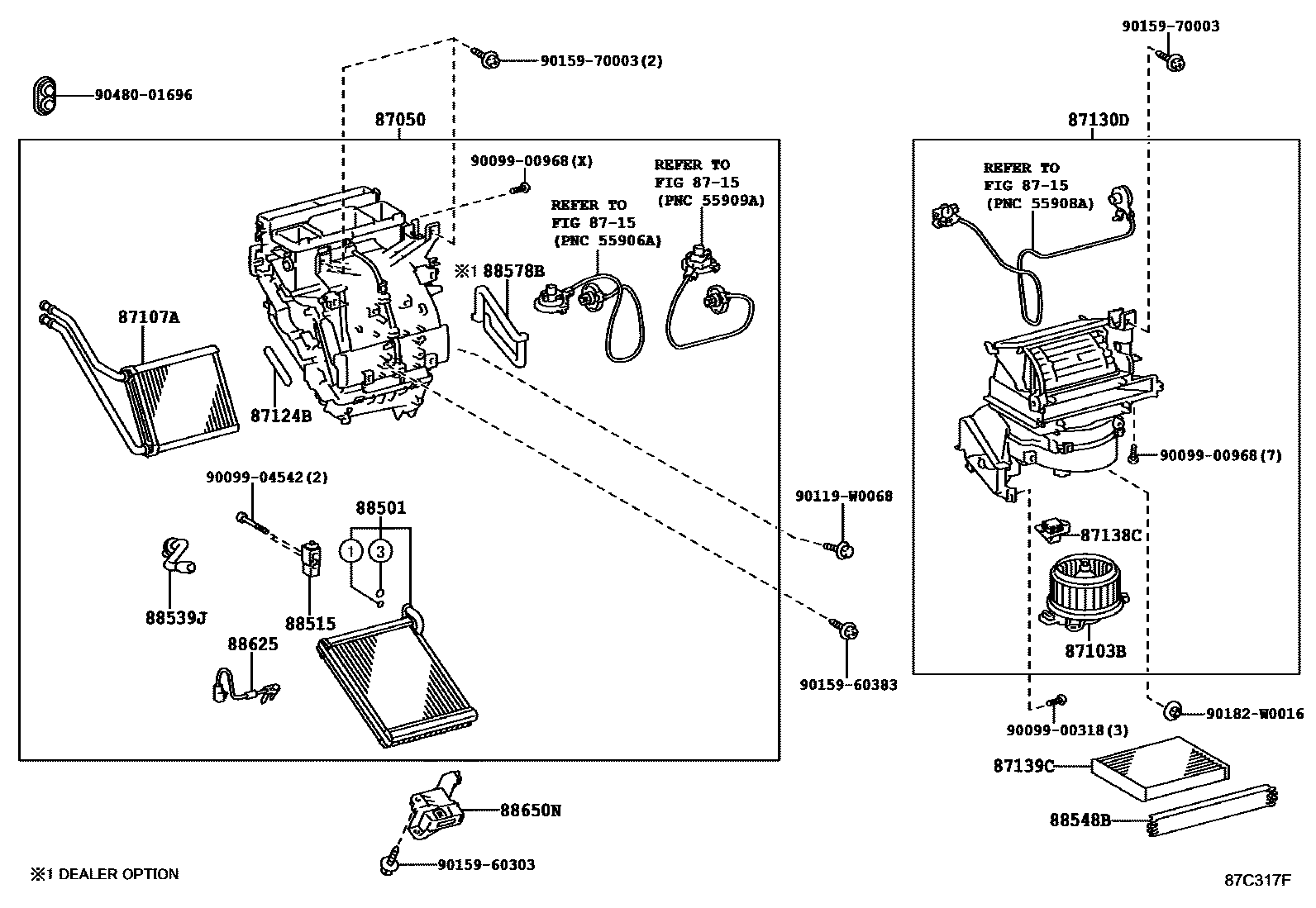

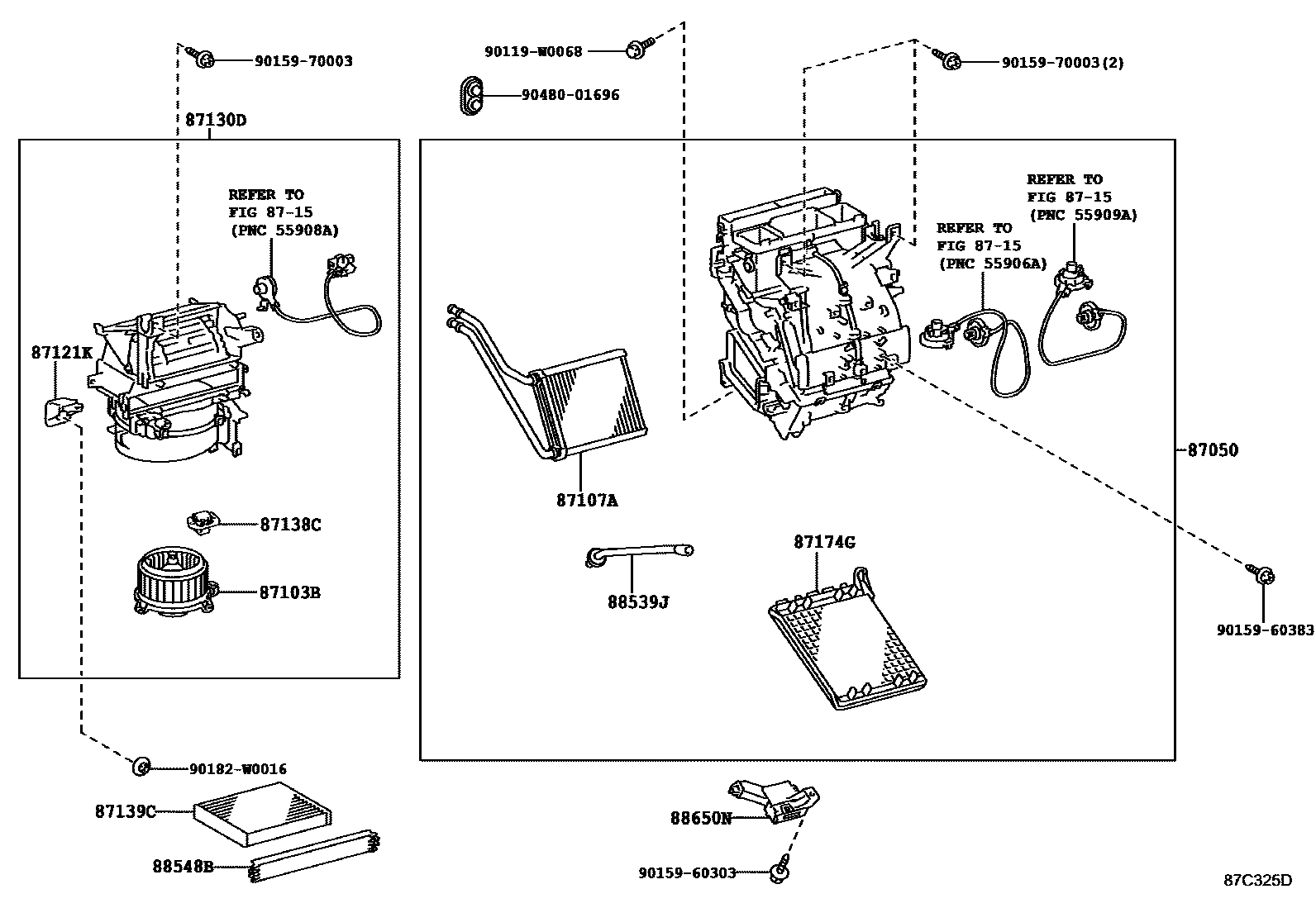

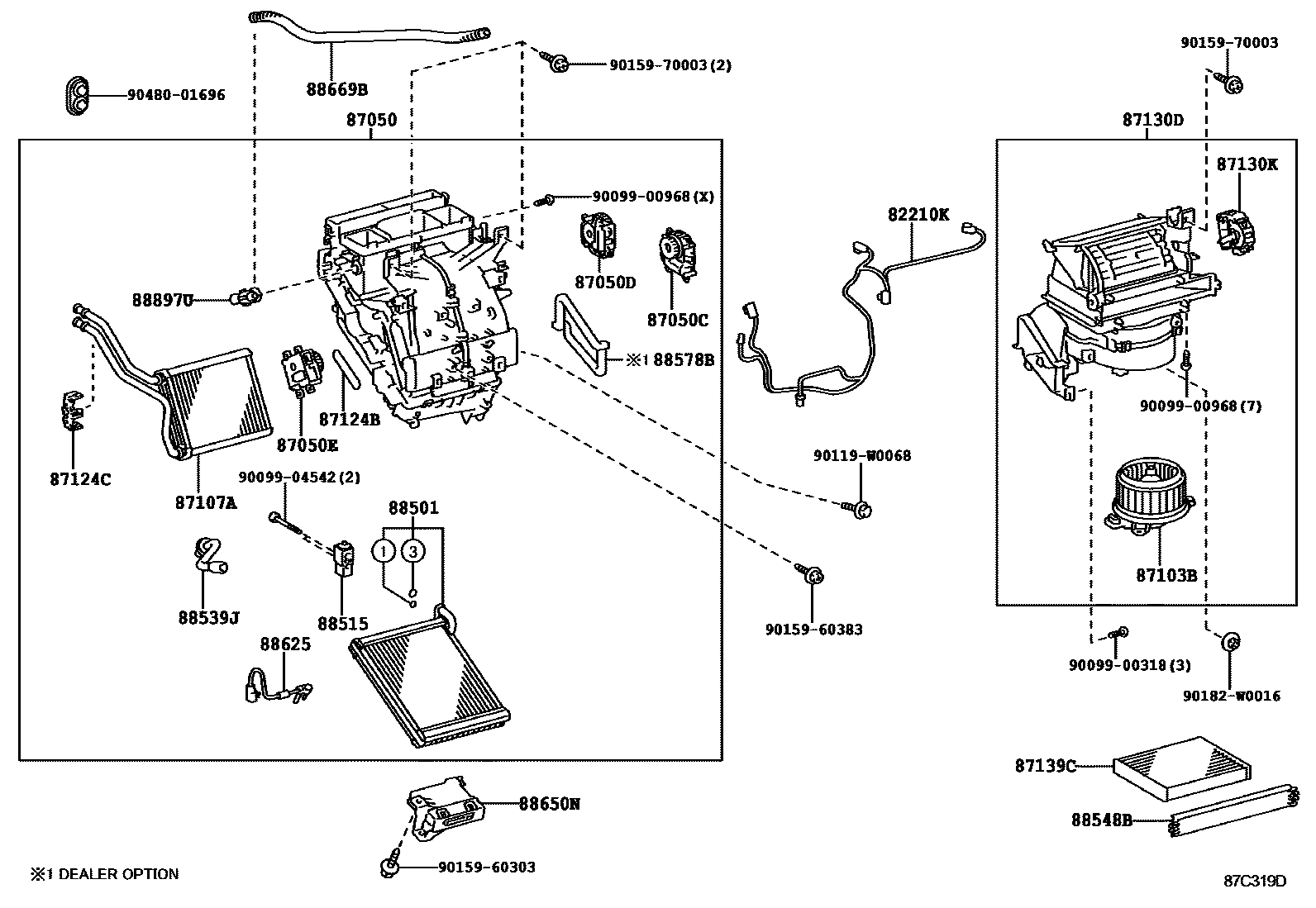

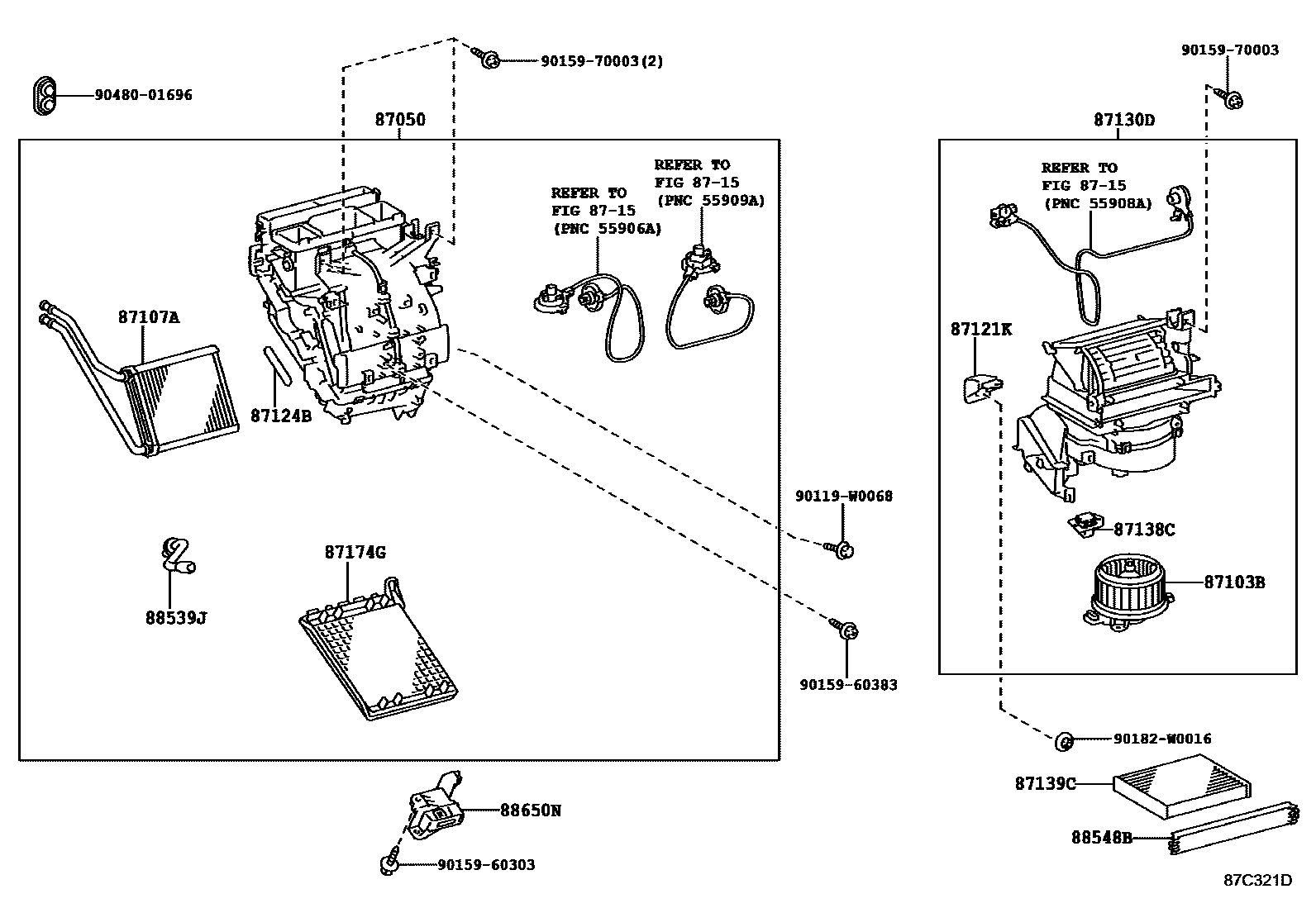

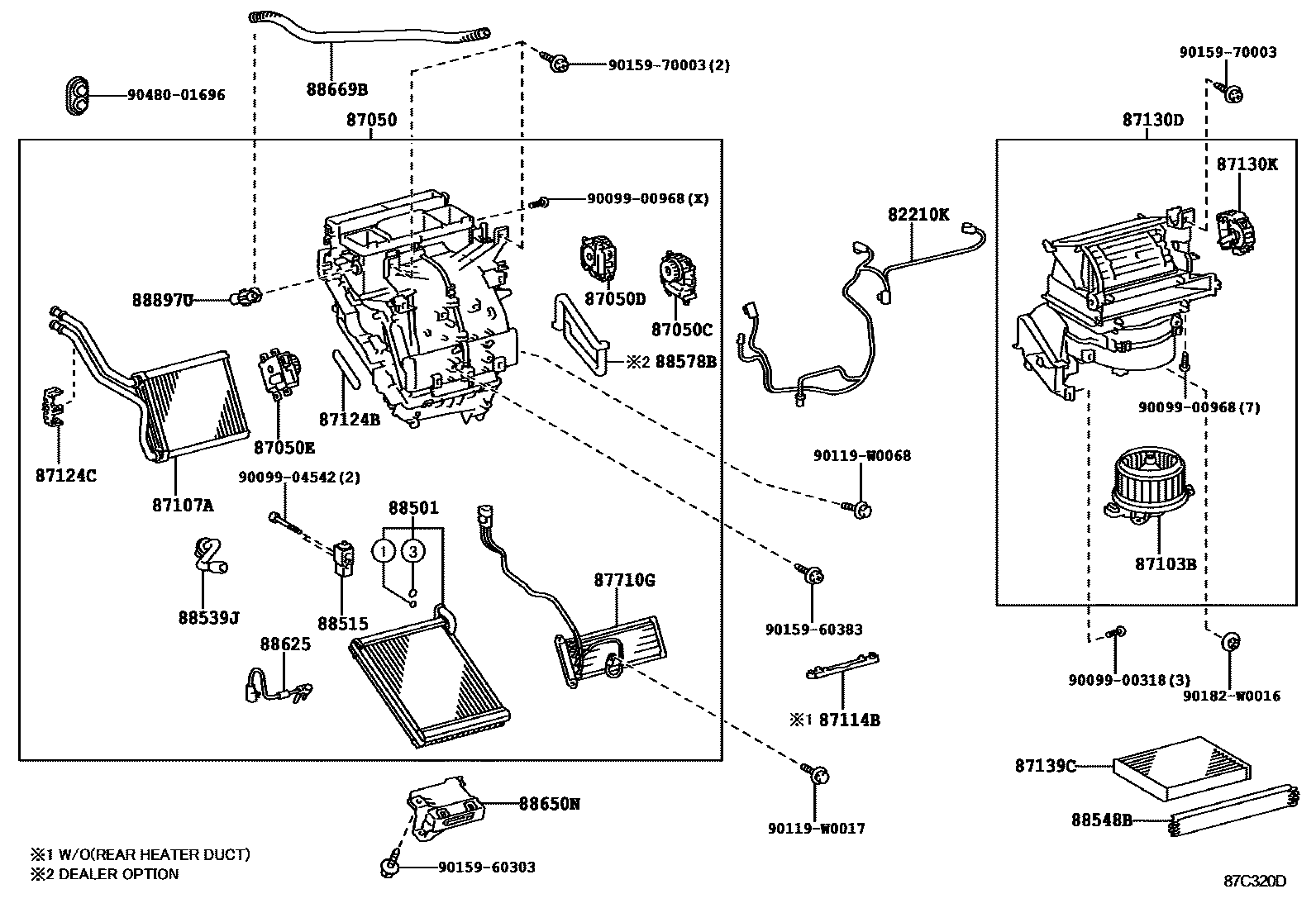

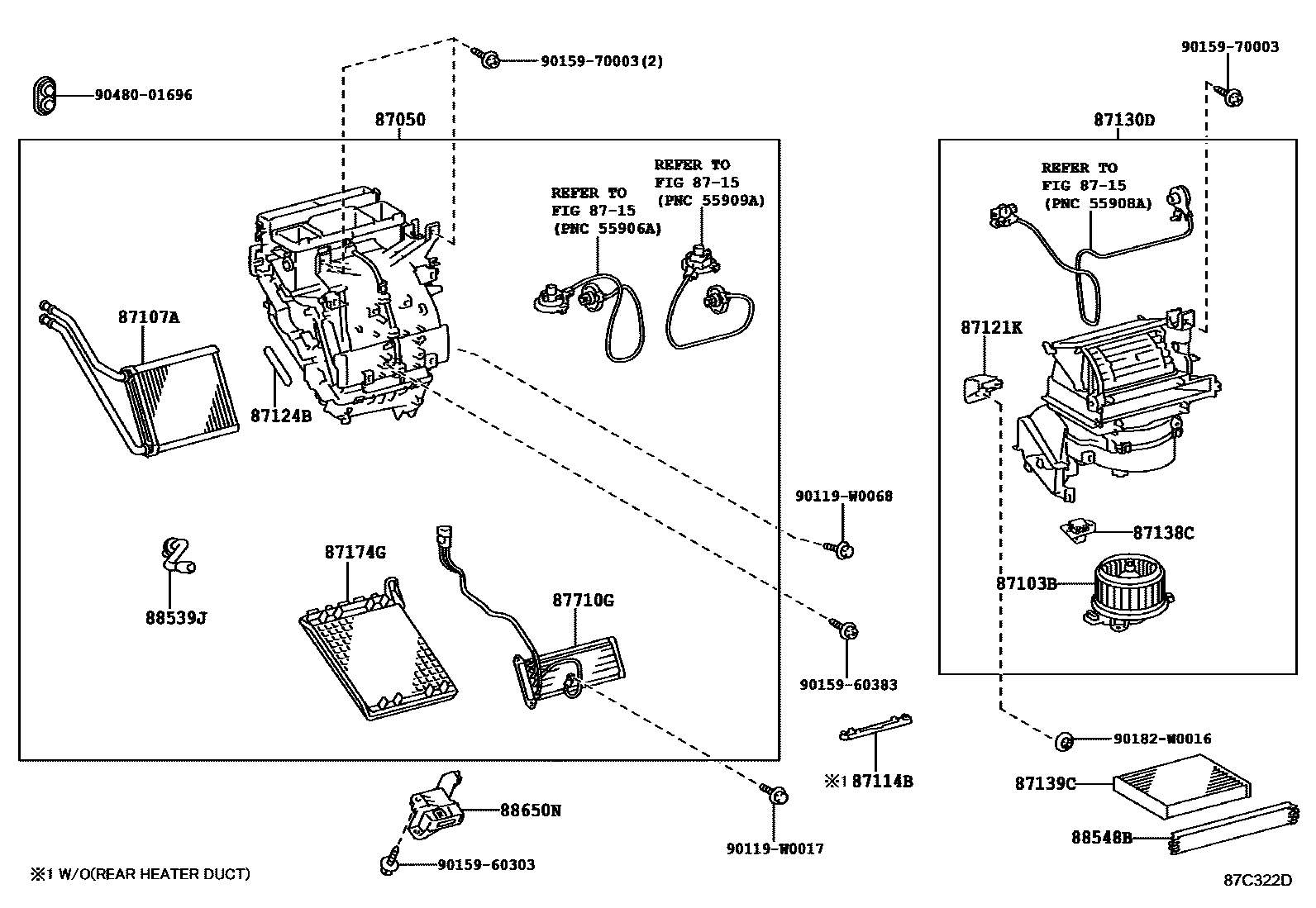

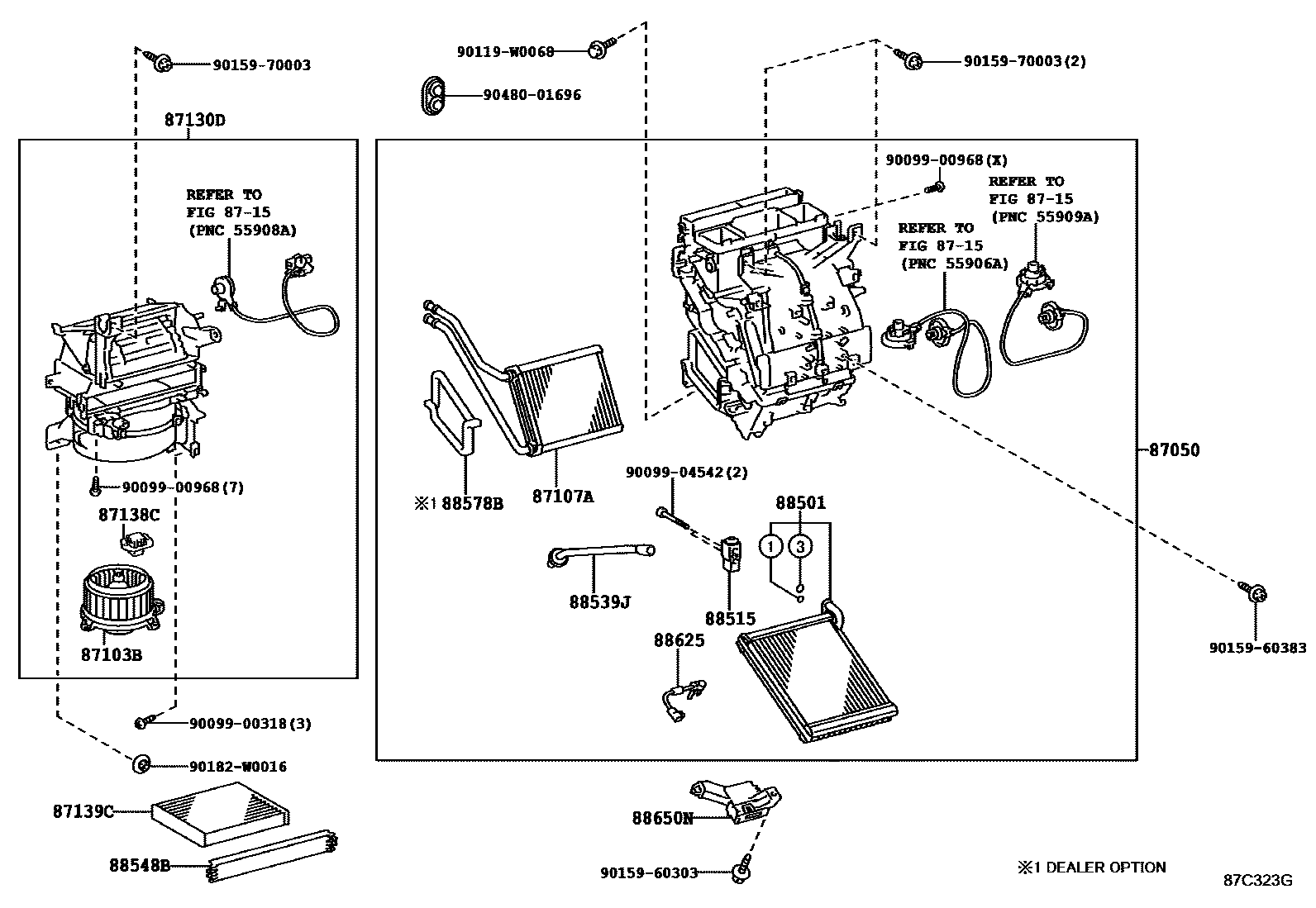

Toyota YARIS 暖风和空调系统 - 冷却器组件 — Figure 8714
Toyota YARIS EPC diagram 8714, 暖风和空调系统 - 冷却器组件, with 10 images and 26 PNC and OE references.

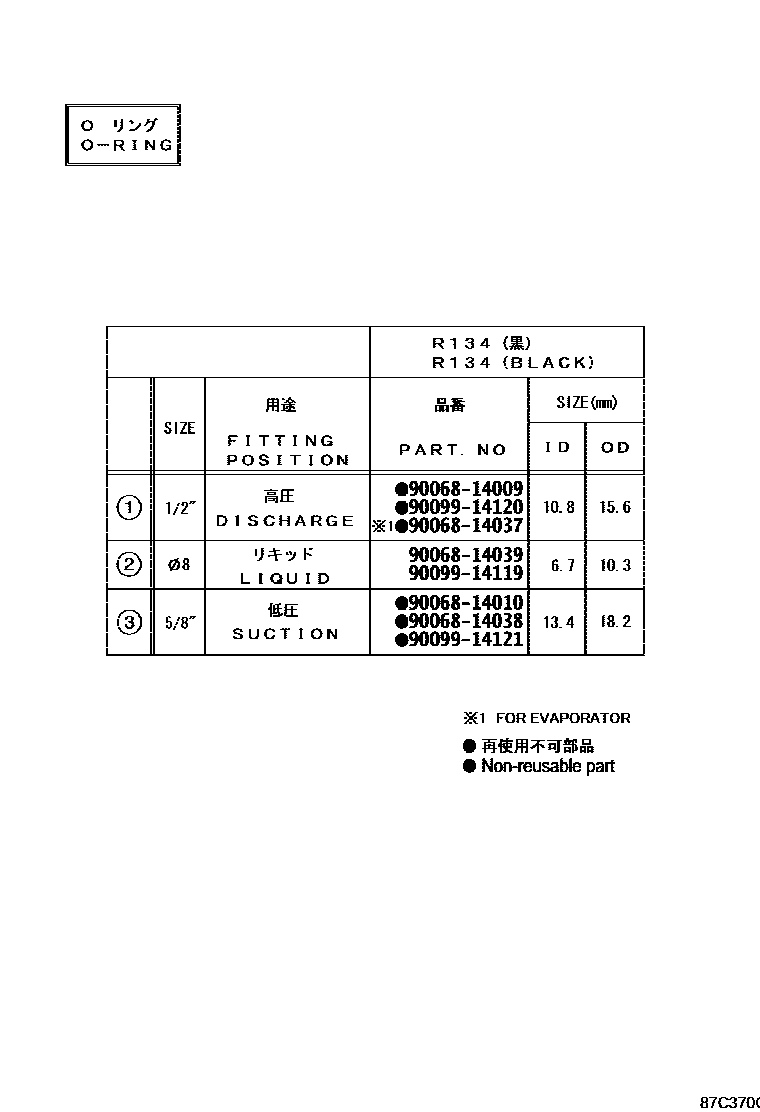

PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 82210K | Air conditioning wiring harness assembly | 82212-52050 · 82212-52060 |
| 87050 | Air conditioning radiator assembly | 87050-0D011 · 87050-0D021 · 87050-0D101 · 87050-0D181 · 87050-0D370 · 87050-0D380 · 87050-0D390 · 87050-0D400 · 87050-0D410 · 87050-0D420 · 87050-0D450 · 87050-0D470 · 87050-0D480 |
| 87050C | No. 1 air conditioner radiator damper servo mechanism sub-assembly | 87106-0D021 |
| 87050D | No. 2 air conditioner radiator damper servo mechanism sub-assembly | 87106-0D031 |
| 87050E | No. 3 air conditioner radiator damper servo mechanism sub-assembly | 87106-0D051 |
| 87103B | Blower motor sub-assembly with fan | 87103-0D100 · 87103-0D101 · 87103-0D110 · 87103-0D111 · 87103-0D220 · 87103-0D230 |
| 87107A | Heater radiator device sub-assembly | 87107-0D051 · 87107-0D120 |
| 87114B | heater cover | 87114-0D060 |
| 87121K | heater bracket | 87121-0D010 |
| 87124B | heater clip | 87124-0D080 |
| 87124C | heater clip | 87124-33070 |
| 87130D | Blower assembly | 87130-0D022 · 87130-0D031 · 87130-0D082 · 87130-0D091 · 87130-0D171 · 87130-0D181 |
| 87130K | No. 1 blower damper servo mechanism sub-assembly | 87106-0D041 |
| 87138C | Blower resistor | 87138-0K090 |
| 87139C | air purification filter | 87139-0D070 · 87139-50100 |
| 87174G | Air heater deflector | 87174-0D010 |
| 87710G | Rapid heater assembly | 87710-0D030 · 87710-52041 |
| 88501 | Cooler No. 1 evaporator sub-assembly | 88501-0D200 · 88501-0D300 · 88501-0D310 |
| 88515 | Cooler expansion valve | 88515-68010 |
| 88539J | Cooler drain hose | 88539-0D170 · 88539-0D180 |
| 88548B | air filter housing | 88548-0D040 |
| 88578B | Cooling unit seal No. 1 | 88578-52100 |
| 88625 | Cooler No. 1 Thermistor | 88625-02110 |
| 88650N | Air conditioning amplifier assembly | 88650-0D320 · 88650-0D330 · 88650-0D340 · 88650-0D350 · 88650-0D360 · 88650-0D400 |
| 88669B | Cooler air hose | 88669-0D010 |
| 88897U | aspirator tube | 88897-02180 |
