Toyota YARIS 后视镜 — Figure 8701

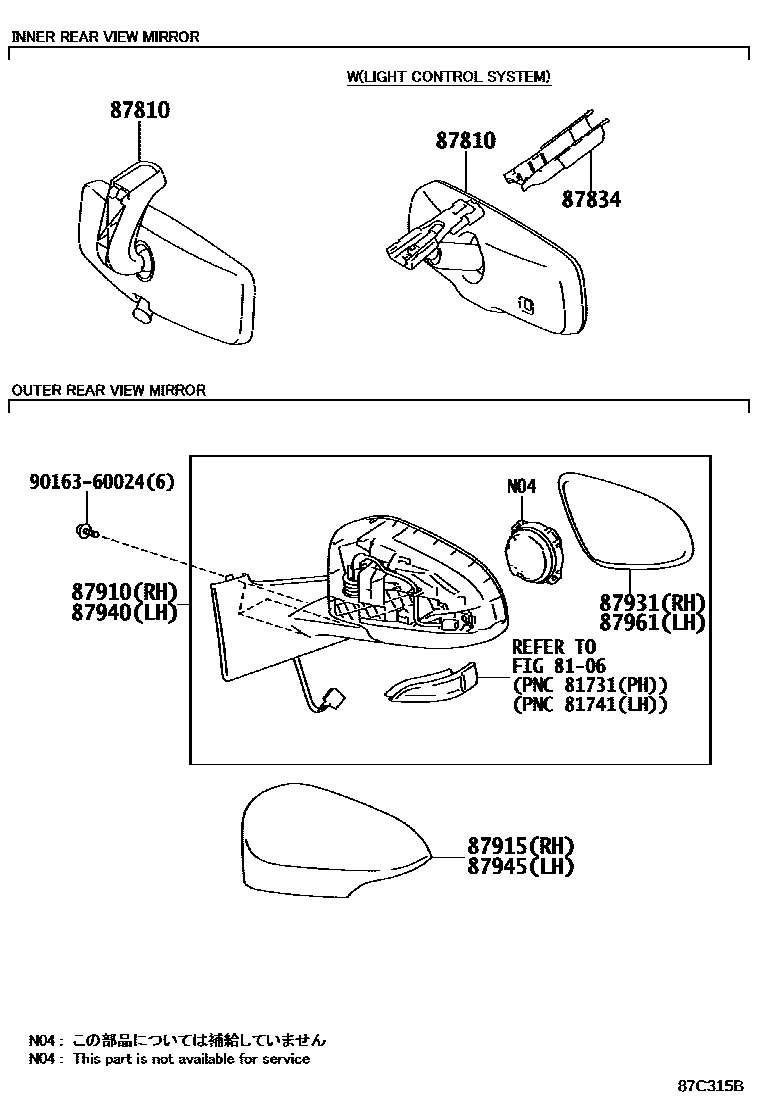

Toyota YARIS EPC diagram 8701, 后视镜, with 1 images and 8 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 87810 | Interior rearview mirror assembly | 87810-0D080 · 87810-0F010 · 87810-0F050 |
| 87834 | Interior rearview mirror stay fixing cover | 87818-33010 |
| 87910 | Right exterior rearview mirror assembly | 87910-0D590 · 87910-0D600 · 87910-0D610 · 87910-0D620 · 87910-0D630 · 87910-0D640 |
| 87915 | Right exterior rearview mirror cover | 87915-0D200 · 87915-0D390 · 87915-0D909 |
| 87931 | Right exterior rearview mirror | 87908-0D590 · 87908-0D591 · 87908-0D600 · 87908-0D601 |
| 87940 | Left exterior rearview mirror assembly | 87940-0D580 · 87940-0D590 · 87940-0D600 · 87940-0D610 · 87940-0D620 · 87940-0D630 |
| 87945 | Left exterior rearview mirror cap | 87945-0D190 · 87945-0D370 · 87945-0D909 |
| 87961 | Left exterior rearview mirror | 87909-0D580 · 87909-0D581 · 87909-0D590 · 87909-0D591 |
