Toyota YARIS antenna — Figure 8604

Toyota YARIS EPC diagram 8604, antenna, with 2 images and 5 PNC and OE references.

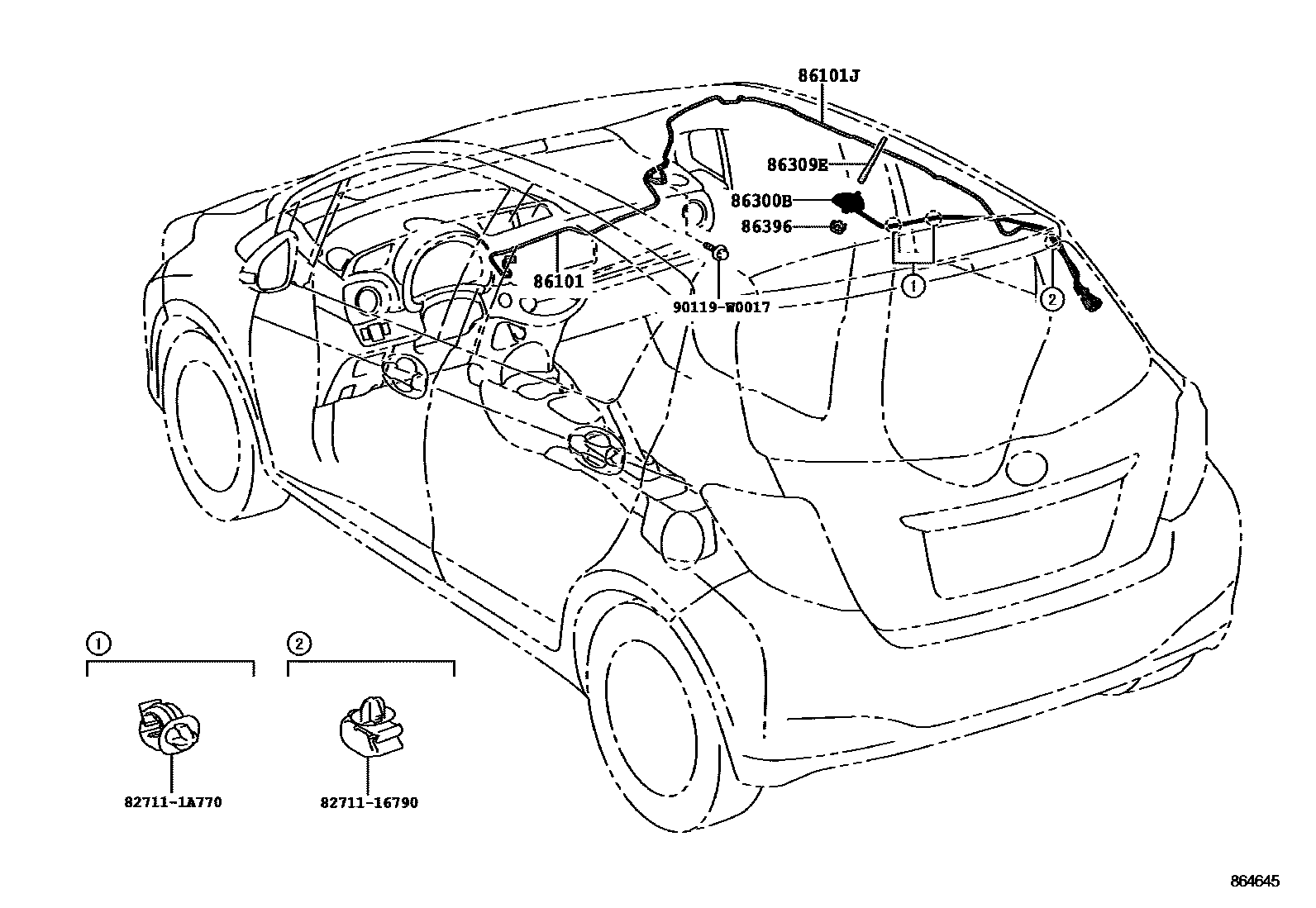

Toyota YARIS antenna EPC diagram — 864645
antenna — 864645 (201107 – 999999)

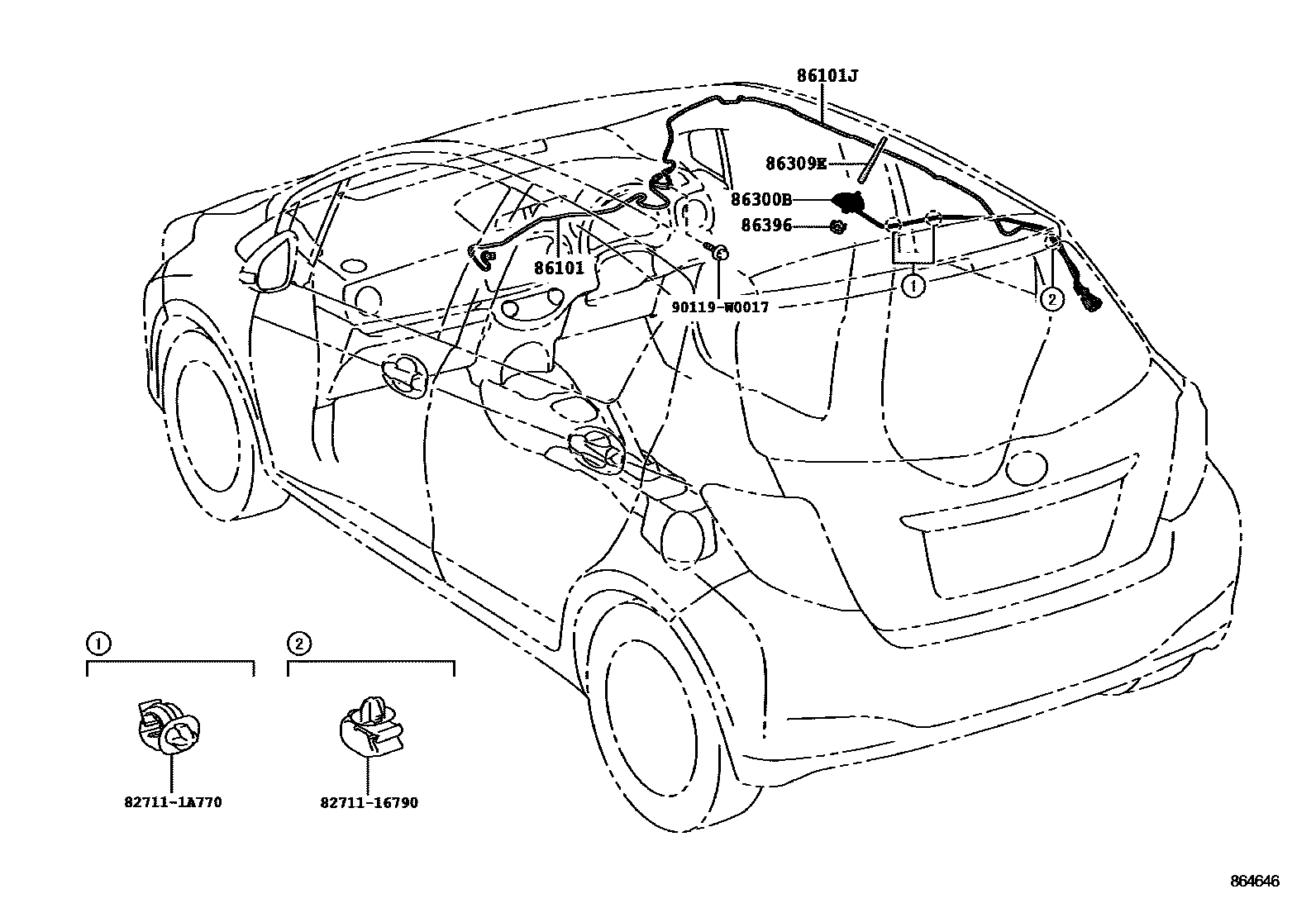

Toyota YARIS antenna EPC diagram — 864646
antenna — 864646 (201107 – 999999)

PNC and OE references

PNCPart nameOE numbers
86101Antenna wire sub-assembly86101-0D410 · 86101-0D420
86101JNo. 2 antenna wire sub-assembly86101-0D400
86300BAmplifier antenna assembly86300-0D220
86309ERoof antenna sub-assembly86309-0D110
86396Antenna nut86396-47010
