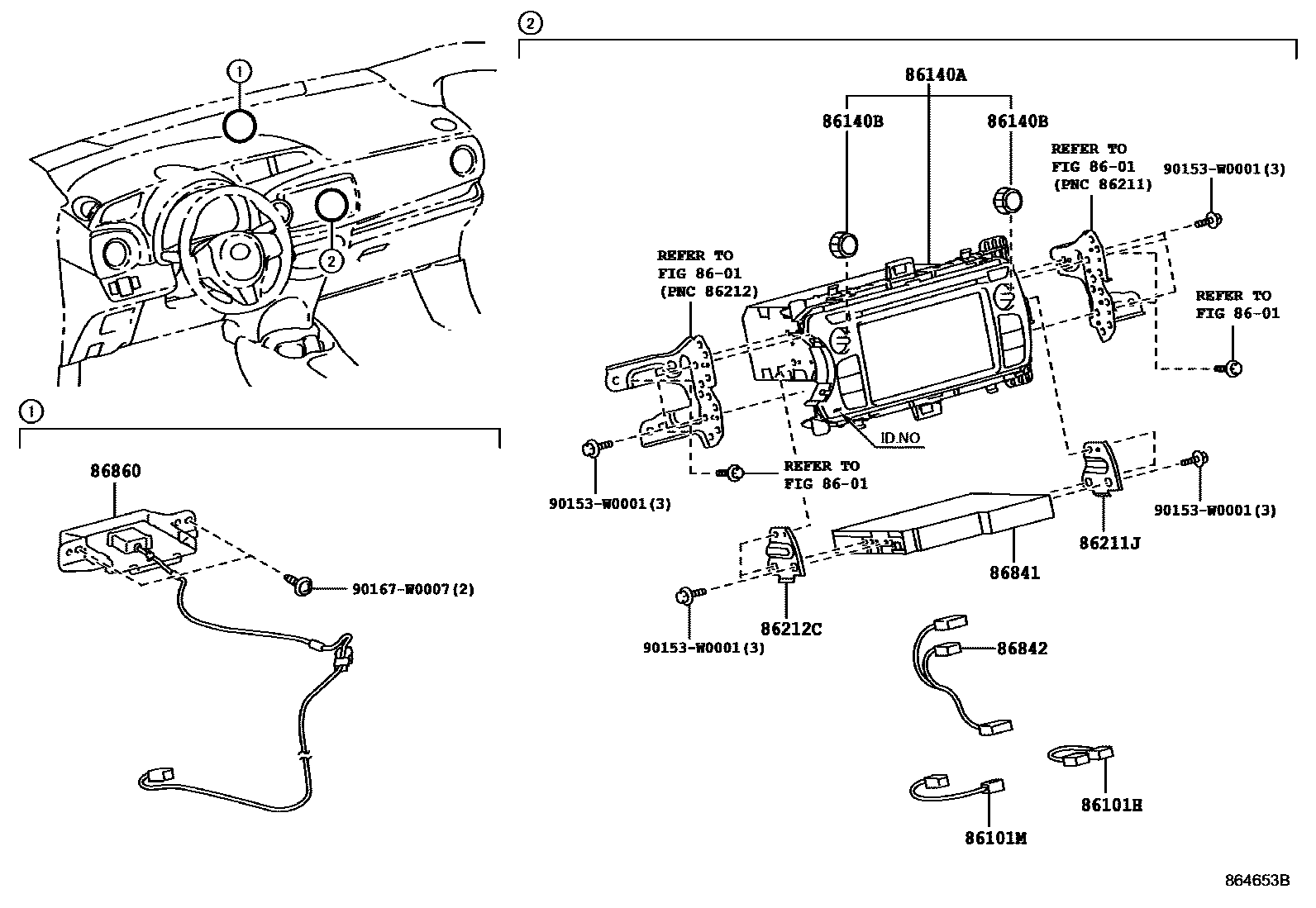

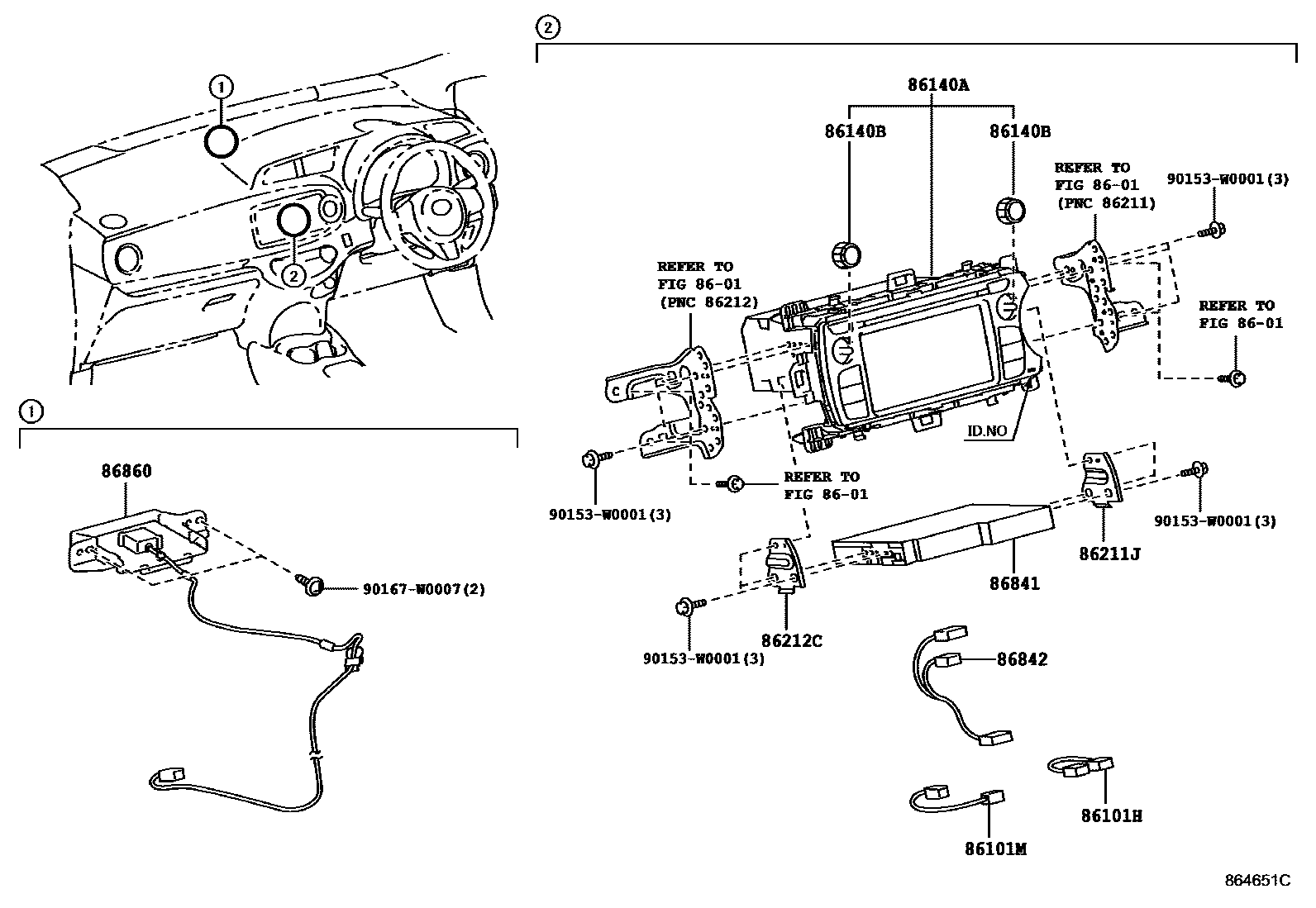

Toyota YARIS 导航和前监视器显示屏 — Figure 8603
Toyota YARIS EPC diagram 8603, 导航和前监视器显示屏, with 2 images and 9 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 86101H | Antenna wire sub-assembly | 86101-YY070 |
| 86101M | Antenna wire sub-assembly | 86705-YY030 |
| 86140A | Radio and display receiver assembly | 86140-0D010 · 86140-0D020 · 86140-0D030 · 86140-0D040 · 86140-0D050 · 86140-0D060 · 86140-0D070 · 86140-0D080 |
| 86140B | Radio and display receiver switch button | 90011-25201 · 90011-25202 |
| 86211J | No. 1 radio bracket | 86211-0D140 |
| 86212C | No. 2 radio bracket | 86212-0D140 |
| 86841 | Navigation ECU | 86840-YY040 · 86840-YY041 · 86840-YY090 · 86840-YY131 · 86840-YY132 · 86840-YY133 · 86840-YY150 |
| 86842 | Navigation harness No. 1 | 86842-YY010 |
| 86860 | Navigation antenna assembly | 86860-52190 |
