Toyota YARIS 逆变器冷却系统 — Figure 8432

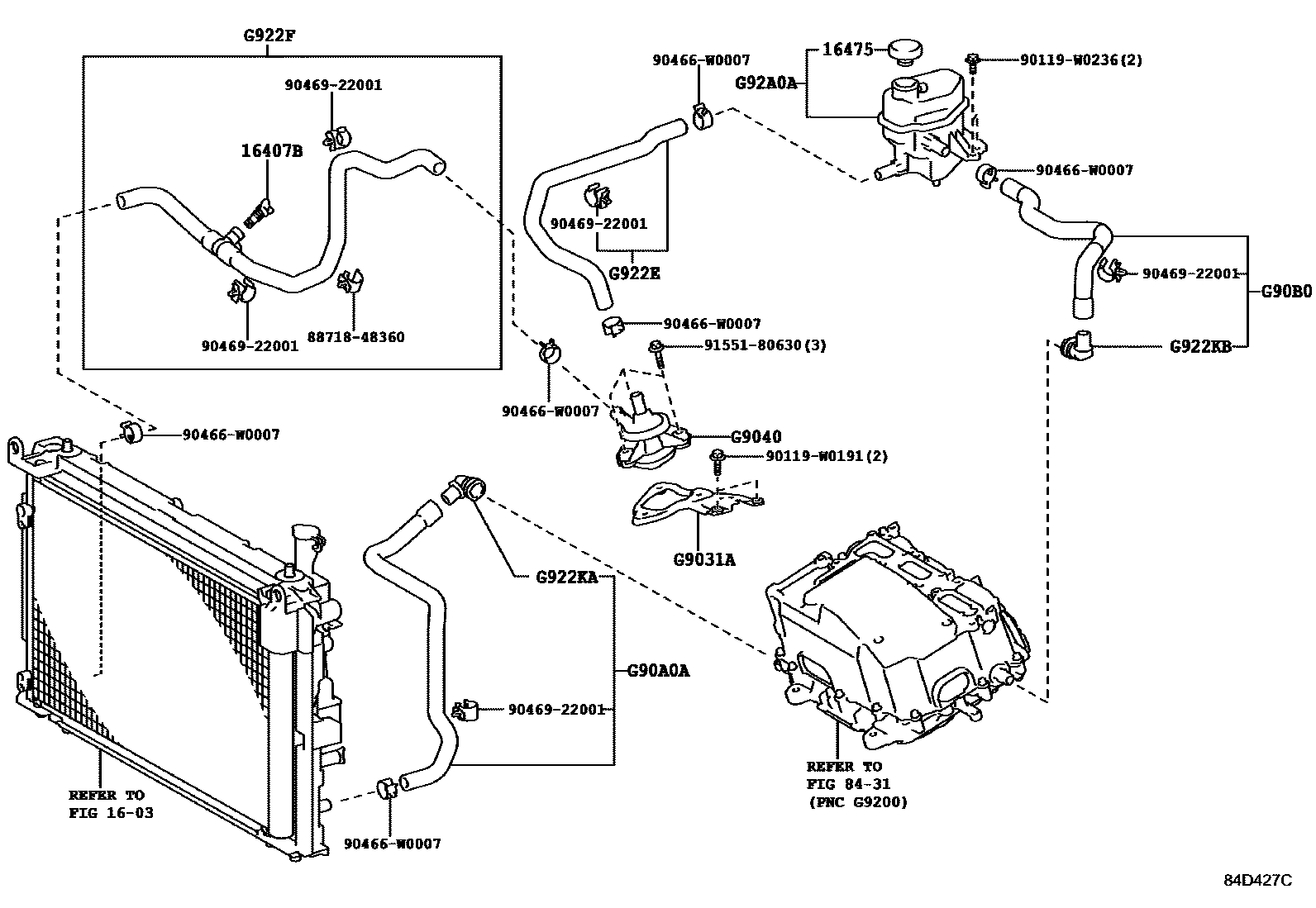

Toyota YARIS EPC diagram 8432, 逆变器冷却系统, with 1 images and 11 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 16407B | Radiator drain switch sub-assembly | 16407-64010 |
| 16475 | Reservoir tank cover | 16475-51010 |
| G9031A | Hybrid water pump bracket sub-assembly | G9141-52010 · G9141-52011 |
| G9040 | Inverter water pump assembly (with motor) | G9040-52010 |
| G90A0A | No. 1 inverter cooling hose assembly | G90A0-52010 |
| G90B0 | No. 2 inverter cooling hose assembly | G90B0-52010 |
| G922E | HV water pump water inlet hose | G922E-52010 |
| G922F | No. 1 HV water pump outlet hose | G922F-52020 |
| G922KA | No. 1 HV water pipe connector | G922K-33030 |
| G922KB | No. 2 HV water pipe connector | G922K-52010 |
| G92A0A | Inverter liquid tank assembly | G92A0-52010 |
