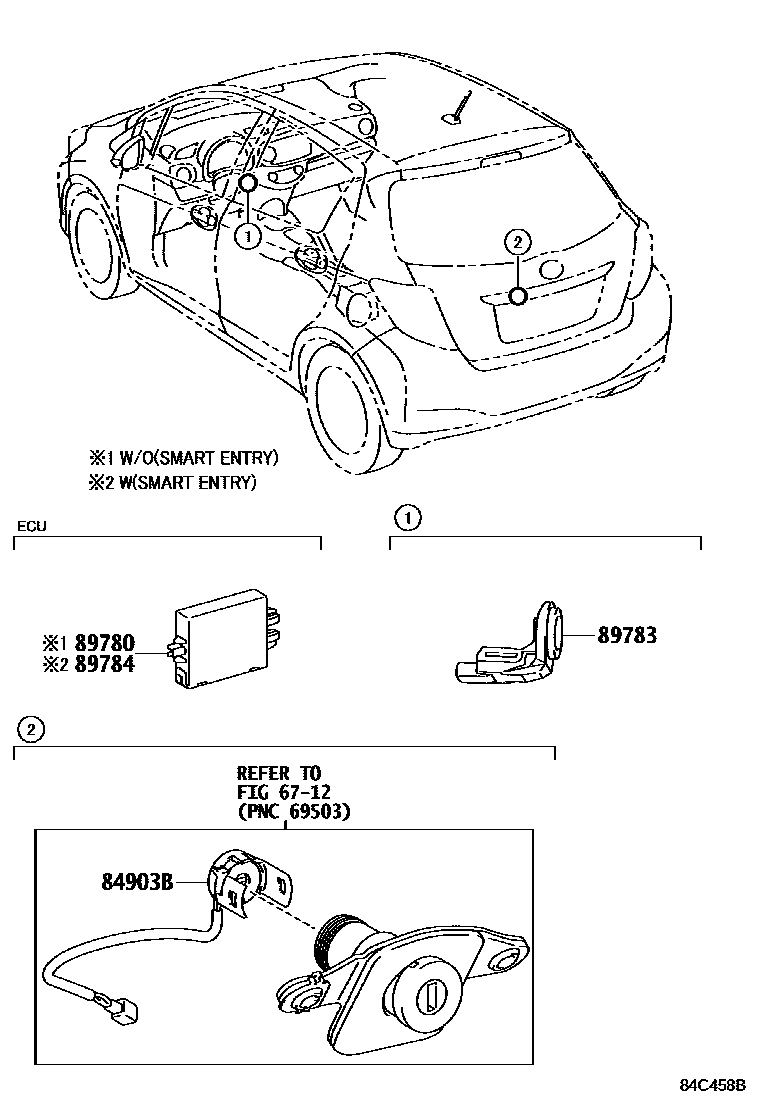

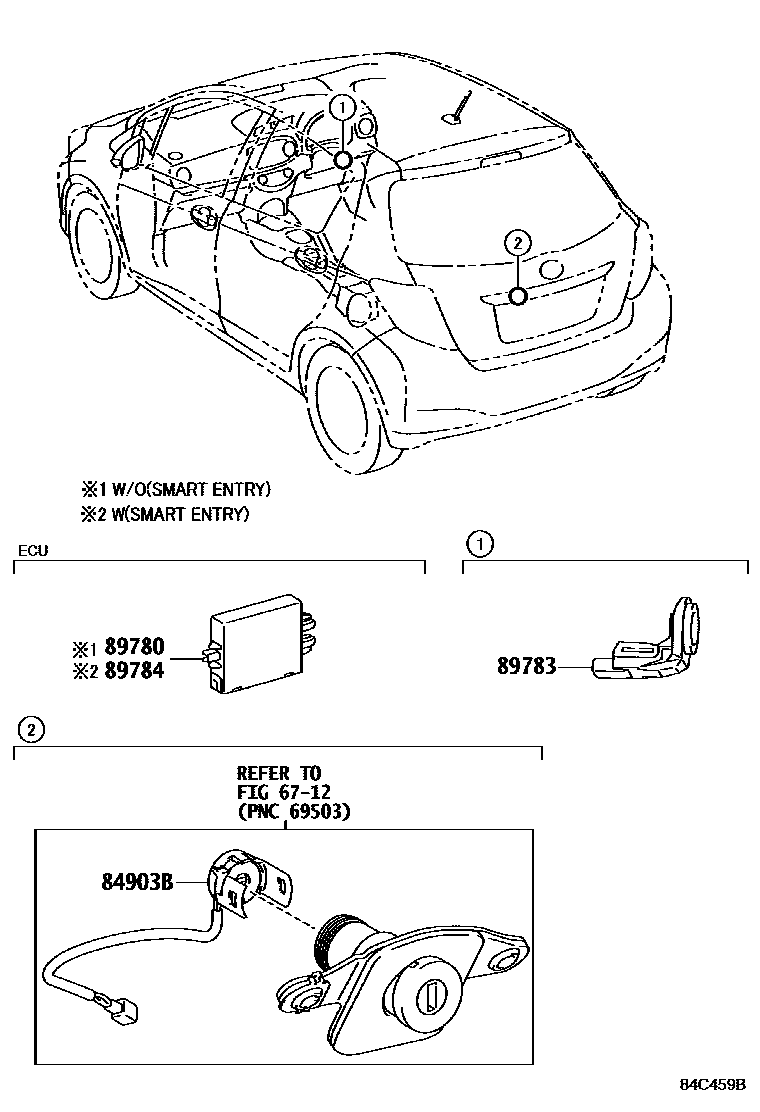

Toyota YARIS 防盗装置 — Figure 8424
Toyota YARIS EPC diagram 8424, 防盗装置, with 2 images and 4 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 84903B | Door unlock switch sub-assembly | 84903-52030 · 84903-52040 |
| 89780 | Transceiver key ECU assembly | 89780-0D050 |
| 89783 | transceiver key amplifier | 89783-0D050 · 89783-0D051 |
| 89784 | Shutdown code system ECU | 89784-0D030 |
