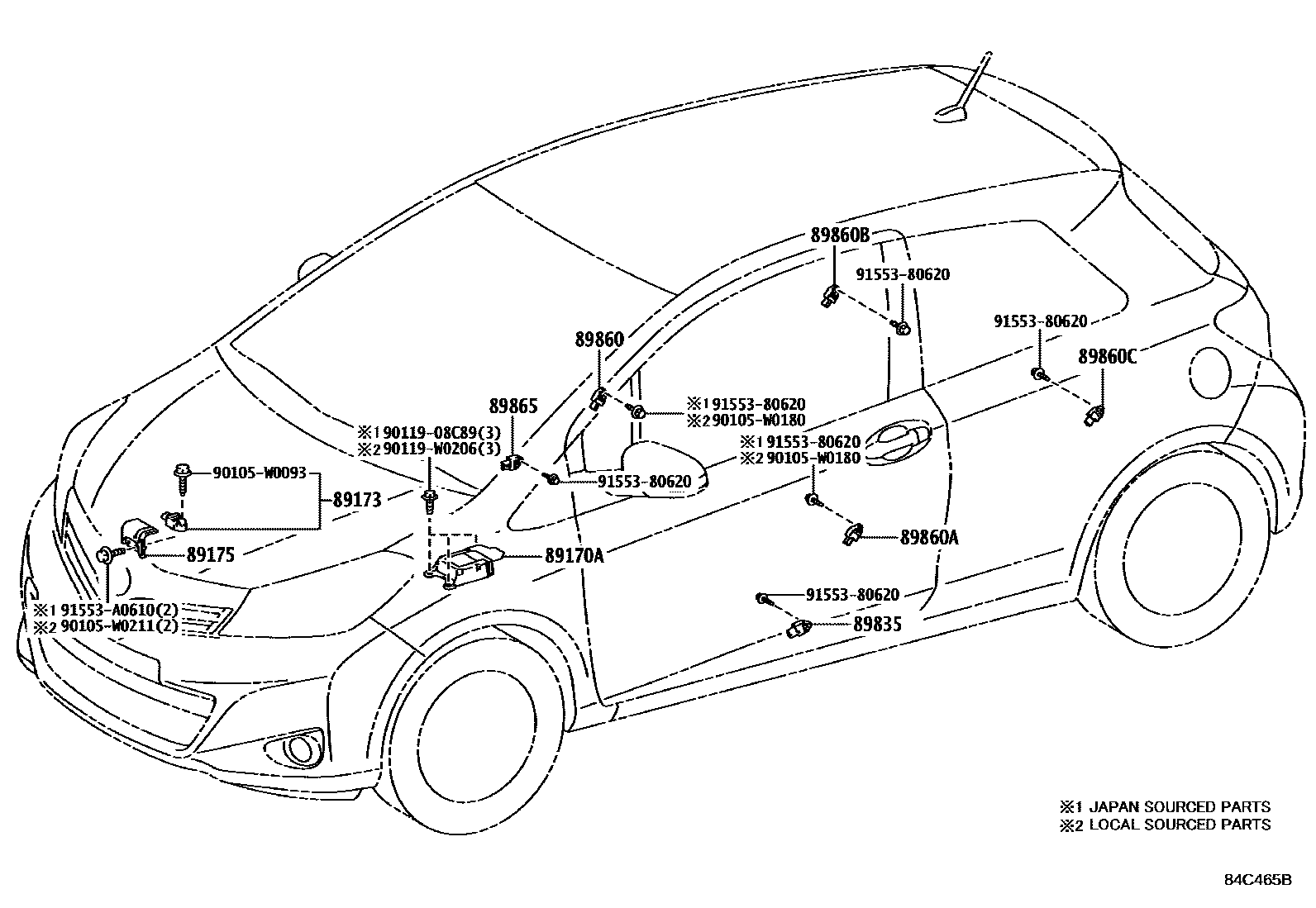

Toyota YARIS 空气囊 — Figure 8421
Toyota YARIS EPC diagram 8421, 空气囊, with 1 images and 9 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 89170A | Air bag ECU assembly | 89170-0D300 · 89170-0D320 · 89170-0D340 · 89170-0D520 · 89170-0D540 · 89170-0D550 |
| 89173 | front airbag sensor | 89173-09780 · 89173-09A40 · 89173-59285 |
| 89175 | air bag sensor bracket | 89175-0D050 |
| 89835 | Left door side air bag sensor | 89831-0D100 |
| 89860 | Right side airbag sensor assembly | 89831-0D060 · 89831-0D090 · 89831-52080 |
| 89860A | Left side air bag sensor assembly | 89831-0D060 · 89831-0D090 · 89831-52080 |
| 89860B | Right No. 2 side airbag sensor assembly | 89831-0D060 · 89831-0D090 · 89831-52080 |
| 89860C | Left No. 2 side airbag sensor assembly | 89831-0D060 · 89831-0D090 · 89831-52080 |
| 89865 | Right door side air bag sensor | 89831-0D100 |
