Toyota YARIS 遥控门锁 — Figure 8420

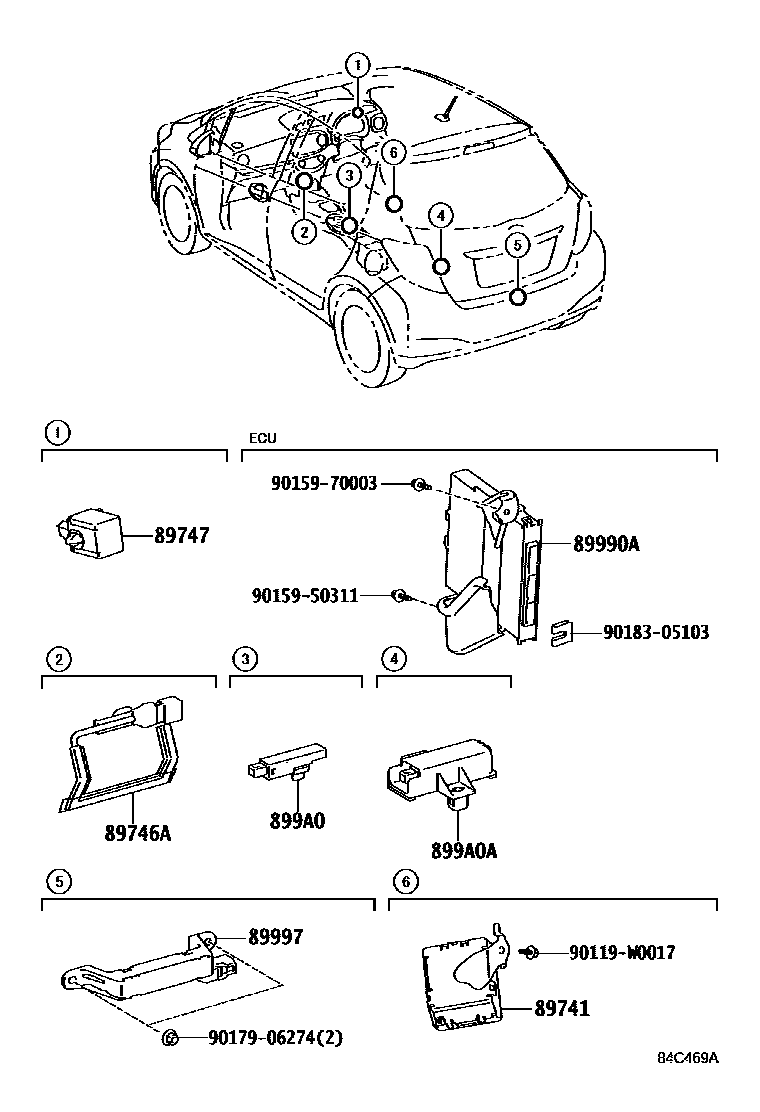

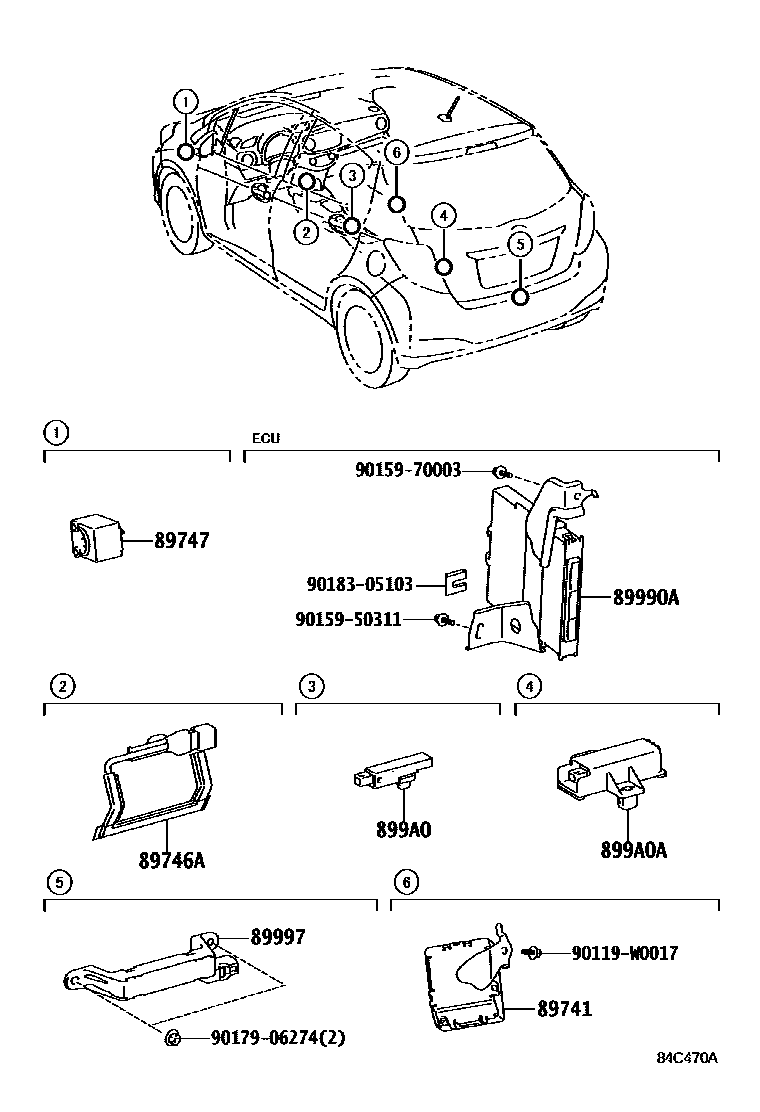

Toyota YARIS EPC diagram 8420, 遥控门锁, with 2 images and 7 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 89741 | door control receiver | 89740-0D080 · 89740-0D100 · 89741-0D080 · 89741-0D090 |
| 89746A | Electronic key wiring harness | 89746-52100 |
| 89747 | Remote door lock buzzer | 89747-05010 |
| 89990A | Smart key ECU assembly | 89990-0D040 · 89990-0D050 · 89990-0D060 · 89990-0D070 · 89990-0D080 · 89990-0D090 |
| 89997 | electronic key antenna | 89997-0D020 · 89997-30070 |
| 899A0 | No. 1 electronic key antenna assembly in car | 899A0-0D010 · 899A0-0D040 |
| 899A0A | Electronic key antenna assembly in car No. 2 | 899A0-0D020 · 899A0-0F050 |
