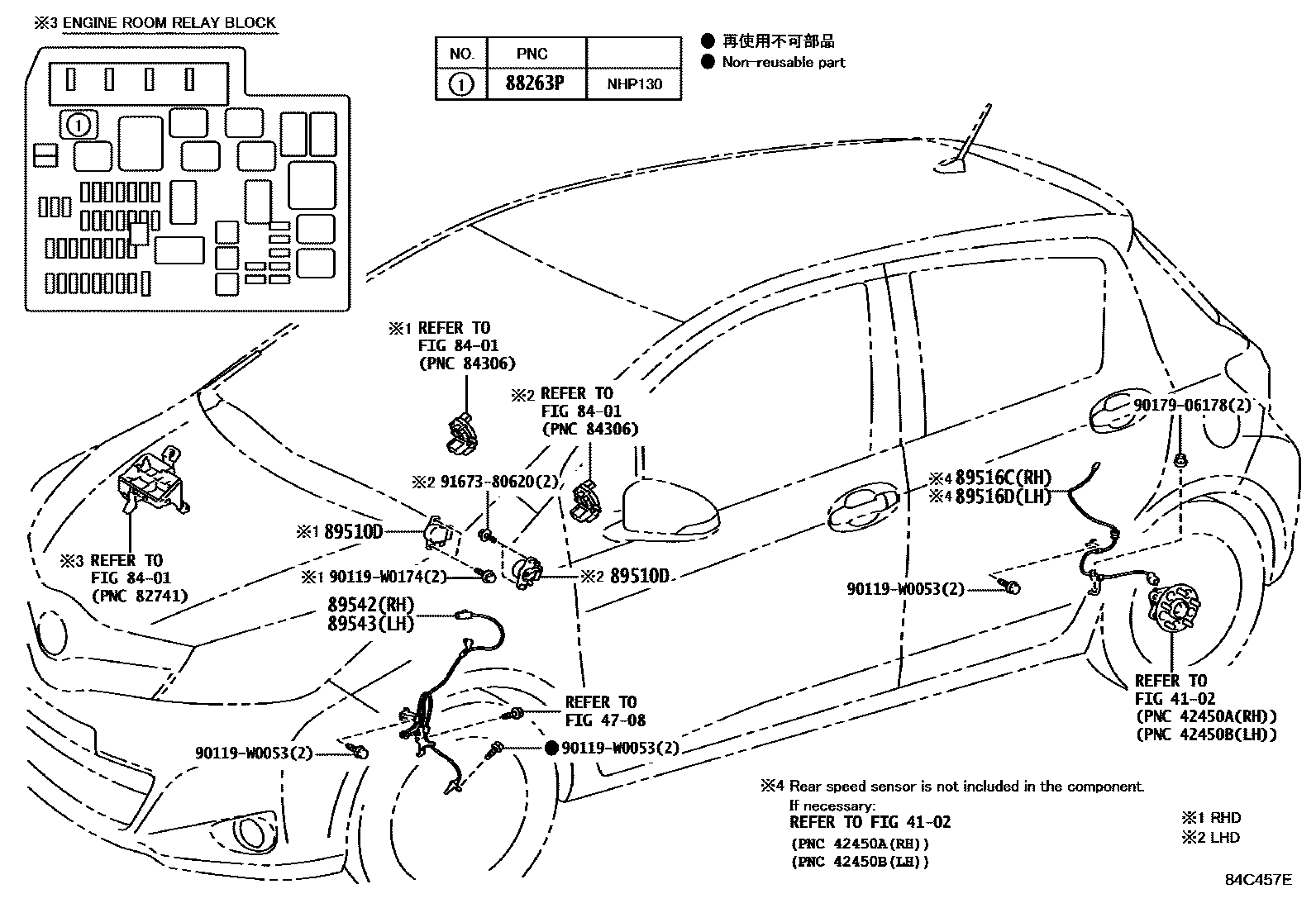

Toyota YARIS ABS 和 VSC — Figure 8414
Toyota YARIS EPC diagram 8414, ABS 和 VSC, with 1 images and 6 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 88263P | brake light control relay | 90080-87020 |
| 89510D | Brake pedal stroke sensor assembly | 89510-33020 · 89510-33030 |
| 89516C | Right anti-skid control sensor harness | 89516-0D130 · 89516-0D230 |
| 89516D | Left anti-skid control sensor wiring harness | 89516-0D140 · 89516-0D240 |
| 89542 | Right front wheel speed sensor | 89542-0D050 · 89542-52090 |
| 89543 | Left front wheel speed sensor | 89543-0D050 · 89543-52090 |
