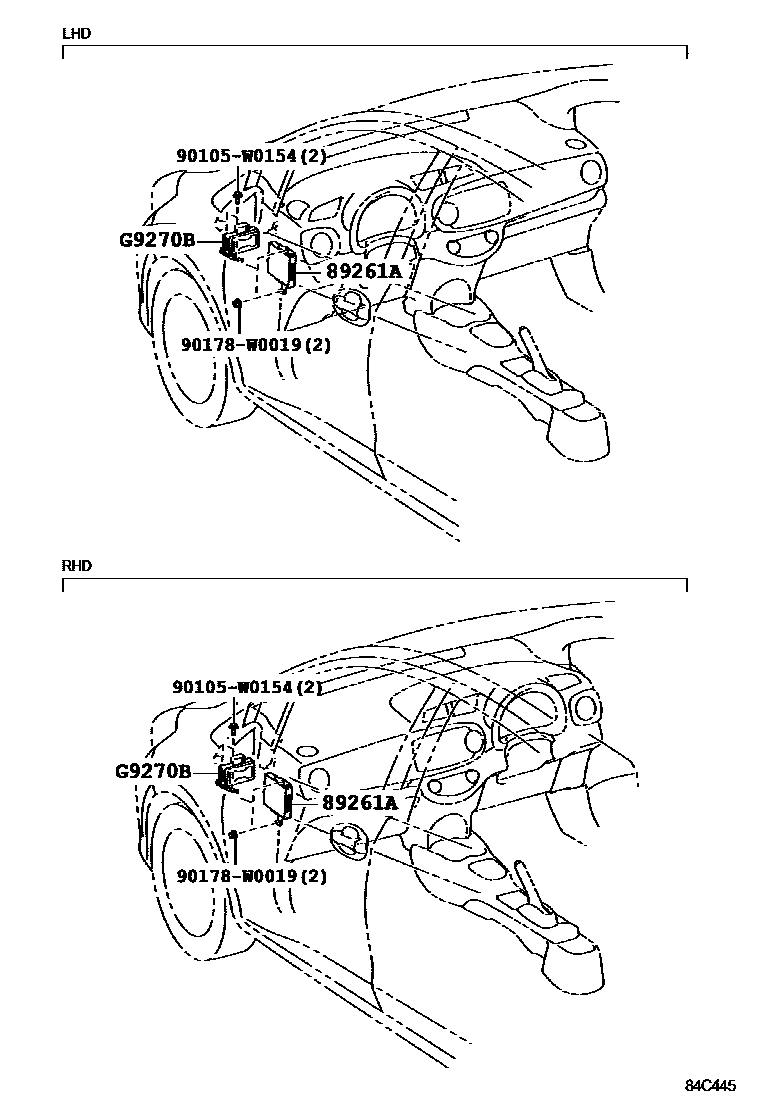

Toyota YARIS 电子控制系统 — Figure 8407
Toyota YARIS EPC diagram 8407, 电子控制系统, with 1 images and 2 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 89261A | Engine stop and start ECU | 89690-0D030 · 89690-0D031 · 89690-0D041 · 89690-0D042 |
| G9270B | Electronically controlled vehicle converter assembly | G92C0-52030 · G92C0-52031 |
