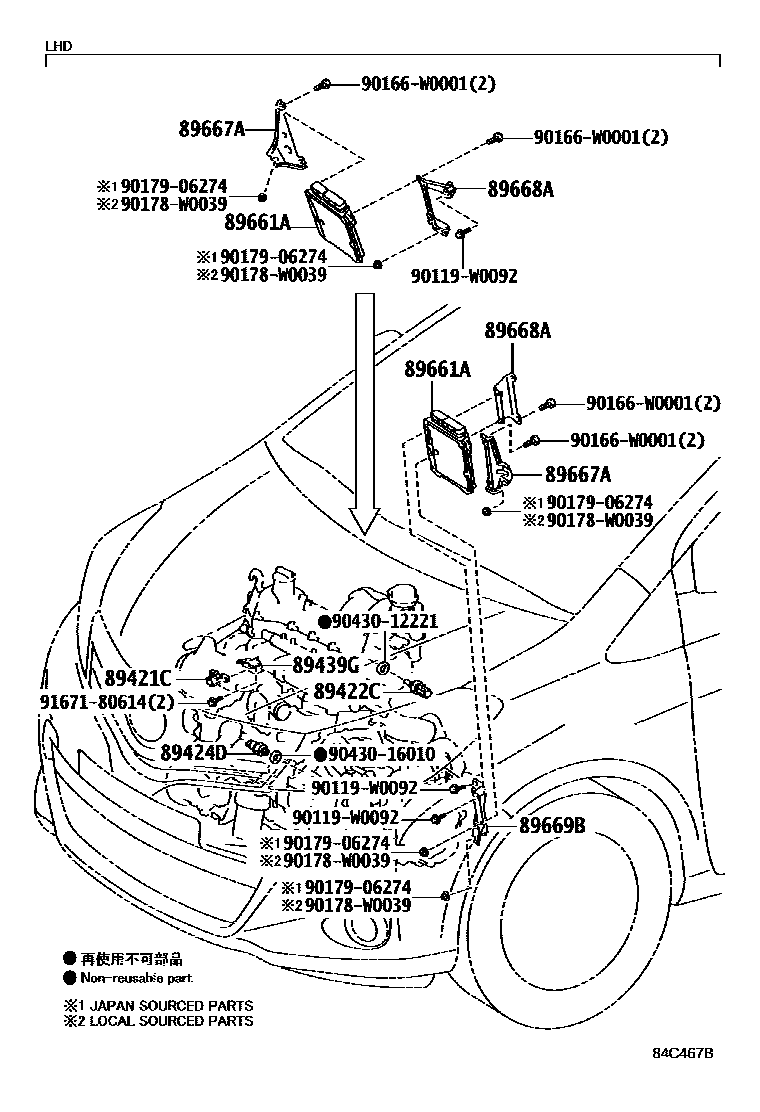

Toyota YARIS 电子控制柴油机(ECD) — Figure 8405
Toyota YARIS EPC diagram 8405, 电子控制柴油机(ECD), with 1 images and 8 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 89421C | Turbo pressure sensor (for diesel turbines) | 89421-20200 |
| 89422C | Diesel engine water temperature sensor | 89422-33030 |
| 89424D | Intake air temperature sensor | 89424-60010 |
| 89439G | Sensor holder | 89431-12010 |
| 89661A | Engine control ECU | 89661-0D510 · 89661-0DE70 · 89661-0DE80 · 89661-0DE90 · 89661-0DP10 · 89661-0DP20 |
| 89667A | No. 1 engine control ECU bracket | 89667-0D090 · 89667-0D100 |
| 89668A | No. 2 engine control ECU bracket | 89668-0D090 · 89668-0D100 |
| 89669B | No. 3 engine control ECU bracket | 89669-0D020 |
