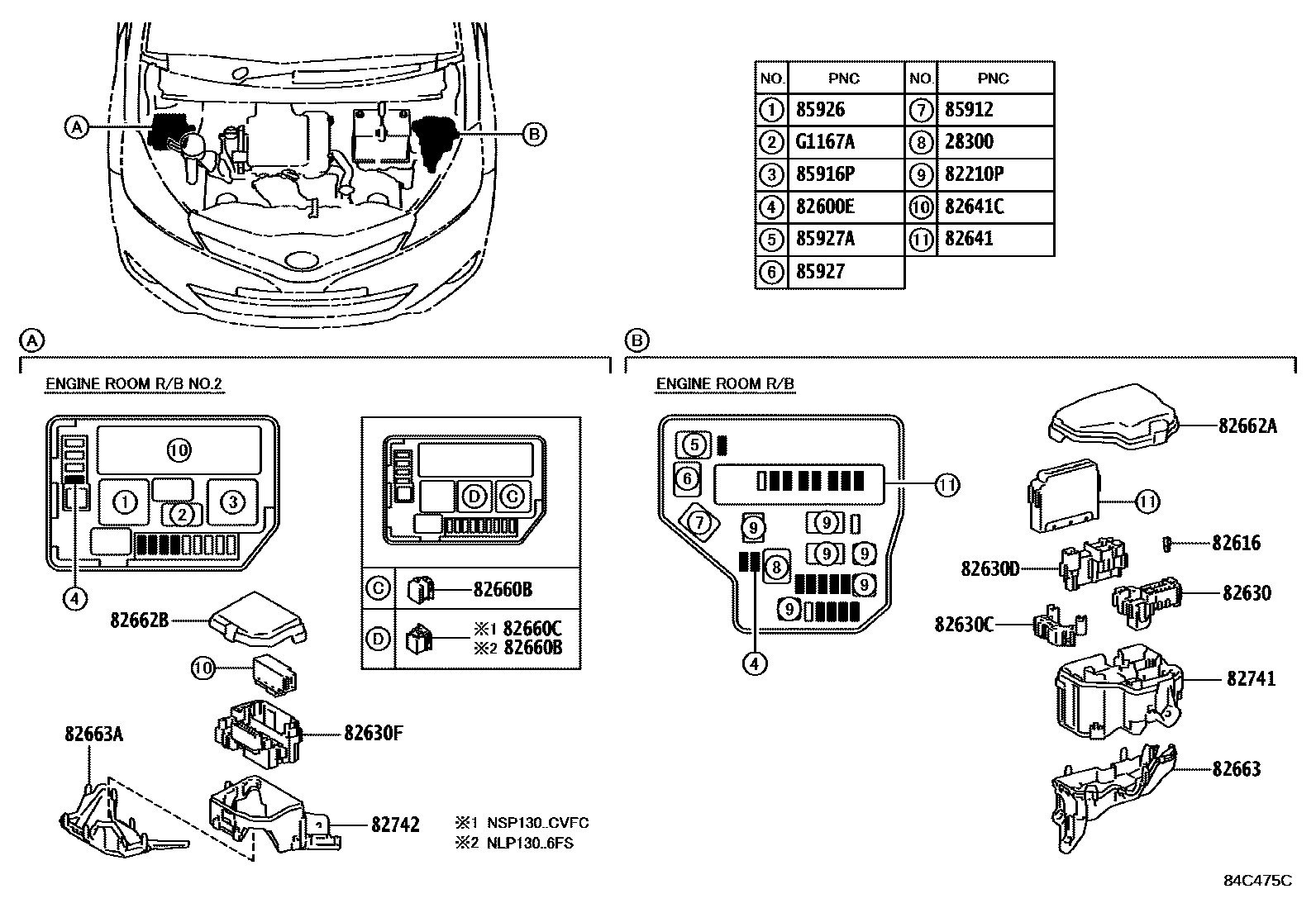

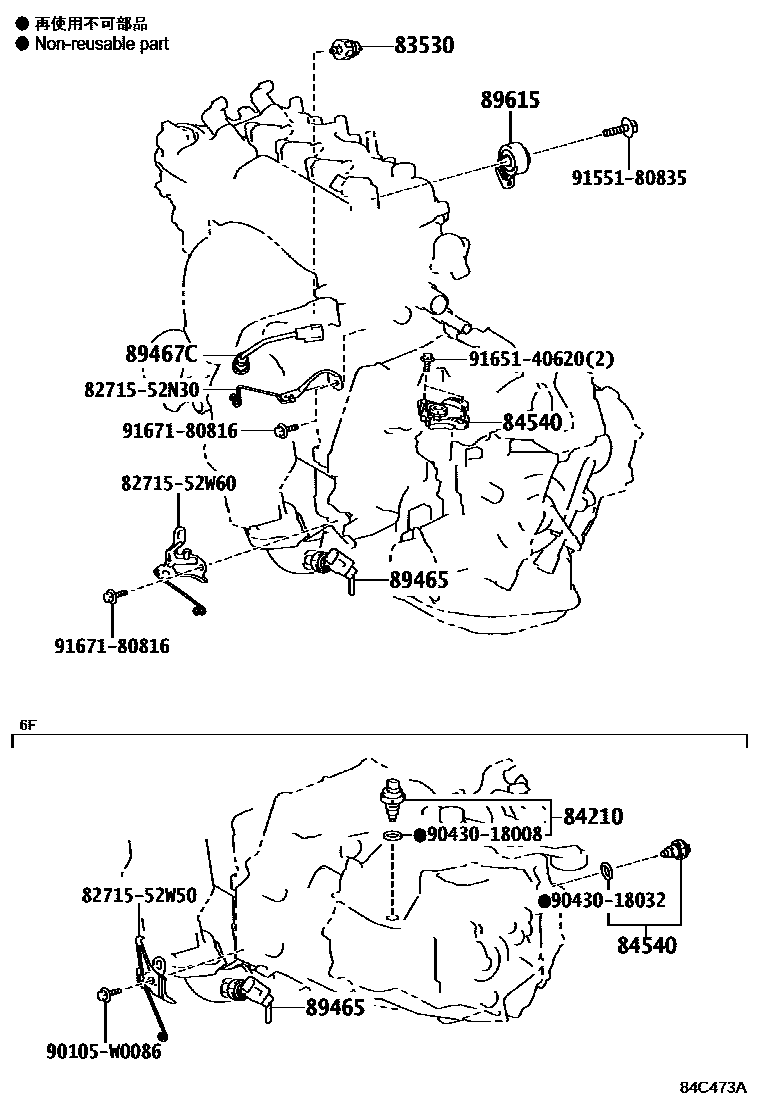

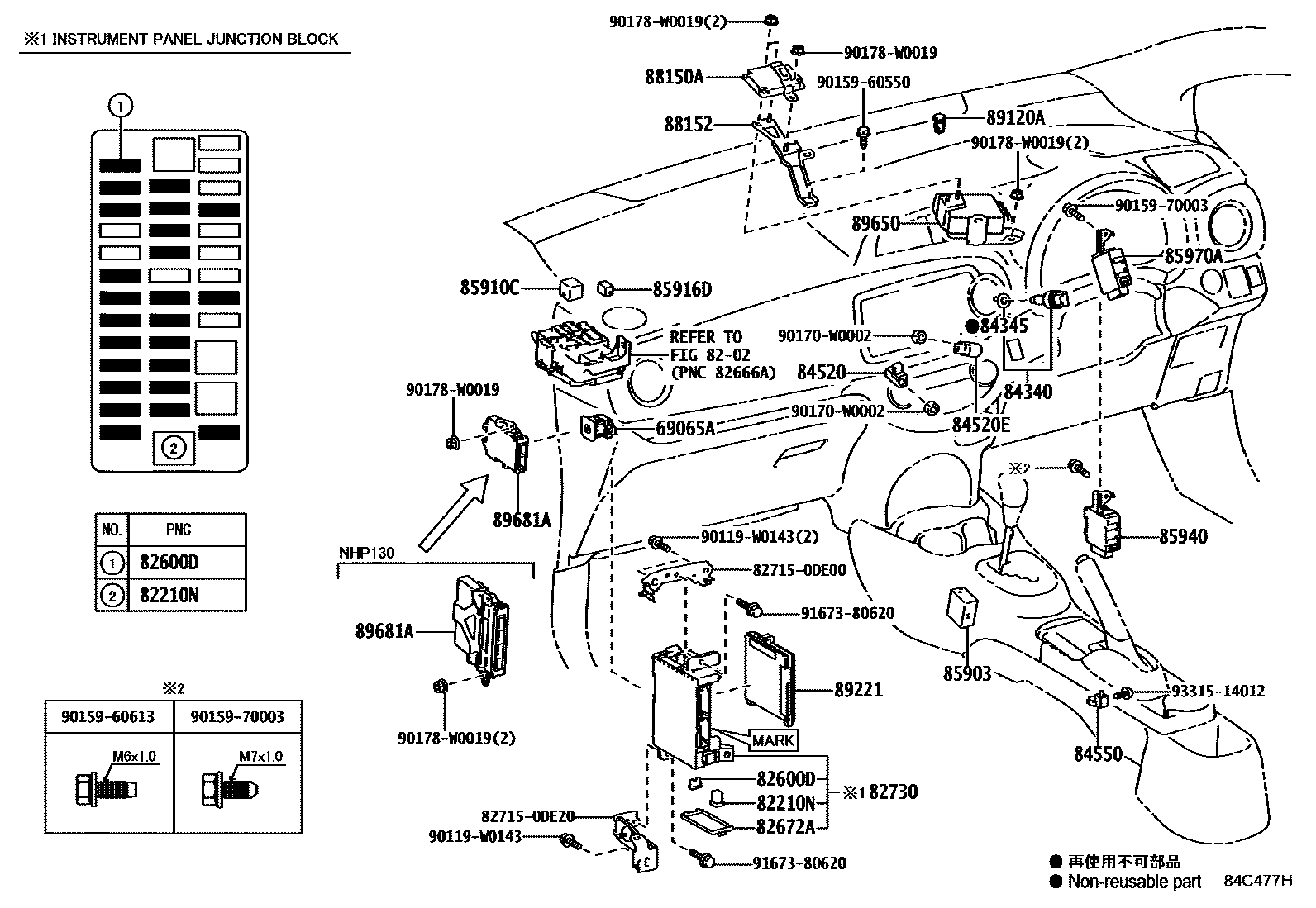

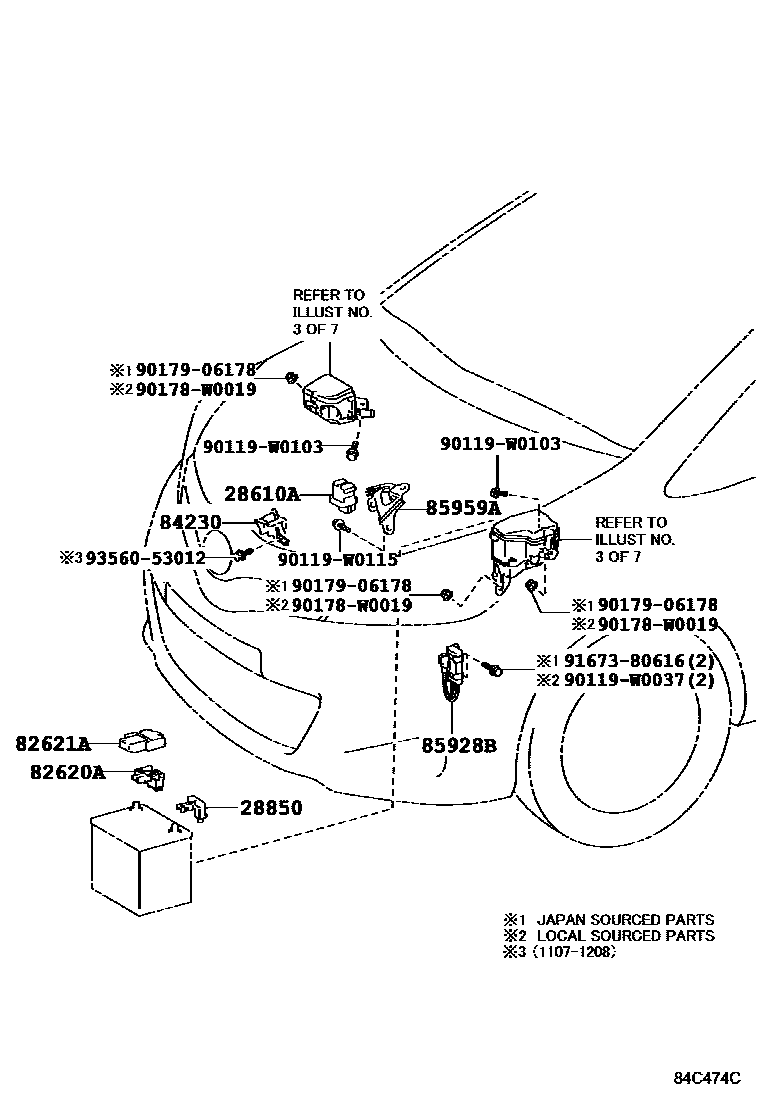

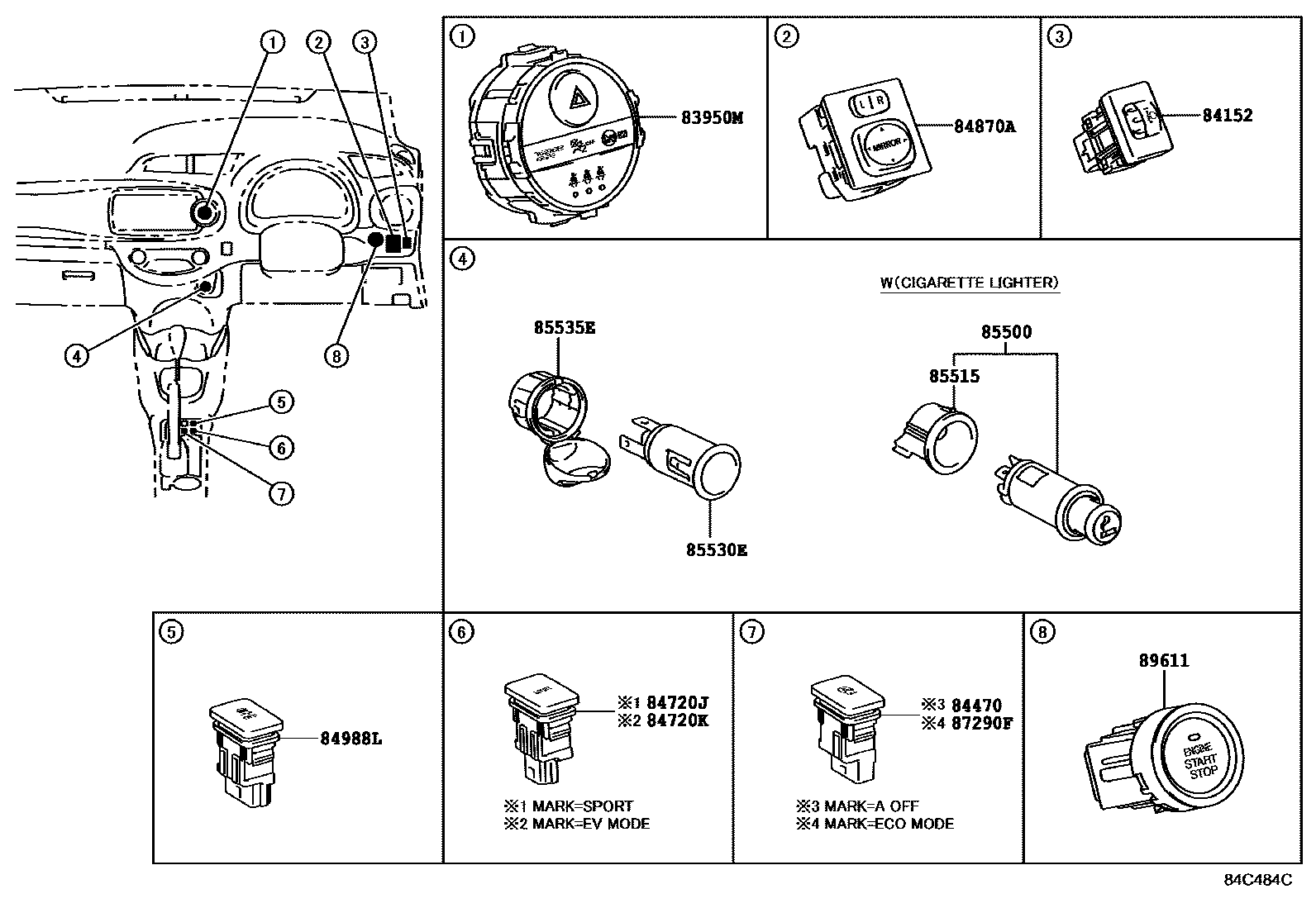

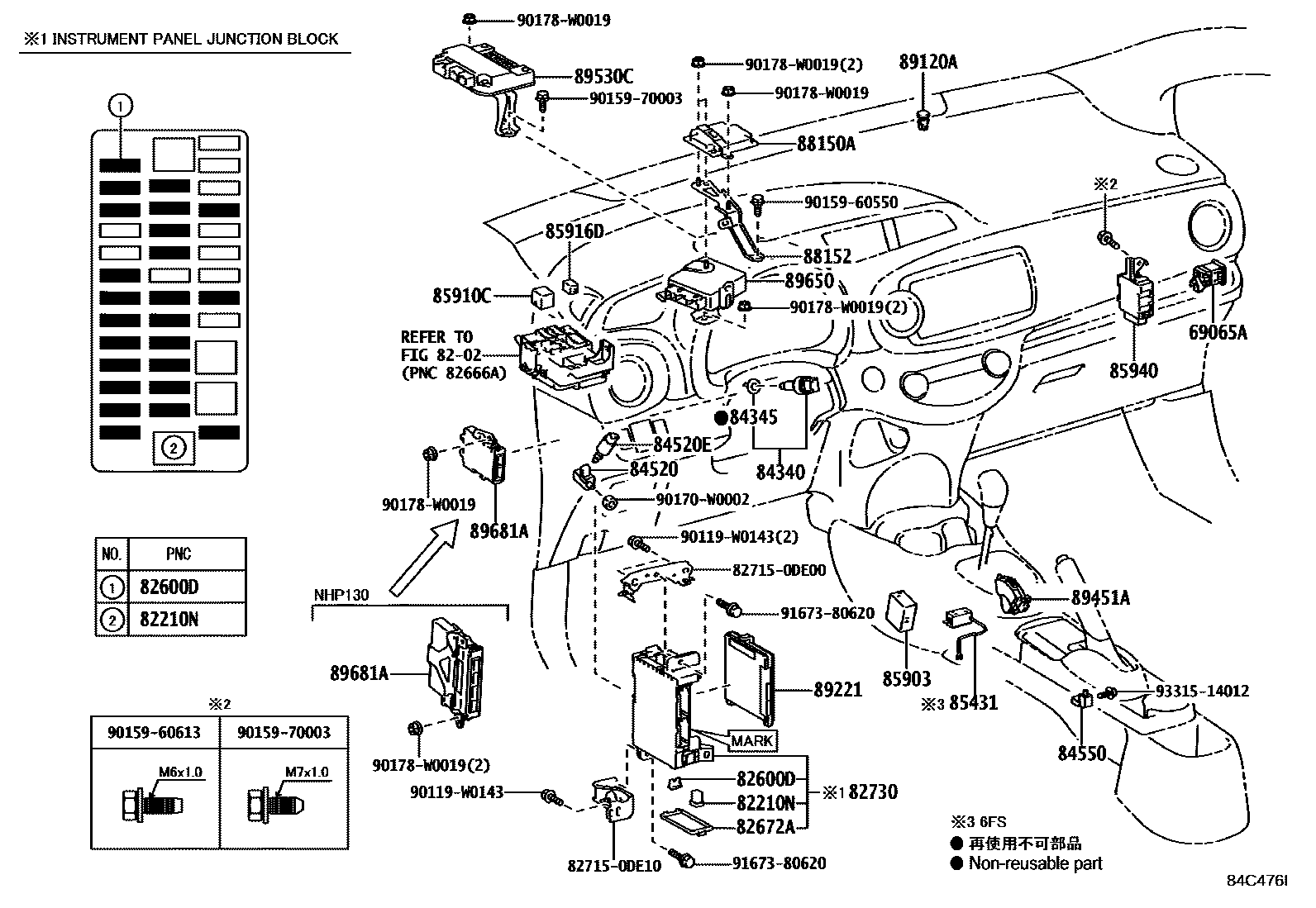

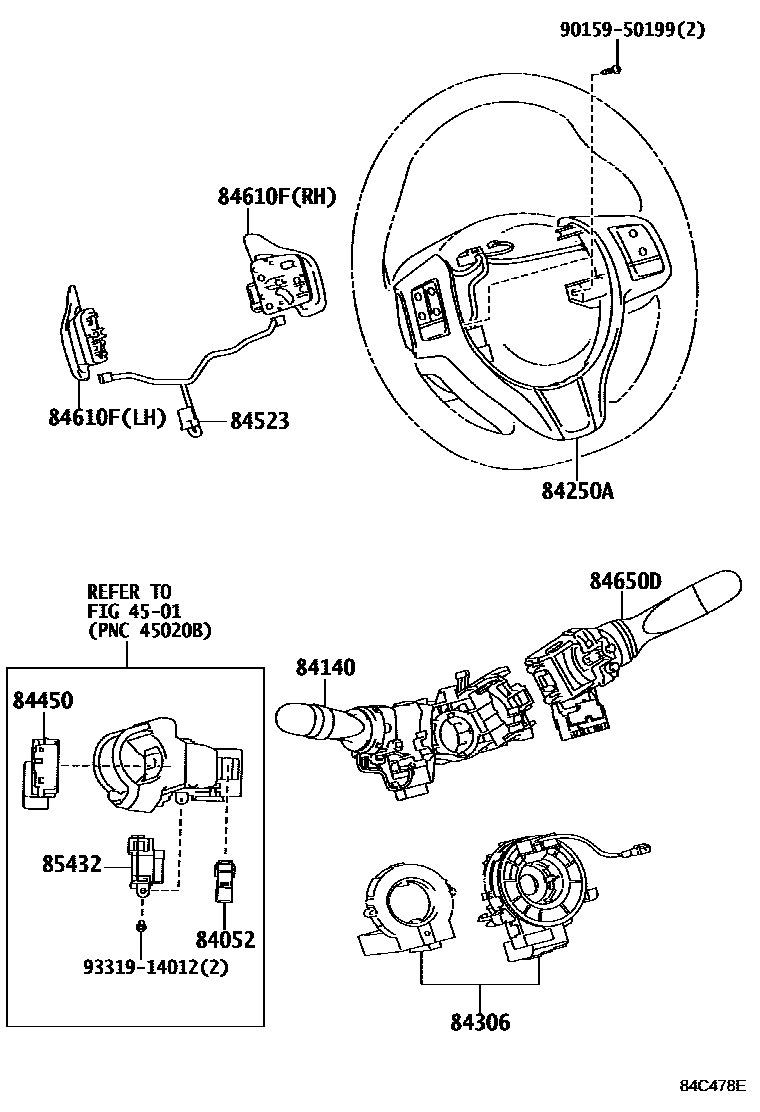

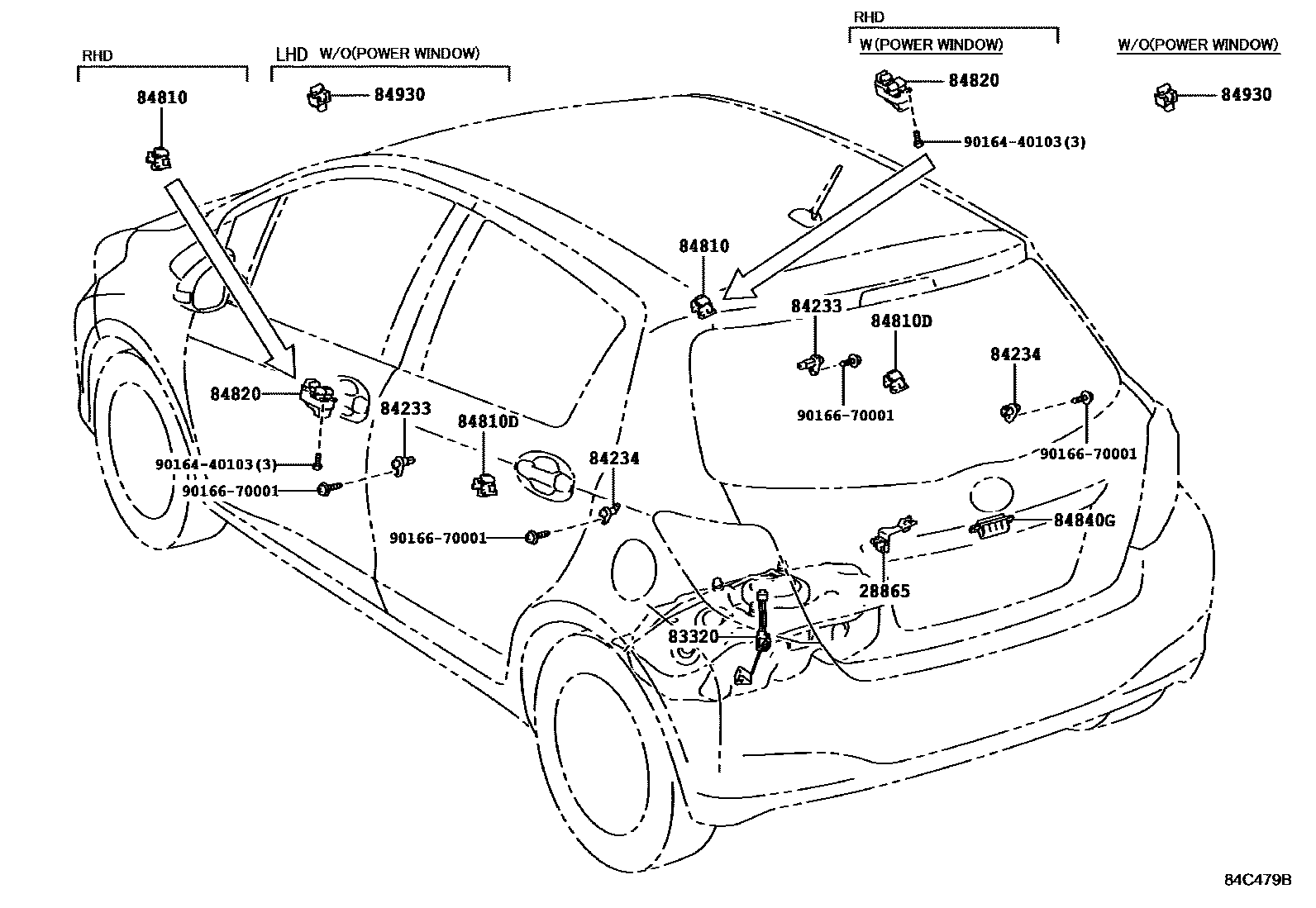

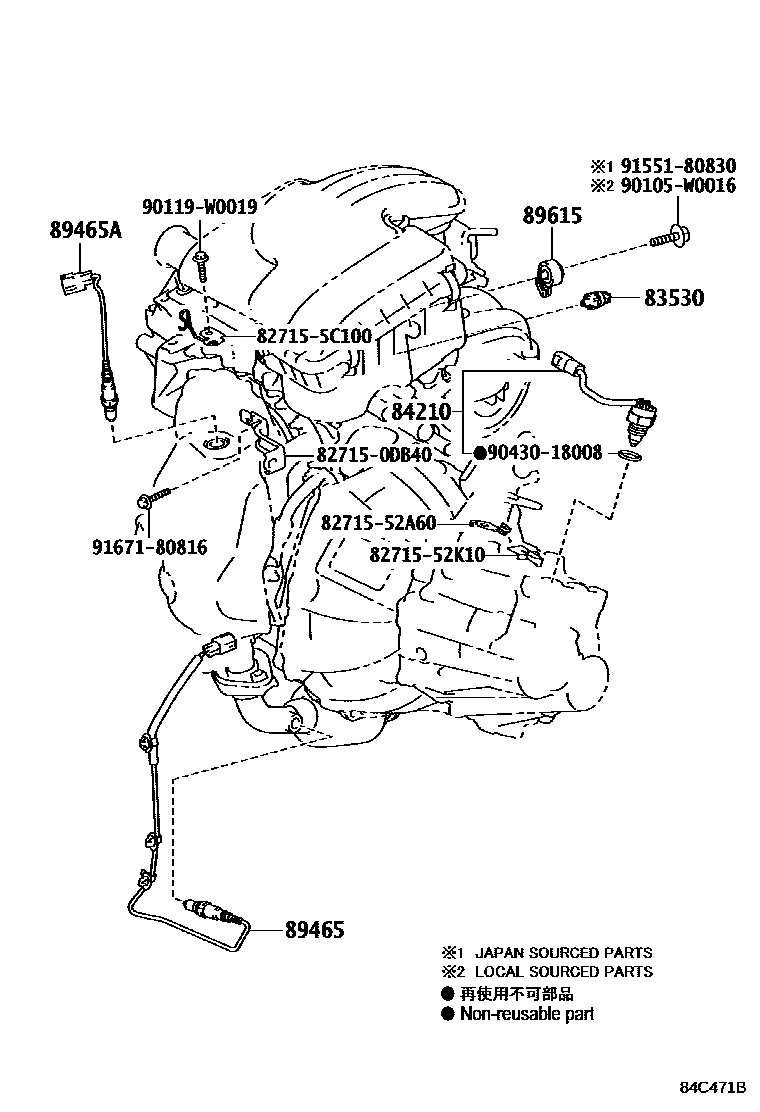

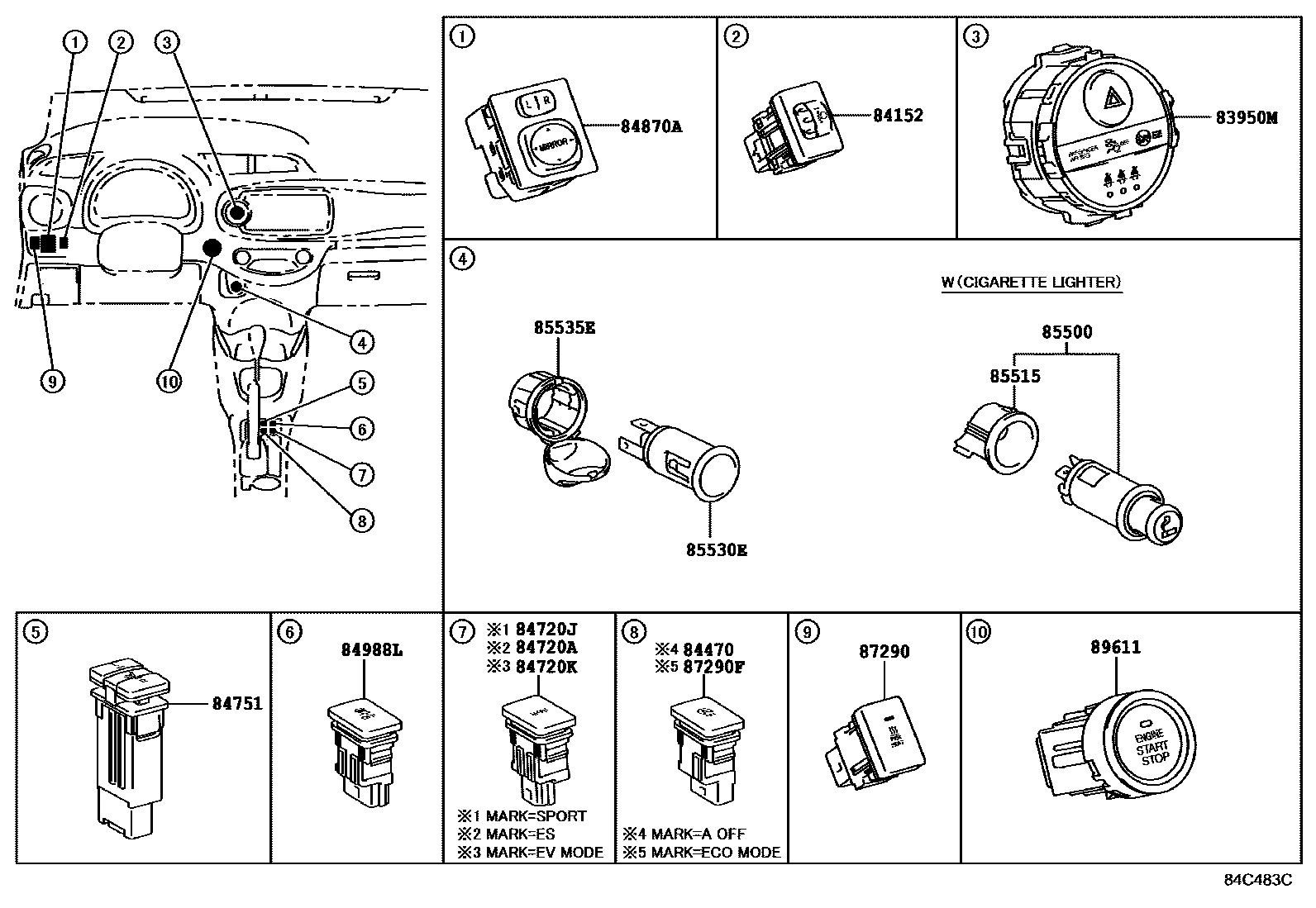

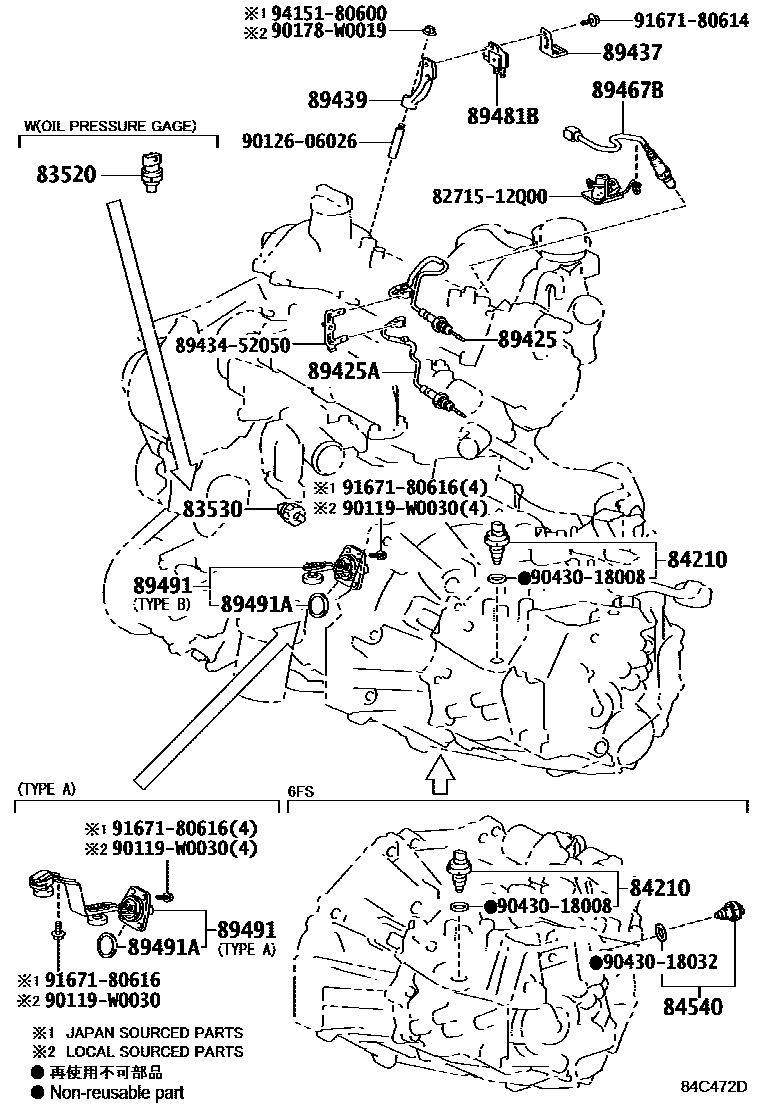

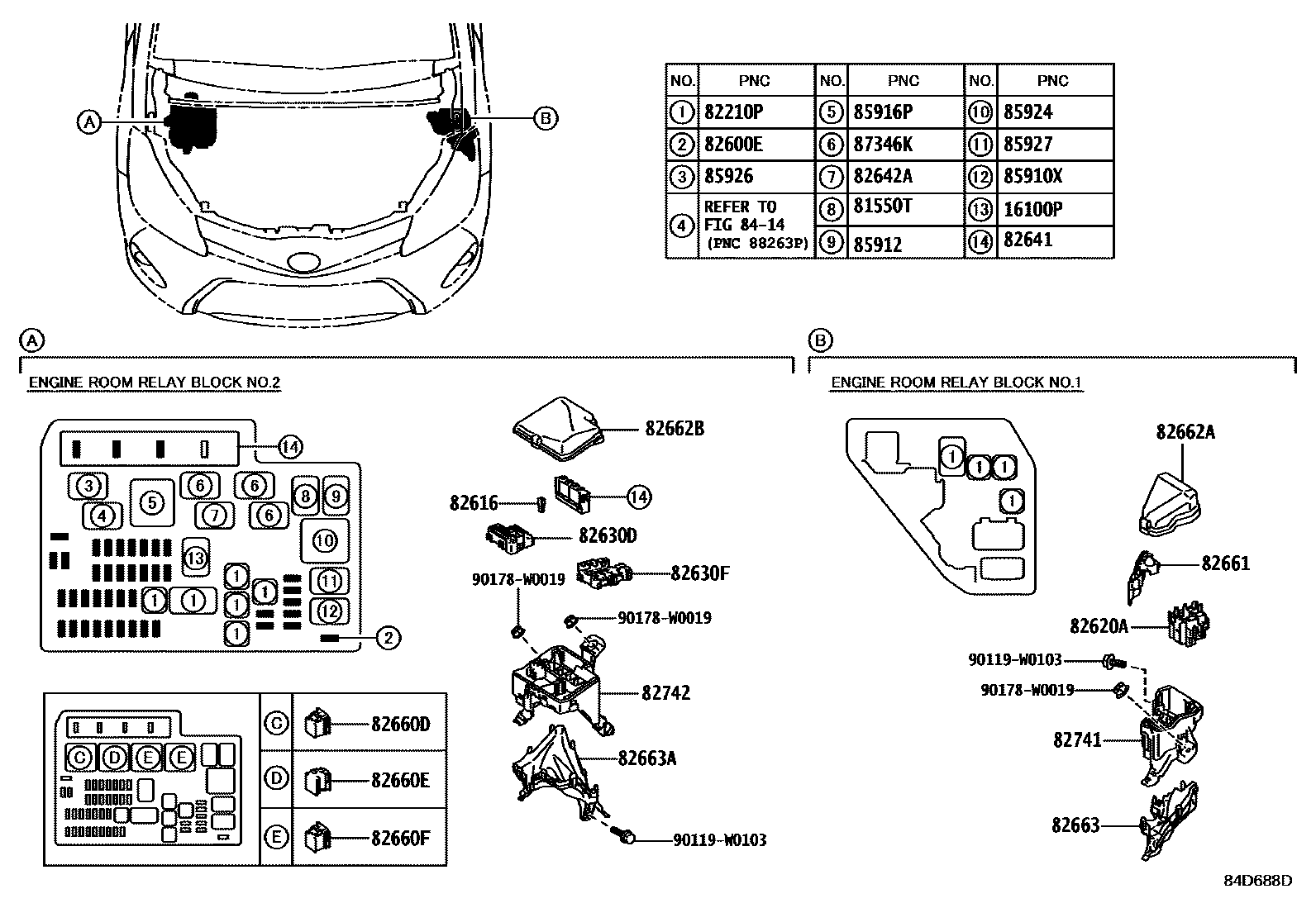

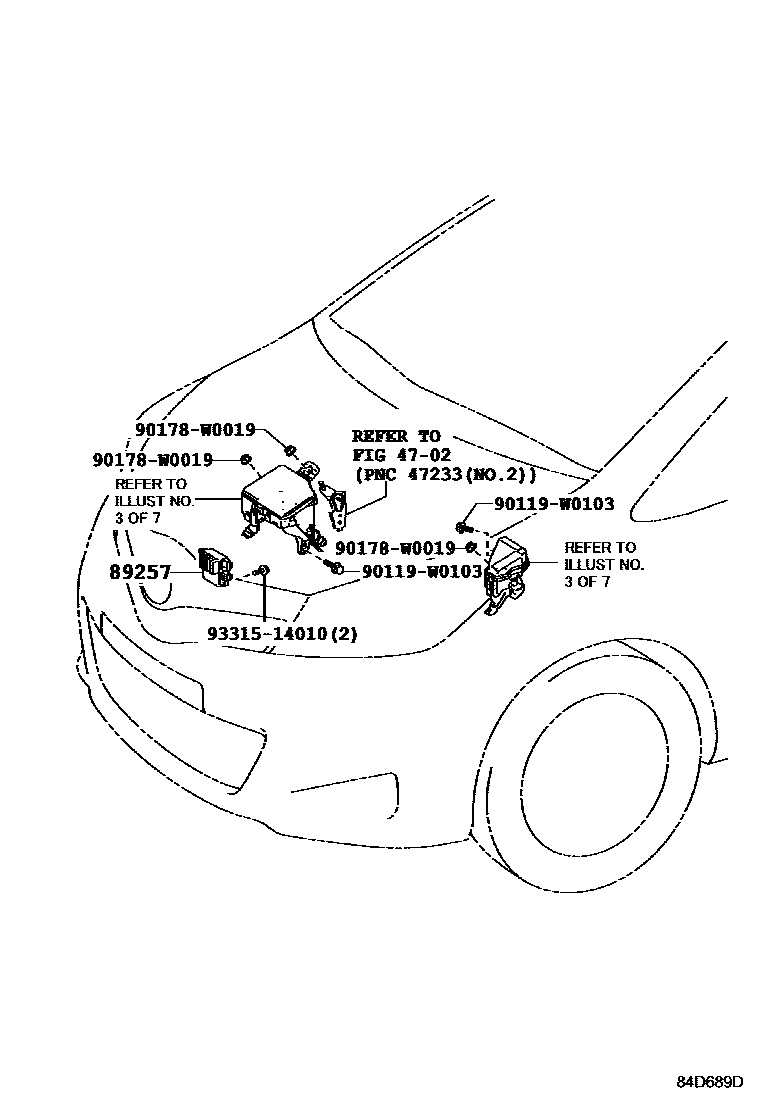

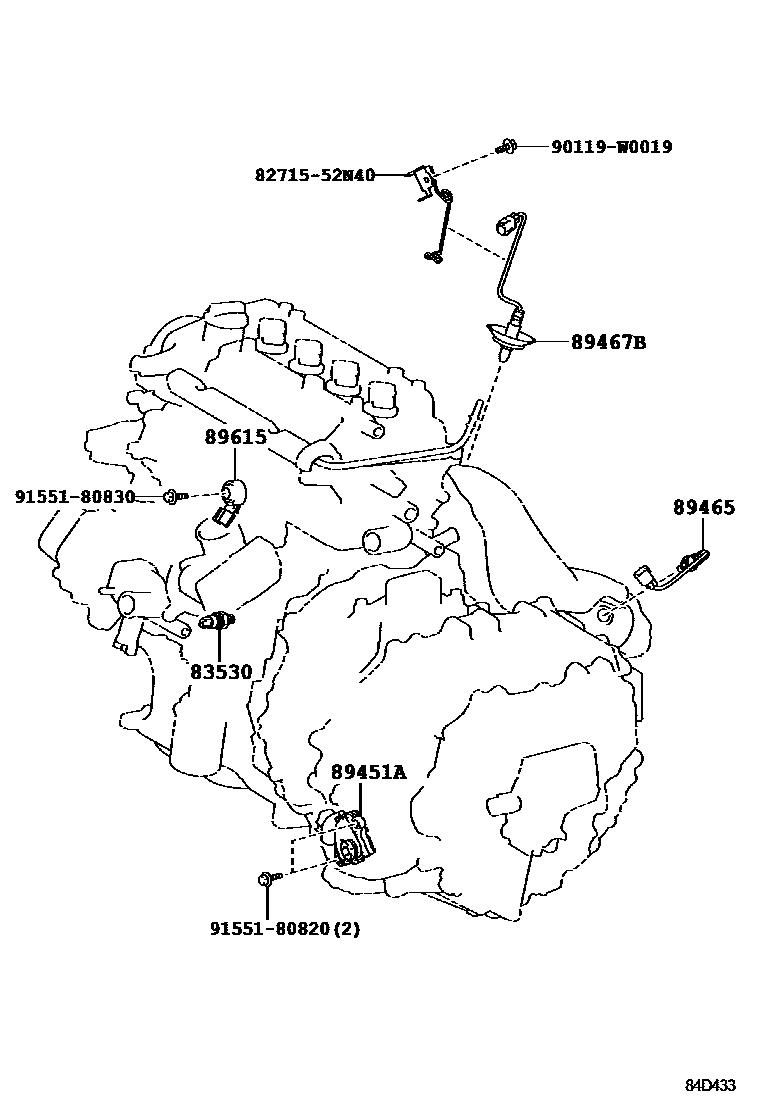

Toyota YARIS 开关和继电器和ECU — Figure 8401
Toyota YARIS EPC diagram 8401, 开关和继电器和ECU, with 14 images and 41 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 16100P | water pump relay | 90080-87021 |
| 28300 | Starter relay assembly | 28300-28010 |
| 28610A | Sub glow plug relay assembly | 28610-67010 |
| 28850 | Battery current sensor assembly | 28850-40020 |
| 28865 | battery thermometer sensor | 28865-21030 |
| 69065A | Air bag cut-off switch lock cylinder sub-assembly | 69065-02010 · 69065-05050 · 69065-0D020 |
| 81550T | Reversing light relay | 90080-87021 |
| 82210N | Instrument panel fuse | 90982-08306 |
| 82210P | Engine room fuse | 90982-08246 · 90982-08294 · 90982-08295 · 90982-08296 · 90982-08300 · 90982-08305 |
| 82600D | Dashboard fuse | 90982-09019 · 90982-09020 · 90982-09021 · 90982-09022 · 90982-09023 · 90982-09024 |
| 82600E | Engine room fuse | 90982-09019 · 90982-09020 · 90982-09021 · 90982-09022 · 90982-09023 · 90982-09024 · 90982-09025 |
| 82616 | fuse puller | 82616-58010 |
| 82620A | Fuse box assembly | 82620-52070 · 82620-52080 · 82620-52090 · 82620-52091 |
| 82621A | Fuse cover | 82621-0D020 · 82621-52150 |
| 82630 | Fuse holder assembly | 82631-0D010 |
| 82630C | Fuse holder assembly | 82631-0D020 |
| 82630D | fuse holder | 82631-0D030 · 82631-52050 |
| 82630F | fuse holder | 82631-0D040 · 82631-52060 |
| 82641 | Integrated relay No. 1 | 82641-47020 · 82641-52020 · 82641-52030 |
| 82641C | Integrated relay No. 2 | 82641-52060 |
| 82642A | driving light relay | 90080-87021 |
| 82660B | Relay assembly | 82660-0H070 |
| 82660C | Relay assembly | 82660-0C110 |
| 82660D | Relay assembly | 82660-0C110 |
| 82660E | Relay assembly | 82660-0H070 |
| 82660F | Relay assembly | 82660-52010 |
| 82661 | No. 1 relay box cover | 82661-52030 |
| 82662A | No. 1 relay box upper cover | 82662-0D120 · 82662-0D130 · 82662-52790 · 82662-52791 |
| 82662B | No. 2 relay box upper cover | 82662-0D140 · 82662-0D141 · 82662-0D150 · 82662-52800 |
| 82663 | Relay box lower cover | 82663-0D060 · 82663-52100 |
| 82663A | No. 2 relay box lower cover | 82663-0D070 · 82663-52110 |
| 82672A | Junction box cover | 82672-52020 · 82672-52080 |
| 82730 | Instrument panel junction box assembly | 82730-52F80 · 82730-52G40 · 82730-52L70 · 82730-52M80 · 82730-52M81 · 82730-52N60 |
| 82741 | Engine room relay box | 82741-0D070 · 82741-52090 |
| 82742 | Engine room No. 2 relay box | 82741-0D080 · 82741-52100 |
| 83320 | Fuel gauge sensor assembly | 83320-0D051 · 83320-0D110 · 83320-0D120 · 83320-52261 · 83320-52270 · 83320-52280 |
| 83520 | Oil pressure gauge sensor assembly | 83520-60060 |
| 83530 | Oil pressure switch assembly (for engine) | 83530-05010 · 83530-28010 · 83530-28020 · 83530-60020 |
| 83950M | Warning light assembly | 83950-0D050 · 83950-0D070 · 83950-0D080 |
| 84052 | Unlock warning switch assembly | 84052-71010 |
| 84140 | Headlight dimmer switch assembly | 84140-02311 · 84140-02321 · 84140-02331 · 84140-02341 · 84140-0D270 · 84140-0D300 · 84140-0D310 |
