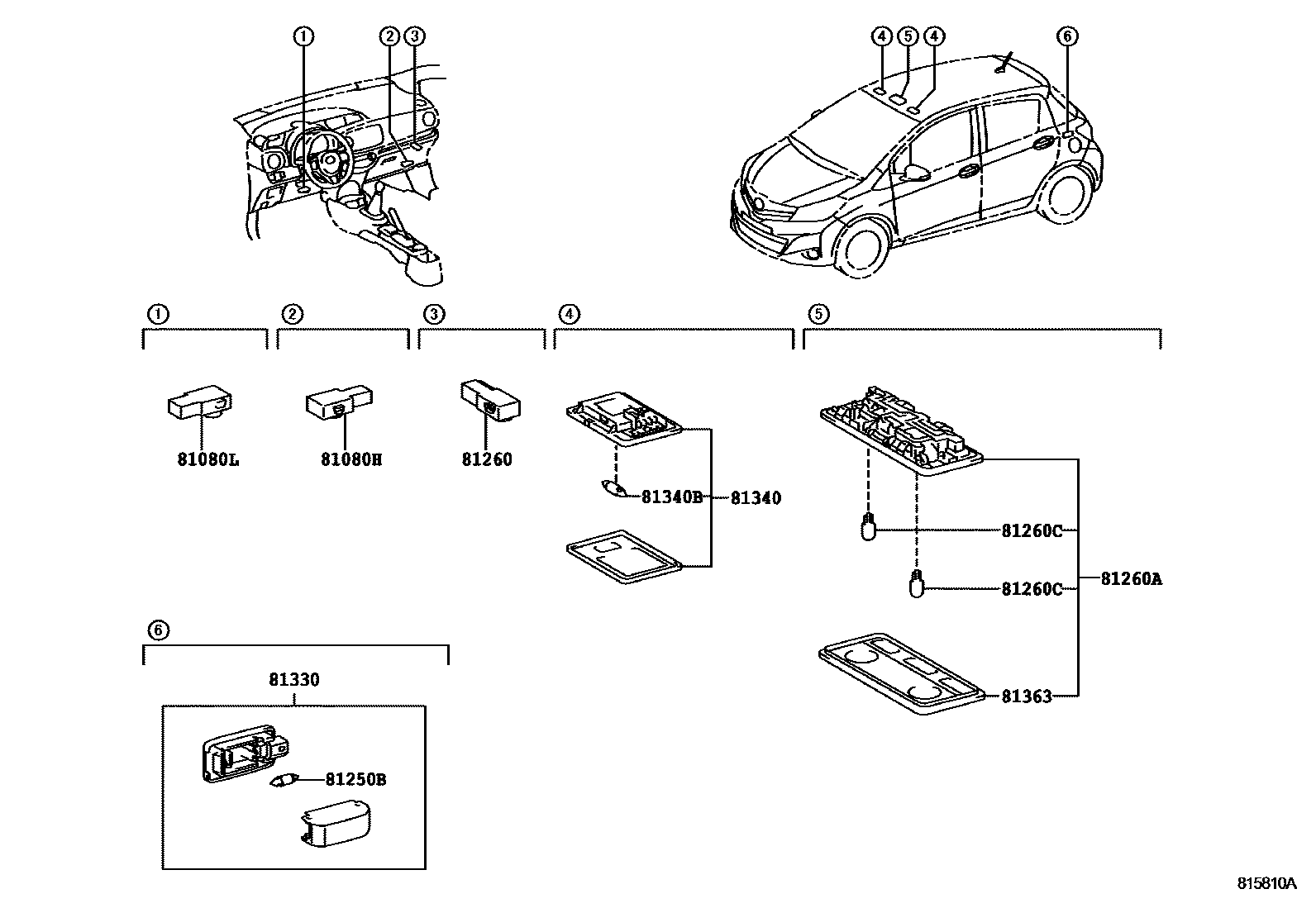

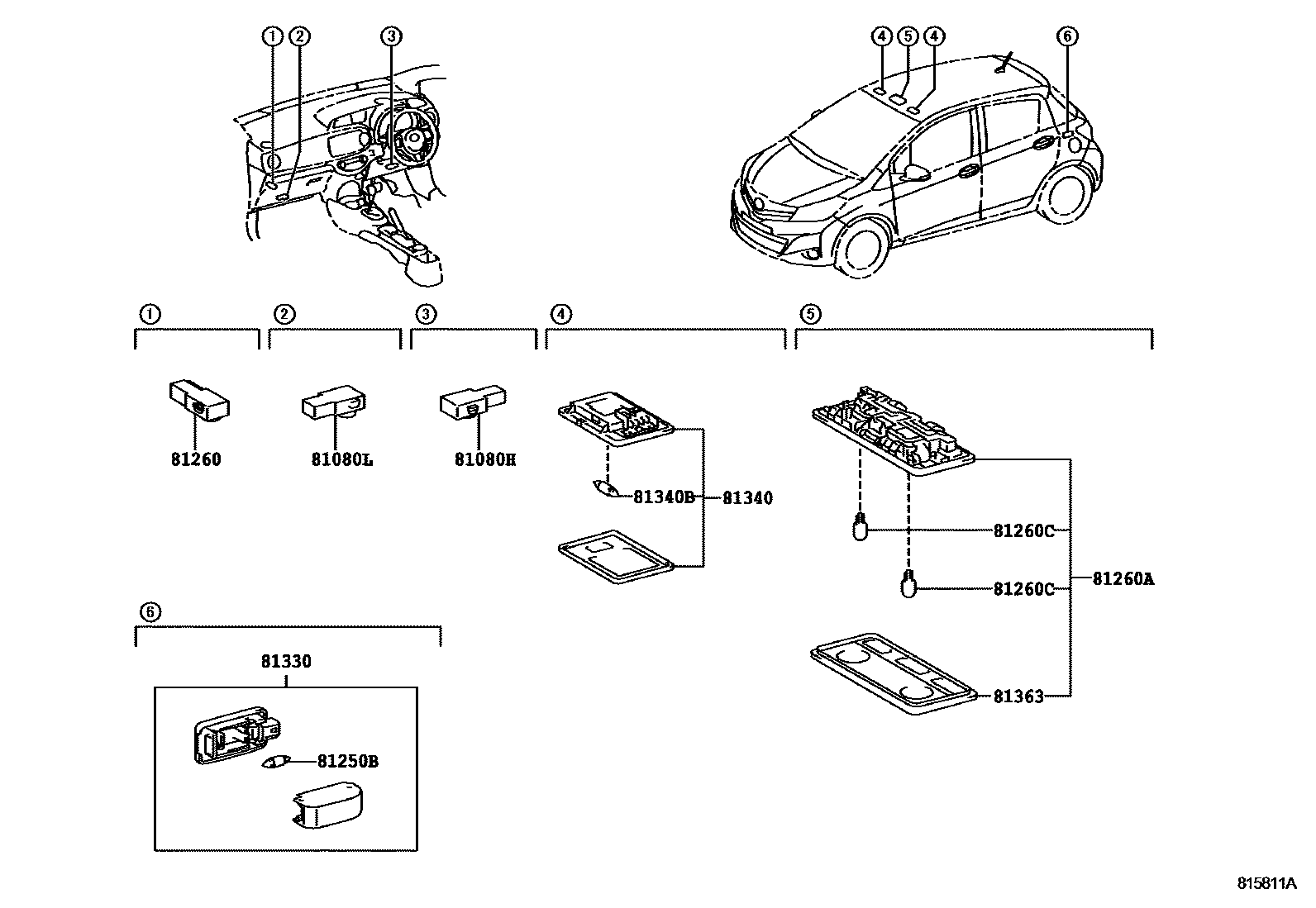

Toyota YARIS 车内灯 — Figure 8121
Toyota YARIS EPC diagram 8121, 车内灯, with 2 images and 8 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 81080H | Right No. 1 interior lighting assembly | 81080-0D010 · 81080-22040 · 81080-48010 |
| 81080L | No. 1 interior lighting assembly on the left | 81080-0D010 · 81080-22040 · 81080-48010 |
| 81250B | Interior light bulb No. 2 | 90981-WE003 |
| 81260 | Glove box light assembly | 81080-0D010 · 81080-22040 · 81080-48010 |
| 81260C | Light bulb (for reading lamp) | 90981-12010 |
| 81330 | No. 1 trunk light assembly | 81330-05050 |
| 81340B | Bulb (for vanity lights) | 90981-WE003 · 99132-13050 |
| 81363 | Car interior light exterior lampshade | 81363-0D010 |
