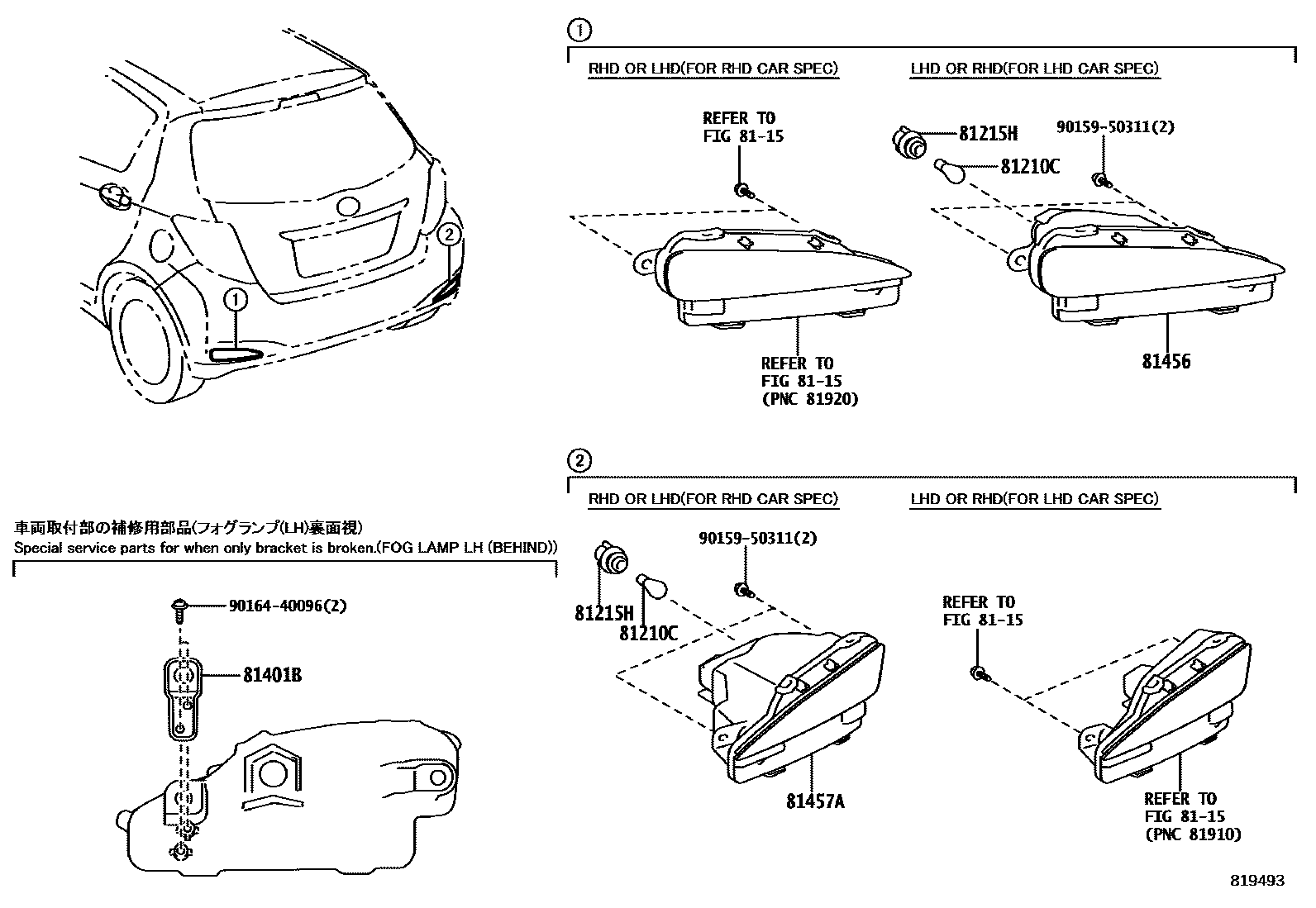

Toyota YARIS 后雾灯 — Figure 8116
Toyota YARIS EPC diagram 8116, 后雾灯, with 1 images and 5 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 81210C | Rear fog light bulb | 90981-WC006 |
| 81215H | Rear fog light lamp holder | 90075-99092 |
| 81401B | Fog light bracket sub-assembly | 81401-0D010 |
| 81456 | Left rear fog lamp cover and lamp body | 81591-0D050 |
| 81457A | Right rear fog lamp cover and lamp body | 81581-0D070 |
