Toyota YARIS 后组合灯 — Figure 8111

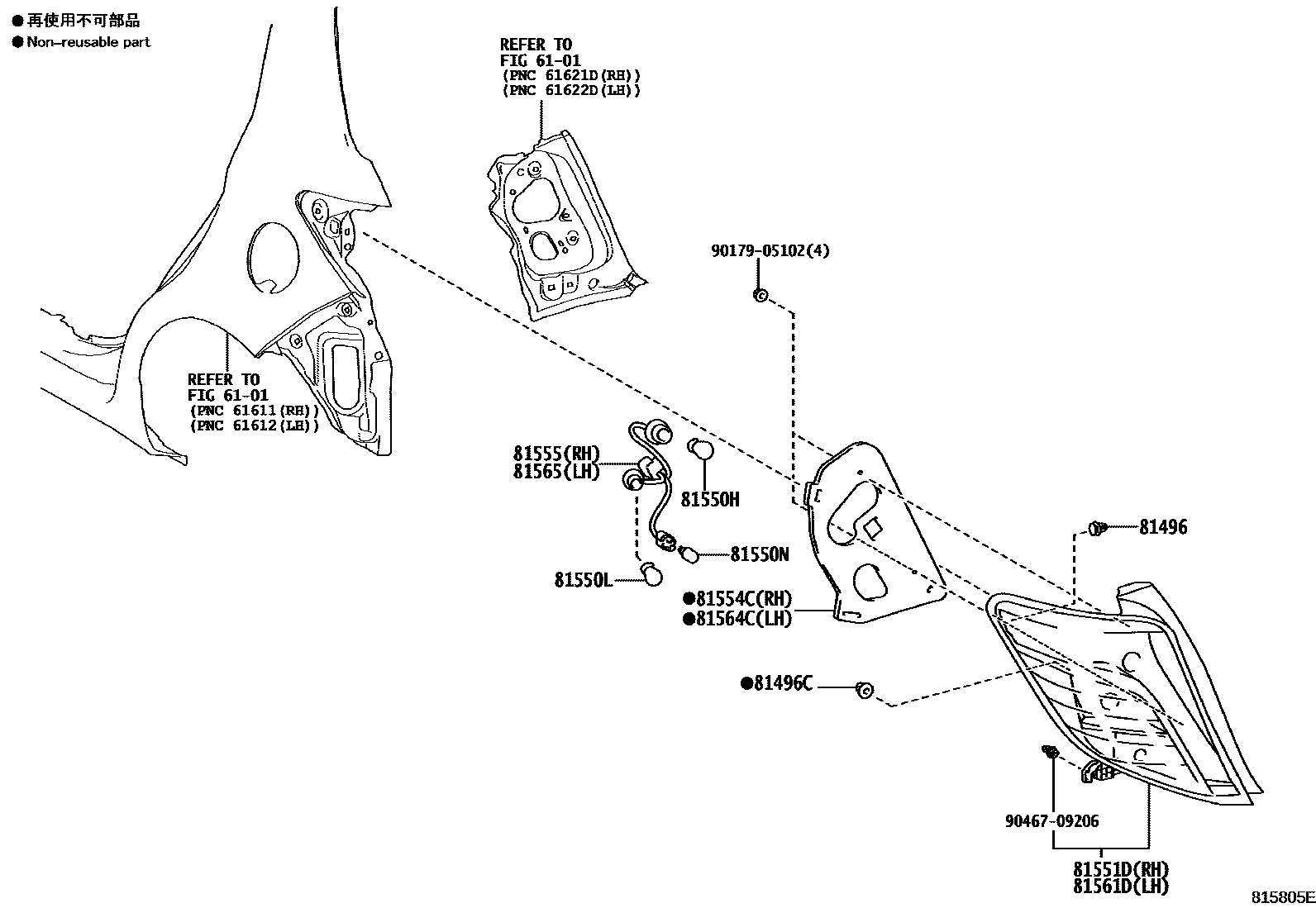

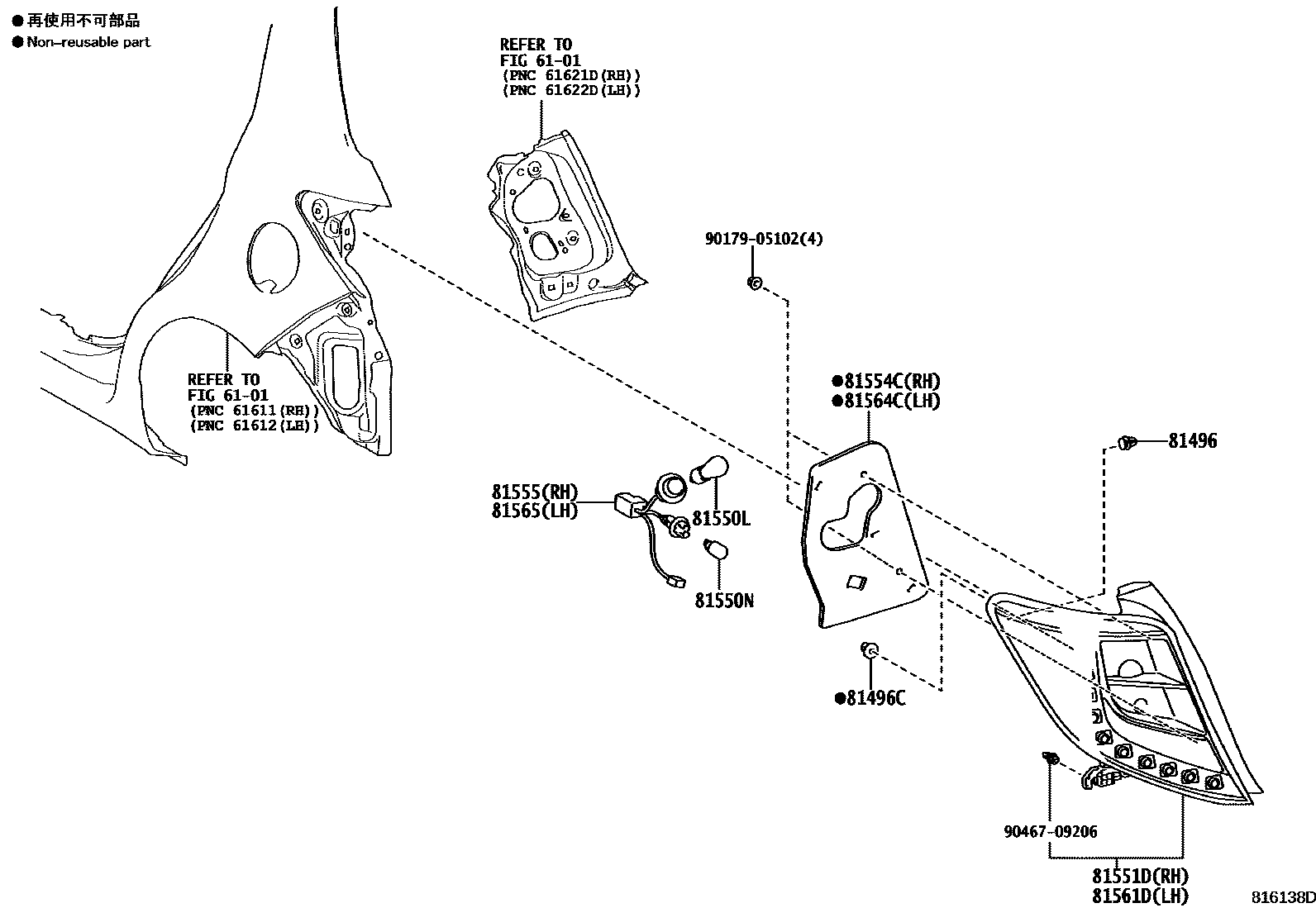

Toyota YARIS EPC diagram 8111, 后组合灯, with 2 images and 11 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 81496 | Rear combination light guide block | 81496-60010 |
| 81496C | No. 2 rear combination light guide block | 81496-52020 |
| 81550H | Tail and brake light bulbs | 90981-WC005 |
| 81550L | Rear turn signal light bulb | 90981-WF005 |
| 81550N | reversing light bulb | 90981-WB007 |
| 81551D | Right rear combination lamp shade and lamp body | 81551-0D370 · 81551-0D390 · 81551-0D540 |
| 81554C | Right rear combination lamp lamp body seal | 81554-0D370 · 81554-0D390 |
| 81555 | Right rear combination lamp lamp holder and wiring harness sub-assembly | 81555-0D370 · 81555-0D390 |
| 81561D | Left rear combination lamp lampshade and lamp body | 81561-0D370 · 81561-0D390 · 81561-0D540 |
| 81564C | Left rear combination lamp body seal | 81564-0D370 · 81564-0D390 |
| 81565 | Left rear combination lamp lamp holder and wiring harness sub-assembly | 81555-0D370 · 81555-0D390 |
