Toyota YARIS Fog Lamp — Figure 8102

Toyota YARIS EPC diagram 8102, Fog Lamp, with 2 images and 3 PNC and OE references.

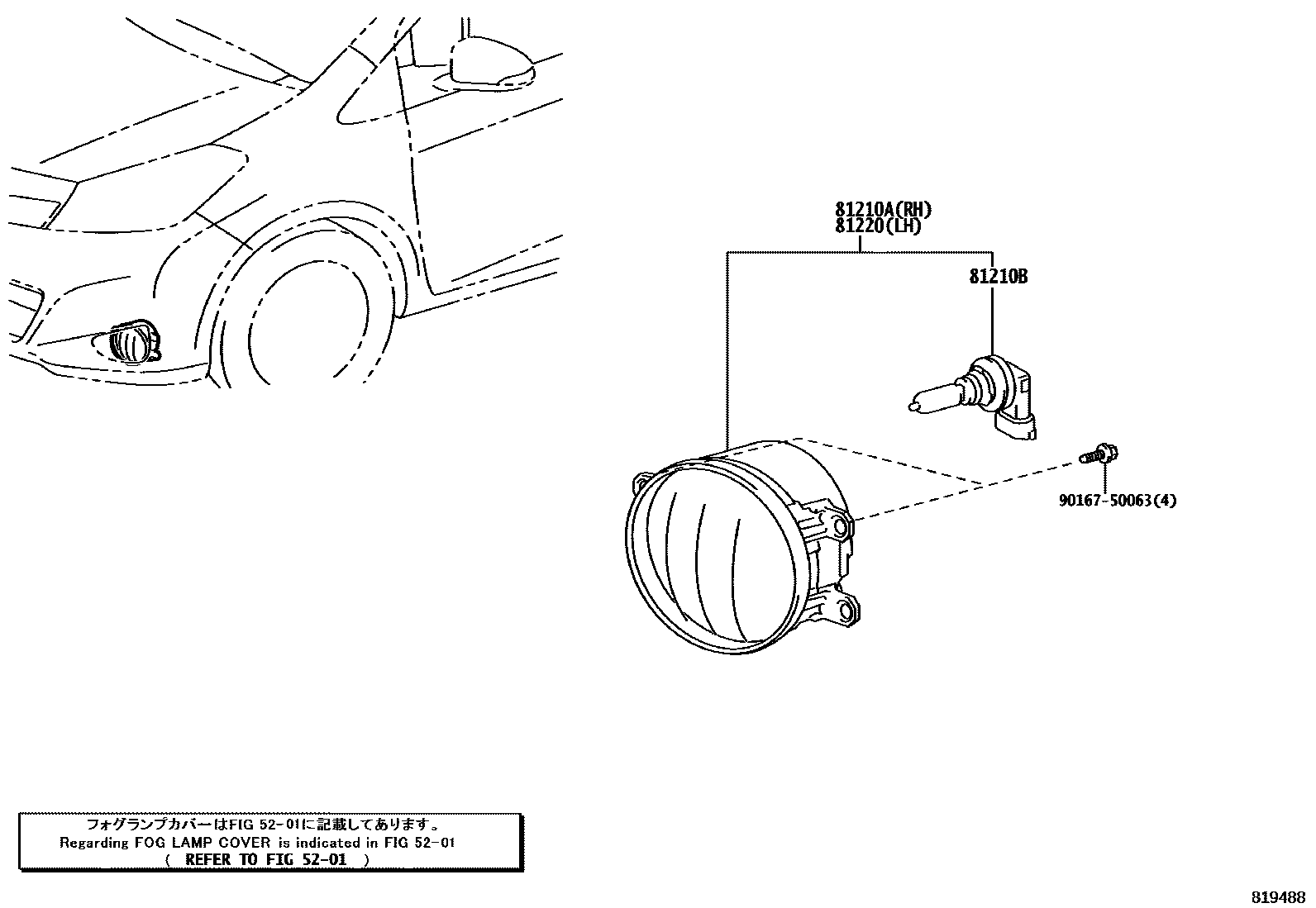

Toyota YARIS Fog Lamp EPC diagram — 819488
Fog Lamp — 819488 (201107 – 999999)

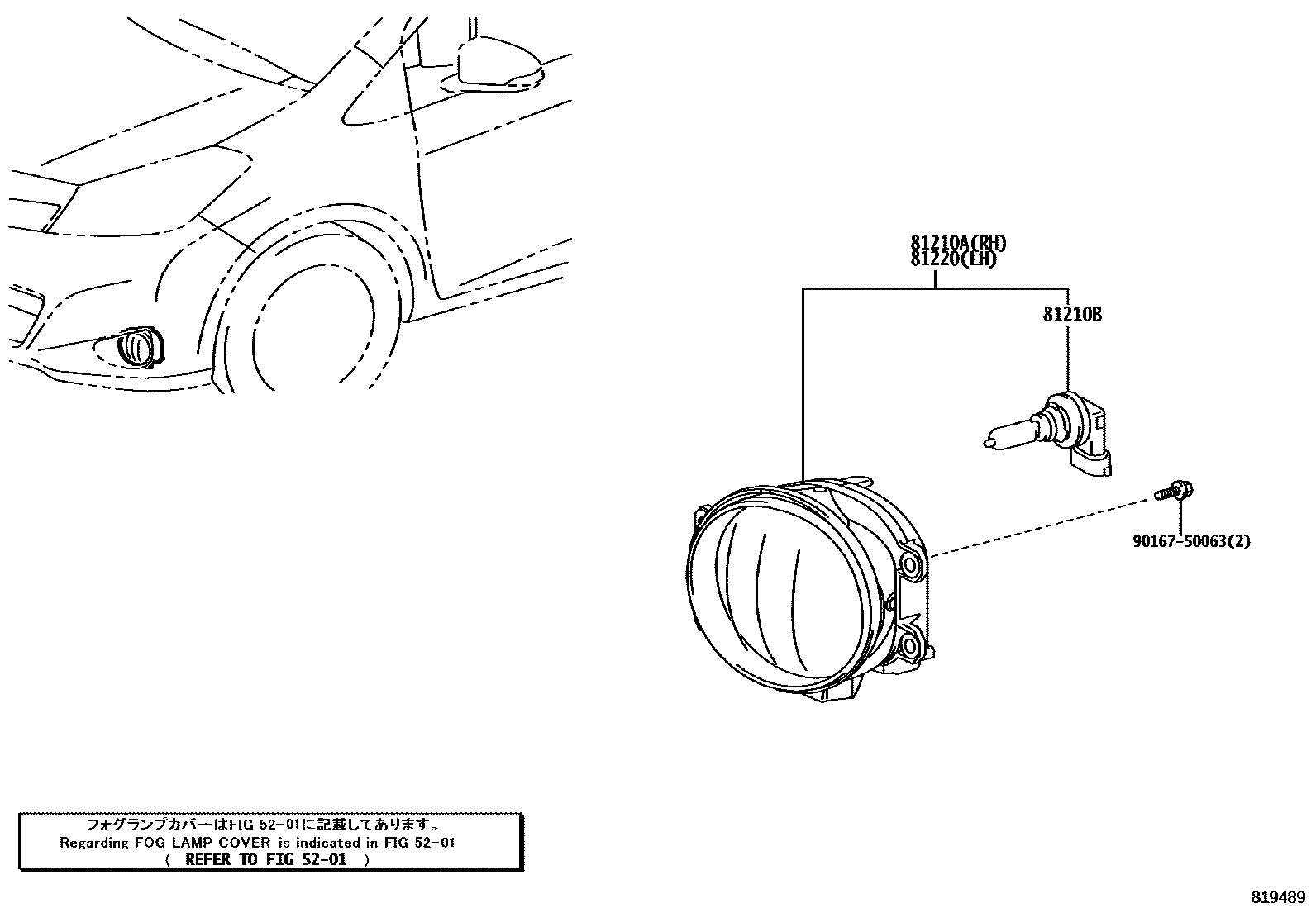

Toyota YARIS Fog Lamp EPC diagram — 819489
Fog Lamp — 819489 (201204 – 999999)

PNC and OE references

PNCPart nameOE numbers
81210ARight fog light assembly81210-02110 · 81210-0D042
81210Bfog light bulb90981-13075 · 90981-13081 · 90981-WD016
81220Left fog light assembly81220-02110 · 81220-0D042
