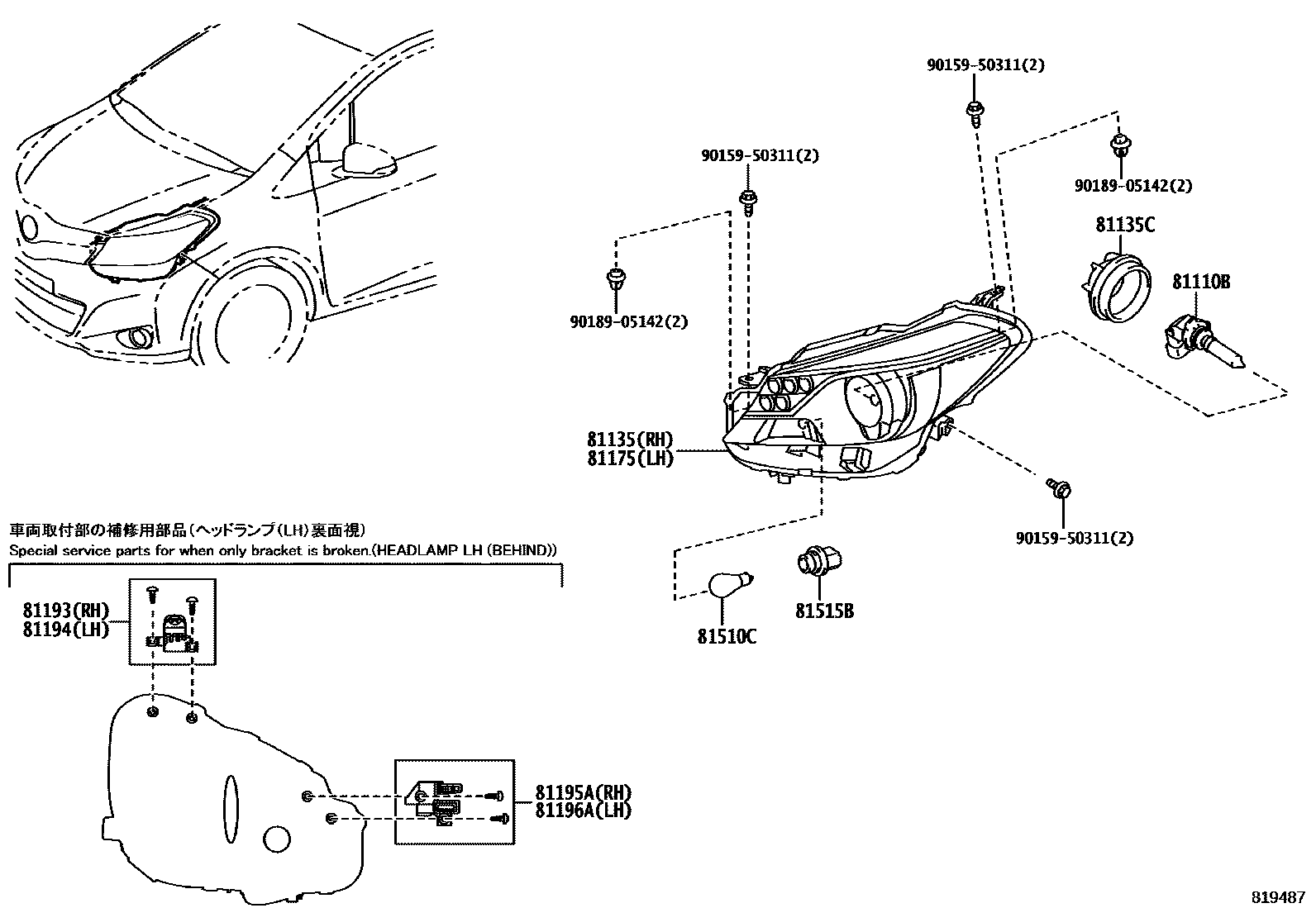

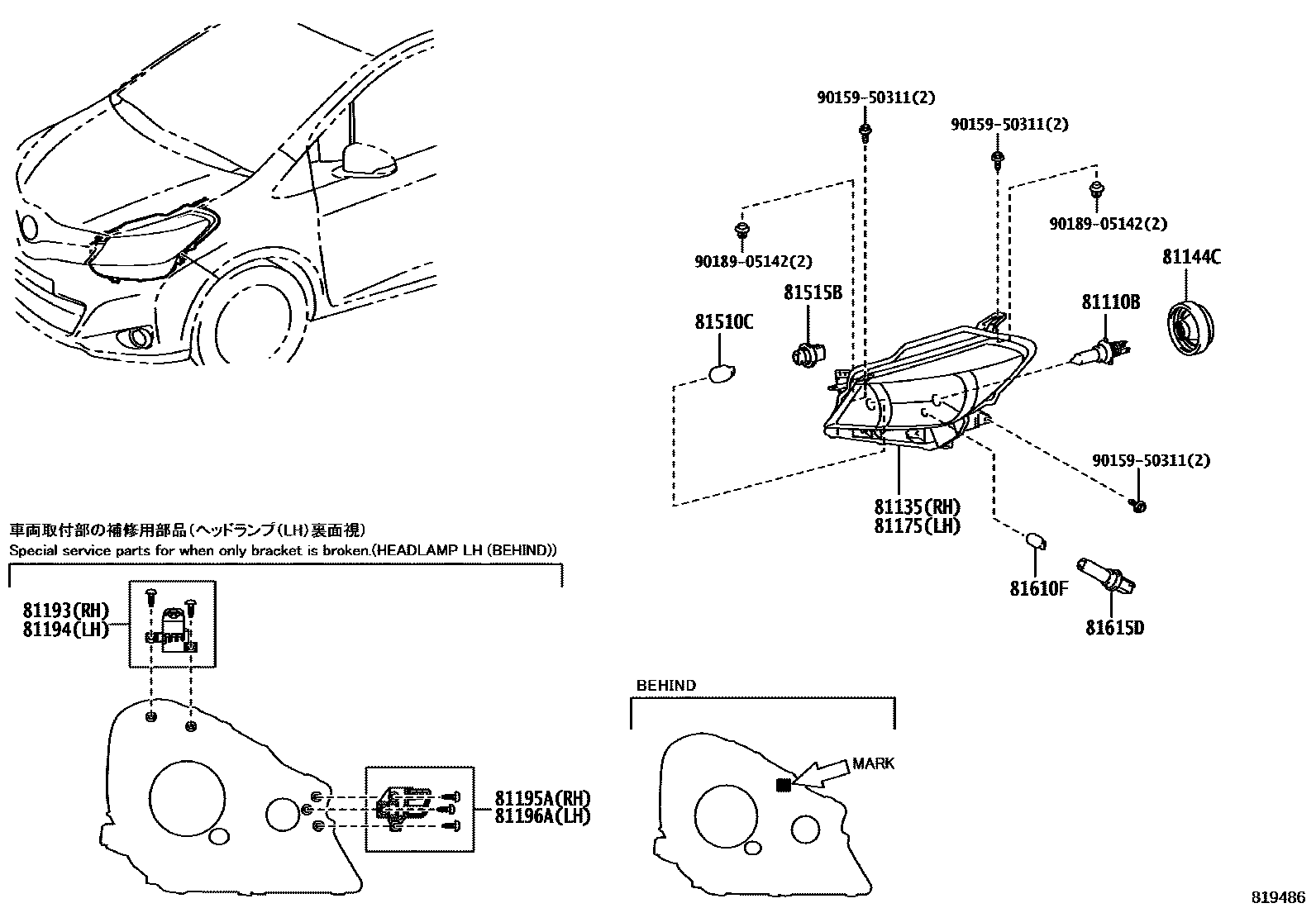

Toyota YARIS Headlamp — Figure 8101
Toyota YARIS EPC diagram 8101, Headlamp, with 2 images and 13 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 81110B | Bulb (for headlight No. 1) | 90981-13058 · 90981-13091 |
| 81135 | Right headlight assembly | 81130-0D450 · 81130-0D460 · 81130-0D470 · 81130-0D480 · 81130-0D500 · 81130-0D510 · 81130-0D710 · 81130-0D720 · 81130-0D810 · 81130-0D820 |
| 81135C | No. 1 headlight rear cover | 81135-05340 |
| 81144C | Headlight lamp holder cover | 90075-65002 |
| 81175 | Left headlight assembly | 81170-0D450 · 81170-0D460 · 81170-0D470 · 81170-0D480 · 81170-0D500 · 81170-0D510 · 81170-0D710 · 81170-0D720 · 81170-0D810 · 81170-0D820 |
| 81193 | Right headlight upper protective ring | 81193-0D080 · 81193-52200 |
| 81194 | Left headlight upper protective ring | 81194-0D080 · 81194-52200 |
| 81195A | Right headlight lower protection ring | 81195-0D070 · 81195-52160 |
| 81196A | Left headlight lower protection ring | 81196-0D070 · 81196-52160 |
| 81510C | Bulb (for front turn signal lamp) | 90981-WF005 |
| 81515B | Front turn signal lamp holder | 90075-60069 |
| 81610F | Light bulb (for width indicator light) | 90981-WB006 |
| 81615D | Width light lamp holder | 90075-60077 |
