Toyota YARIS accelerator pedal connecting rod — Figure 7801

Toyota YARIS EPC diagram 7801, accelerator pedal connecting rod, with 1 images and 2 PNC and OE references.

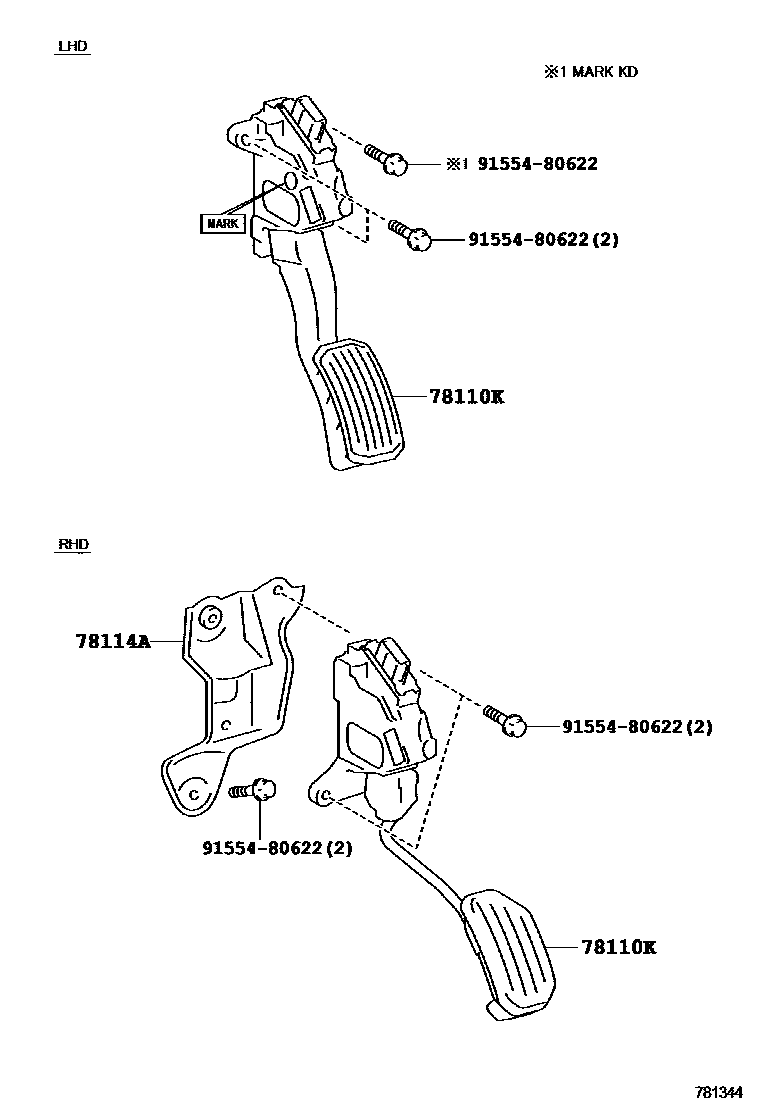

Toyota YARIS accelerator pedal connecting rod EPC diagram — 781344
accelerator pedal connecting rod — 781344 (201107 – 999999)

PNC and OE references

PNCPart nameOE numbers
78110KAccelerator pedal sensor assembly78110-0D140 · 78110-0D150 · 78110-0D160 · 78110-0D170
78114Aaccelerator pedal bracket78114-0D032
