Toyota YARIS 后防护条 — Figure 7504

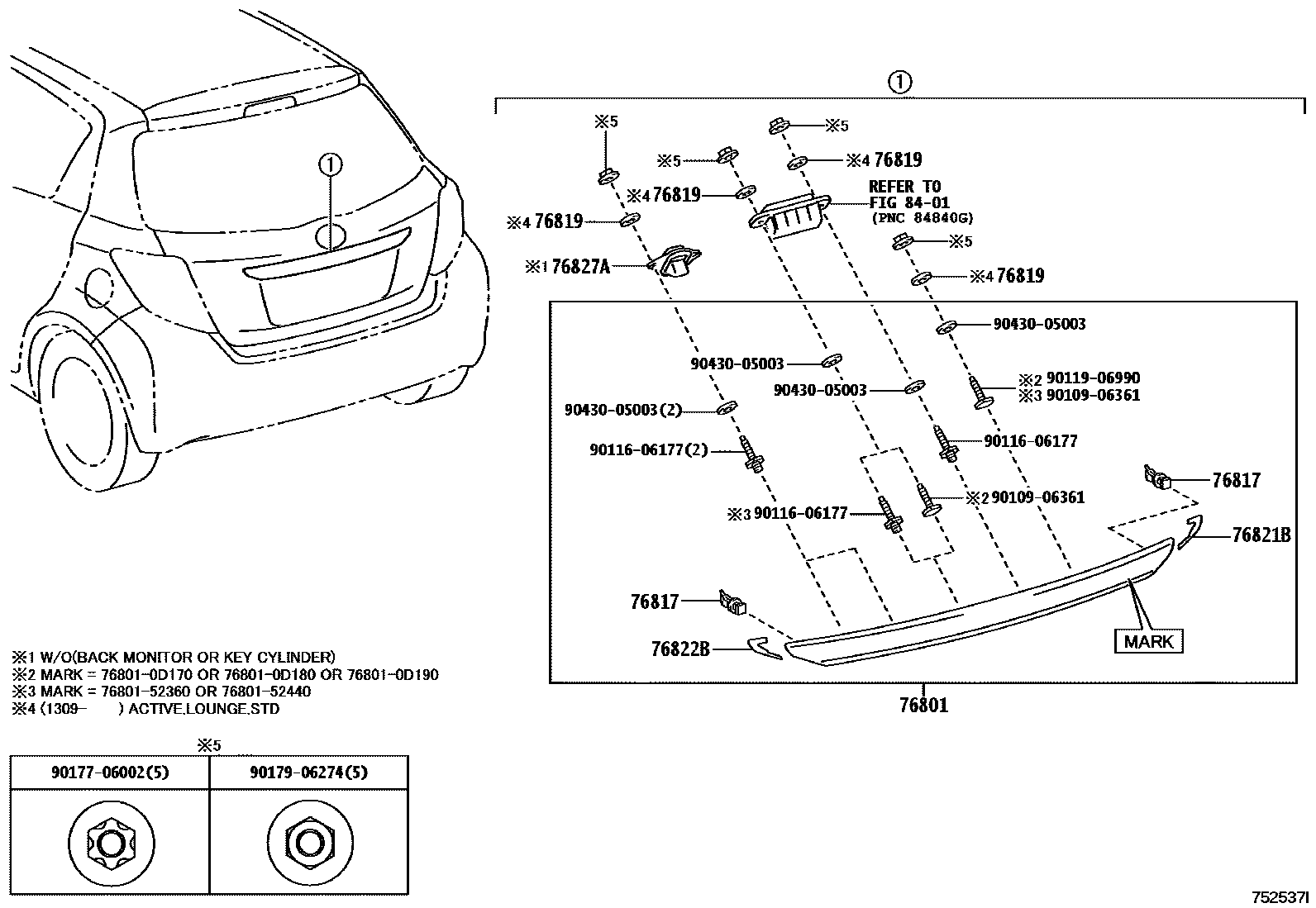

Toyota YARIS EPC diagram 7504, 后防护条, with 1 images and 6 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 76801 | Rear door exterior decorative strip sub-assembly | 76801-0D170 · 76801-0D171 · 76801-0D180 · 76801-0D181 · 76801-0D190 · 76801-0D191 · 76801-0D192 · 76801-0D915 · 76801-52360 · 76801-52361 · 76801-52440 · 76801-52441 |
| 76817 | Rear door exterior decorative strip clip | 76817-50010 |
| 76819 | Rear door outer trim strip seal | 76819-0D010 |
| 76821B | Rear door right side decorative strip protective cover | 76821-0D030 · 76821-52140 |
| 76822B | Rear door left side decorative strip protective cover | 76822-0D010 · 76822-52070 |
| 76827A | No. 2 rear door trim strip fixings | 76827-0D010 |
