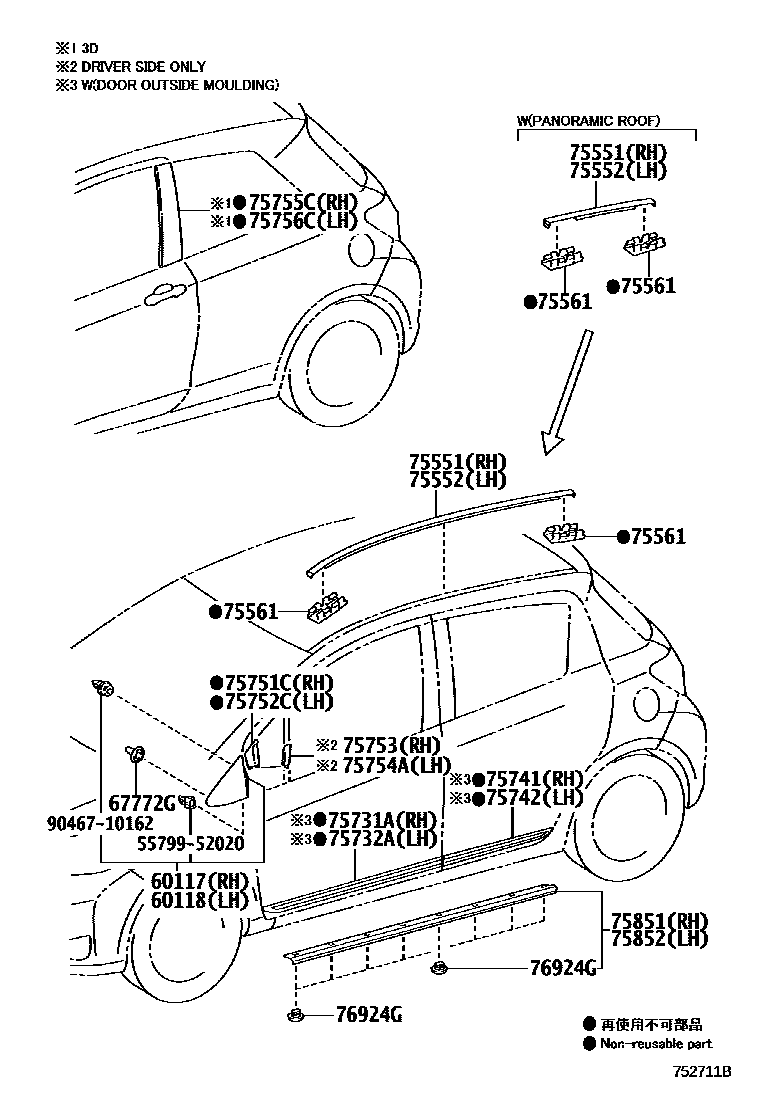

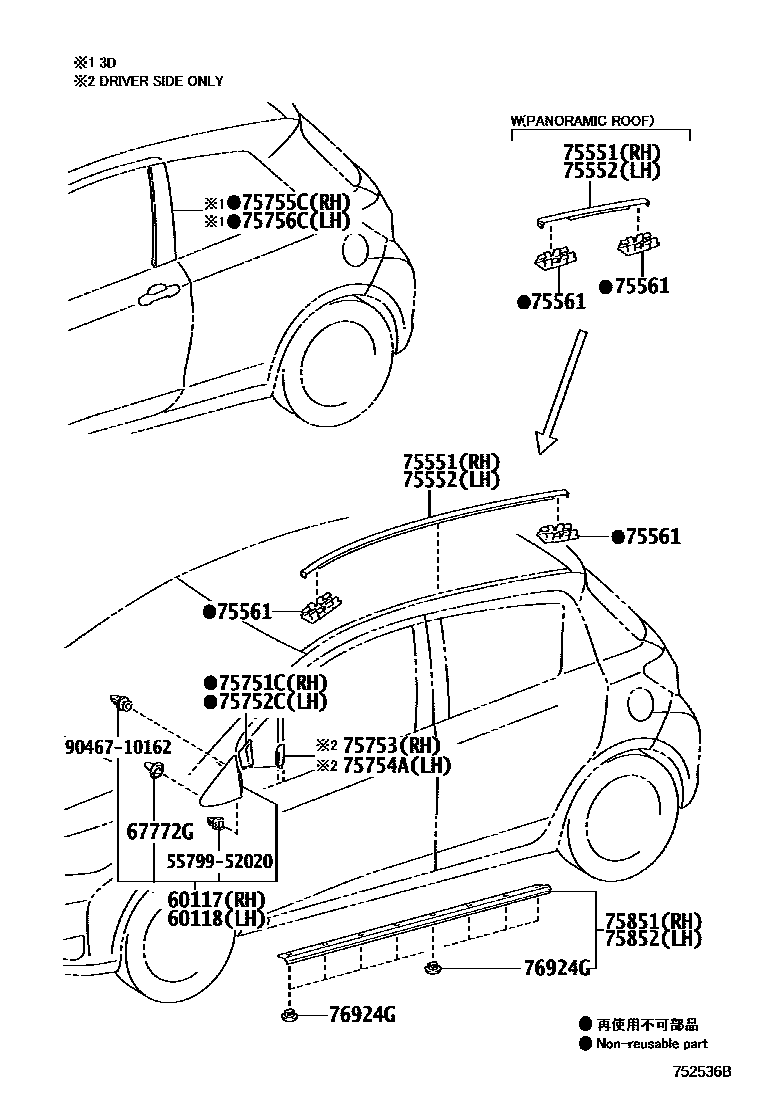

Toyota YARIS 侧防护条 — Figure 7503
Toyota YARIS EPC diagram 7503, 侧防护条, with 2 images and 19 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 60117 | Right front pillar upper cover sub-assembly | 60117-0D110 · 60117-0D111 |
| 60118 | Left front pillar upper cover sub-assembly | 60118-0D110 · 60118-0D111 |
| 67772G | front pillar cover | 67772-95J03 |
| 75551 | Drainage groove side decorative strip on the right side of the roof | 75551-0D130 · 75551-0D140 |
| 75552 | Drainage groove side decorative strip on the left side of the roof | 75552-0D080 · 75552-0D090 |
| 75561 | No. 1 roof drain channel side decorative strip clip | 75561-33030 |
| 75731A | Right front door outer protective strip | 75731-0D150 |
| 75732A | Left front door outer protective strip | 75732-0D150 |
| 75741 | Right rear door outer protective strip | 75741-0D150 |
| 75742 | Left rear door outer protective strip | 75742-0D150 |
| 75751C | Right front door window frame front protective strip | 75751-0D040 |
| 75752C | Left front door window frame front protective strip | 75752-0D040 |
| 75753 | Protective strip on right front door window frame | 75753-52010 |
| 75754A | Protective strip on left front door window frame | 75754-52010 |
| 75755C | Right front door window frame rear protective strip | 75755-0D020 |
| 75756C | Left front door window frame rear protective strip | 75756-0D020 |
| 75851 | Right side door sill panel protective strip | 75851-0D020 |
| 75852 | Left side door sill panel protective strip | 75852-0D020 |
| 76924G | Door sill panel protective strip fixings | 76924-12040 |
