Toyota YARIS 丰田徽标和铭牌(车外和车内) — Figure 7501

Toyota YARIS EPC diagram 7501, 丰田徽标和铭牌(车外和车内), with 1 images and 7 PNC and OE references.

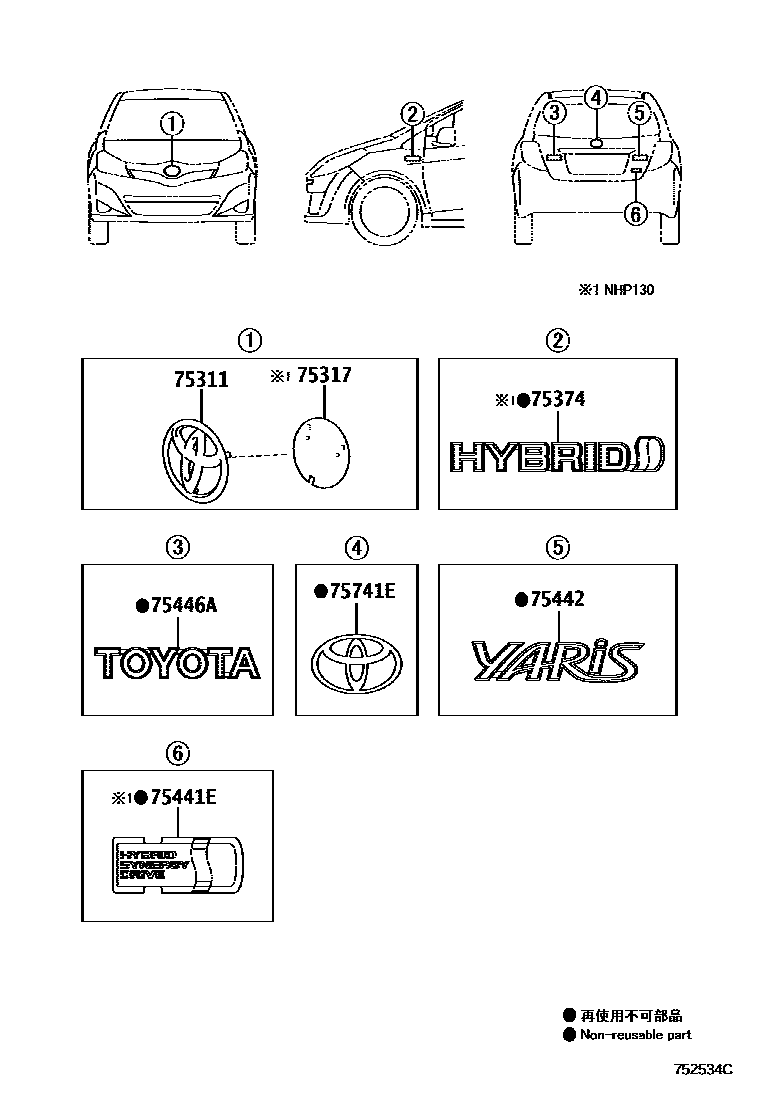

Toyota YARIS 丰田徽标和铭牌(车外和车内) EPC diagram — 752534C
丰田徽标和铭牌(车外和车内) — 752534C (201107 – 999999)

PNC and OE references

PNCPart nameOE numbers
75311Radiator grille (or front panel) plate75311-02140 · 75311-12B50 · 90975-W2003
75317Radiator grille decorative panel75317-0D010
75374side panel sign75374-52050 · 75374-52060
75441EBack door No. 1 nameplate75441-52120
75442Trunk door number plate No. 275442-0D150 · 75442-52380
75446ANo. 6 nameplate on back door75446-0D040 · 75446-52130
75741Elogo75403-48010 · 90975-02071 · 90975-02127
