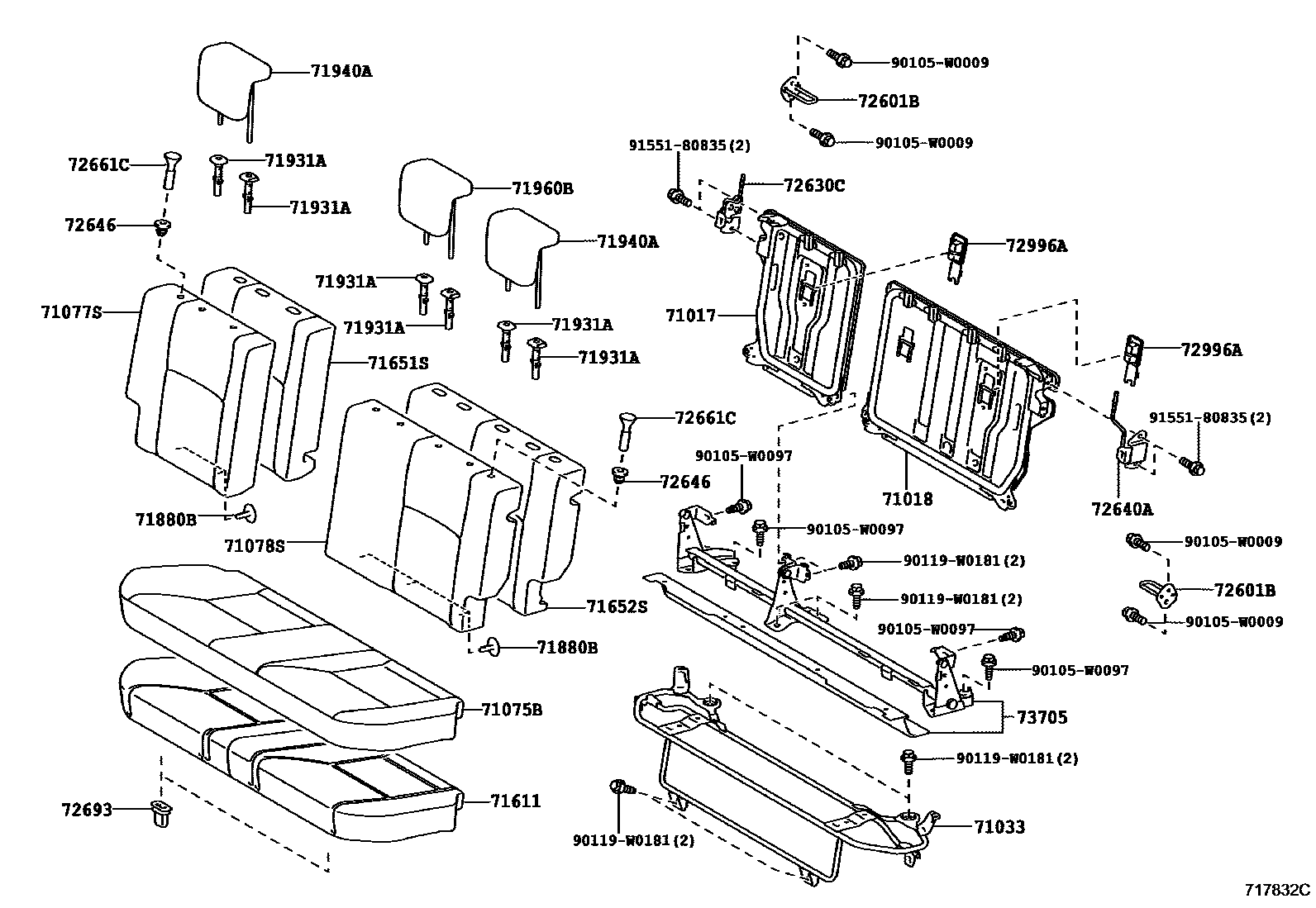

Toyota YARIS 后排座椅和座椅滑轨 — Figure 7102
Toyota YARIS EPC diagram 7102, 后排座椅和座椅滑轨, with 2 images and 13 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 71017 | Right rear seat back frame sub-assembly | 71017-0D250 · 71017-0D251 |
| 71018 | Rear left seat back frame sub-assembly | 71018-0D100 · 71018-0D101 |
| 71033 | Rear seat cushion and leg sub-assembly | 71033-0D100 · 71033-0D101 |
| 71305A | Rear center seat backrest hinge sub-assembly | 71305-0D020 |
| 71611 | Rear seat cushion cushion | 71503-0D190 · 71503-0D210 |
| 71651S | Rear right seat back cushion (for split seats) | 71651-0D220 |
| 71652S | Rear left seat back cushion (for split seats) | 71652-0D140 |
| 72601B | Rear seat back lock sub-assembly | 72601-0D030 |
| 72630C | Rear right seat back lock assembly | 72630-0D060 · 72630-0D150 · 72630-52170 |
| 72640A | Rear left seat back lock assembly | 72640-0D060 · 72640-0D150 · 72640-52170 |
| 72693 | Rear seat cushion hook | 72693-0D040 |
| 73705 | Child restraint seat anchor right side bracket sub-assembly | 73075-0D020 · 73705-0D140 |
| 73706 | Child restraint seat anchor left bracket sub-assembly | 73706-0D010 |
