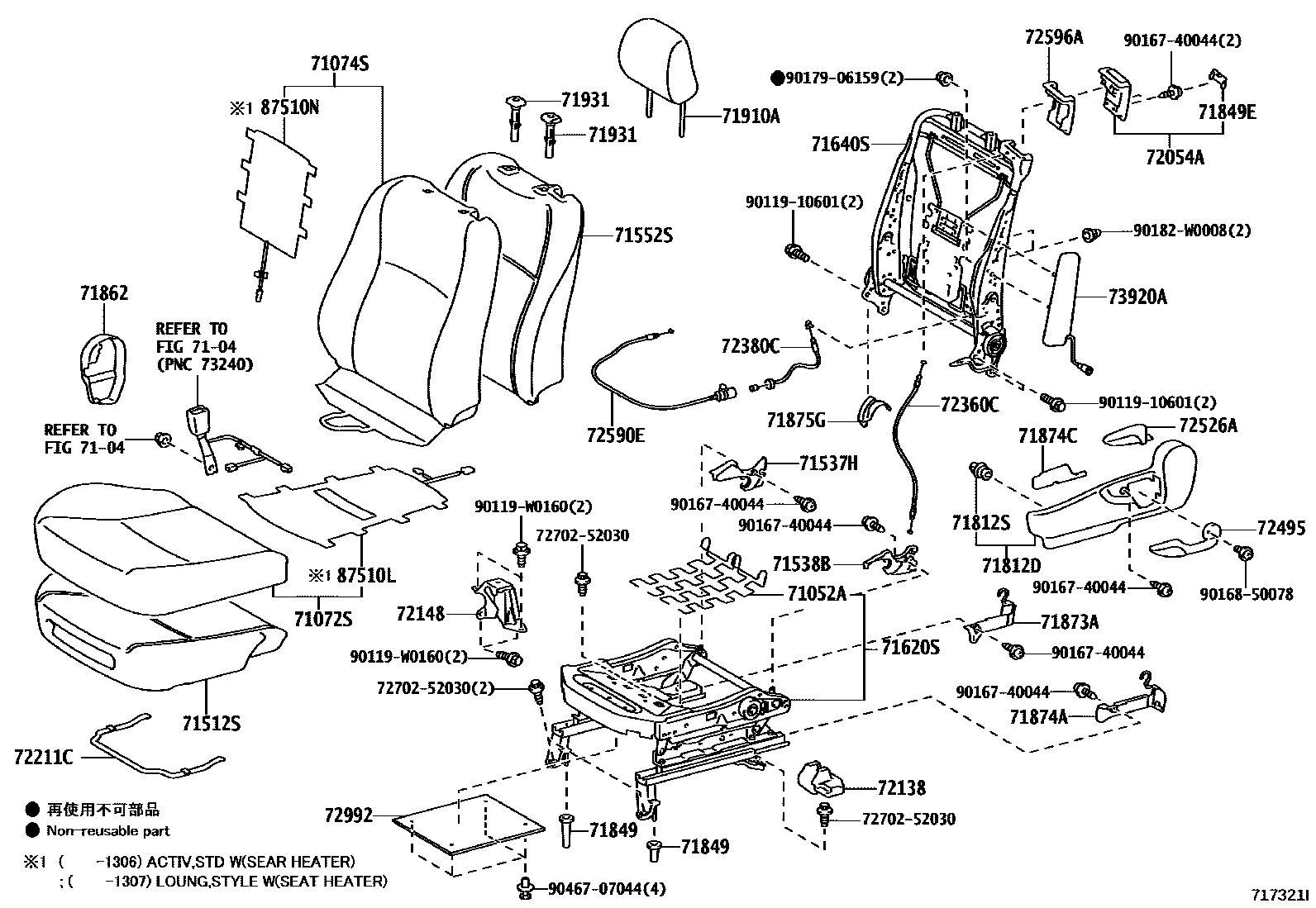

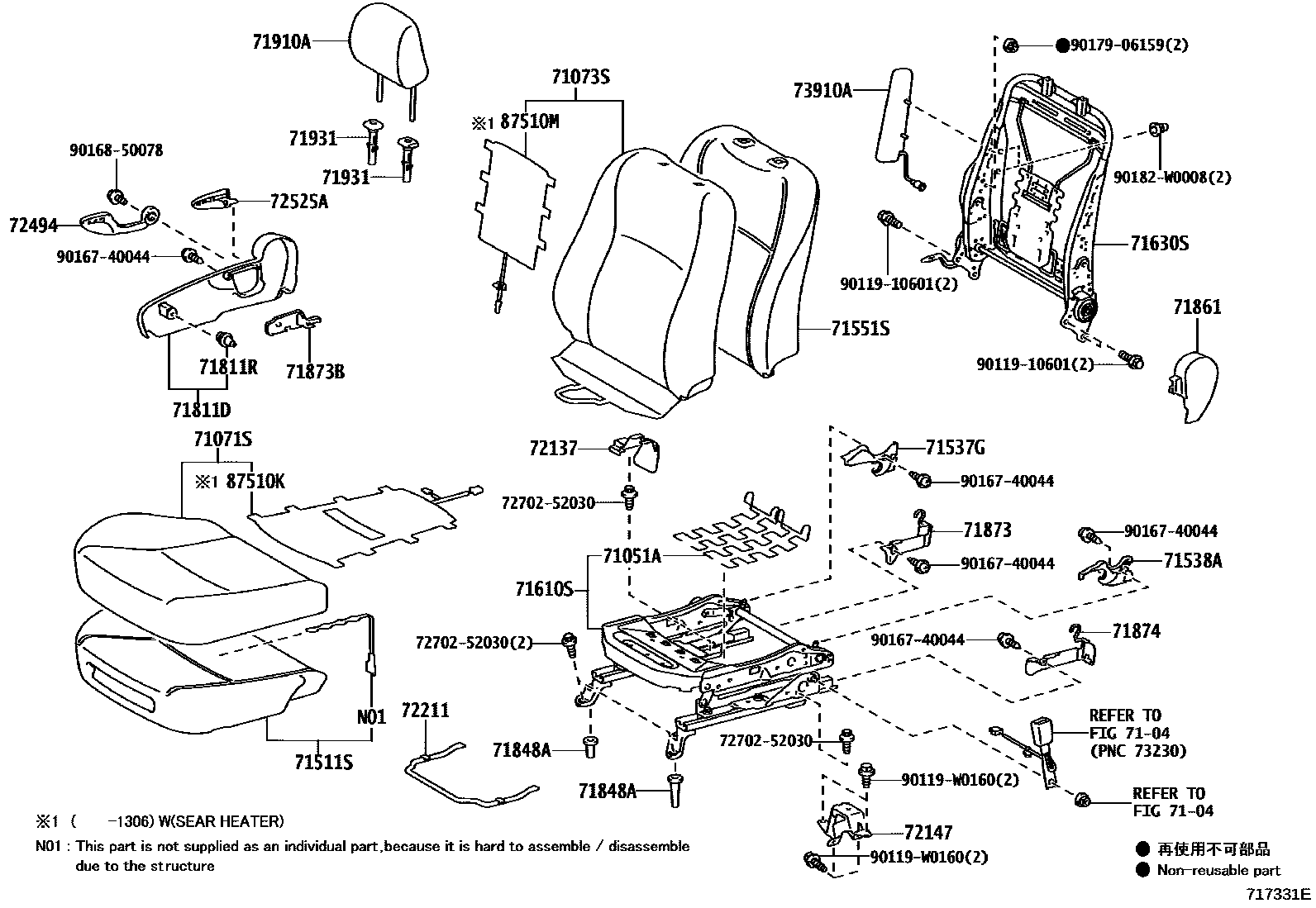

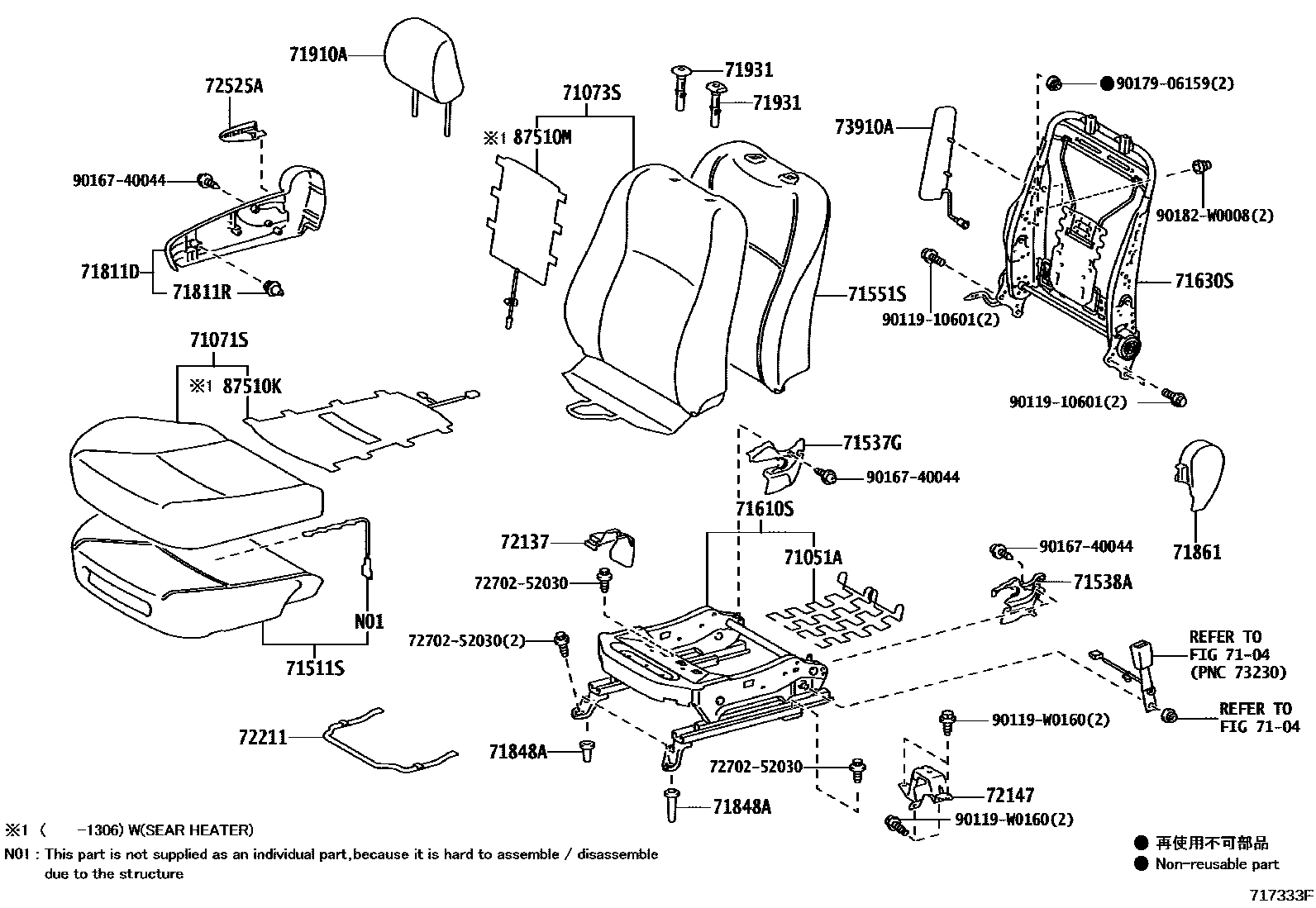

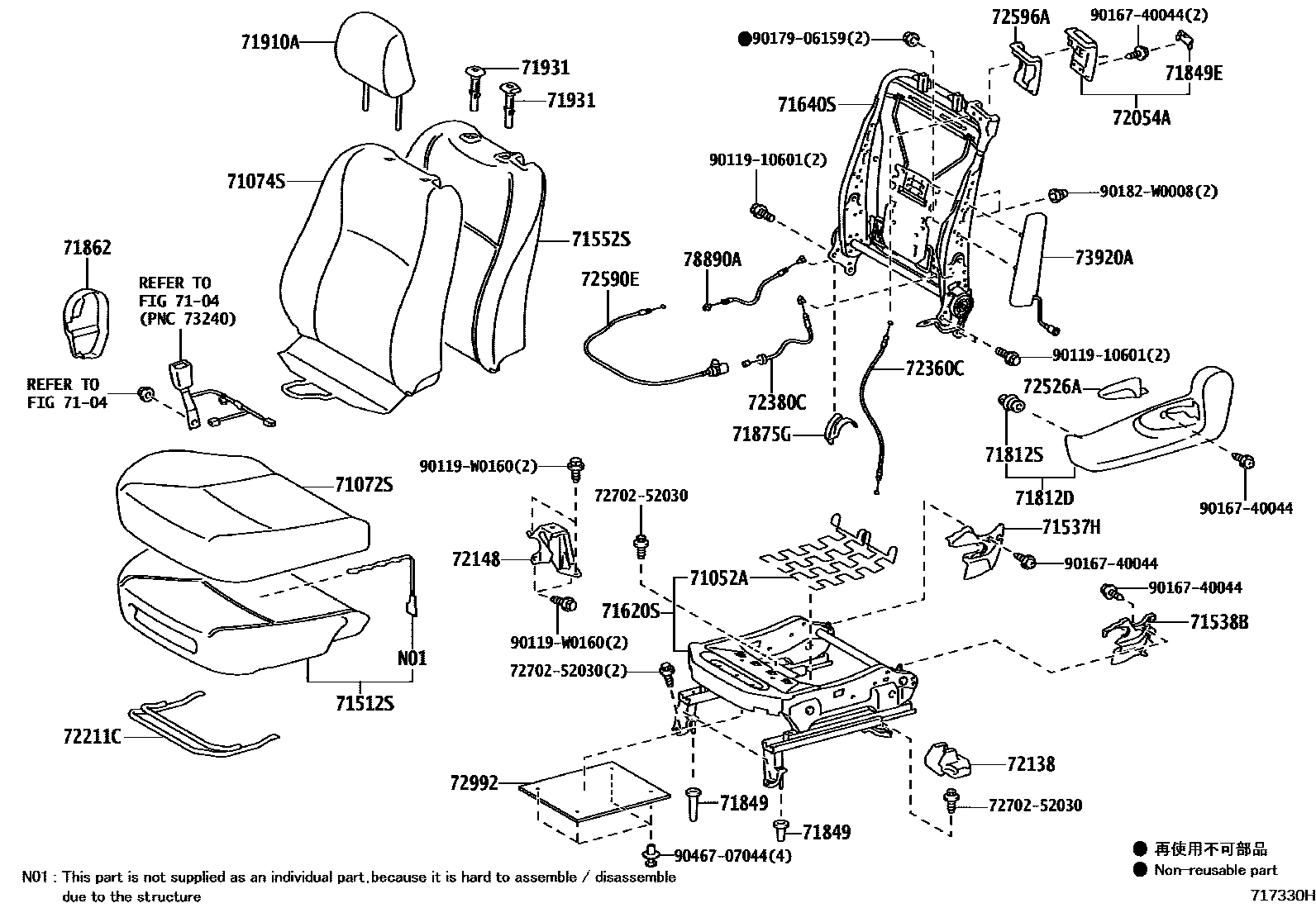

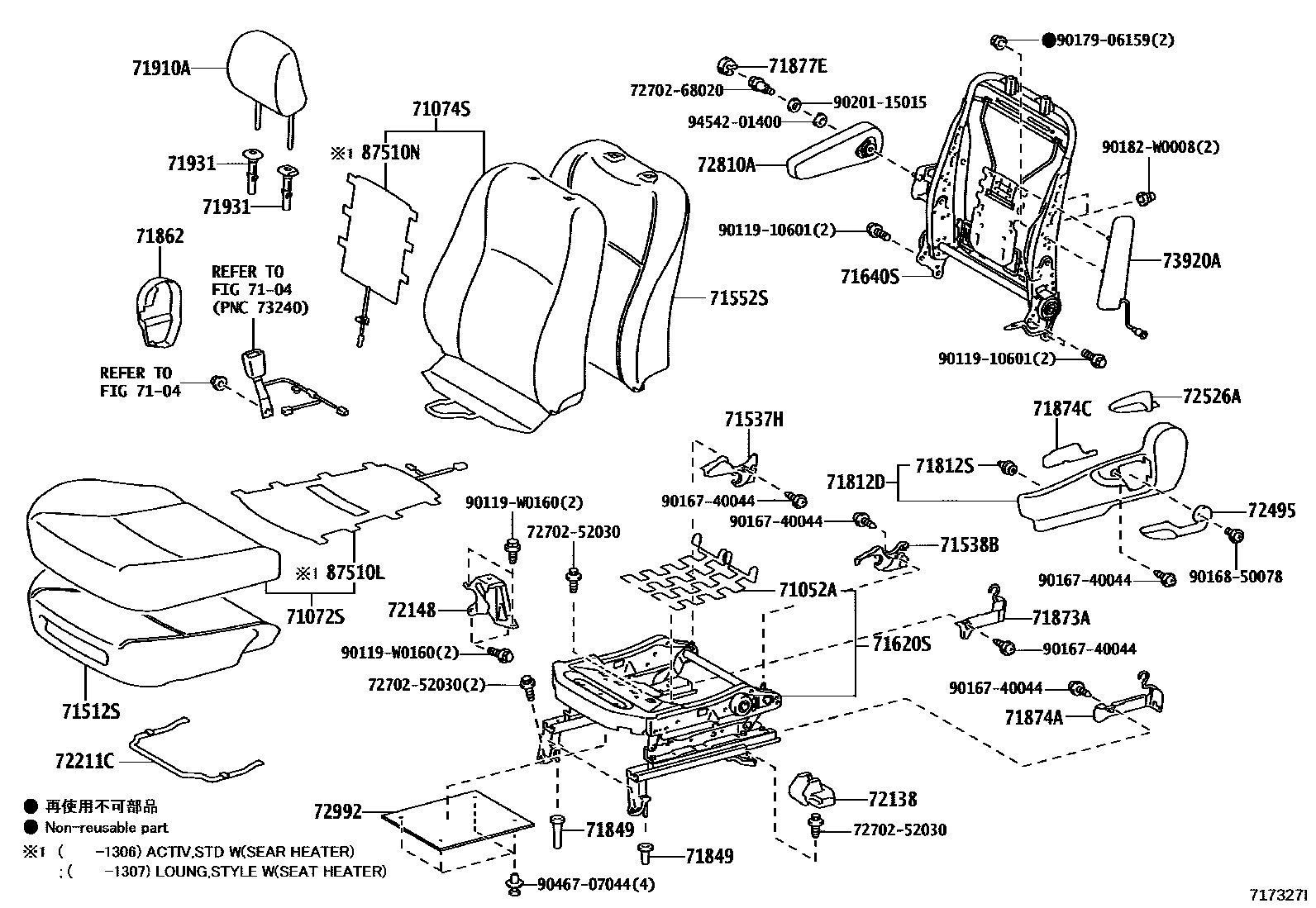

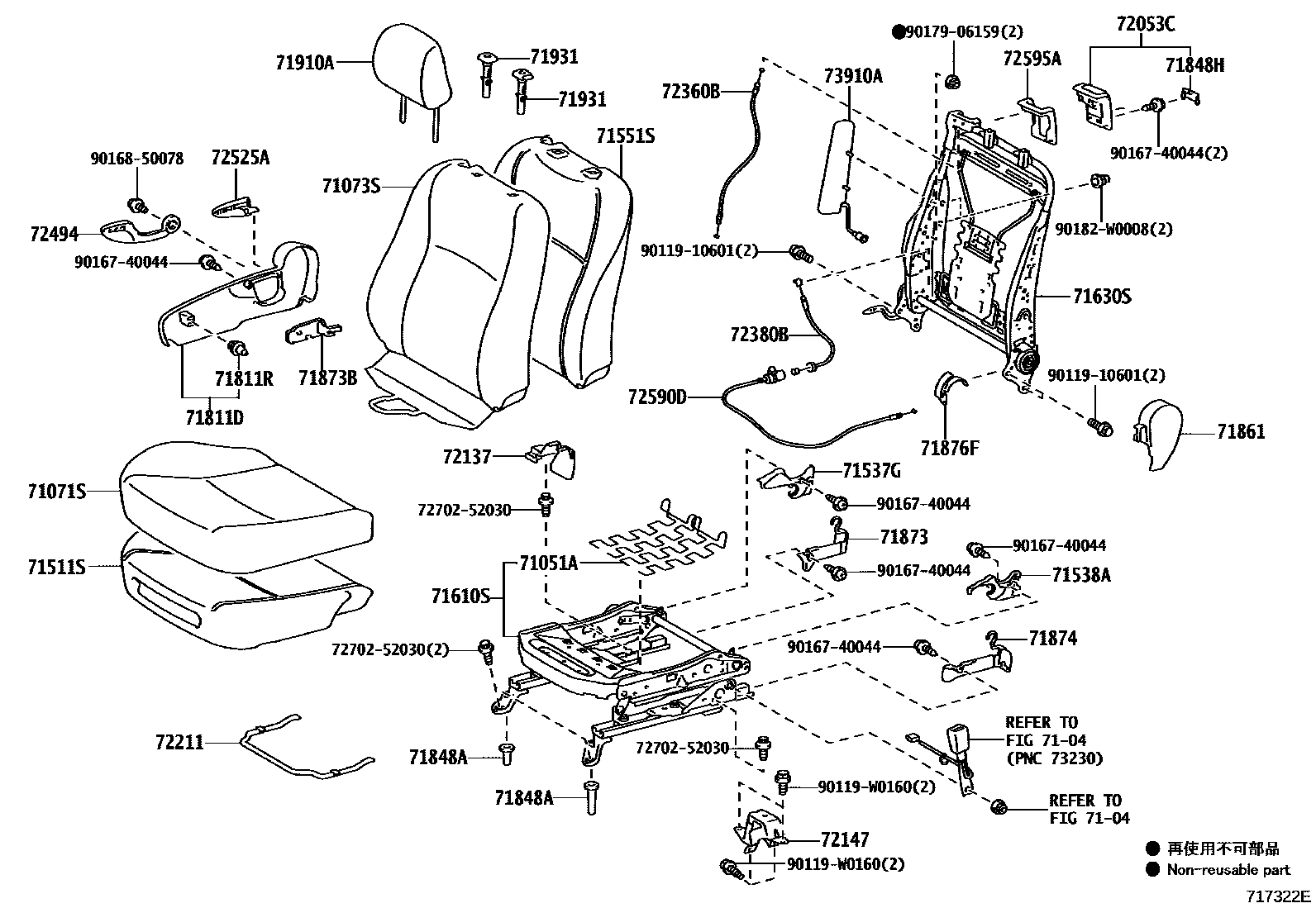

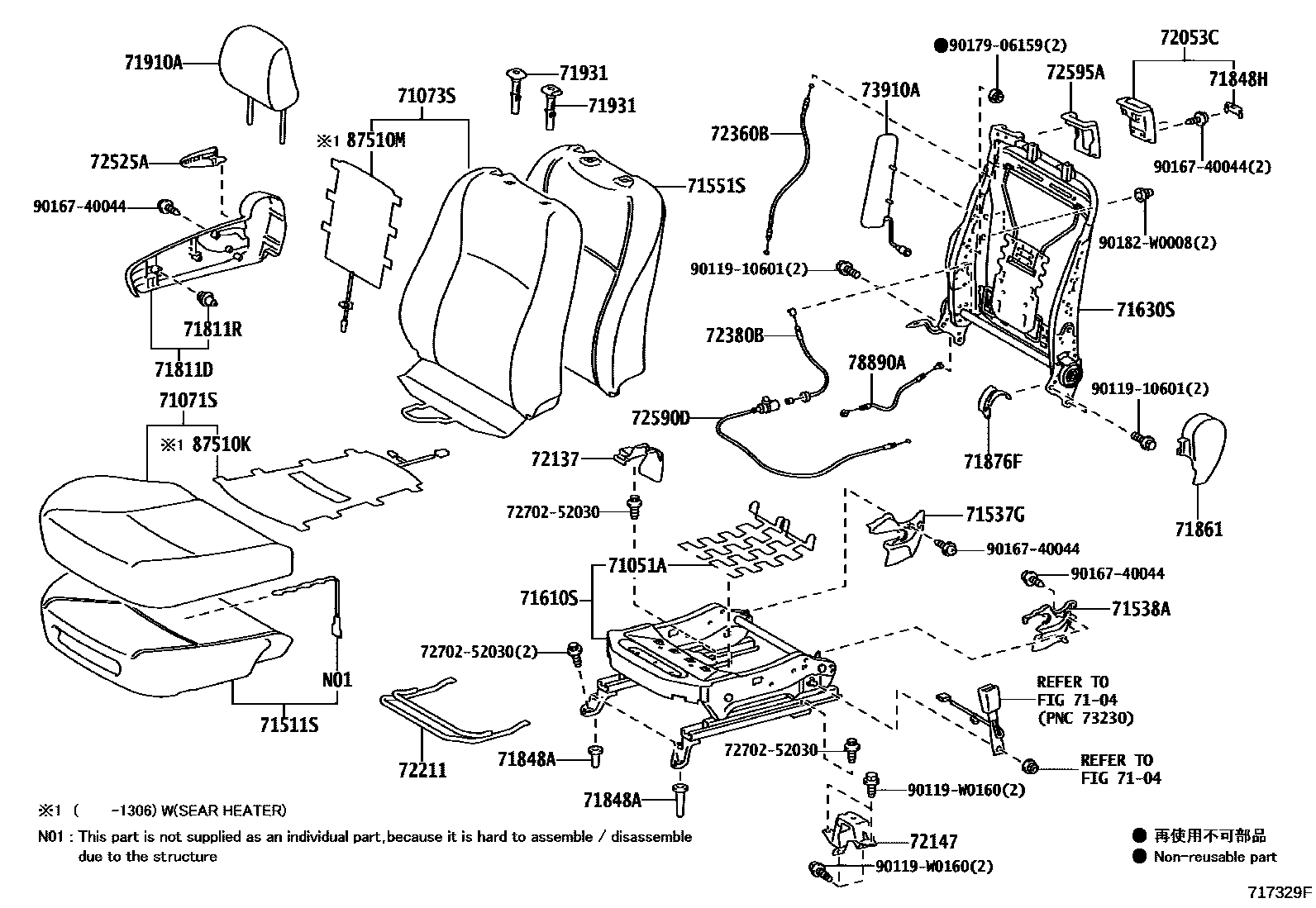

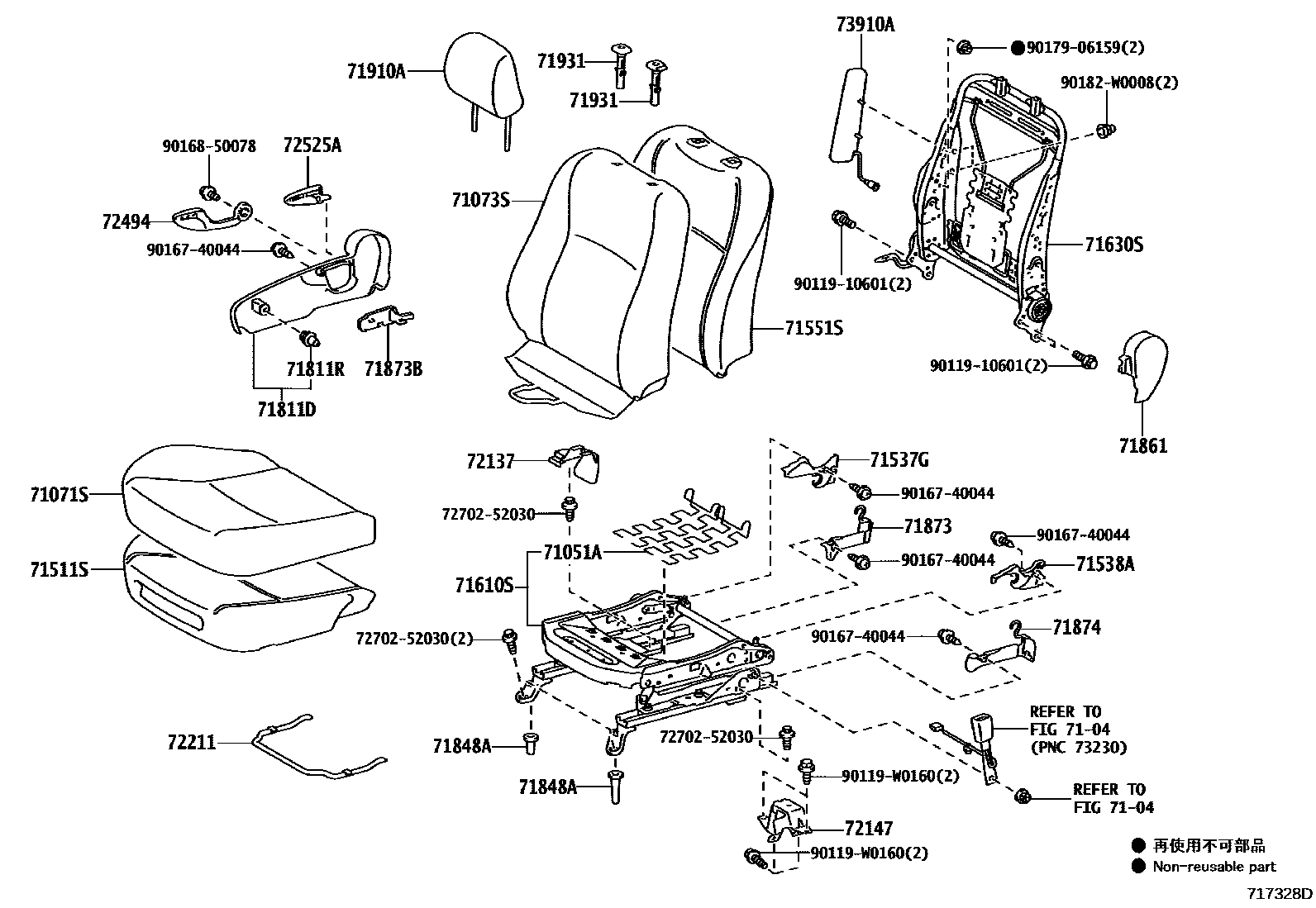

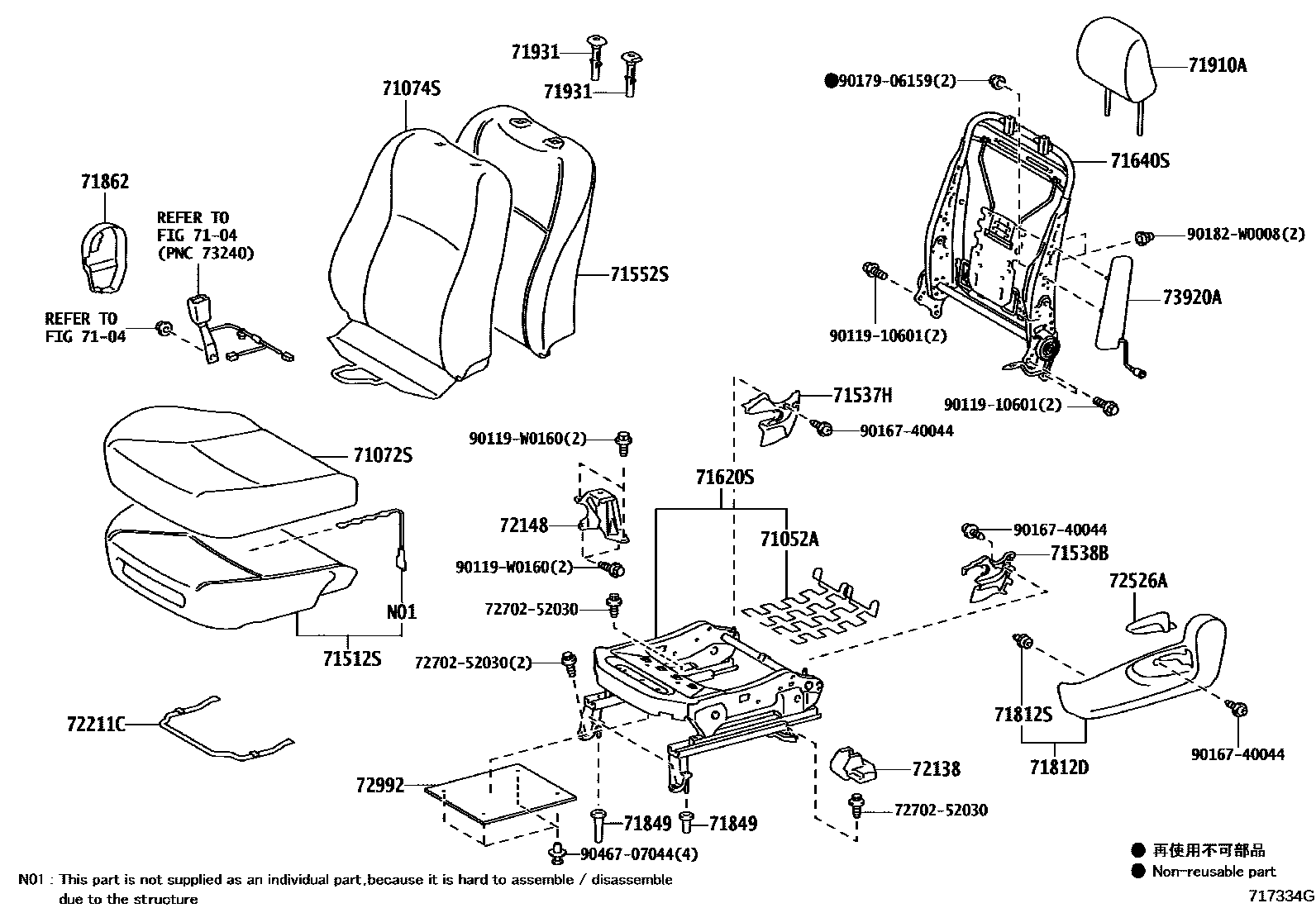

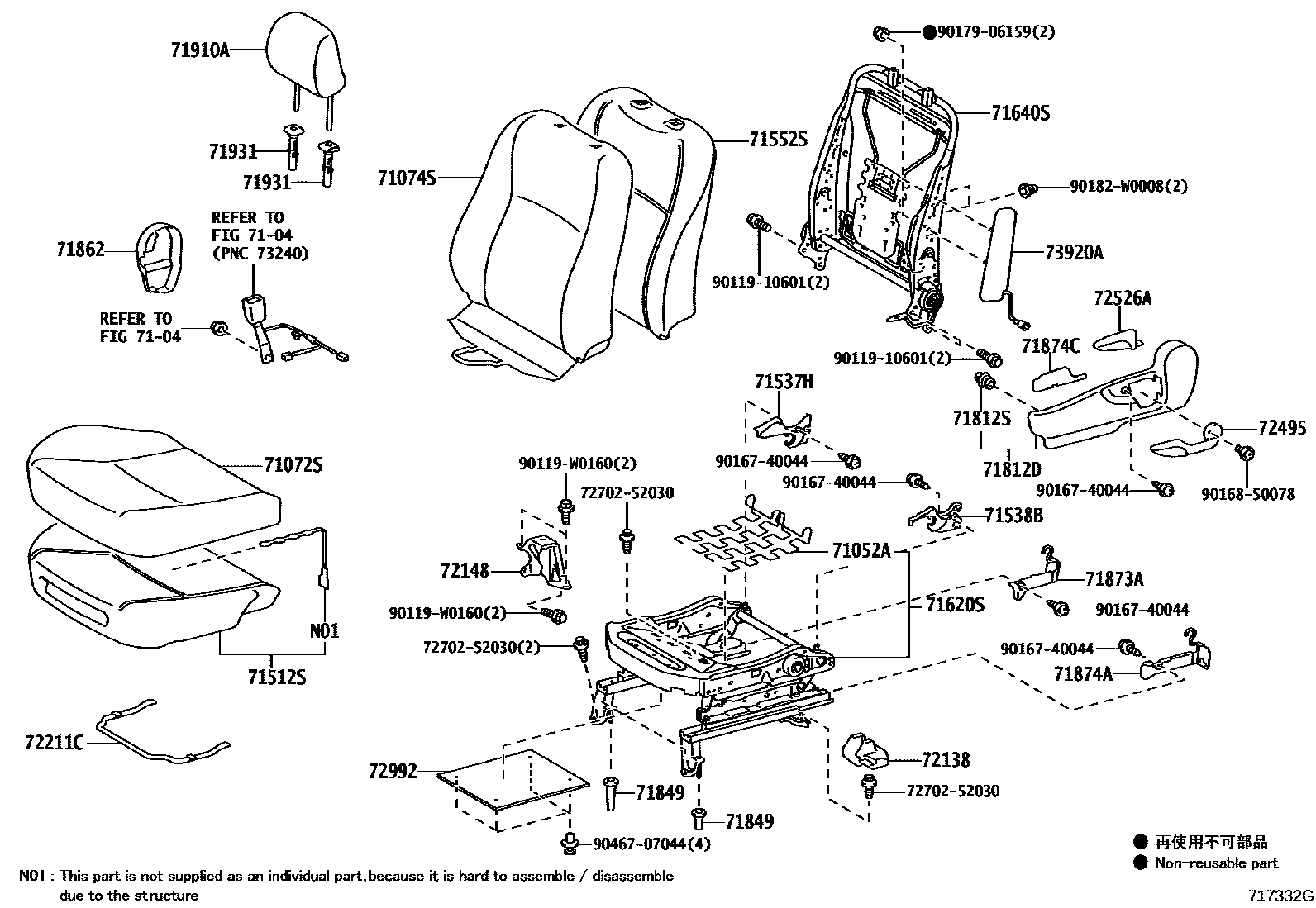

Toyota YARIS 前排座椅和座椅滑轨 — Figure 7101
Toyota YARIS EPC diagram 7101, 前排座椅和座椅滑轨, with 11 images and 30 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 71051A | Front right seat cushion spring sub-assembly | 71051-0D060 |
| 71052A | Front left seat cushion spring sub-assembly | 71051-0D060 |
| 71511S | Front right seat cushion cushion (for split seats) | 71051-0D080 · 71501-0D040 · 71511-0D210 · 71511-0D230 |
| 71512S | Front left seat cushion cushion (for split seats) | 71052-0D020 · 71502-0D040 · 71512-0D190 · 71512-0D210 |
| 71551S | Front right seat back cushion (for split seats) | 71551-0D290 · 71551-0D300 |
| 71552S | Front left seat back cushion (for split seats) | 71552-0D210 · 71552-0D220 · 71552-0D230 |
| 71610S | Front right seat cushion spring assembly (for split seats) | 71610-0D151 · 71610-0D152 · 71610-0D153 · 71610-0D171 · 71610-0D172 · 71610-0D173 · 71610-0D181 · 71610-0D182 · 71610-0D183 · 71610-0D191 · 71610-0D192 · 71610-0D193 |
| 71620S | Front left seat cushion spring assembly (for split seats) | 71620-0D131 · 71620-0D132 · 71620-0D133 · 71620-0D141 · 71620-0D142 · 71620-0D143 · 71620-0D161 · 71620-0D162 · 71620-0D163 · 71620-0D171 · 71620-0D172 · 71620-0D173 |
| 71811R | Front right seat cushion guard clip | 71769-47020 |
| 71812S | Front left seat cushion guard clip | 71769-47020 |
| 72147 | Front right seat inner slide rail rear lower bracket | 72147-0D060 |
| 72148 | Front left seat inner slide rail rear lower bracket | 72148-0D070 |
| 72211 | Seat slide adjustment handle | 72211-0D110 · 72211-0D120 |
| 72211C | Seat slide adjustment handle | 72211-0D110 · 72211-0D120 |
| 72360B | ENSEMBLE CABLE, EQUILIBRAGE DU REGLEUR D'INCLINAISON MD | 72360-0D020 |
| 72360C | ENSEMBLE CABLE, EQUILIBRAGE DU REGLEUR D'INCLINAISON MG | 72360-0D010 |
| 72380B | ENSEMBLE CABLE, COMMANDE DU REGLEUR DE SIEGE, NO.2 MD | 72380-0D030 |
| 72380C | ENSEMBLE CABLE, COMMANDE DU REGLEUR DE SIEGE, NO.2 MG | 72380-0D030 |
| 72590D | ENSEMBLE CABLE, COMMANDE A DISTANCE DE L'INCLINAISON, MD | 72590-0D030 |
| 72590E | ENSEMBLE CABLE, COMMANDE A DISTANCE DE L'INCLINAISON, MG | 72590-0D010 |
| 72595A | Right seat back tilt remote control base | 72595-0D010 |
| 72596A | Left seat back tilt remote control base | 72595-0D010 |
| 72992 | Front left seat cushion cover | 72991-0D120 |
| 73910A | Front right seat airbag assembly | 73910-0D060 · 73910-0D061 |
| 73920A | Front left seat airbag assembly | 73920-0D060 · 73920-0D061 |
| 78890A | Auxiliary seat lock control cable assembly | 78890-0D010 |
| 87510K | Front right seat cushion heater assembly | 87510-0D050 |
| 87510L | Front left seat cushion heater assembly | 87510-0D050 |
| 87510M | Front right seat back heater assembly | 87530-0D010 |
| 87510N | Front left seat back heater assembly | 87530-0D010 |
