Toyota YARIS 锁芯组件 — Figure 6712

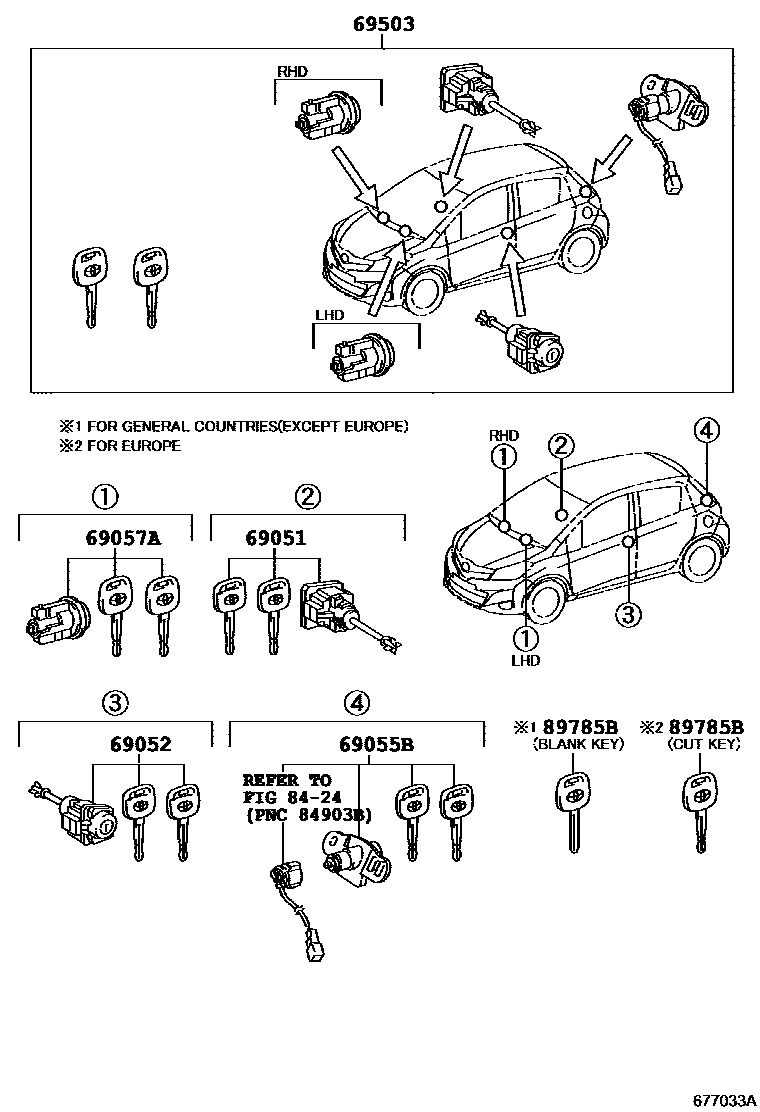

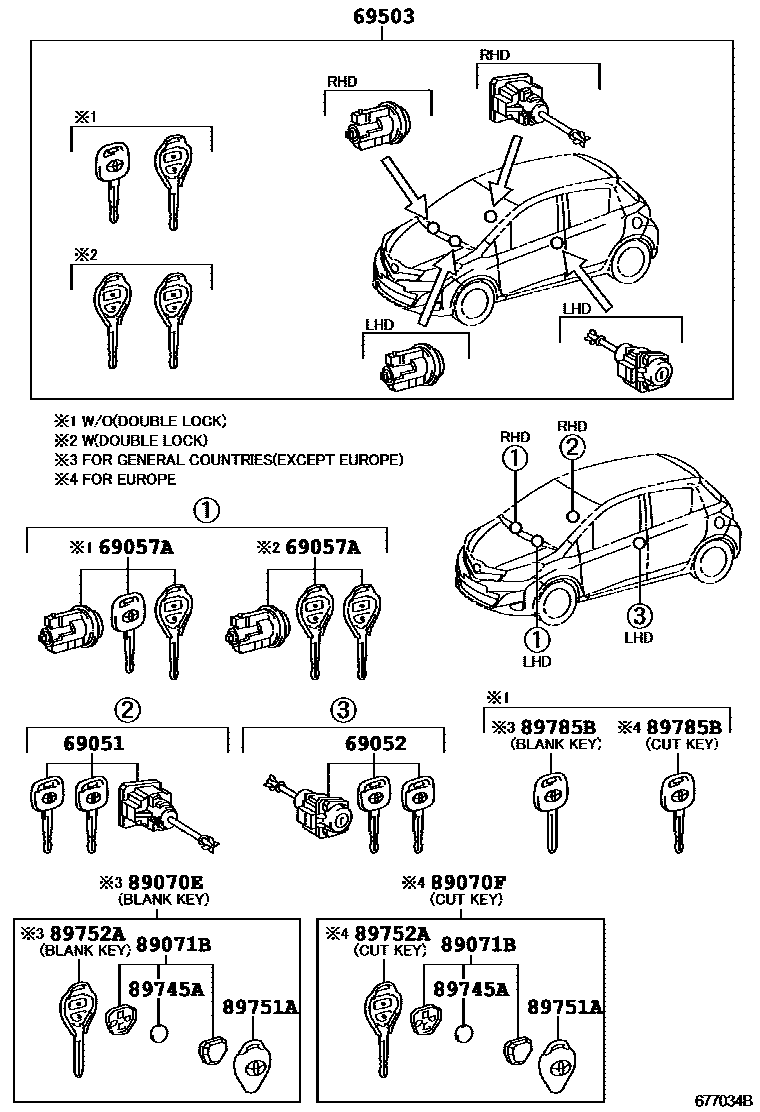

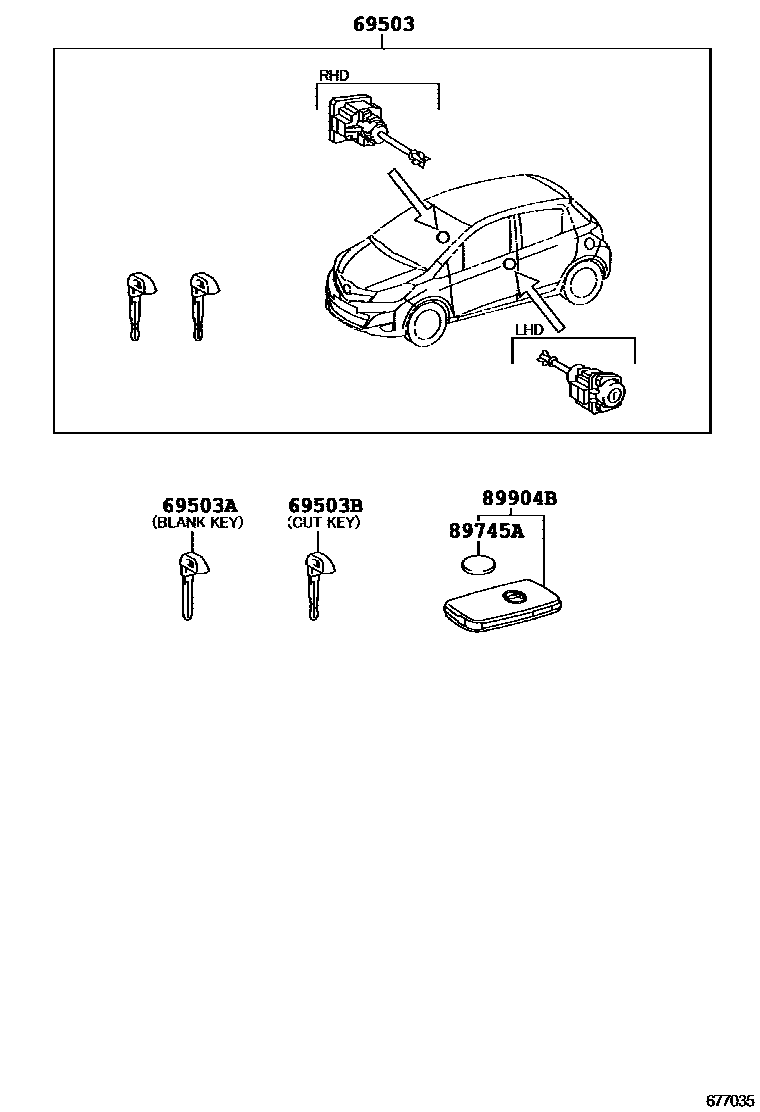

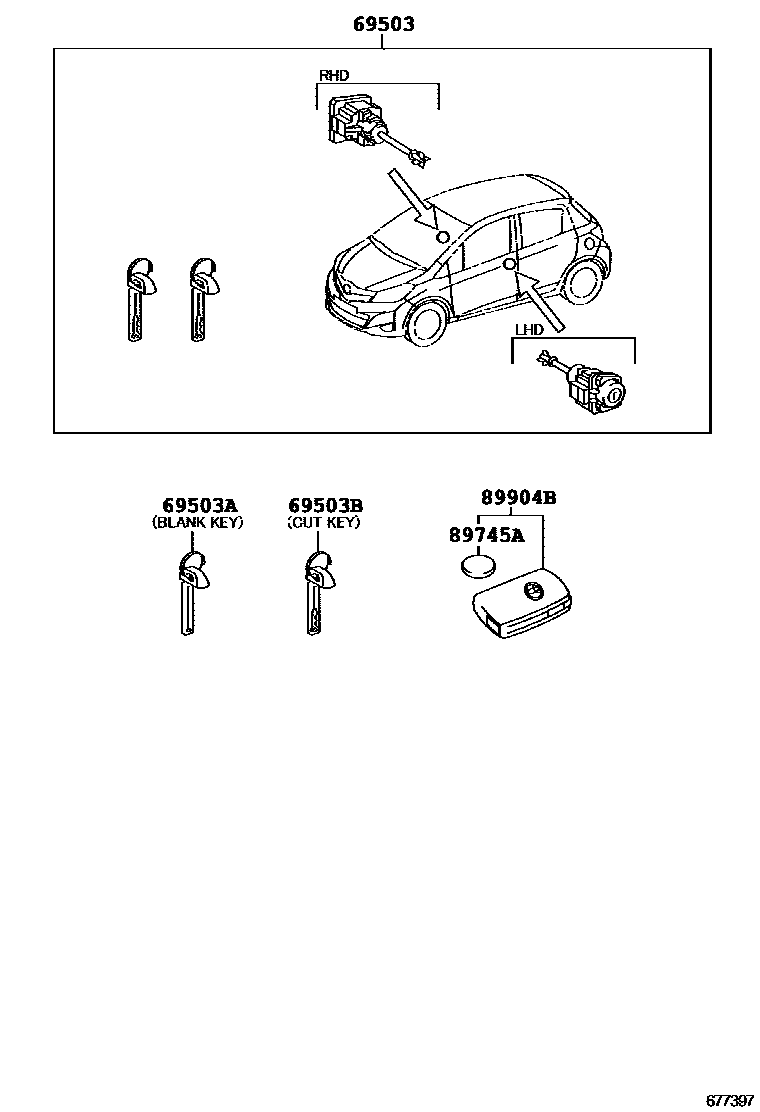

Toyota YARIS EPC diagram 6712, 锁芯组件, with 4 images and 15 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 69051 | Right door lock cylinder and key assembly | 69051-0D080 · 69051-0D140 |
| 69052 | Left door lock cylinder and key assembly | 69052-0D080 |
| 69055B | Rear door lock cylinder and key assembly | 69055-0D070 · 69055-0D280 |
| 69057A | Ignition switch lock cylinder and key assembly | 69057-02530 · 69057-02540 · 69057-02590 · 69057-0D260 · 69057-0D270 · 69057-0D280 |
| 69503 | Door lock cylinder components | 69005-0D280 · 69005-0D470 · 69005-0D480 · 69005-0D490 · 69005-0D500 · 69005-0D510 · 69005-0D570 · 69005-0D580 · 69005-0DA60 |
| 69503A | external tooth key | 69515-0D030 · 69515-33100 |
| 69503B | internal tooth key | 69515-0D020 · 69515-33090 |
| 89070E | Remote key assembly | 89070-02570 |
| 89070F | Remote key assembly (internal tooth key) | 89070-02550 |
| 89071B | Remote key sub-assembly module assembly | 89071-0F060 |
| 89745A | Transmitter battery | 89745-0D020 · 89745-0H010 · 89745-50020 |
| 89751A | Transmitter housing cover | 89751-05010 |
| 89752A | transmitter housing | 89752-02230 · 89752-02250 |
| 89785B | transceiver key master transmitter | 89785-02230 · 89785-02250 |
| 89904B | Electronic key transmitter sub-assembly | 89904-0D100 · 89904-0D130 |
