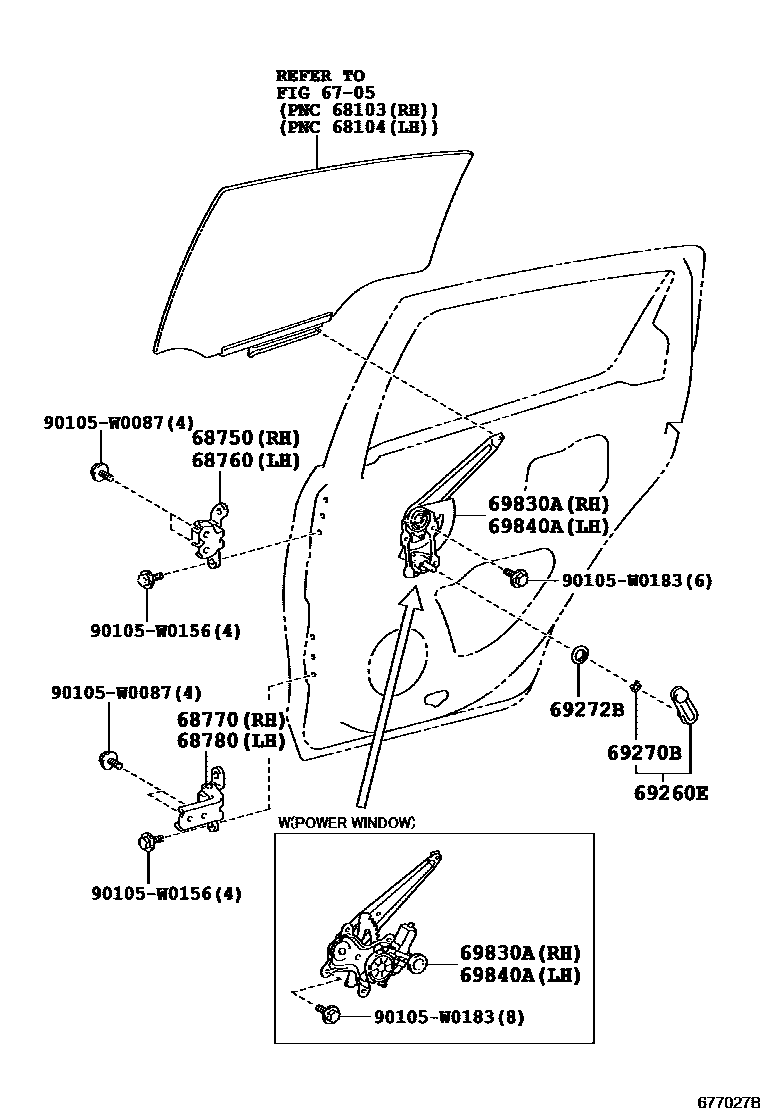

Toyota YARIS 后门车窗升降器和合页 — Figure 6707
Toyota YARIS EPC diagram 6707, 后门车窗升降器和合页, with 1 images and 8 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 68750 | Right rear door upper hinge assembly | 68750-0D060 · 68750-0D061 |
| 68760 | Left rear door upper hinge assembly | 68760-0D060 · 68760-0D061 |
| 68770 | Right rear door lower hinge assembly | 68770-0D070 · 68770-0D071 |
| 68780 | Left rear door lower hinge assembly | 68780-0D070 · 68780-0D071 |
| 69270B | Shaft snap ring (for rear door window regulator handle) | 90080-52100 |
| 69272B | Rear door window regulator inner handle plate | 69268-0D030 |
| 69830A | Right rear door window lift assembly | 69830-0D220 · 69830-0D230 |
| 69840A | Left rear door window lift assembly | 69840-0D220 · 69840-0D230 |
