Toyota YARIS 后门板和后门玻璃 — Figure 6705

Toyota YARIS EPC diagram 6705, 后门板和后门玻璃, with 2 images and 30 PNC and OE references.

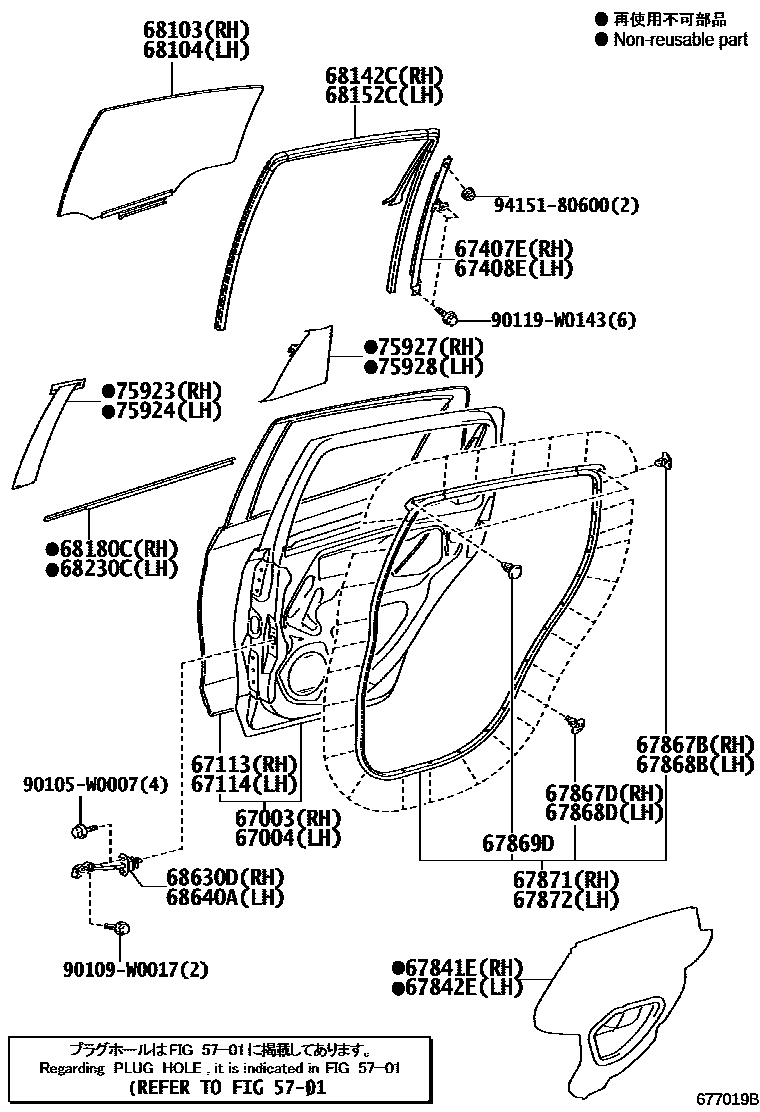

Toyota YARIS 后门板和后门玻璃 EPC diagram — 677019B
后门板和后门玻璃 — 677019B (201107 – 999999)

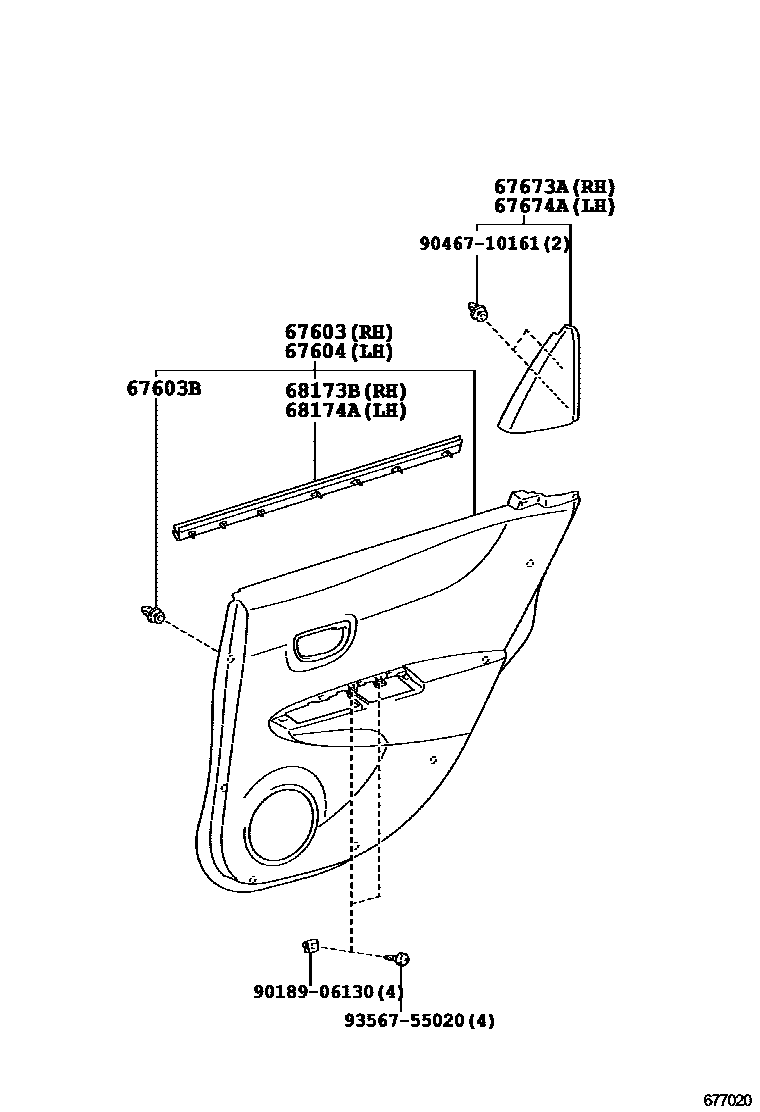

Toyota YARIS 后门板和后门玻璃 EPC diagram — 677020
后门板和后门玻璃 — 677020 (201107 – 999999)

PNC and OE references

PNCPart nameOE numbers
67003Right rear door panel sub-assembly67003-0D190
67004Left rear door panel sub-assembly67004-0D210
67113Right rear door outer panel67113-52150
67114Left rear door outer panel67114-52210
67407ERight rear door window divider sub-assembly67407-52170
67408ELeft rear door window divider sub-assembly67408-52170
67603BCatch (for rear door trim panel)90467-09206
67841ERight rear door access hole cover67841-0D120 · 67841-0D130
67842ELeft rear door access hole cover67841-0D120 · 67841-0D130
67867BDoor seal strip clip (for rear door)67867-52020
67867DRight rear door seal strip fixing67867-12150
67868BDoor glass seal strip clip (for rear door)67867-52010
67868DLeft rear door seal strip fixing67867-12150
67869DCar door seal strip clip90467-06084
67871Right rear door sealing strip67871-0D090
67872Left rear door sealing strip67872-0D090
68103Right rear door glass sub-assembly68130-0D200 · 68130-0D210
68104Left rear door glass sub-assembly68140-0D200 · 68140-0D210
68142CRight rear door glass lift slot68142-0D120
68152CLeft rear door glass lift slot68152-0D100
68173BRight rear door glass inner sealing strip68173-0D110
68174ALeft rear door glass inner sealing strip68174-0D110
68180CRight rear door glass outer sealing strip assembly68180-0D130
68230CLeft rear door glass outer sealing strip assembly68230-0D130
68630DRight rear door opening limiter assembly68630-52120
68640ALeft rear door opening limiter assembly68630-52120
75923No. 2 right side light-shielding film75923-0D060 · 75923-0D180
75924No. 2 left shading film75924-0D060 · 75924-0D180
75927No. 4 right side light-blocking film75927-0D020
75928No. 4 left shading film75928-0D020
