Toyota YARIS 前门板和前门玻璃 — Figure 6701

Toyota YARIS EPC diagram 6701, 前门板和前门玻璃, with 3 images and 38 PNC and OE references.

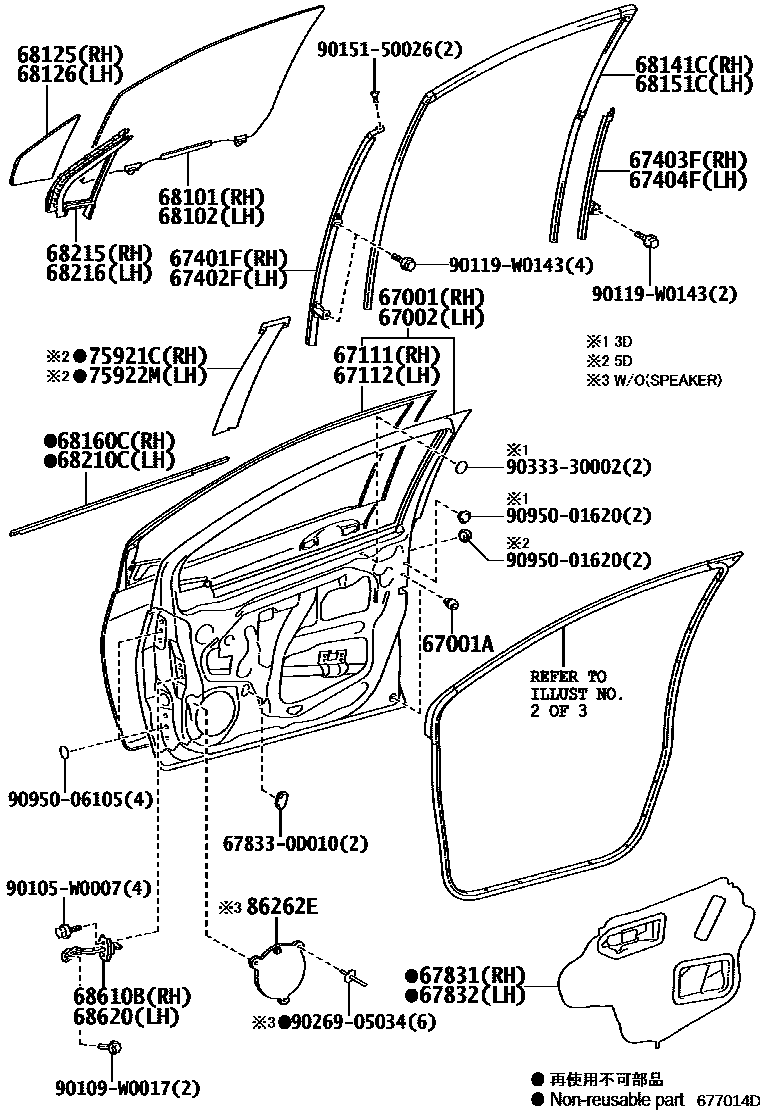

Toyota YARIS 前门板和前门玻璃 EPC diagram — 677014D
前门板和前门玻璃 — 677014D (201107 – 999999)

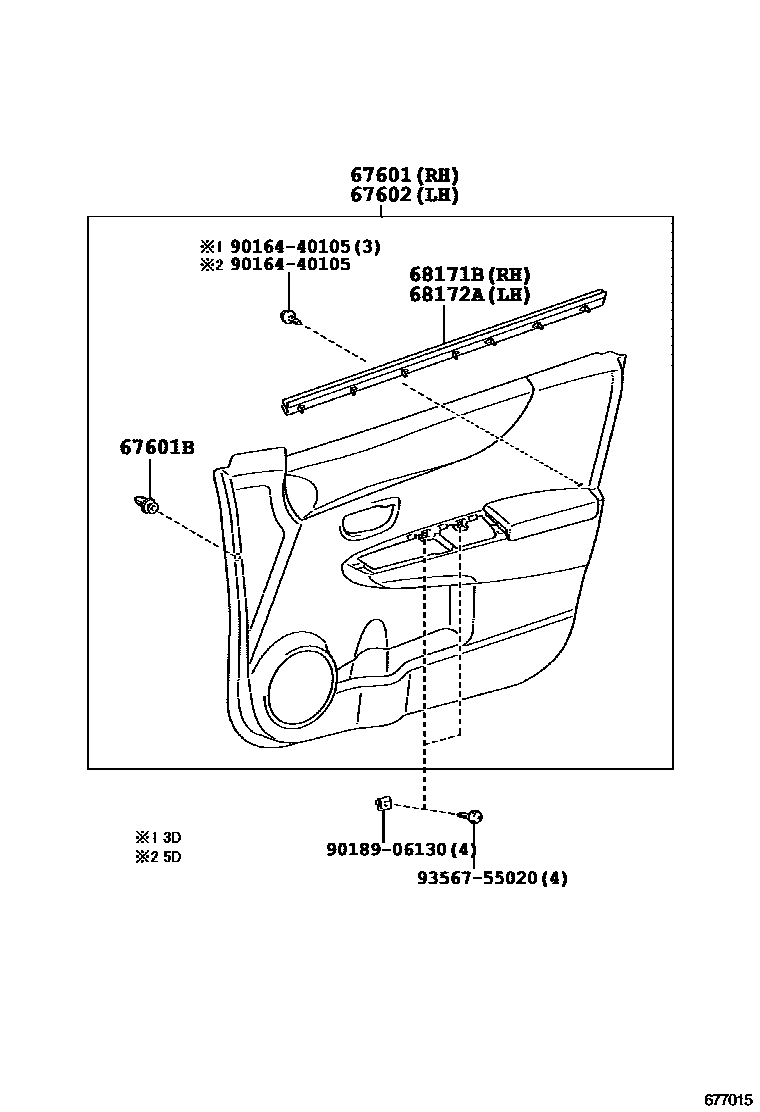

Toyota YARIS 前门板和前门玻璃 EPC diagram — 677015
前门板和前门玻璃 — 677015 (201107 – 999999)

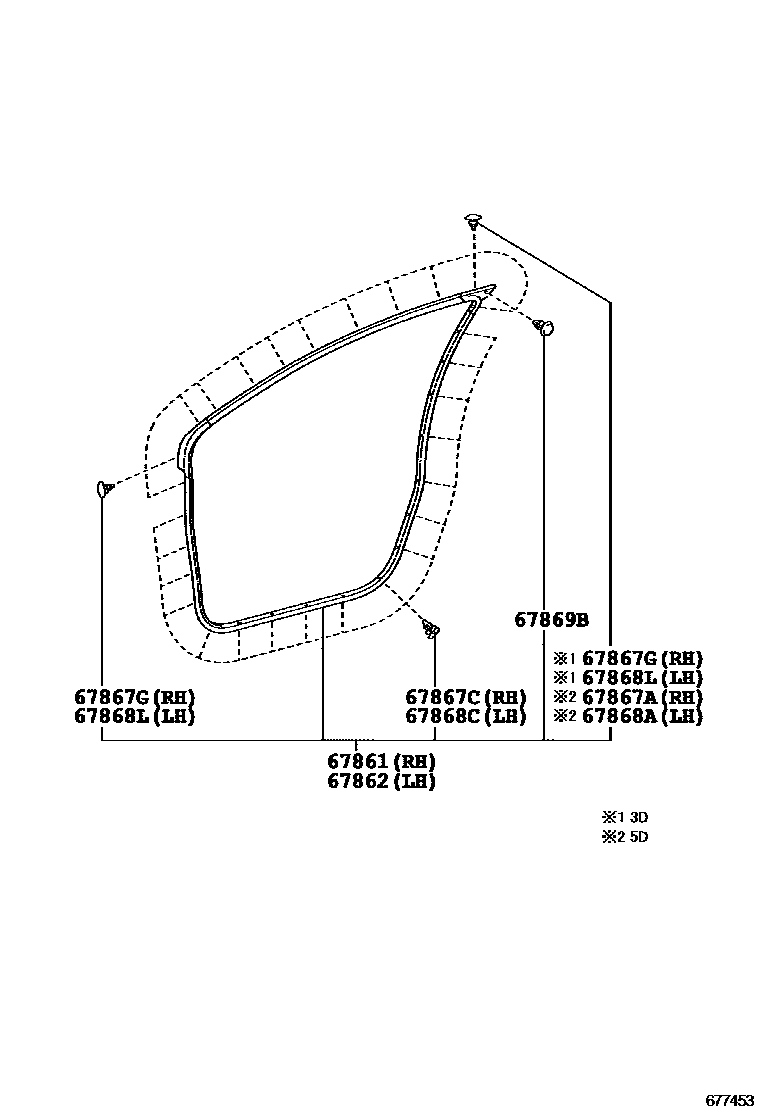

Toyota YARIS 前门板和前门玻璃 EPC diagram — 677453
前门板和前门玻璃 — 677453 (201107 – 999999)

PNC and OE references

PNCPart nameOE numbers
67001Right front door panel sub-assembly67001-0D230 · 67001-0D240
67001AFront door panel cushion90541-09124
67002Left front door panel sub-assembly67002-0D230 · 67002-0D240
67111Outer right front door panel67111-52210 · 67111-52220
67112Outer left front door panel67112-52200 · 67112-52210
67401FRight front door front lower door frame sub-assembly67401-52160 · 67401-52180
67402FLeft front door front lower door frame sub-assembly67402-52150 · 67402-52170
67403FRight front door rear lower door frame sub-assembly67403-52240 · 67403-52250
67404FLeft front door rear lower door frame sub-assembly67404-52210 · 67404-52220
67601BCatch (for front door trim panel)90467-09206
67831Right front door access hole cover67831-0D180 · 67831-0D190 · 67831-0D230
67832Left front door access hole cover67832-0D050 · 67832-0D060 · 67832-0D140
67861Right front door seal67861-0D130 · 67861-0D140
67862Left front door seal67862-0D120 · 67862-0D130
67867ADoor seal strip clip (for front door)90467-04034
67867CRight front door seal strip fixing67867-12150
67867GRight door sealing strip fixing67867-52020 · 67867-52040
67868ADoor glass seal strip clip (for front door)90467-04034
67868CLeft front door seal strip fixing67867-12150
67868LLeft door seal strip fixing67867-52010 · 67867-52030
67869BFront door seal strip clip90467-06084
68101Right front door glass sub-assembly68110-0D190 · 68110-0D191 · 68110-0D200 · 68110-0D201
68102Left front door glass sub-assembly68120-0D190 · 68120-0D191 · 68120-0D200 · 68120-0D201
68125Right front door fixed window glass68125-0D020 · 68125-0D021
68126Left front door fixed window glass68126-0D020 · 68126-0D021
68141CRight front door glass lift channel68141-0D160 · 68141-0D170
68151CLeft front door glass lift channel68151-0D150 · 68151-0D160
68160CRight front door glass outer sealing strip assembly68160-0D150 · 68160-0D160
68171BRight front door glass inner sealing strip68171-0D120 · 68171-0D130
68172ALeft front door glass inner sealing strip68172-0D120 · 68172-0D130
68210CLeft front door glass outer sealing strip assembly68210-0D150 · 68210-0D160
68215Right front door fixed window seal68215-0D040
68216Left front door fixed window seal68216-0D040
68610BRight front door opening limiter assembly68610-52130 · 68610-52180
68620Left front door opening limiter assembly68610-52130 · 68610-52180
75921CNo. 1 right side light-shielding film75921-0D060 · 75921-0D160
75922MNo. 1 left shading film75922-0D060 · 75922-0D160
86262Efront speaker cover86262-50010
