Toyota YARIS 底板和底板装饰罩 — Figure 6404

Toyota YARIS EPC diagram 6404, 底板和底板装饰罩, with 5 images and 6 PNC and OE references.

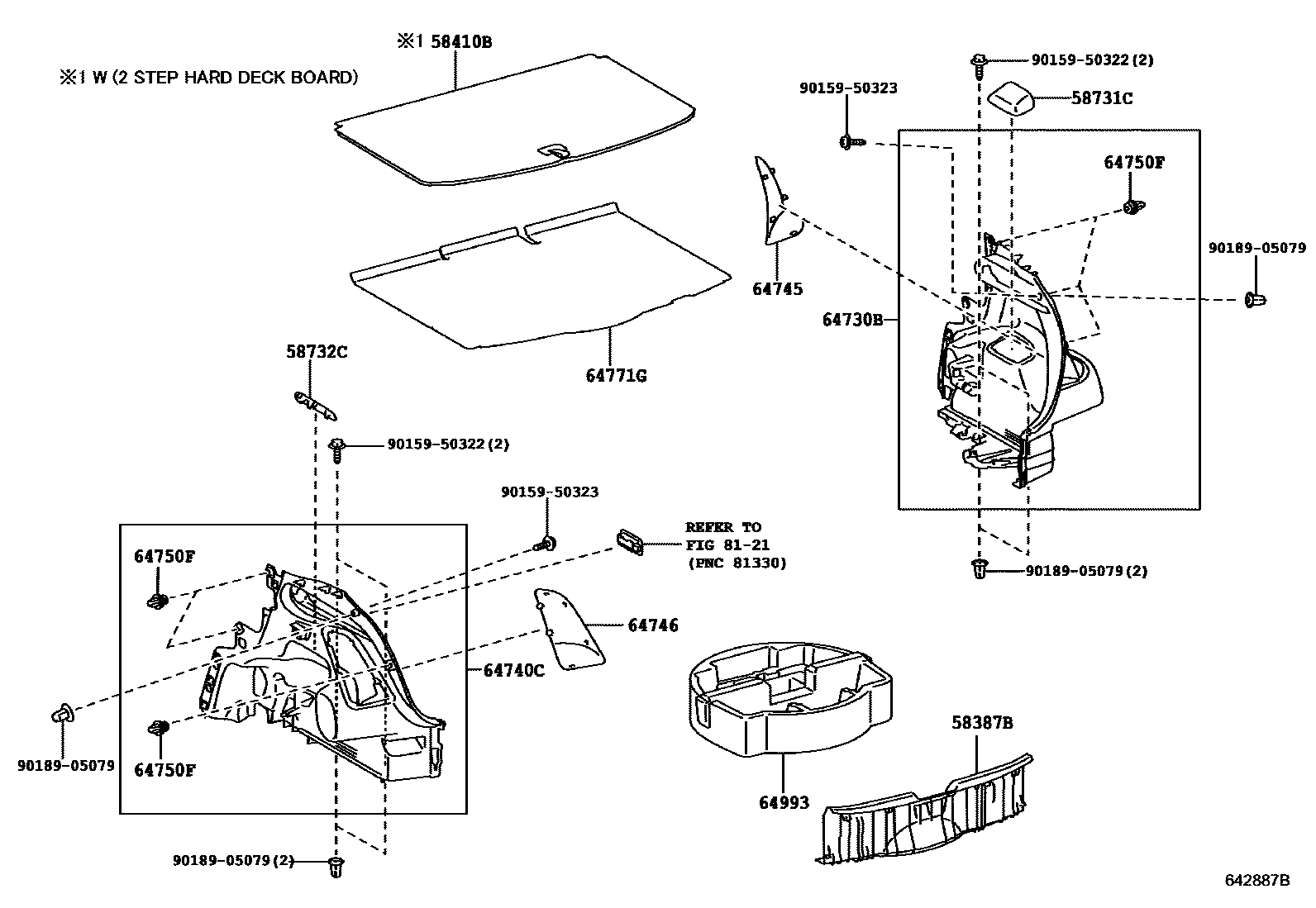

Toyota YARIS 底板和底板装饰罩 EPC diagram — 642887B
底板和底板装饰罩 — 642887B (201107 – 999999)

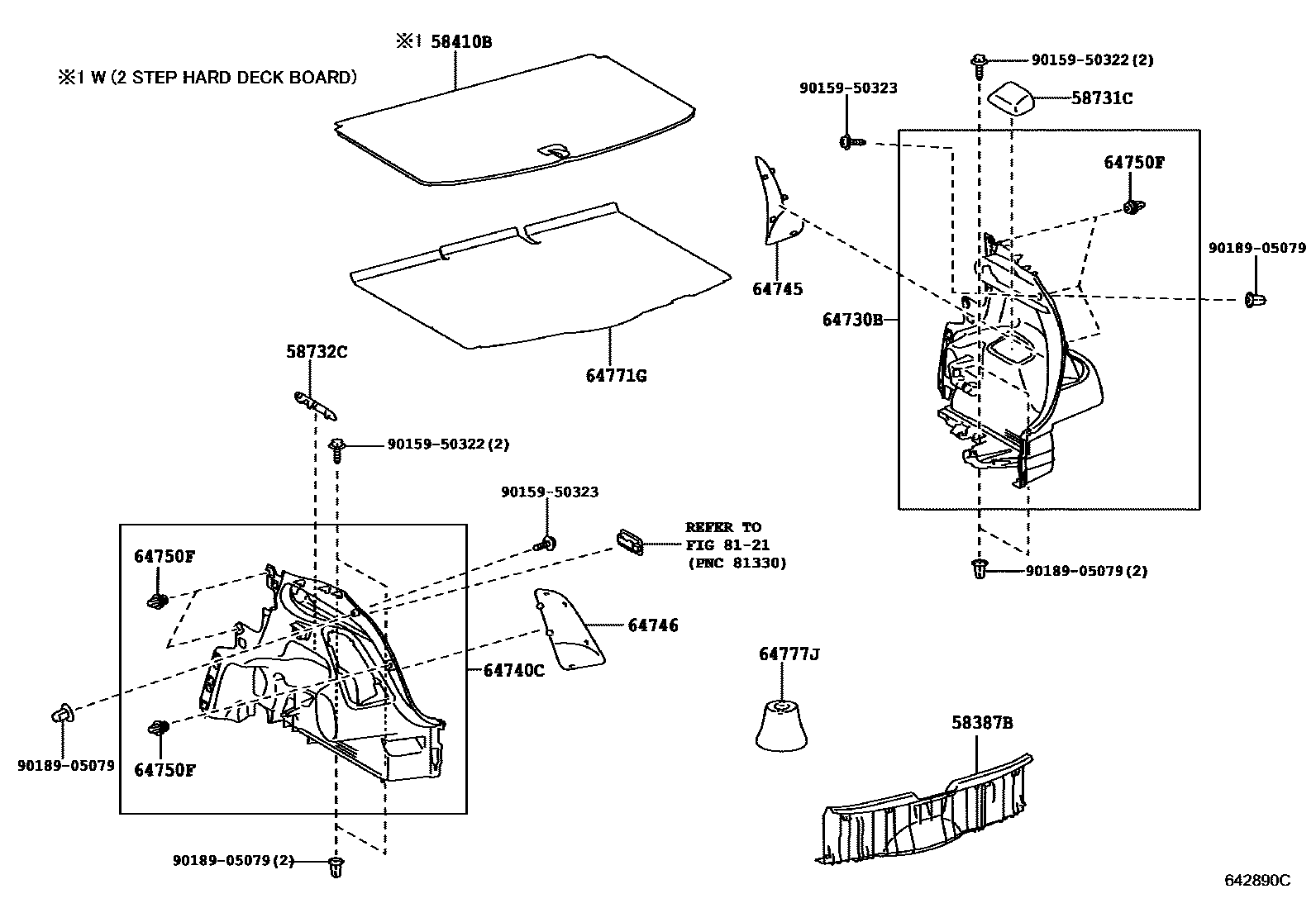

Toyota YARIS 底板和底板装饰罩 EPC diagram — 642890C
底板和底板装饰罩 — 642890C (201107 – 999999)

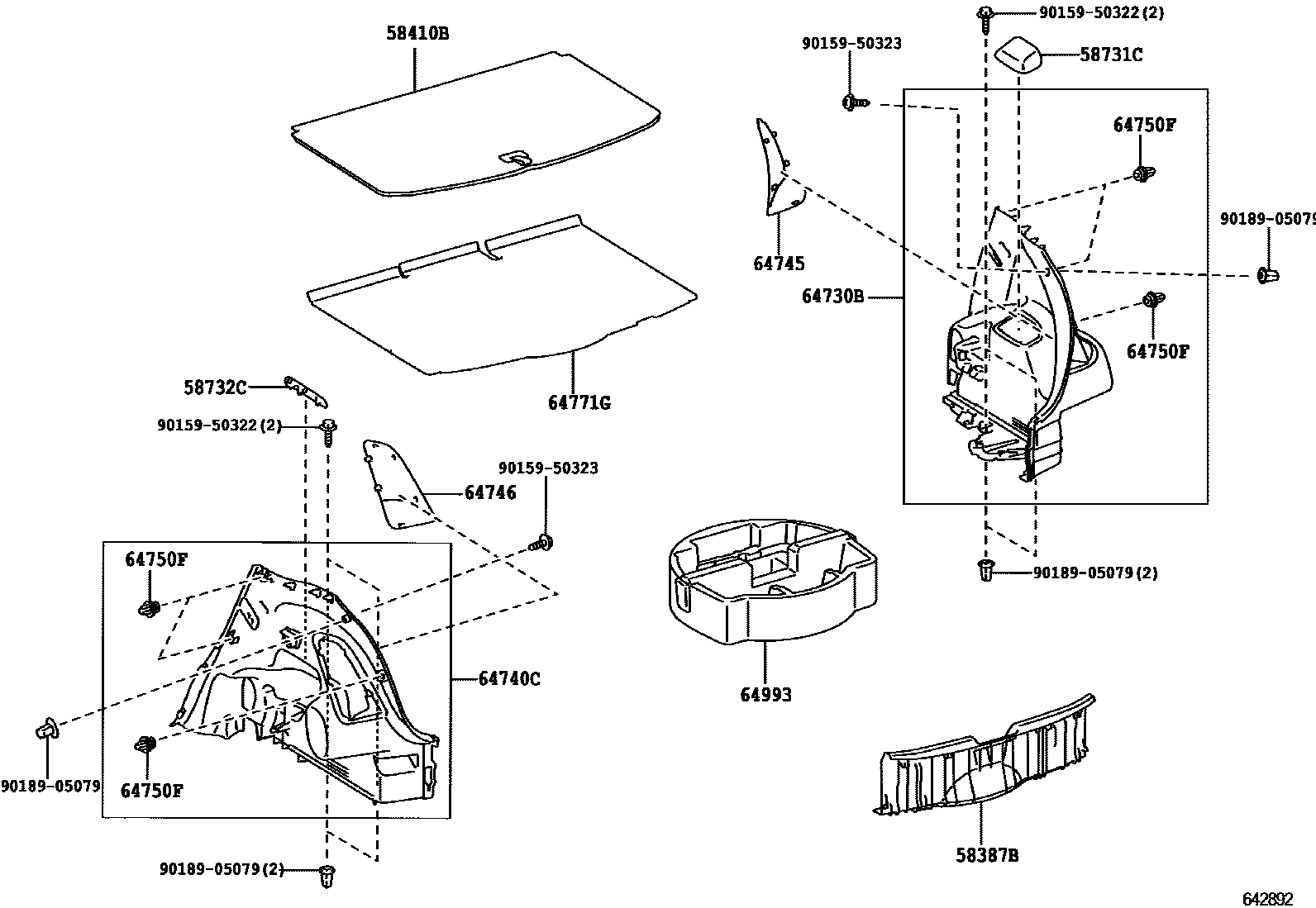

Toyota YARIS 底板和底板装饰罩 EPC diagram — 642892
底板和底板装饰罩 — 642892 (201107 – 999999)

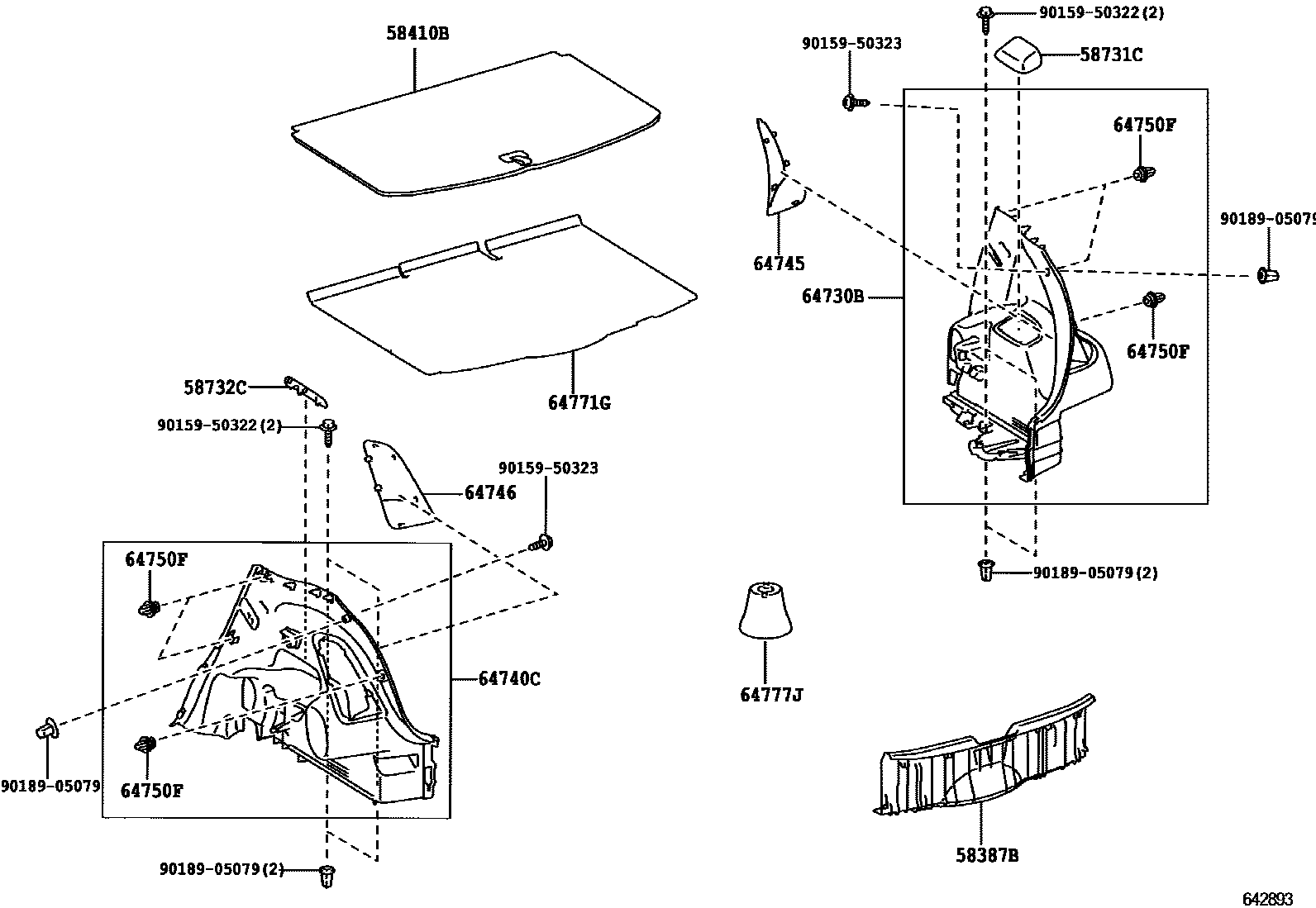

Toyota YARIS 底板和底板装饰罩 EPC diagram — 642893
底板和底板装饰罩 — 642893 (201107 – 999999)
Toyota YARIS 底板和底板装饰罩 EPC diagram — 642895A
底板和底板装饰罩 — 642895A (201107 – 999999)

PNC and OE references

PNCPart nameOE numbers
64306Glove box decorative panel fixed rod sub-assembly64306-0D090
64376No. 2 glove box decorative panel spacer64376-0D010
64381AGlove box decorative panel hanger64381-52010
64750FClip (for bottom panel side decorative panel)63395-12150
64777JSpare tire cushion64777-0D060
64993Bottom floor box64993-0D010 · 64993-0D030 · 64993-0D040 · 64993-52120
