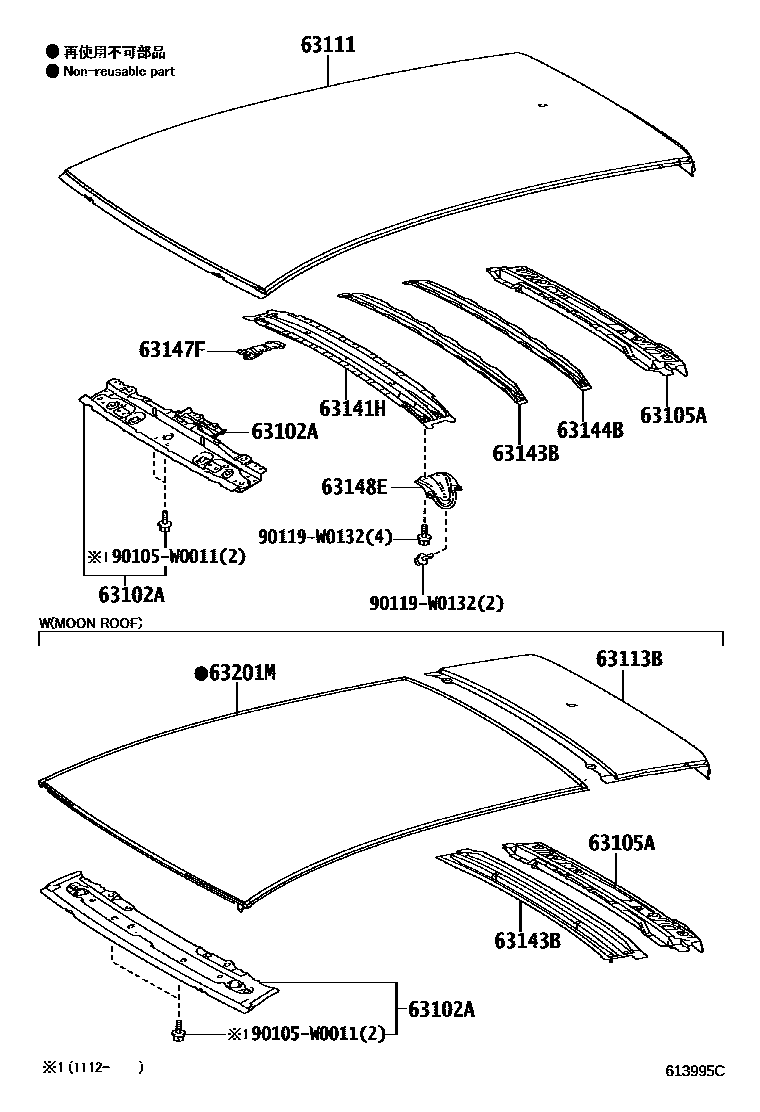

Toyota YARIS 天窗板和背窗玻璃 — Figure 6104
Toyota YARIS EPC diagram 6104, 天窗板和背窗玻璃, with 1 images and 10 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 63102A | Windshield roof sub-assembly | 63102-0D020 · 63102-0D021 · 63102-0D070 · 63102-0D071 |
| 63105A | Back door opening frame sub-assembly | 63105-0D060 |
| 63111 | roof panel | 63111-0D150 |
| 63113B | rear roof panel | 63113-0D010 |
| 63141H | Center roof panel reinforcement | 63141-0D100 |
| 63143B | No. 3 roof panel reinforcement | 63143-0D050 · 63143-0D090 |
| 63144B | No. 4 roof panel reinforcement | 63144-0D050 |
| 63147F | Right roof panel reinforcement bracket | 63147-0D050 |
| 63148E | Left roof panel reinforcement bracket | 63147-0D050 |
| 63201M | No. 1 skylight glass sub-assembly | 63201-0D020 |
